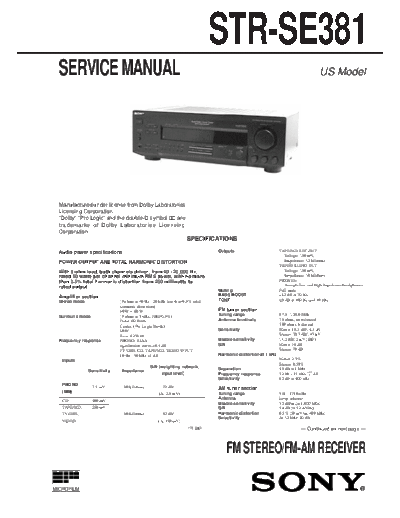

Image preview - the first page of the document



>> Download Sony STR-SE381 documenatation <<

Text preview - extract from the document

                                                                               STR-SE381
  SERVICE MANUAL                                                                                                                       US Model




  Manufactured under license from Dolby Laboratories
  Licensing Corporation.
  "Dolby" "Pro Logic" and the double-D symbol a are
  trademarks of Dolby Laboratories Licensing
  Corporation.
                                                                    SPECIFICATIONS

  Audio power specifications                                                   Outputs                        TAPE/MD REC OUT:
                                                                                                                 Voltage: 150 mV,
  POWER OUTPUT AND TOTAL HARMONIC DISTORTION                                                                     Impedance: 10 kilohms
                                                                                                              VIDEO AUDIO OUT:
  With 8-ohm load, both channels driven, from 40 - 20,000 Hz,                                                    Voltage: 150 mV,
  rated 60 watts per channel minimum RMS power, with no more                                                     Impedance: 10 kilohms
  than 0.5% total harmonic distortion from 250 milliwatts to                                                  PHONES:
  rated output.                                                                                                  Accepts low and high impedance headphones
                                                                               Muting                         Full mute
  Amplifier section                                                            BASS BOOST                     +10 dB at 70 Hz
  Stereo mode                 (8 ohms at 40 Hz - 20 kHz less than 0.5% total   TONE
