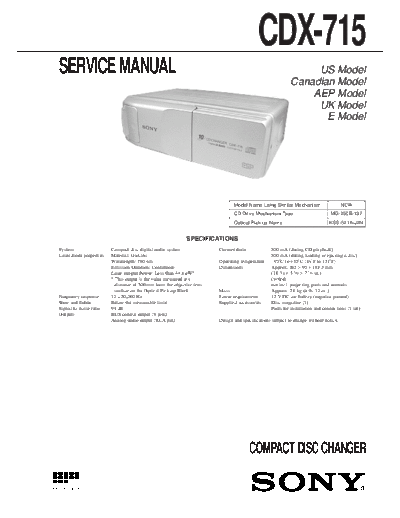

>> Download SonyCDX-715(carCDchanger) documenatation <<Text preview - extract from the document CDX-715
SERVICE MANUAL US Model
Canadian Model
AEP Model
UK Model
E Model
Model Name Using Similar Mechanism NEW
CD Drive Mechanism Type MG-250B-137
Optical Pick-up Name KSS-521A/J2N
SPECIFICATIONS
System Compact disc digital audio system Currnet drain 800 mA (during CD playback)
Laser diode properties Material: GaAlAs 800 mA (during loading or ejecting a disc)
Wavelength: 780 nm Operating temperature
