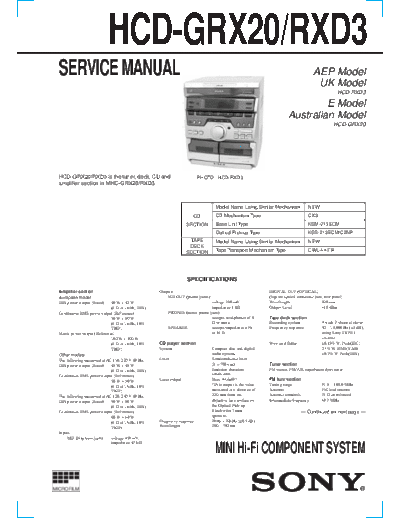

>> Download SonyHCD-GRX20 documenatation <<Text preview - extract from the document HCD-GRX20/RXD3
SERVICE MANUAL AEP Model
UK Model
HCD-RXD3
E Model
Australian Model
HCD-GRX20
HCD-GRX20/RXD3 is the tuner, deck, CD and PHOTO : HCD-RXD3
amplifier section in MHC-GRX20/RXD3.
Model Name Using Similar Mechanism NEW
CD CD Mechanism Type CX3
SECTION Base Unit Type KSM-213ECM
Optical Pick-up Type KSS-213ECM/C2NP
TAPE Model Name Using Similar Mechanism NEW
DECK
SECTION Tape Transport Mechanism Type CWL-44-FR
SPECIFICATIONS
Amplifier section Outputs DIGITAL OUT (OPTICAL)
European model MD OUT (phono jacks): (Square optical connector jack, rear panel)
DIN power output (Rated) 40 W + 40 W voltage 250 mV Wavelength 600 nm
(6 at 1 kHz, DIN) impedance 1 k Output Level
