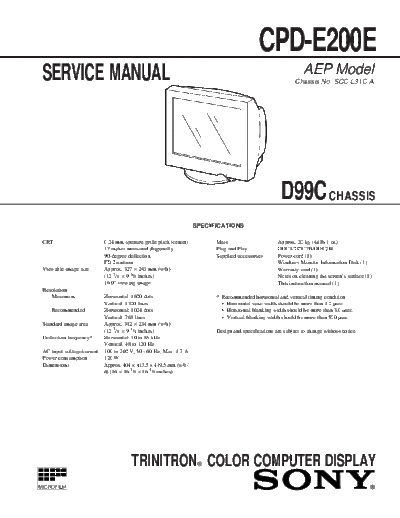

Image preview - the first page of the document



>> Download sony-cpd_e200e documenatation <<

Text preview - extract from the document

                                                                                              CPD-E200E
 SERVICE MANUAL                                                                                                   AEP Model
                                                                                                              Chassis No. SCC-L31C-A




                                                                                                        D99C CHASSIS
                                                                     SPECIFICATIONS

 CRT                        0.24 mm aperture grille pitch (center)         Mass                       Approx. 20 kg (44 lb 1 oz)
                            17 inches measured diagonally                  Plug and Play              DDC1/DDC2B/DDC2Bi
                            90-degree deflection                           Supplied accessories       Power cord (1)
                            FD Trinitron                                                              Windows Monitor Information Disk (1)
 Viewable image size        Approx. 327
