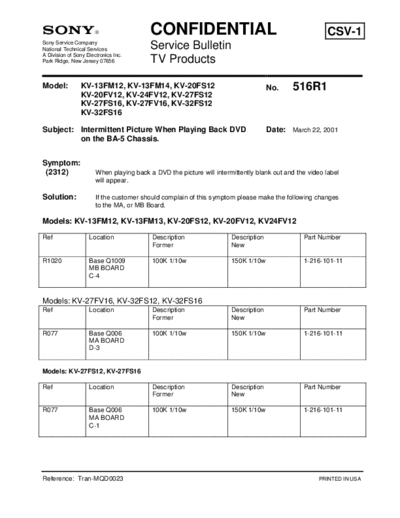

Image preview - the first page of the document



>> Download TVP0516 documenatation <<

Text preview - extract from the document

                                          CONFIDENTIAL                                                  CSV-1
Sony Service Company
National Technical Services               Service Bulletin
A Division of Sony Electronics Inc.
Park Ridge, New Jersey 07656              TV Products

Model:          KV-13FM12, KV-13FM14, KV-20FS12                                     No.    516R1
                KV-20FV12, KV-24FV12, KV-27FS12
                KV-27FS16, KV-27FV16, KV-32FS12
                KV-32FS16

Subject: Intermittent Picture When Playing Back DVD                                 Date: March 22, 2001
         on the BA-5 Chassis.


Symptom:
 (2312)                When playing back a DVD the picture will intermittently blank out and the video label
                       will appear.

Solution:              If the customer should complain of this symptom please make the following changes
                       to the MA, or MB Board.

Models: KV-13FM12, KV-13FM13, KV-20FS12, KV-20FV12, KV24FV12

Ref                 Location              Description                 Description              Part Number
                                          Former                      New

R1020               Base Q1009            100K 1/10w                  150K 1/10w               1-216-101-11
                    MB BOARD
                    C-4


Models: KV-27FV16, KV-32FS12, KV-32FS16
Ref                 Location              Description                 Description              Part Number
                                          Former                      New

R077                Base Q006             100K 1/10w                  150K 1/10w               1-216-101-11
                    MA BOARD
                    D-3


Models: KV-27FS12, KV-27FS16

Ref                 Location              Description                 Description              Part Number
                                          Former                      New

R077                Base Q006             100K 1/10w                  150K 1/10w               1-216-101-11
                    MA BOARD
                    C-1




Reference: Tran-MQD0023                                                                              PRINTED IN USA
TV Products Service Bulletin No. 516
