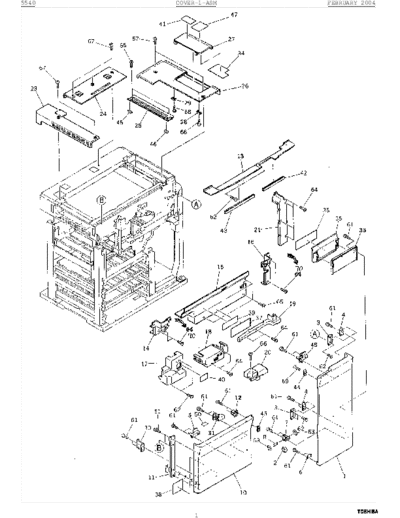

Image preview - the first page of the document
>> Download Toshiba 5540 pc documenatation <<
Text preview - extract from the document
5540 COVER-1-ASM FEBRUARY 2004
1
5540 FEBRUARY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4400 746130 F-COV-FRONT-R 1 1/PP
2 4408 501770 BRG-DR-19-H5R 1 1/P 002 1
2 1 4401 753100 ROLLER-19-H5R 1 1/P C B E F4G247 002
3 4401 752400 K-HINGE-F-R 2 1/P
4 4401 753830 HOLDER-HINGE-FR 2 1/P
5 4401 754450 PUSHER-SW-DOOR 1 1/P
6 4407 764680 MG-CATCH 1 1/P
7 4401 752320 GUIDE-COV-F-R 1 1/P
8 4408 501780 PIN-DOOR-BRG 1 1/P 008 1
8 1 4401 753110 PIN-DOOR-GUIDE 1 1/P C B E F4G247 008
10 4401 752870 F-COV-FRONT-L 1 1/PP
11 4401 754970 HINGE-COV-L 1 1/P
12 4401 752440 BRKT-MG-F-L 1 1/P
13 4401 752650 COV-IN-F-U-U 1 1/PP 013 1
13 1 4402 303290 COV-IN-F-U-U 1 1/PP C E F F98B191 013 VE7
14 4401 752740 K-COV-IN-F-U-L 1 1/PP
15 4401 752600 COV-IN-F-U-C 1 1/PP 015 1
15 1 4402 302890 COV-IN-F-U-C 1 1/PP C E F F97A813 015 VJ6
16 4401 752730 K-COV-IN-F-U-R 1 1/PP 016 1
16 1 4401 900660 K-COV-IN-F-U-R 1 1/PP C E F F95J504 016
17 4401 752690 COV-IN-F-L-L 1 1/PP 017 1
17 1 4401 903400 COVER-IN-F-L-L 1 1/PP C E F F95J504 017
18 4401 752680 COV-IN-F-L-C 1 1/PP 018 1
18 1 4401 900760 COV-IN-F-L-C 1 1/PP C E F F96D653 018 VL5
19 4401 752670 COV-IN-F-L-R 1 1/PP
20 4401 776800 COVER-GUIDE-STK 1 1/PP 020 1
20 1 4401 910190 COVER-GUIDE-STK 1 1/PP C E F F95J504 020 VI5
21 4401 787640 COV-MTR-TRAY 1 1/PP 021 1
21 1 4401 909380 COV-MTR-TRAY 1 1/PP C E F F95J504 021 VE5
23 4401 752000 COVER-TOP-L 1 1/PP
24 4401 752010 COVER-TOP-C 1 1/PP
25 4401 752820 F-FIX-GLASS-R-T 1 1/PP
26 4401 752030 COVER-TOP-R 1 1/PP
27 4401 752280 K-COV-TNR-OPN-T 1 1/PP
28 4401 752050 HINGE-COV-HOP-F 1 1/P
29 4401 752060 HINGE-COV-HOP-R 1 1/P
30 4401 754480 PUSHER-OP-GUIDE 1 1/P
31 4401 754490 PUSHER-OP-RGST 1 1/P
33 4401 752480 PLT-BOOK-HLD 1 1/P
34 4401 768170 LBL-TNR-INST-T 1 5/P
35 4408 541410 BOOK-HOLDER-T 1 1/PP
36 4401 768080 LBL-PFP-JAM 1 1/KP
37 4401 768060 LBL-ADD-JAM 1 1/KP
38 4401 768190 LBL-MEMORY-150 1 5/P
39 4400 841490 LABEL-DRUM-F 1 5/P
40 4400 831630 LBL-HOT 1 5/P
41 4401 768180 LBL-TNR-CAU-1 1 5/P
42 4401 770580 EDGING-EO10-210 1 1/P
43 4401 770590 EDGING-EO10-300 1 1/P
44 4401 751990 PLATE-MG-DF 1 1/P
45 4402 202690 MG-CATCH-15 1 1/P
46 4401 754880 CUSHION-GLASS 2 5/P
47 4401 768300 LBL-TNR-CAU-2 1 5/P
48 4401 754930 ASM-PUSHER-SW-D 1 1/D
50 4401 768620 LBL-SHELL-CAU 1 5/P
61 7040 400811 PAN40*08MSZN3AI 22 50/P
62 4842 040060 TPAN40*08MSZN3L 9 50/P
63 7405 004031 ERR040SKZN3A 2 50/P
64 4842 040700 TZPAN4008MSZN3L 12 50/P 064 1
64 1 4842 040700 TZPAN4008MSZN3L 8 50/P D E E F98D262 064
65 7043 400813 BID40*08MSCR1AI 6 50/P
66 4842 040692 TZPAN3008MSZN3L 1 50/P
67 4842 040635 TBID40*08MSCR3C 8 50/P
68 4842 040846 PTBR30*08MSZN3A 2 50/P
69 7124 400811 12FLT4008MSZN3A 1 50/P 069 1
69 1 7124 401011 12FLT4010MSZN3A 1 50/P C E E F96D653 069 VL5
70 4842 040702 TZPAN4010MSZN3L 4 50/P A E E F98D262
1 TOSHIBA
5540 COVER-2-ASM FEBRUARY 2004
2
5540 FEBRUARY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 752080 COVER-RIGHT-U 1 1/PP 001 1
1 1 4402 868610 COVER-RIGHT-U 1 1/PP C E F F98B191 001 VE7
2 4401 752700 K-COV-IN-R-U 1 1/PP
3 4401 752750 COV-IN-R-L-1 1 1/PP 003 1
3 1 4401 900750 COV-IN-R-L-1 1 1/PP C E F F95J504 003 VE5
4 4401 752760 COV-IN-R-L-2 1 1/P
5 4401 752770 COVER-IN-R-HR-U 1 1/P
6 4401 752780 COVER-IN-R-HR-L 1 1/P
7 4401 752070 COVER-LEFT-U 1 1/PP
8 4401 751180 COVER-EXIT 1 1/PP
9 4401 751810 F-COV-LEFT-L-T 1 1/PP 009 1
9 1 4401 901070 K-COV-LEFT-L-T 1 1/P C E F F95J504 009 VJ5
10 4401 752230 F-COV-REAR-U-T 1 1/PP 010 1
10 1 4401 901000 COVER-REAR-U-T 1 1/PP C E F F95J504 010 VJ5
11 4401 752220 F-COV-REAR-L-T 1 1/PP 011 1
11 1 4401 901010 K-COV-REAR-L-T 1 1/P C E F F95J504 011 VJ5
12 4408 541390 TRAY-T 1 1/PP
13 4401 752970 COVER-R-U-SUB 1 1/P
14 4408 543130 LBL-SERVICE-T 1 5/P
16C 4407 773470 LABEL-GS 1 5/P EUD
16D 4407 773470 LABEL-GS 1 5/P GSD
16E 4407 773470 LABEL-GS 1 5/P FRD
16F 4407 773470 LABEL-GS 1 5/P SED
17F 4408 515500 LBL-SETI 1 5/P SED
18A 4400 740530 LABEL-FCC 1 10/P TAD
19A 4400 361560 STICKER-W-TAIS 1 N/A*** TAD
20D 4402 200640 LBL-RECYCLE 1 5/P GSD
21 4401 755000 SEAL-COV-1 1 1/P
22 4401 755010 SEAL-COV-2 1 1/P
23 4400 745880 BKT-BLIND-L 1 1/P
24 4400 745890 BKT-BLIND-R 1 1/P
25 4400 746190 BKT-COV-BLIND 1 1/P
26 4402 234530 HOLDER-CST-P 2 1/P
27 4400 746180 BKT-PUSH-LEV 1 1/P
28 4400 746200 COVER-BL-CST 1 1/PP
29 4402 233080 PUSHER-LEV-ELV 1 1/P
30A 4401 768740 LBL-PATENT 1 5/P A D J F4J310 030A1 VG4 TAD
30A1 4401 768740 LBL-PATENT 0 5/P B - J F97A793 030A TAD
31B 4400 945700 LABEL-CANADA 1 5/P A - C F5B397 VA5 CSD
32B 4402 090460 LABEL-CE 1 5/P A - C F95H495 VH5 FOR EUROPE
51 4842 040635 TBID40*08MSCR3C 21 50/P
52 4842 040060 TPAN40*08MSZN3L 24 50/P
53 4842 040495 PTBR30*06MSZN3A 2 50/P
54 4842 040849 PTBR40*08MSZN3A 8 50/P
2 TOSHIBA
5540 COVER-3-ASM FEBRUARY 2004
3
5540 FEBRUARY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 752850 F-COV-R-L-F-T 1 1/PP 001 1
1 1 4401 901150 F-COV-R-L-F-T 1 1/PP C E G F96D653 001 2 001
1 2 4401 901170 K-COVER-R-L-F-T 1 1/PP C E E F97A813 001 1
2 4401 752800 COVER-GAP-REAR 1 1/P
3 4401 752100 COVER-U-TNR 1 1/PP
4 4401 752180 F-COVER-BEAM-EN 1 1/PP
5 4401 779820 K-KEY-LCF 1 1/P
6 4401 795400 PWA-F-LCF-150 1 1/SB
7 4401 779380 F-DOOR-LCF 1 1/PP
8 4401 779780 WINDOW-DOOR-LCF 1 1/PP
9 4401 779740 K-HINGE-LCF-DOR 1 1/P
10 4401 780310 BKT-DOOR-CTH-R 1 1/P
11 4401 779990 BACK-PLATE 1 1/P FOR A4
12 4401 779800 COVER-LCF 1 1/PP
13 4402 240580 LBL-LMT-545-LCC 1 5/P
14 4401 779690 CUSHION-5-7-18 2 5/P
15 4401 768610 LBL-U-TNR 1 1/KP
16 4401 752980 SCREW-COV-U-TNR 2 10/P
18 4401 751800 MYLAR-SHIELD-LC 1 1/P
19 4401 798130 WH-LCFKEY-EARTH 1 5/P
20 4401 753800 K-MG-U-TNR 1 5/P
21 4401 779870 LBL-LCF-CAUTION 1 5/P
51 4842 040635 TBID40*08MSCR3C 8 50/P
52 4842 040846 PTBR30*08MSZN3A 10 50/P
53 7040 300611 PAN30*06MSZN3A 4 50/P
54 7044 300611 FLT30*06MSZN3AI 2 50/P
55 4842 040700 TZPAN4008MSZN3L 1 50/P
56 4842 040700 TZPAN4008MSZN3L 1 50/P
3 TOSHIBA
5540 CONTROL-PANEL-ASM FEBRUARY 2004
4
5540 FEBRUARY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1A 4401 751250 F-COV-CNP-UC 1 1/PP TAD
1B 4401 751250 F-COV-CNP-UC 1 1/PP CSD
1C 4401 751260 F-COV-CNP-EU 1 1/PP EUD
1D 4401 751260 F-COV-CNP-EU 1 1/PP GSD
1E 4401 751260 F-COV-CNP-EU 1 1/PP FRD
1F 4401 751260 F-COV-CNP-EU 1 1/PP SED
1G 4401 751260 F-COV-CNP-EU 1 1/PP UKD
1H 4401 751270 F-COV-CNP-AU 1 1/PP AUD
1I 4401 751270 F-COV-CNP-AU 1 1/PP TWD
1J 4401 751270 F-COV-CNP-AU 1 1/PP SAN
1K 4401 751270 F-COV-CNP-AU 1 1/PP EUN
1L 4401 751270 F-COV-CNP-AU 1 1/PP AUN
2A 4400 746060 PANEL-DSP-UC 1 1/KP TAD
2B 4400 746060 PANEL-DSP-UC 1 1/KP CSD
2C 4400 746070 PANEL-DSP-EU 1 1/KP EUD
2D 4400 746070 PANEL-DSP-EU 1 1/KP GSD
2E 4400 746070 PANEL-DSP-EU 1 1/KP FRD
2F 4400 746070 PANEL-DSP-EU 1 1/KP SED
2G 4400 746070 PANEL-DSP-EU 1 1/KP UKD
2H 4400 746080 PANEL-DSP-AU 1 1/KP AUD
2I 4400 746080 PANEL-DSP-AU 1 1/KP TWD
2J 4400 746080 PANEL-DSP-AU 1 1/KP SAN
2K 4400 746080 PANEL-DSP-AU 1 1/KP EUN
2L 4400 746080 PANEL-DSP-AU 1 1/KP AUN
3 4401 751100 MAGNET-CLIP 1 1/P
4 4401 751560 HOOK-CONPANE 3 1/P
5 4401 751690 COVER-EDIT 1 1/PP
6 4401 751950 HOLDER-EDIT 1 1/P 006 1
6 1 4401 751280 HOLDER-EDIT 1 1/P C B D F4G247 006 VD4
COUNTERMEASURE TO SCRATCHES ON THE CONTROL-PANEL SHEET KEYS
7 4401 751820 SPL-EDIT-F 1 5/P
8 4401 751830 SPL-EDIT-R 1 5/P
9 4401 751290 BUTTON-SORT 1 1/P
10 4401 751300 BUTTON-ADF 1 1/P
11 4401 751310 BUTTON-CST 1 1/P
12 4401 752540 K-BUTTON-AMS 1 1/P
13 4401 752550 K-BUTTON-APS 1 1/P
14 4401 751340 BUTTON-ZOOM 1 1/P
15 4401 752560 K-BUTTON-SZ-1 1 1/P
16 4401 752570 K-BUTTON-SZ-2 1 1/P
17 4401 751390 BUTTON-YES/NO 1 1/P
18A 4401 751370 BUTTON-HELP 1 1/P TAD
18B 4401 751370 BUTTON-HELP 1 1/P CSD
18C 4401 751380 BUTTON-INFO 1 1/P EUD
18D 4401 751380 BUTTON-INFO 1 1/P GSD
18E 4401 751380 BUTTON-INFO 1 1/P FRD
18F 4401 751380 BUTTON-INFO 1 1/P SED
18G 4401 751380 BUTTON-INFO 1 1/P UKD
18H 4401 751370 BUTTON-HELP 1 1/P AUD
18I 4401 751370 BUTTON-HELP 1 1/P TWD
18J 4401 751370 BUTTON-HELP 1 1/P SAN
18K 4401 751370 BUTTON-HELP 1 1/P EUN
18L 4401 751370 BUTTON-HELP 1 1/P AUN
19 4401 751430 BUTTON-AUTO 1 1/P
20 4401 751440 BUTTON-EXP-N 1 1/P
21 4401 751410 BUTTON-FUNC-FC 1 1/P
22 4401 752590 K-BUTTON-TIMER 1 1/P
23 4401 751480 BUTTON-1-2-3 1 1/P
24 4401 751490 BUTTON-4-5-6 1 1/P
25 4401 751500 BUTTON-7-8-9 1 1/P
26 4401 751510 BUTTON-CLEAR 1 1/P
27 4401 751520 BUTTON-PRINT 1 1/P
28 4401 751530 BUTTON-0 1 1/P
29 4401 751740 SHIELD-MYLAR 1 1/KP
30 4401 797650 CTR-E750B-150 1 1/P
31 4401 751550 BRKT-COUNTER 1 1/P
32 4401 751750 STAY-CONPANE 1 1/P 032 1
32 1 4401 900530 STAY-CONPANE 1 1/P C B D F96H753 032 VI6
33 4401 770470 BRKT-PNL-R 1 1/P 033 1
4 TOSHIBA
5540 FEBRUARY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
33 1 4402 303260 BRKT-PNL-R 1 1/P C E F F98B191 033 VE7
34 4401 770480 BRKT-PNL-C 1 1/P
35 4401 770490 BRKT-PNL-L 1 1/P
36 4401 751930 COVER-BLIND 1 1/P
37 4401 751860 COV-HANDLE-CNP 1 1/P
38 4401 751870 PIN-HANDLE-CNP 1 1/P
39 4401 751880 SPR-061-080 1 5/P
40 4401 751890 HLDR-HANDLE-CNP 1 1/P
41 4401 795510 PWA-F-DSP-150 1 1/SB
42 4401 795520 PWA-F-EDT-150 1 1/SB
43 4401 797640 DSP-LCD-CFL-150 1 1/D 043 1
43 1 4401 799700 DSP-LCD-CFL-150 1 1/D C E G F4B103 043 VC4
44 4401 796400 WH-LGC-DSP-150 1 1/P
45 4401 752580 K-BUTTON-PHOTO 1 1/P
46 4843 391180 CLP/W-UAMS090 3 10/P
47 4843 391164 BD/W-EDS-1717U 1 10/P
48 4401 751990 PLATE-MG-DF 2 1/P
49A 4401 751680 SHEET-EDIT-UC 1 1/KP TAD
49B 4401 751680 SHEET-EDIT-UC 1 1/KP CSD
49C 4401 751670 SHEET-EDIT-EU 1 1/KP EUD
49D 4401 751670 SHEET-EDIT-EU 1 1/KP GSD
49E 4401 751670 SHEET-EDIT-EU 1 1/KP FRD
49F 4401 751670 SHEET-EDIT-EU 1 1/KP SED
49G 4401 751670 SHEET-EDIT-EU 1 1/KP UKD
49H 4401 751680 SHEET-EDIT-UC 1 1/KP AUD
49I 4401 751680 SHEET-EDIT-UC 1 1/KP TWD
49J 4401 751680 SHEET-EDIT-UC 1 1/KP SAN
49K 4401 751680 SHEET-EDIT-UC 1 1/KP EUN
49L 4401 751680 SHEET-EDIT-UC 1 1/KP AUN
50 4401 795560 PWA-F-CFL-150 1 1/SB
51 4843 390870 PWZ-SPLS-6U 4 5/P
52 4401 751850 SHEET-MYLAR 1 5/P
53 4843 390862 PWZ-SPS-8U 3 5/P
54 4401 768600 LABEL-JOB-MEMO 1 1/KP IN M/C BOX
56 4401 900540 SUPPORTER-PWA 3 5/P A B D F96H753 VI6
57 4401 900570 ASM-BKT-CNP-PWA 1 1/P A B D F96H753 VI6 S/P ONLY
58 4401 788590 CFL-LCD-150 1 1/C A - J F97E904
80 4842 040846 PTBR30*08MSZN3A 61 50/P
81 4842 040060 TPAN40*08MSZN3L 9 50/P
82 7040 300611 PAN30*06MSZN3A 1 50/P
83 7405 003031 ERR030SKZN3A 2 50/P
84 7044 400664 FLT40*06MSCR3C 2 50/P
53 4843 390862 PWZ-SPS-8U 3 5/P
4 TOSHIBA
5540 LOWER-FRAME-1-ASM FEBRUARY 2004
5
5540 FEBRUARY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 787110 FRAME-BASE 1 N/A***
2 4401 787820 K-STAY-BASE 2 1/P
3 4401 787810 SPACER-STY-BASE 4 1/P
4 4401 787800 CASTER-PFP-SG 4 1/P
5 4402 230760 FOOT-PD 4 1/P
6 4401 787420 STAY-BASE-EXIT 1 1/P
7 4401 787180 COLLAR-4*6*1.8 1 5/P
9 4401 754470 HINGE-UTNR-L 1 1/P
10 4401 779480 BASE-LCF 1 1/P
11 4401 779400 RAIL-LCF 2 1/P
12 4401 779410 BKT-RAIL-LCF-F 1 1/P
13 4401 779420 BKT-RAIL-LCF-R 1 1/P
14 4401 754550 BRKT-COV-R-L-F 1 1/P
15 4401 787620 COV-WH-BASE-F 1 1/P
16 4401 787630 COV-WH-BASE-C 1 1/P
17 4843 390889 CLP/W-WS-3U 4 5/P
18 4843 390890 CLP/W-WS-4U 2 5/P
19 4401 787440 GUIDE-HARNESS 1 1/P
20 4843 391164 BD/W-EDS-1717U 2 10/P
21 4401 787190 EDGING-FRM-BASE 4 1/P
22 4401 787160 SCREW-M4-7-R 30 10/P
23 4401 787430 STAY-BASE-F-R 1 1/P
24 4843 390857 CLP/W-LWS-4U 5 5/P
25 4401 787580 STAY-BASE-R 1 1/P
27 4843 390856 CLP/W-LWS-3U 3 5/P F - J F4G247 027 1
27 1 4843 390856 CLP/W-LWS-3U 2 5/P D - E F4L368 027
30 7640 501251 ZPAN50*12MSZN3A 16 50/P
31 4842 040060 TPAN40*08MSZN3L 29 50/P
32 4842 040650 TPAN40*06MSZN3L 8 50/P
33 7360 100011 6/ONUT10MSZN3A 4 50/P
34 4842 040671 TPAN4012MSZN3L 1 50/P
35 4842 040700 TZPAN4008MSZN3L 1 50/P
5 TOSHIBA
5540 LOWER-FRAME-2-ASM FEBRUARY 2004
6
5540 FEBRUARY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 787200 FRAME-AGL-F-EN 1 N/A***
2 4401 787290 BKT-ANGLE-F-EN 1 1/P
3 4401 787330 BKT-SW-MAIN 1 1/P
4 4402 830920 SCREW-FRAME 5 1/P
5 4843 231592 SW-AJ921100Z301 1 1/D
6 4842 414633 GMT-OCB-875 1 10/P
7 4401 787600 COV-SW-MAIN 1 1/P
8 4401 787610 COV-WH-AGL-F-EN 1 1/P
9 4400 808280 EDS-1717U 1 5/P
10 4401 752330 GUIDE-COV-R-L 1 1/P
11 4400 805170 SCREW-LOCK-ARM 2 5/P
12 4401 787240 FRAME-AGL-F-C 1 N/A***
13 4401 787210 FRAME-AGL-F-EX 1 N/A***
14 4401 787220 FRAME-AGL-R-EN 1 N/A***
15 4401 787230 FRAME-AGL-R-EX 1 N/A***
16 4401 787320 FRAME-LO-R 1 N/A***
17 4401 787270 FRAME-BEAM-EN 1 N/A***
18 4401 787250 FRAME-BEAM-F 1 N/A***
19 4401 787260 FRAME-BEAM-R 1 N/A***
20 4401 787280 FRAME-BEAM-EX 1 N/A***
21 4401 752520 K-HINGE-COV-F-L 1 1/P
22 4401 787340 BEAM-F-CST 2 1/P
23 4401 787790 HOLDER-CST-F150 2 1/P
24 4401 779910 BKT-CONECT-LR 1 1/P
25 4401 796180 WH-LCF1-150 1 1/P
26 4402 807030 SCREW-SOCKET 2 10/P
27 4401 779950 COV-CONECT-LR 1 1/P
28 4401 782410 GROMET-KG016-75 1 10/P
29 4843 390869 PWZ-SPLS-4U 6 5/P
30 4843 390859 PWZ-SPS-4U 3 5/P
31 4407 552160 PCSPT-1457 1 10/P
32 4843 390872 PWZ-SPLS-8U 4 5/P
33 4843 390862 PWZ-SPS-8U 4 5/P
34 4401 795700 WH-MAIN-SW-150 1 1/P
35 4843 390890 CLP/W-WS-4U 3 5/P
36 4401 754500 BRKT-COV-R-L 1 1/P
37 4401 754590 HINGE-UTNR-U 1 1/P
38 4401 754580 BRKT-STOP-CTR 1 1/P
39 4401 787500 K-STAY-EXIT 1 1/P
40 4401 795440 PWA-F-PWR-150 1 1/SB
41 4400 748100 PWA-F-PFD-151 1 1/SB
42 4401 795480 PWA-F-PFP-150 1 1/SB
43 4402 233080 PUSHER-LEV-ELV 1 1/P
44 4402 231020 SPC-CONE-1.6 2 1/P
45 4400 745910 BKT-M-FRAME-R 1 1/P
50 4842 040060 TPAN40*08MSZN3L 78 50/P
6 TOSHIBA
5540 LOWER-FRAME-3-ASM FEBRUARY 2004
7
5540 FEBRUARY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 783400 RAIL-CST-L 2 1/P
2 4402 234940 SHEET-CST-L 4 5/P
3 4402 234930 SHEET-CST-S 4 5/P
4 4402 230990 MYLAR-RAIL-U 4 5/P
5 4402 234890 BKT-ROL-L 4 1/P
6 4407 545070 BRG-DR22-B55R-S 6 1/P
7 4401 783410 RAIL-CST-R 2 1/P
8 4402 234900 BKT-ROL-R 2 1/P
9 4400 902350 SCO-SX460-P2 1 1/C
10 4400 908580 ACTR-SW-CST 2 1/P
11 4402 230970 HLDR-ACTR-CST 2 1/P
12 4401 787350 STAY-CNCT-CST 2 1/P
13 4401 787360 BKT-CNCT-CST 2 1/P
14 4401 783470 K-RAIL-CST-L 2 1/P
15 4401 783490 K-RAIL-CST-R 2 1/P
16 4401 795970 WH-PFP-DRW-150 1 1/P UPPER
17 4402 807030 SCREW-SOCKET 4 10/P
18 4401 795960 WH-PFP-DRWL-150 1 1/P LOWER
40 4842 040060 TPAN40*08MSZN3L 26 50/P
41 7360 600011 6/0NUT60MSZN3A 6 50/P
42 4842 040650 TPAN40*06MSZN3L 2 50/P
43 4842 040690 TZPAN3006MSZN3L 4 50/P
7 TOSHIBA
5540 PFP-DRIVE-1-ASM FEBRUARY 2004
8
5540 FEBRUARY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4400 746460 K-FRM-DRV-PFP-2 1 N/A***
2 4401 783040 K-BKT-MOT-PFP 1 1/P
3 4400 748710 M/DC-PFP-151 1 1/C
4 4401 783500 BKT-CLT-FEED 2 1/P
5 4401 783570 BKT-SPG-CLT-RGT 2 1/P
6 4401 783320 GEAR-05-64H-CRO 1 1/P
7 4401 783330 GEAR-1.0-Z28 4 1/P
8 4401 783350 PLY-Z29-Z25-3M 1 1/P
9 4401 783340 PLY-Z25-3M-DBL 3 1/P
10 4401 783700 BELT-3M-Z103 2 1/P
11 4401 783710 BELT-3M-Z82 1 1/P
12 4407 514650 GEAR-25 4 1/P
13 4346 312030 BUSHING 4 5/P
14 4407 547320 GEAR-0.8-25 4 1/P
15 4402 235600 ASM-CLUTCH-10K 4 1/D
16 4401 783600 SFT-CLT-FEED 4 1/P
17 4407 545610 BRG-608ZZNR 4 1/P
18 4346 312020 PIN 4 10/P
19 4402 235610 CLUTCH-10K 4 N/A***
20 4402 231590 GEAR-30-CLUTCH 4 N/A***
21 4843 390887 CLP/W-WS-1U 1 5/P
51 4842 040060 TPAN40*08MSZN3L 12 50/P
52 4842 040694 TZPAN3010MSZN3L 2 50/P
53 7405 005031 ERR050SKZN3A 4 50/P
54 7405 007031 ERR070SKZN3A 16 50/P
55 4842 011061 9HSS30/03MSFB 4 50/P
56 4842 040864 SRG-S-10 4 50/P
8 TOSHIBA
5540 PFP-DRIVE-2-ASM FEBRUARY 2004
9
5540 FEBRUARY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 782300 FRAME-STY-UNT-F 1 N/A***
2 4401 782400 FRAME-STY-UNT-R 1 N/A***
3 4401 782200 STAY-ELV-CST 3 1/P 003 1
3 1 4401 909180 STAY-ELV-CST 3 1/P C E F F95J504 003 VE5
4 4401 782220 ARM-STY-ELV-F 2 1/P
5 4401 782230 ARM-STY-ELV-R 2 1/P
6 4402 233230 SHAFT-ELV-PD 2 1/P
7 4401 782360 LEVER-ELV-CST 2 1/P
8 4346 312030 BUSHING 4 5/P
9 4402 232940 GEAR-1.0-144 2 1/P
10 4402 232930 PIN-4-43 2 5/P
11 4346 323020 SPRING-MG 2 5/P
12 4401 782380 LVR-ELV-124S 2 1/P
13 4402 232670 SPE-6.3-0.4 2 1/P
14 4401 782210 GUIDE-PAPER-C4 1 1/P 014 1 UPPER
14 1 4401 909400 GUIDE-PAPER-C4 1 1/PP C E F F96D653 014 VA6 UPPER
15 4401 782240 K-GUIDE-F/S-F 2 1/P
16 4401 782270 K-GUIDE-F/S-R 2 1/P
17 4401 782310 STAY-UNIT-F/S 1 1/P
18 4401 782340 STUD-U-AL-UNT-F 1 1/P
19 4401 782350 STUD-U-AL-UNT-R 1 1/P
20 4401 782370 BKT-FIX-AL-U-R 1 1/P 020 1
20 1 4401 909360 BRKT-FIX-AL-U-R 1 1/P C E F F95J504 020 VE5
23 4401 779940 BKT-POST-LCF 1 1/P
25 4401 782410 GROMET-KG016-75 1 10/P
26 4401 783720 K-BKT-MOT-TRAY 2 1/P
27 4401 783680 K-MOT-ELV-150 2 1/C
28 4401 783740 WHEEL-28/G-14 2 1/P
29 4402 233050 SL-GEAR-20 2 1/P
30 4401 783750 GEAR-35-ARBOR 2 1/P
31 4401 782420 SPR-13.6R-13.5A 2 1/P
32 4402 233040 GEAR-15-ARBOR 2 1/P
33 4402 233130 GEAR-1.0-25-PD 2 1/P
34 4401 783440 STUD-WORM-TRAY 2 1/P
35 4401 783240 STD-BKT-MOT-TRY 2 1/P
36 4407 744370 Z-MA-LS-10 2 5/P
61 4842 040690 TZPAN3006MSZN3L 35 50/P
62 7040 400611 PAN40*06MSZN3AI 4 50/P
63 7405 007031 ERR070SKZN3A 14 50/P
64 4842 040724 TPPAN4006MSZN3L 2 50/P
65 4842 040060 TPAN40*08MSZN3L 13 50/P
66 7040 260411 PAN26*04MSZN3AI 6 50/P
67 7405 005031 ERR050SKZN3A 2 50/P
68 4842 040725 TPPAN4008MSZN3A 4 50/P
9 TOSHIBA
5540 PFP-DRIVE-3-ASM FEBRUARY 2004
10
5540 FEBRUARY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 783030 K-BKT-JOINT-FED 2 1/P
2 4401 783010 K-ARM-JOINT-FED 2 1/P
3 4401 783310 GEAR-08-20-L27 4 1/P
4 4407 682520 GEAR-0.8-25 2 1/P
5 4408 535760 GEAR-08-25-070 2 1/P
6 4401 783390 SPE-JOINT 4 5/P
7 4401 783360 GUIDE-FS-UNIT 2 1/P
8 4401 783020 K-BRKT-JNT-RGT 2 1/P 008 1
8 1 4401 909290 K-BRKT-JNT-RGT 2 1/P C E F F95J504 008 VE5
9 4401 783000 K-ARM-JOINT-RGT 2 1/P 009 1
9 1 4401 909260 K-ARM-JNT-RGT 2 1/P C E F F95J504 009 VE5
10 4401 783380 ROL-GUIDE-RGT 2 1/P
11 4407 906230 GEAR-08-30 2 1/P
51 4842 040060 TPAN40*08MSZN3L 9 50/P
52 7405 005031 ERR050SKZN3A 10 50/P
53 4842 040690 TZPAN3006MSZN3L 2 50/P
10 TOSHIBA
5540 PFP-FEEDER-1-ASM FEBRUARY 2004
11
5540 FEBRUARY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 782800 K-FRAME-F/S-UNT 1 1/P
2 4401 782650 BKT-WH-F/S 1 1/P
3 4843 390941 BD/W-EDS-1 2 10/P
4 4401 782660 COV-SW-F/S 1 1/P
5 4401 782880 STAY-FEED-F/S 1 1/P
6 4401 782980 BKT-FEED-ROL 1 1/P
7 4401 782930 GUIDE-PA-2-F/S 1 1/P 007 1
7 1 4401 909420 GUIDE-PA-2-F/S 1 1/PP C E F F96D653 007 VA6
8 4400 325930 PIN-BKT-CON-H 6 10/P
15 4401 782730 SHAFT-FEED-F/S 1 1/P
16 4408 338630 K-PLY/T-2M-Z20 3 1/P
17 4407 403790 NPIN2-8 3 10/P
18 4401 782960 BELT-214-2M 1 1/P
19 4407 734980 BUSH-6-GCB 3 5/P
20 4402 833110 CLUTCH-6-L 2 1/D
21 4402 038460 K-ROL-FEED-1 1 1/P
22 4407 907410 STOP-RING-6 1 5/P
23 4401 783310 GEAR-08-20-L27 1 1/P
24 4401 782790 BKT-SPT-SFT-FED 1 1/P
25 4407 959970 BRG-696ZZNR 1 1/P
26 4401 782750 SFT-PICK-UP-F/S 1 1/P 026 1
26 1 4401 909320 SFT-PICK-F/S 1 1/P C E F F96D653 026
27 4402 231810 LVR-ARM-PICK-UP 1 1/P
28 4402 231990 SPR-PICK-UP 1 1/P
29 4407 734240 BUSH-6 1 5/P
30 4402 231750 ARM-PICK-550 1 1/P
31 4402 231780 PLY-20-2M 1 1/P
32 4407 908720 BLT/T-Z71 1 1/P
33 4401 782680 ACTR-PICK-150 1 1/P
34 4842 904052 SNAP-PIN 3 10/P
35 4401 782720 JOINT-PULLY-F/S 2 1/P
36 4401 782560 K-GEAR-22-08-OW 1 1/P
37 4401 782700 HLDR-F/S-UNT-F 1 1/P
38 4401 782710 HLDR-F/S-UNT-R 1 1/P
39 4401 782780 BKT-FRM-F/S 1 1/P
40 4401 782940 GUIDE-PA-3-F/S 1 1/P 040 1
40 1 4401 909430 GUIDE-PA-3-F/S 1 1/PP C E F F96D653 040 VA6
41 4401 782920 GUIDE-PA-1-F/S 1 1/P 041 1
41 1 4401 909410 GUIDE-PA-1-F/S 1 1/PP C E F F96D653 041 VA6
42 4401 782630 CUSH-GUIDE-PA-1 2 5/P
43 4401 773080 K-ROL-P/U-CCW-H 1 1/KP
44 4401 782970 SPL-PUSH-GUIDE 1 5/P
45 4400 909480 PWA-F-PEM-700 1 1/C
46 4407 744370 Z-MA-LS-10 1 5/P
47A 4401 795990 WH-FS-UNIT-150 1 1/P UPPER
47B 4401 795980 WH-FS-UNITL-150 1 1/P LOWER
48 4401 782540 ARM-PICK-150 1 1/P
49 4402 038470 ROL-FEED-1 1 1/C
50 4401 784250 GUIDE-PA-STY-FS 1 1/P
81 4842 040665 TPAN3006MSZN3L 15 50/P
82 4842 040692 TZPAN3008MSZN3L 5 50/P
83 7405 005031 ERR050SKZN3A 17 50/P
84 4842 040060 TPAN40*08MSZN3L 2 50/P
11 TOSHIBA
5540 PFP-FEEDER-2-ASM FEBRUARY 2004
12
5540 FEBRUARY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 782830 K-STAY-SEP-F/S 1 1/P
2 4401 784150 LEV-ROL-SEP-U/D 1 1/P
3 4401 784200 SPE-SEP-1142 1 5/P
4 4401 782760 BKT-FEED-SW-F/S 1 1/P
5 4402 221190 SZ-P-FEED-545 1 1/C
6 4363 271350 SPE063-080-0427 1 5/P
7 4407 403790 NPIN2-8 4 10/P
8 4407 734980 BUSH-6-GCB 4 5/P
9 4407 972860 STOP-RING-6-5 1 5/P
10 4407 906230 GEAR-08-30 1 1/P
11 4401 784230 K-GUIDE-PA-ENT 1 1/P 011 1
11 1 4401 909440 K-GUIDE-PA-ENT 1 1/PP C E F F96D653 011 VA6
12 4401 782890 ROLLER-ALIN-F/S 1 1/KP UPPER
13 4407 640340 GEAR-20-0.8-D6 1 1/P UPPER
14 4407 976990 BUSH-D6-GCB 2 1/P UPPER
15 4402 232180 SPRING-550 1 5/P UPPER
16 4402 232170 SPRING-815 1 5/P UPPER
17 4401 784260 ROLLER-RGT-F/S 1 1/KP UPPER
18 4400 823760 GEAR-08-20-LA5 2 1/P UPPER
19 4402 233530 COLLER-GAP-GEAR 1 5/P UPPER
20 4401 782590 K-SFT-SPT-F/S 1 1/P
21 4401 773030 K-ROL-SPT-CCW-H 1 1/P
22 4408 307270 ARBOR-16-POM-S 1 1/P
23 4401 784210 SPR-1.0-15.60RF 1 5/P
24 4408 535810 COVER-SP-CL-BL 1 1/P
25 4401 773020 ASM-ROL-SPT-CCW 1 1/C
30 4401 784040 ASM-ARM-SET-ROL 1 1/P
32 4402 222280 PWA-F-PEM-366-0 1 1/C UPPER
33 4401 782670 BKT-BLIND-F/S-L 1 1/P LOWER
34 4401 784180 RUBBER-ARM-SET2 1 1/P
35 4401 773040 ROL-SPT-RUB-H 1 1/C
36 4400 827900 CLIP-WH-STACK 1 5/P
71 4842 040665 TPAN3006MSZN3L 13 50/P
73 7405 005031 ERR050SKZN3A 12 50/P
74 7405 007031 ERR070SKZN3A 1 50/P
12 TOSHIBA
5540 LCF-FRAME-ASM FEBRUARY 2004
13
5540 FEBRUARY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 779530 K-FRAME-F-LCF 1 N/A***
2 4401 779540 K-FRAME-R-LCF 1 N/A***
3 4401 779500 FRAME-M-LCF 1 N/A***
5 4401 779320 K-STAY-LOW-LCF 1 1/P
6 4401 779570 STAY-TOP-LCF 1 1/P
7 4401 779600 GUIDE-PAPER-LCF 1 1/P 007 1
7 1 4401 907600 GUIDE-PAPER-LCF 1 1/P C E F F96D653 007 VA6
8 4408 530240 GUIDE-TRAY 4 1/P
9 4408 530230 BKT-BTM-SW 1 1/P
10 4407 966810 SM-SS01GL2T 1 1/D
11 4401 779610 SIDE-GUIDE-F 1 1/P
12 4401 779620 SIDE-GUIDE-R 1 1/P
13 4401 779450 K-BKT-PLY 2 1/P
14 4408 334350 PLY-BELT 2 1/P
15 4401 779430 BELT-LCF 2 1/P
16 4408 334240 BKT-BELT 2 1/P 016 1
16 1 4401 780430 BRKT-BELT 2 1/P C B E F4C109 016 VD4
17 4408 334250 PLATE-BELT-T 2 1/P
19 4408 334560 GUARD-BELT 2 1/P
20 4402 830920 SCREW-FRAME 1 1/P
21 4401 780180 BKT-CONECT-LCF 1 1/P
22 4401 779720 MG-CATCH 1 1/P
23 4402 816780 SZ-GP1A71M1 1 1/C
24 4401 779630 COV-IN-LCF-F 1 1/PP
25 4401 779640 COV-IN-LCF-R 1 1/PP
26 4401 783940 KNOB-LCF 1 1/P 026 1
26 1 4401 908370 KNOB-LCF 1 1/P C E F F95J504 026 VE5
27 4401 779680 BKT-STOP-LCF 1 1/P
28 4401 796320 WH-LCFIN-150 1 1/P
29 4842 414631 GMT-OCB-625 1 10/P
30 4842 414633 GMT-OCB-875 1 10/P
31 4401 780300 MYLAR-STOP-LCF 1 1/C
32 4400 827900 CLIP-WH-STACK 3 5/P 032 1
32 1 4400 827900 CLIP-WH-STACK 4 5/P D - J F4K343 032 VK413968
33 4401 779370 CUSHION-STOP 1 5/P
34 4401 768390 LBL-PSH-CAUTION 1 5/P
51 4842 040650 TPAN40*06MSZN3L 35 50/P
52 4842 040665 TPAN3006MSZN3L 4 50/P
53 4842 040690 TZPAN3006MSZN3L 16 50/P
54 7040 201011 PAN20*10MSZN3AI 2 50/P
55 7640 300851 ZPAN30*08MSZN3A 8 50/P
57 4842 040700 TZPAN4008MSZN3L 2 50/P
59 7405 007031 ERR070SKZN3A 2 50/P
60 4842 040666 TPAN3008MSZN3L 2 50/P
61 4842 040060 TPAN40*08MSZN3L 4 50/P
13 TOSHIBA
5540 LCF-DRIVE-ASM FEBRUARY 2004
14
5540 FEBRUARY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4408 530100 BKT-DRIVE 1 1/P
2 4408 530110 SFT-WORM 1 1/P
3 4408 530120 WORM-1.0-16 1 1/P 003 1
3 1 4401 908270 WORM-1.0-16 1 1/P C E H F96D653 003 VF6
4 4408 510800 BRG-688ZZNR 2 1/P
5 4408 530130 STOPPER-WORM 1 1/P
6 4346 312020 PIN 1 10/P
7 4408 334640 PLY/T-3M-Z56 1 1/P
8 4408 530140 SFT-WORM-WHEEL 1 1/P 008 1
8 1 4401 780450 SFT-WORM-WHEEL 1 1/P C D J F4J298 008 VK4
9 4401 779860 WORM-WHEEL-1-30 1 1/P 009 1
9 1 4401 780460 WORM-WHEEL-1-30 1 1/P C D J F4J298 009 VK4
10 4408 334530 GEAR-1.0-16 1 1/P
11 4407 734540 PIN-2-18 2 5/P
12 4346 312030 BUSHING 2 5/P
13 4408 530160 SHAFT-DRIVE-L 1 1/P
14 4408 339760 GEAR-1.0-40 1 1/P
15 4407 545610 BRG-608ZZNR 2 1/P
16 4401 779390 ROL-BELT-P 2 1/P
17 4408 334510 PLATE-BELT-P 2 1/P
18 4401 779350 K-MOTOR-TRAY 1 1/C
19 4408 530430 BELT/T-3M-252-6 1 1/P
20 4401 780470 FLANGE-20-14 1 1/P A - J F4J298 VK4
41 7040 301811 PAN30*18MSZN3AI 4 50/P
42 4842 040650 TPAN40*06MSZN3L 3 50/P
43 4842 040060 TPAN40*08MSZN3L 3 50/P
44 4842 011062 9HSS30/04MSFB 2 50/P
45 4842 011081 9HSS40/04MSFB 1 50/P
46 4842 011101 9HSS50/05MSFB 1 50/P 046 1
46 1 7040 401011 PAN40*10MSZN3AI 1 50/P C D J F4J298 046 VK4
47 7405 007031 ERR070SKZN3A 7 50/P 047 1
47 1 7405 007031 ERR070SKZN3A 8 50/P D - J F4J298 047 VK4
48 7405 009031 ERR090SKZN3A 1 50/P
14 TOSHIBA
5540 LCF-TRAY-ASM FEBRUARY 2004
15
5540 FEBRUARY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4408 530470 PLT-BRUSH-TRAY 1 1/P 001 1
1 1 4408 530470 PLT-BRUSH-TRAY 0 1/P B - E F4C109 001 VD4
2 4408 530480 BRUSH-SHEET 1 1/KP 002 1
2 1 4401 780420 BRUSH-LCF 1 1/P C D E F4C109 002 VD4
3 4408 334700 K-STAY-TRAY 1 1/P
4 4408 334480 K-BKT-TRAY 2 1/P
5 4401 779440 TRAY-LCF 1 1/PP 005 1
5 1 4401 779280 TRAY-LCF 1 1/PP C B E F4C109 005 VD4
6 4407 907140 BRAKE-PAD 1 5/P 006 1
6 1 4402 881120 BRAKE-PAD 1 5/P C E H F98B203 006
30 7640 400651 ZPAN40*06MSZN3A 4 50/P
31 4842 040665 TPAN3006MSZN3L 1 50/P
32 4842 040650 TPAN40*06MSZN3L 4 50/P
33 4842 040690 TZPAN3006MSZN3L 3 50/P
15 TOSHIBA
5540 FEED-GUIDE-ASM FEBRUARY 2004
16
5540 FEBRUARY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 783810 BASE-GUIDE-OP 1 1/P 001 1
1 1 4400 746580 BASE-GUIDE-OP-2 1 1/P C E J F4K343 001 VK413968
2 4401 783820 GUIDE-PA-OPEN-1 2 1/P 002 1
2 1 4401 907610 GUIDE-PA-OPEN-1 2 1/P C E F F96D653 002 VA6
3 4401 783960 SCREW-LINK-M3 4 10/P
4 4401 783840 SPE-GUIDE-OPEN 2 5/P
5 4401 783830 GUIDE-PA-OPEN-2 3 1/P 005 1
5 1 4401 783830 GUIDE-PA-OPEN-2 2 1/P D - J F4K343 005 2 005 VK413968
5 2 4401 907620 GUIDE-PA-OPEN-2 2 1/P C E F F96D653 005 1 VA6
6 4401 783850 LINK-GUIDE-OP 2 1/P 006 1
6 1 4400 746560 LINK-GUIDE-OP-2 2 1/P C E J F4K343 006 VK413968
7 4400 325930 PIN-BKT-CON-H 4 10/P
8 4401 783870 BKT-SPE-LOCK 1 1/P
9 4401 783860 SHAFT-LOCK-LCF 1 1/P
10 4401 783880 LEV-GUIDE-OP-F 1 1/P
11 4401 783900 HOOK-LOCK-LCF 2 1/P
12 4401 783910 SPE-LOCK-LCF 1 5/P
13 4401 783930 LEVER-LOCK-LCF 1 1/P
14 4401 784310 K-BRKT-SW-LCF 1 1/P
15 4401 797750 ASM-LCFLOCK-150 1 1/D
16 4401 784340 SPL-SW-LCF 1 1/P
17 4401 784350 COVER-SW-LCF 1 1/P 017 1
17 1 4401 784350 COVER-SW-LCF 0 1/P B - E F4G247 017 VB4
18 4407 685930 HOLDER-WH 2 5/P
19 4401 768350 LABEL-H 1 10/P
30 4842 040650 TPAN40*06MSZN3L 4 50/P
31 4842 040665 TPAN3006MSZN3L 6 50/P 031 1
31 1 4842 040665 TPAN3006MSZN3L 4 50/P D - J F4K343 031 VK413968
32 7640 401011 ZPAN40*10MSZN3A 5 50/P
33 7405 007031 ERR070SKZN3A 1 50/P
34 4842 040689 TZPAN3006MSZN3A 2 50/P
35 4842 040920 TPAN30*04MSZN3A 1 50/P 035 1
35 1 4842 040920 TPAN30*04MSZN3A 0 50/P B - E F4G247 035 VB4
36 7040 201011 PAN20*10MSZN3AI 2 50/P
37 7405 003031 ERR030SKZN3A 1 50/P
16 TOSHIBA
5540 ADD-FRONT-FRAME-ASM FEBRUARY 2004
17
5540 FEBRUARY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 787300 FRAME-MD-F 1 N/A***
2 4401 776290 LOCK-GUIDE-OP 1 1/P
4 4843 391164 BD/W-EDS-1717U 1 10/P
5 4400 745930 STAY-L-EXIT 1 1/P
6 4401 759500 STAY-FUSER 2 1/P
7 4401 754050 K-BKT-BLC-L 1 1/P
8 4401 776570 STAY-TR-BOX 1 1/P 008 1
8 1 4402 310950 STAY-TR-BOX 1 1/P C E F F98B191 008 VE7
9 4401 776580 BRUSH-SUS-E 1 1/KP
10 4401 775510 STAY-SFB 1 1/P
11 4401 772960 SHAFT-STAY 2 1/P
12 4401 777710 SHAFT-TRAY-A 1 1/P
13 4401 777720 COLLER-SFT-TRAY 2 5/P
14 4843 390855 CLP/W-LWS-2U 2 5/P F - J F4G247 014 1
14 1 4843 390888 CLP/W-WS-2U 2 5/P C E E F4L368 014 VI4
51 4842 040690 TZPAN3006MSZN3L 10 50/P
52 7405 006031 ERR060SKZN3A 4 50/P
53 4842 040060 TPAN40*08MSZN3L 14 50/P
54 7040 400811 PAN40*08MSZN3AI 6 50/P
55 4842 040665 TPAN3006MSZN3L 1 50/P
11 4401 772960 SHAFT-STAY 2 1/P
17 TOSHIBA
5540 ADD-REAR-FRAME-ASM FEBRUARY 2004
18
5540 FEBRUARY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 787310 FRAME-MD-R 1 N/A***
2 4401 754050 K-BKT-BLC-L 1 1/P
3 4401 787380 BKT-FRM-MD-R 1 1/P
4 4401 764680 STAY-D-HEATER 1 1/P
5 4401 764690 COV-STAY-D-HEAT 1 1/P
6 4401 772940 BKT-PFC-150 1 1/P
7 4843 390857 CLP/W-LWS-4U 3 5/P 007 1
7 1 4843 390857 CLP/W-LWS-4U 4 5/P D - E F96D653 007
8 4843 391164 BD/W-EDS-1717U 3 10/P
9 4843 390860 PWZ-SPS-6U 5 5/P 009 1
9 1 4843 390860 PWZ-SPS-6U 6 5/P D D E F4B103 009 VC4
10 4843 390870 PWZ-SPLS-6U 7 5/P
11A 4401 764840 BRKT-D-HEATER 1 1/P MF-6550U,E,A
11H 4401 764840 BRKT-D-HEATER 1 1/P AUD
12A 4401 797600 ASM-DHT-115-150 1 1/D MF-6550U
12B 4401 797610 ASM-DHT-220-150 1 1/D MF-6550E
12C 4401 797620 ASM-DHT-240-150 1 1/D MF-6550A
12H 4401 797620 ASM-DHT-240-150 1 1/D AUD
13A 4407 965320 PWA-F-FUS-351UC 1 1/C MF-6550U
13B 4407 965330 PWA-F-FUS-351EU 1 1/C MF-6550E,A
13H 4407 965330 PWA-F-FUS-351EU 1 1/C AUD
14A 4407 551150 THERMOSTAT-30 1 1/D MF-6550U,E,A
14H 4407 551150 THERMOSTAT-30 1 1/D AUD
15 4401 795650 PWA-F-PFC-150 1 1/SB
16 4843 390856 CLP/W-LWS-3U 2 5/P 016 1
16 1 4843 390856 CLP/W-LWS-3U 1 5/P D - E F96D653 016
50 4842 040060 TPAN40*08MSZN3L 10 50/P
51 4842 040690 TZPAN3006MSZN3L 6 50/P
52 4842 040665 TPAN3006MSZN3L 1 50/P
18 TOSHIBA
5540 ADD-DRIVE-ASM FEBRUARY 2004
19
5540 FEBRUARY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 777330 BKT-MOT-RGT-ADD 1 1/P
2 4401 796760 M/P-ADD-150 1 1/C
3 4401 772670 PULLEY22-3M 1 1/P
4 4401 772680 FLANGE-23 1 1/P
5 4407 902170 DUMPER-MOTOR 1 1/P
6 4408 604650 BRKT-MOTOR-547 1 1/P
7 4401 777300 K-BKT-MOT-FED-A 1 1/P
8 4401 772820 K-G18-P78 1 1/P
9 4401 772900 K-MOT-FEED 1 1/C
10 4401 772870 BELT-106110-3 1 1/P
11 4401 777350 STUD-PLY40-G20H 4 1/P
12 4401 777480 STUD-RGST-PLY 1 1/P
13 4401 777550 K-G20-08-P40-2M 5 1/P
14 4401 777990 K-GEAR-20-08-OW 1 1/P
15 4401 776420 BELT-73060-4 1 1/P
16 4401 776400 BELT-106139-4SZ 1 1/P
17 4401 776390 BELT-106115-3Z 1 1/P
18 4402 205100 BELT-106162-3S 2 1/P
19 4401 776380 BELT-106159-3Z 1 1/P
20 4407 906230 GEAR-08-30 1 1/P
21 4407 403790 NPIN2-8 2 10/P
22 4407 640340 GEAR-20-0.8-D6 1 1/P
23 4402 833110 CLUTCH-6-L 1 1/D
24 4346 312020 PIN 1 10/P
25 4402 205010 PLY-40-2M-S 1 1/P
26 4408 603650 PLY-2MZ40-3MZ18 1 1/P
60 4842 040690 TZPAN3006MSZN3L 5 50/P
61 4842 011065 9HSS30/08MSFB 2 50/P
62 4842 040060 TPAN40*08MSZN3L 3 50/P
63 7405 005031 ERR050SKZN3A 12 50/P
64 7040 300411 PAN30*04MSZN3A 3 50/P
65 7640 300651 ZPAN30*06MSZN3A 5 50/P
19 TOSHIBA
5540 ADD-TRANSPORT-ASM FEBRUARY 2004
20
5540 FEBRUARY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 776210 ROLLER-PASS-TR 4 1/KP
2 4407 734980 BUSH-6-GCB 4 5/P
3 4407 403790 NPIN2-8 4 10/P
4 4400 825510 GEAR-08-20-4.5 4 1/P
5 4346 312030 BUSHING 6 5/P
6 4401 777340 ROL-PASS-STK 1 1/KP 006 1
6 1 4401 777380 ROL-PASS-STK 1 1/KP C E G F96D653 006 VE6
7 4346 312020 PIN 1 10/P
8 4401 777260 KNOB-ROL-AL-A 1 1/P
9 4401 776230 ROLL-IDLE-STK-H 1 1/KP
10 4407 957140 SPRING-850 2 5/P
11 4407 976990 BUSH-D6-GCB 2 1/P
12 4401 776620 GUIDE-S-U 1 N/A*** 012 1
12 1 4401 776850 GUIDE-S-U 1 N/A*** C E F F96D653 012 VA6
13 4401 776610 GUIDE-S-EXT 1 1/P 013 1
13 1 4401 776860 GUIDE-S-EXT 1 1/P C E F F96D653 013 VA6
14 4401 776540 K-GUIDE-S-ENT 1 1/P 014 1
14 1 4401 776870 K-GUIDE-S-ENT 1 1/P C E F F96D653 014 VA6
15 4401 777880 ASM-SPL-ROL-16 6 1/D 015 1
15 1 4401 909980 ASM-SPL-ROL-ADD 6 1/D C E F F96D653 015 VL5
16 4401 777400 K-HINGE-OPG-E 1 1/P
17 4401 777410 K-HINGE-OPG-F 1 1/P
18 4401 777500 SPE097-120-0326 2 5/P
21 4401 776600 GUIDE-S-OP 1 1/P 021 1
21 1 4401 776880 GUIDE-S-OP 1 1/P C E F F96D653 021 VA6
22 4401 777610 PLATE-SUB-OPG 1 1/P
24 4401 777600 BKT-SUB-OPG 1 1/P
25 4401 777450 BKT-HANDLE-OPG 1 1/P
26 4401 776660 HOOK-GUIDE-OP 1 1/P
27 4401 777460 SHAFT-OPG-ADD 1 1/P
28 4402 232680 SPE-6.3-0.6 1 1/P
29 4401 776670 ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
