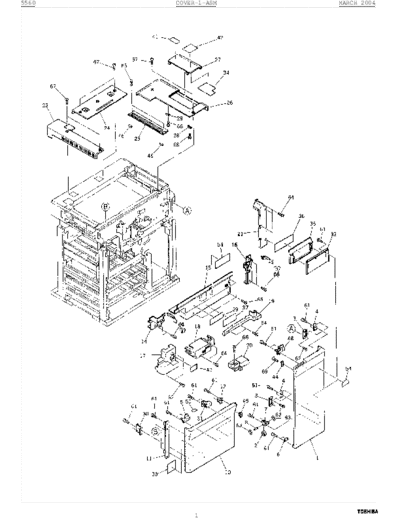

Image preview - the first page of the document
>> Download Toshiba 5560 pc documenatation <<
Text preview - extract from the document
5560 COVER-1-ASM MARCH 2004
1
5560 MARCH 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4402 866640 F-COV-FRONT-R 1 1/PP
2 4401 753100 ROLLER-19-H5R 1 1/P
3 4401 752400 K-HINGE-F-R 2 1/P
4 4401 753830 HOLDER-HINGE-FR 2 1/P
5 4401 754450 PUSHER-SW-DOOR 1 1/P
6 4407 764680 MG-CATCH 1 1/P
7 4401 752320 GUIDE-COV-F-R 1 1/P
8 4401 753110 PIN-DOOR-GUIDE 1 1/P
10 4401 752870 F-COV-FRONT-L 1 1/PP
11 4401 754970 HINGE-COV-L 1 1/P
12 4401 752440 BRKT-MG-F-L 1 1/P
14 4401 752740 K-COV-IN-F-U-L 1 1/PP
15 4402 302890 COV-IN-F-U-C 1 1/PP
16 4401 900660 K-COV-IN-F-U-R 1 1/PP
17 4401 903400 COVER-IN-F-L-L 1 1/PP
18 4401 900760 COV-IN-F-L-C 1 1/PP
19 4401 752670 COV-IN-F-L-R 1 1/PP
20 4401 910190 COVER-GUIDE-STK 1 1/PP
21 4401 909380 COV-MTR-TRAY 1 1/PP
23 4401 752000 COVER-TOP-L 1 1/PP
24 4401 752010 COVER-TOP-C 1 1/PP
25 4401 752820 F-FIX-GLASS-R-T 1 1/PP
26 4401 752030 COVER-TOP-R 1 1/PP
27 4401 752280 K-COV-TNR-OPN-T 1 1/PP
28 4401 752050 HINGE-COV-HOP-F 1 1/P
29 4401 752060 HINGE-COV-HOP-R 1 1/P
30 4401 754480 PUSHER-OP-GUIDE 1 1/P
31 4401 754490 PUSHER-OP-RGST 1 1/P
33 4401 752480 PLT-BOOK-HLD 1 1/P
34 4401 910980 LBL-TNR-INST-T 1 1/KP
35 4408 541410 BOOK-HOLDER-T 1 1/PP
36 4401 768080 LBL-PFP-JAM 1 1/KP
37 4401 768060 LBL-ADD-JAM 1 1/KP
38 4401 768190 LBL-MEMORY-150 1 5/P
39 4400 841490 LABEL-DRUM-F 1 5/P
40 4400 831630 LBL-HOT 1 5/P
41 4401 768180 LBL-TNR-CAU-1 1 5/P
44 4401 751990 PLATE-MG-DF 1 1/P
45 4402 202690 MG-CATCH-15 1 1/P
46 4401 754880 CUSHION-GLASS 2 5/P
47 4401 768300 LBL-TNR-CAU-2 1 5/P
48 4401 754930 ASM-PUSHER-SW-D 1 1/D
50 4401 768620 LBL-SHELL-CAU 1 5/P
51C 4402 311200 LBL-SHEET-PM-C6 1 1/KP EUD
51D 4402 311200 LBL-SHEET-PM-C6 1 1/KP GSD
51E 4402 311200 LBL-SHEET-PM-C6 1 1/KP FRD
51F 4402 311200 LBL-SHEET-PM-C6 1 1/KP SED
51G 4402 311200 LBL-SHEET-PM-C6 1 1/KP UKD
54A 4401 910990 LBL-ENERGY-T 1 5/P TAD
61 7040 400811 PAN40*08MSZN3AI 22 50/P
62 4842 040060 TPAN40*08MSZN3L 7 50/P
63 7405 004031 ERR040SKZN3A 2 50/P
64 4842 040700 TZPAN4008MSZN3L 12 50/P 064 1
64 1 4842 040700 TZPAN4008MSZN3L 8 50/P D E E F98D262 064
65 7043 400813 BID40*08MSCR1AI 6 50/P
66 4842 040692 TZPAN3008MSZN3L 1 50/P
67 4842 040635 TBID40*08MSCR3C 8 50/P
68 4842 040846 PTBR30*08MSZN3A 2 50/P
69 7124 401011 12FLT4010MSZN3A 1 50/P
70 4842 040702 TZPAN4010MSZN3L 4 50/P A E E F98D262
62 4842 040060 TPAN40*08MSZN3L 7 50/P
1 TOSHIBA
5560 COVER-2-ASM MARCH 2004
2
5560 MARCH 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4402 868610 COVER-RIGHT-U 1 1/PP
2 4401 900720 K-COV-IN-R-U 1 1/P
3 4401 900750 COV-IN-R-L-1 1 1/PP
4 4401 752760 COV-IN-R-L-2 1 1/P
5 4401 752770 COVER-IN-R-HR-U 1 1/P
6 4401 752780 COVER-IN-R-HR-L 1 1/P
7 4401 752070 COVER-LEFT-U 1 1/PP
8 4401 751180 COVER-EXIT 1 1/PP
9 4401 901070 K-COV-LEFT-L-T 1 1/PP
10 4401 901000 COVER-REAR-U-T 1 1/PP
11 4401 901010 K-COV-REAR-L-T 1 1/PP
12 4408 541390 TRAY-T 1 1/PP OPTION
13 4401 752970 COVER-R-U-SUB 1 1/P
14 4408 543130 LBL-SERVICE-T 1 5/P
18A 4400 740530 LABEL-FCC 1 10/P TAD
19A 4400 361560 STICKER-W-TAIS 1 N/A*** TAD
20D 4402 200640 LBL-RECYCLE 1 5/P GSD
23 4402 261410 SPL-GROUND 2 5/P
24 4402 302960 SEAL-COV-R-U-1 2 5/KP
25 4402 302970 SEAL-COV-R-U-2 2 5/KP
31B 4400 945700 LABEL-CANADA 1 5/P CSD
33 4400 745880 BKT-BLIND-L 1 1/P
34 4400 745890 BKT-BLIND-R 1 1/P
35 4400 746190 BKT-COV-BLIND 1 1/P
36 4402 234530 HOLDER-CST-P 2 1/P
37 4400 746180 BKT-PUSH-LEV 1 1/P
38 4400 746200 COVER-BL-CST 1 1/PP
39 4402 233080 PUSHER-LEV-ELV 1 1/P
51 4842 040635 TBID40*08MSCR3C 21 50/P
52 4842 040060 TPAN40*08MSZN3L 24 50/P
53 4842 040495 PTBR30*06MSZN3A 2 50/P
54 4842 040480 THPAN3006MSZN3L 4 50/P
55 4842 040849 PTBR40*08MSZN3A 8 50/P
2 TOSHIBA
5560 COVER-3-ASM MARCH 2004
3
5560 MARCH 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 901170 K-COVER-R-L-F-T 1 1/PP
2 4401 752800 COVER-GAP-REAR 1 1/P
3 4401 752100 COVER-U-TNR 1 1/PP
4 4401 752180 F-COVER-BEAM-EN 1 1/PP
5 4401 779820 K-KEY-LCF 1 1/P
6 4401 795400 PWA-F-LCF-150 1 1/SB
7 4401 908620 DOOR-LCF 1 1/PP
8 4401 779780 WINDOW-DOOR-LCF 1 1/PP
9 4401 908850 K-HINGE-LCF 1 1/P
12 4401 908650 COVER-LCF 1 1/PP
13 4401 908880 LBL-LMT-LCF-C7 1 5/P
14 4401 908670 CUSH-COVER-LCF 2 5/P
15 4401 768610 LBL-U-TNR 1 1/KP
16 4401 752980 SCREW-COV-U-TNR 2 10/P
18 4401 751800 MYLAR-SHIELD-LC 1 1/P
19 4401 798130 WH-LCFKEY-EARTH 1 5/P
20 4401 753800 K-MG-U-TNR 1 5/P
21 4401 908700 BASE-KNOB-LCF-1 1 1/P
22 4401 908710 BASE-KNOB-LCF-2 1 1/P
23 4401 908740 BRKT-HINGE-LCF 1 1/P
24 4401 908760 SPE-DOOR-LCF 1 5/P
25 4401 908730 PIN-DOOR-LCF 2 10/P
26 4401 908750 BRKT-STOPPER 2 1/P
27 4401 908720 KNOB-DOOR-LCF 1 1/P
51 4842 040635 TBID40*08MSCR3C 4 50/P
52 4842 040846 PTBR30*08MSZN3A 10 50/P
55 4842 040700 TZPAN4008MSZN3L 1 50/P
56 4842 040700 TZPAN4008MSZN3L 1 50/P
57 4842 040060 TPAN40*08MSZN3L 3 50/P
58 4842 040849 PTBR40*08MSZN3A 9 50/P
59 4842 040692 TZPAN3008MSZN3L 3 50/P
60 4842 040605 TBID40*10MSCR3C 4 50/P
3 TOSHIBA
5560 CONTROL-PANEL-ASM MARCH 2004
4
5560 MARCH 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1A 4402 303410 F-COV-CNP-UC 1 1/PP TAD
1B 4402 303410 F-COV-CNP-UC 1 1/PP CSD
1C 4402 303420 F-COV-CNP-EU 1 1/PP EUD
1D 4402 303420 F-COV-CNP-EU 1 1/PP GSD
1E 4402 303420 F-COV-CNP-EU 1 1/PP FRD
1F 4402 303420 F-COV-CNP-EU 1 1/PP SED
1G 4402 303420 F-COV-CNP-EU 1 1/PP UKD
1H 4402 303430 F-COV-CNP-AU 1 1/PP AUD
1I 4402 303430 F-COV-CNP-AU 1 1/PP TWD
1J 4402 303430 F-COV-CNP-AU 1 1/PP SAD
1K 4402 303430 F-COV-CNP-AU 1 1/PP ASD
2A 4402 304110 PNL-DSP-UC 1 1/PP TAD
2B 4402 304110 PNL-DSP-UC 1 1/PP CSD
2C 4402 304120 PNL-DSP-EU 1 1/PP EUD
2D 4402 304120 PNL-DSP-EU 1 1/PP GSD
2E 4402 304120 PNL-DSP-EU 1 1/PP FRD
2F 4402 304120 PNL-DSP-EU 1 1/PP SED
2G 4402 304120 PNL-DSP-EU 1 1/PP UKD
2H 4402 304130 PNL-DSP-AU 1 1/PP AUD
2I 4402 304130 PNL-DSP-AU 1 1/PP TWD
2J 4402 304130 PNL-DSP-AU 1 1/PP SAD
2K 4402 304130 PNL-DSP-AU 1 1/PP ASD
3 4402 322500 K-LCD-TOUCH-154 1 1/C
4 4402 322450 LCD-TOUCH-154 1 1/KP
5 4402 321960 WH-DSP-LCD-154 1 1/P
6 4402 304000 K-KEY-TIMER 1 1/D
7 4402 304010 K-KEY-E/S 1 1/P
8 4402 304020 K-KEY-ITRPT 1 1/P
9 4402 304030 K-KEY-FC 1 1/D
10 4402 304040 K-KEY-PHOTO 1 1/D
11A 4402 303650 KEY-HELP 1 1/P TAD
11B 4402 303650 KEY-HELP 1 1/P CSD
11C 4402 303990 KEY-INFO 1 1/P EUD
11D 4402 303990 KEY-INFO 1 1/P GSD
11E 4402 303990 KEY-INFO 1 1/P FRD
11F 4402 303990 KEY-INFO 1 1/P SED
11G 4402 303990 KEY-INFO 1 1/P UKD
11H 4402 303650 KEY-HELP 1 1/P AUD
11I 4402 303650 KEY-HELP 1 1/P TWD
11J 4402 303650 KEY-HELP 1 1/P SAD
11K 4402 303650 KEY-HELP 1 1/P ASD
12 4402 303660 KEY-LIGHT 2 1/P
13 4402 303670 KEY-AUTO 1 1/P
14 4402 303690 KEY-1 1 1/P
15 4402 303700 KEY-2 1 1/P
16 4402 303710 KEY-3 1 1/P
17 4402 303720 KEY-4 1 1/P
18 4402 303730 KEY-5 1 1/P
19 4402 303740 KEY-6 1 1/P
20 4402 303750 KEY-7 1 1/P
21 4402 303760 KEY-8 1 1/P
22 4402 303770 KEY-9 1 1/P
23 4402 303780 KEY-0 1 1/P
24 4402 303790 KEY-C/S 1 1/P
25 4402 303800 KEY-ZOOM-200 1 1/P
26 4402 303810 KEY-ZOOM-100 1 1/P
27 4402 303820 KEY-ZOOM-50 1 1/P
28 4402 303830 KEY-PRINT 1 1/P
29 4402 303840 KEY-SIZE-A 2 1/P
30 4402 303850 KEY-SIZE-B 4 1/P
31 4402 303860 KEY-SIZE-C 6 1/P
32 4402 321230 PWA-F-PNL-154 1 1/SB
33 4402 321240 PWA-F-KEY-154 1 1/SB
34 4402 321250 PWA-F-DSP-154 1 1/SB
35 4402 321950 WH-LGC-DSP-154 1 1/P
36 4402 303940 EDGING-100-T1.2 1 1/P
37 4402 303950 STAY-CNP-154 1 1/P
38 4843 391367 BD/W-EDS-0607M 1 5/P
39 4842 416026 GROMET-EHP-6U 1 5/P
40 4402 303880 BRKT-PNL-L 1 1/P
41 4401 770480 BRKT-PNL-C 1 1/P
4 TOSHIBA
5560 MARCH 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
42 4402 303260 BRKT-PNL-R 1 1/P
43 4402 303900 MAGNET 1 1/P
44 4402 303920 SEAL-PNL-L 2 5/KP
45 4402 303930 SEAL-PNL-S 2 5/KP
46 4401 751560 HOOK-CONPANE 3 1/P
47 4401 797650 CTR-E750B-150 1 1/D
48 4401 751550 BRKT-COUNTER 1 1/P
49 4401 751930 COVER-BLIND 1 1/P
50 4401 751860 COV-HANDLE-CNP 1 1/P
51 4401 751870 PIN-HANDLE-CNP 1 1/P
52 4401 751880 SPR-061-080 1 5/P
53 4401 751890 HLDR-HANDLE-CNP 1 1/P
54 4402 303960 SHIELD-MLR-PNL 1 1/KP
55 4402 303970 SHIELD-MLR-KEY 1 1/KP
56 4402 325390 IC-154KEY-00 1 1/S 056 1
56 1 4402 325390 IC-154KEY-00 0 1/S B - E F97H991 056 DG7
57 4401 751990 PLATE-MG-DF 2 1/P
58 4402 322670 CFL-LCD-154 1 1/C
59 4402 303290 COV-IN-F-U-U 1 1/PP
60 4401 770580 EDGING-EO10-210 1 1/P
61 4401 770590 EDGING-EO10-300 1 1/P
62A 4843 583401 WIRE-FGM-100-M4 1 1/P TAD
62B 4843 583401 WIRE-FGM-100-M4 1 1/P F97J054 CSD
62H 4843 583401 WIRE-FGM-100-M4 2 1/P F - - F97J054 AUD
62I 4843 583401 WIRE-FGM-100-M4 2 1/P F - - F97J054 TWD
62J 4843 583401 WIRE-FGM-100-M4 2 1/P F - - F97J054 SAD
62K 4843 583401 WIRE-FGM-100-M4 2 1/P F - - F97J054 ASD
71 4842 040846 PTBR30*08MSZN3A 51 50/P
72 4842 040060 TPAN40*08MSZN3L 11 50/P
73 7040 300611 PAN30*06MSZN3A 1 50/P
74 7405 003031 ERR030SKZN3A 2 50/P
75 7044 400664 FLT40*06MSCR3C 2 50/P
4 TOSHIBA
5560 LOWER-FRAME-1-ASM MARCH 2004
5
5560 MARCH 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 787110 FRAME-BASE 1 N/A***
2 4401 787820 K-STAY-BASE 2 1/P
3 4401 787810 SPACER-STY-BASE 4 1/P
4 4401 787800 CASTER-PFP-SG 4 1/P
5 4402 230760 FOOT-PD 4 1/P
6 4401 787420 STAY-BASE-EXIT 1 1/P
9 4401 754470 HINGE-UTNR-L 1 1/P
10 4401 907410 BASE-LCF 1 1/P
11 4401 779400 RAIL-LCF 2 1/P
12 4401 907370 BRKT-RAIL-LCF-F 1 1/P
13 4401 907380 BRKT-RAIL-LCF-R 1 1/P
14 4401 754550 BRKT-COV-R-L-F 1 1/P
15 4401 787620 COV-WH-BASE-F 1 1/P
16 4401 909370 COV-WH-BASE-C 1 1/P
17 4843 390889 CLP/W-WS-3U 4 5/P
18 4843 390890 CLP/W-WS-4U 4 5/P
21 4401 787190 EDGING-FRM-BASE 4 1/P
22 4401 787160 SCREW-M4-7-R 30 10/P
23 4401 787430 STAY-BASE-F-R 1 1/P
25 4401 787580 STAY-BASE-R 1 1/P
27 4843 390856 CLP/W-LWS-3U 2 5/P
30 7640 501251 ZPAN50*12MSZN3A 16 50/P
31 4842 040060 TPAN40*08MSZN3L 30 50/P
32 4842 040650 TPAN40*06MSZN3L 8 50/P
33 7360 100011 6/ONUT10MSZN3A 4 50/P
5 TOSHIBA
5560 LOWER-FRAME-2-ASM MARCH 2004
6
5560 MARCH 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 787200 FRAME-AGL-F-EN 1 N/A***
2 4401 787290 BKT-ANGLE-F-EN 1 1/P
3 4401 787330 BKT-SW-MAIN 1 1/P
4 4402 830920 SCREW-FRAME 5 1/P
5 4843 231592 SW-AJ921100Z301 1 1/D
6 4842 414633 GMT-OCB-875 1 10/P
7 4401 787600 COV-SW-MAIN 1 1/P
8 4401 787610 COV-WH-AGL-F-EN 1 1/P
9 4400 808280 EDS-1717U 1 5/P
10 4401 752330 GUIDE-COV-R-L 1 1/P
11 4400 805170 SCREW-LOCK-ARM 2 5/P
12 4401 787240 FRAME-AGL-F-C 1 N/A***
13 4401 787210 FRAME-AGL-F-EX 1 N/A***
14 4401 787220 FRAME-AGL-R-EN 1 N/A***
15 4401 787230 FRAME-AGL-R-EX 1 N/A***
16 4401 787320 FRAME-LO-R 1 N/A***
17 4401 787270 FRAME-BEAM-EN 1 N/A***
18 4401 787250 FRAME-BEAM-F 1 N/A***
19 4401 787260 FRAME-BEAM-R 1 N/A***
20 4401 787280 FRAME-BEAM-EX 1 N/A***
21 4401 752520 K-HINGE-COV-F-L 1 1/P
22 4401 787340 BEAM-F-CST 2 1/P
23 4401 787790 HOLDER-CST-F150 2 1/P
28 4401 782410 GROMET-KG016-75 1 10/P
32 4843 390875 PWZ-SPLS-14U 4 5/P
33 4843 390865 PWZ-SPS-14U 4 5/P
34 4401 795700 WH-MAIN-SW-150 1 1/P
35 4843 390890 CLP/W-WS-4U 1 5/P
36 4401 754500 BRKT-COV-R-L 1 1/P
37 4401 754590 HINGE-UTNR-U 1 1/P
38 4401 754580 BRKT-STOP-CTR 1 1/P
39A 4401 787650 K-STAY-EXIT-TA 1 1/P TAD
39B 4401 787500 K-STAY-EXIT 1 1/P W/O TAD
40A 4402 322650 PS-100V-152 1 1/C 100V SERIES
40B 4402 322660 PS-200V-152 1 1/C 200V SERIES
41 4402 874110 PWA-F-PFD-155 1 1/SB
43 4402 233080 PUSHER-LEV-ELV 1 1/P
44 4402 231020 SPC-CONE-1.6 2 1/P
45 4400 745910 BKT-M-FRAME-R 1 1/P
50 4842 040060 TPAN40*08MSZN3L 84 50/P
51 4842 040118 THPAN4008MSZN3L 1 50/P
6 TOSHIBA
5560 LOWER-FRAME-3-ASM MARCH 2004
7
5560 MARCH 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 783400 RAIL-CST-L 2 1/P
2 4402 234940 SHEET-CST-L 4 5/P
3 4402 234930 SHEET-CST-S 4 5/P
4 4402 230990 MYLAR-RAIL-U 4 5/P
5 4402 234890 BKT-ROL-L 4 1/P
6 4407 545070 BRG-DR22-B55R-S 6 1/P
7 4401 783410 RAIL-CST-R 2 1/P
8 4402 234900 BKT-ROL-R 2 1/P
9 4400 902350 SCO-SX460-P2 2 1/C
10 4400 908580 ACTR-SW-CST 2 1/P
11 4402 230970 HLDR-ACTR-CST 2 1/P
12 4401 787350 STAY-CNCT-CST 2 1/P
13 4401 787360 BKT-CNCT-CST 2 1/P
14 4401 783470 K-RAIL-CST-L 2 1/P
15 4401 783490 K-RAIL-CST-R 2 1/P
16 4401 795970 WH-PFP-DRW-150 1 1/P UPPER
17 4402 807030 SCREW-SOCKET 4 10/P
18 4401 795960 WH-PFP-DRWL-150 1 1/P LOWER
40 4842 040060 TPAN40*08MSZN3L 26 50/P
41 7360 600011 6/0NUT60MSZN3A 6 50/P
42 4842 040650 TPAN40*06MSZN3L 2 50/P
43 4842 040690 TZPAN3006MSZN3L 4 50/P
7 TOSHIBA
5560 PFP-DRIVE-1-ASM MARCH 2004
8
5560 MARCH 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4402 866810 K-FRM-DRV-PFP-2 1 N/A***
2 4402 866820 BRKT-MOT-PFP 1 1/P
3 4401 981610 M/DC-MAIN-210 1 1/C
4 4401 783500 BKT-CLT-FEED 2 1/P
5 4401 783570 BKT-SPG-CLT-RGT 2 1/P
6 4401 783320 GEAR-05-64H-CRO 1 1/P
7 4401 783330 GEAR-1.0-Z28 4 1/P
8 4401 783350 PLY-Z29-Z25-3M 1 1/P
9 4401 783340 PLY-Z25-3M-DBL 3 1/P
10 4401 783700 BELT-3M-Z103 2 1/P
11 4401 783710 BELT-3M-Z82 1 1/P
12 4407 514650 GEAR-25 4 1/P
13 4346 312030 BUSHING 4 5/P
14 4407 547320 GEAR-0.8-25 4 1/P
15 4402 235600 ASM-CLUTCH-10K 4 1/D
16 4401 783600 SFT-CLT-FEED 4 1/P
17 4407 545610 BRG-608ZZNR 4 1/P
18 4346 312020 PIN 4 10/P
19 4402 235610 CLUTCH-10K 4 N/A***
20 4402 231590 GEAR-30-CLUTCH 4 N/A***
21 4843 390889 CLP/W-WS-3U 1 5/P 021 1
21 1 4843 390889 CLP/W-WS-3U 2 5/P D B D F97J055 021 1st Lot
23 4402 874400 WH-PFD-PFP-155 1 1/P 023 1
23 1 4402 874500 WH-PFD-PFP-155 1 1/P C B D F97J055 023 1st Lot
24 4843 391092 BD/W-T18S 1 10/P
51 4842 040060 TPAN40*08MSZN3L 12 50/P
52 4842 040673 TPAN4014MSZN3L 2 50/P
53 7405 005031 ERR050SKZN3A 4 50/P
54 7405 007031 ERR070SKZN3A 16 50/P
55 4842 011061 9HSS30/03MSFB 4 50/P
56 4842 040864 SRG-S-10 4 50/P
8 TOSHIBA
5560 PFP-DRIVE-2-ASM MARCH 2004
9
5560 MARCH 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 782300 FRAME-STY-UNT-F 1 N/A***
2 4401 782400 FRAME-STY-UNT-R 1 N/A***
3 4401 909180 STAY-EVT-CST 3 1/P
4 4401 782220 ARM-STY-ELV-F 2 1/P
5 4401 782230 ARM-STY-ELV-R 2 1/P
6 4402 233230 SHAFT-ELV-PD 2 1/P
7 4401 782360 LEVER-ELV-CST 2 1/P
8 4346 312030 BUSHING 4 5/P
9 4402 232940 GEAR-1.0-144 2 1/P
10 4402 232930 PIN-4-43 2 5/P
11 4346 323020 SPRING-MG 2 5/P
12 4401 782380 LVR-ELV-124S 2 1/P
13 4402 232670 SPE-6.3-0.4 2 1/P
14 4401 909400 GUIDE-PAPER-C4 1 1/PP UPPER
15 4401 782240 K-GUIDE-F/S-F 2 1/P
16 4401 782270 K-GUIDE-F/S-R 2 1/P
17 4401 782310 STAY-UNIT-F/S 1 1/P
18 4401 782340 STUD-U-AL-UNT-F 1 1/P
19 4401 782350 STUD-U-AL-UNT-R 1 1/P
20 4401 909360 BRKT-FIX-AL-U-R 1 1/P
23 4401 779940 BKT-POST-LCF 1 1/P
25 4401 782410 GROMET-KG016-75 1 10/P
26 4401 783720 K-BKT-MOT-TRAY 2 1/P
27 4401 783680 K-MOT-ELV-150 2 1/C
28 4401 783740 WHEEL-28/G-14 2 1/P
29 4402 233050 SL-GEAR-20 2 1/P
30 4401 783750 GEAR-35-ARBOR 2 1/P
31 4401 782420 SPR-13.6R-13.5A 2 1/P
32 4402 233040 GEAR-15-ARBOR 2 1/P
33 4402 233130 GEAR-1.0-25-PD 2 1/P
34 4401 783440 STUD-WORM-TRAY 2 1/P
35 4401 783240 STD-BKT-MOT-TRY 2 1/P
36 4407 744370 Z-MA-LS-10 2 5/P
38 4401 907170 BRKT-CONECT-LR 1 1/P
39 4402 807030 SCREW-SOCKET 2 10/P
40 4401 915530 WH-PFC-LCF-152 1 1/P
41 4843 391092 BD/W-T18S 1 10/P
61 4842 040690 TZPAN3006MSZN3L 35 50/P
62 7040 400611 PAN40*06MSZN3AI 4 50/P
63 7405 007031 ERR070SKZN3A 14 50/P
64 4842 040724 TPPAN4006MSZN3L 2 50/P
65 4842 040060 TPAN40*08MSZN3L 15 50/P
66 7040 260411 PAN26*04MSZN3AI 6 50/P
67 7405 005031 ERR050SKZN3A 2 50/P
68 4842 040725 TPPAN4008MSZN3A 4 50/P
69 4842 040117 THPAN4006MSZN3L 1 50/P
9 TOSHIBA
5560 PFP-DRIVE-3-ASM MARCH 2004
10
5560 MARCH 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 783030 K-BKT-JOINT-FED 2 1/P
2 4401 783010 K-ARM-JOINT-FED 2 1/P
3 4401 783310 GEAR-08-20-L27 4 1/P
4 4407 682520 GEAR-0.8-25 2 1/P
5 4408 535760 GEAR-08-25-070 2 1/P
6 4401 783390 SPE-JOINT 4 5/P
7 4401 783360 GUIDE-FS-UNIT 2 1/P
8 4401 909290 K-BRKT-JNT-RGT 2 1/P
9 4401 909260 K-ARM-JOINT-RGT 2 1/P
10 4401 783380 ROL-GUIDE-RGT 2 1/P
11 4407 906230 GEAR-08-30 2 1/P
51 4842 040060 TPAN40*08MSZN3L 9 50/P
52 7405 005031 ERR050SKZN3A 10 50/P
53 4842 040690 TZPAN3006MSZN3L 2 50/P
10 TOSHIBA
5560 PFP-FEEDER-1-ASM MARCH 2004
11
5560 MARCH 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 782800 K-FRAME-F/S-UNT 1 1/P
2 4401 782650 BKT-WH-F/S 1 1/P
3 4843 390941 BD/W-EDS-1 2 10/P
4 4401 782660 COV-SW-F/S 1 1/P
5 4401 782880 STAY-FEED-F/S 1 1/P
6 4401 782980 BKT-FEED-ROL 1 1/P
7 4401 909420 GUIDE-PA-2-F/S 1 1/PP
8 4400 325930 PIN-BKT-CON-H 6 10/P
15 4401 782730 SHAFT-FEED-F/S 1 1/P
16 4408 338630 K-PLY/T-2M-Z20 3 1/P
17 4407 403790 NPIN2-8 3 10/P
18 4401 782960 BELT-214-2M 1 1/P
19 4407 734980 BUSH-6-GCB 3 5/P
20 4402 833110 CLUTCH-6-L 2 1/P
21 4402 038460 K-ROL-FEED-1 1 1/P
22 4407 907410 STOP-RING-6 1 5/P
23 4401 783310 GEAR-08-20-L27 1 1/P
24 4401 782790 BKT-SPT-SFT-FED 1 1/P
25 4407 959970 BRG-696ZZNR 1 1/P
26 4401 909320 SFT-PICK-F/S 1 1/P
27 4402 231810 LVR-ARM-PICK-UP 1 1/P
28 4402 231990 SPR-PICK-UP 1 1/P
29 4407 734240 BUSH-6 1 5/P
30 4402 231750 ARM-PICK-550 1 1/P
31 4402 231780 PLY-20-2M 1 1/P
32 4407 908720 BLT/T-Z71 1 1/P
33 4401 782680 ACTR-PICK-150 1 1/P
34 4842 904052 SNAP-PIN 3 10/P
35 4401 782720 JOINT-PULLY-F/S 2 1/P
36 4401 782560 K-GEAR-22-08-OW 1 1/P
37 4401 782700 HLDR-F/S-UNT-F 1 1/P
38 4401 782710 HLDR-F/S-UNT-R 1 1/P
39 4401 782780 BKT-FRM-F/S 1 1/P
40 4401 909430 GUIDE-PA-3-F/S 1 1/PP
41 4401 909410 GUIDE-PA-1-F/S 1 1/PP
42 4401 782630 CUSH-GUIDE-PA-1 2 5/P
43 4401 773080 K-ROL-P/U-CCW-H 1 1/KP
44 4401 782970 SPL-PUSH-GUIDE 1 5/P
45 4400 909480 PWA-F-PEM-700 1 1/C
46 4407 744370 Z-MA-LS-10 1 5/P
47A 4401 795990 WH-FS-UNIT-150 1 1/P UPPER
47B 4401 795980 WH-FS-UNITL-150 1 1/P LOWER
48 4401 782540 ARM-PICK-150 1 1/P
49 4402 038470 ROL-FEED-1 1 1/C
50 4401 784250 GUIDE-PA-STY-FS 1 1/P
81 4842 040665 TPAN3006MSZN3L 15 50/P
82 4842 040692 TZPAN3008MSZN3L 5 50/P
83 7405 005031 ERR050SKZN3A 17 50/P
84 4842 040060 TPAN40*08MSZN3L 2 50/P
11 TOSHIBA
5560 PFP-FEEDER-2-ASM MARCH 2004
12
5560 MARCH 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 782830 K-STAY-SEP-F/S 1 1/P
2 4401 784150 LEV-ROL-SEP-U/D 1 1/P
3 4401 784200 SPE-SEP-1142 1 5/P
4 4401 782760 BKT-FEED-SW-F/S 1 1/P
5 4402 221190 SZ-P-FEED-545 1 1/C
6 4363 271350 SPE063-080-0427 1 5/P
7 4407 403790 NPIN2-8 4 10/P
8 4407 734980 BUSH-6-GCB 4 5/P
9 4407 972860 STOP-RING-6-5 1 5/P
10 4407 906230 GEAR-08-30 1 1/P
11 4401 909440 K-GUIDE-PA-ENT 1 1/PP
12 4401 782890 ROLLER-ALIN-F/S 1 1/KP UPPER
13 4407 640340 GEAR-20-0.8-D6 1 1/P UPPER
14 4407 976990 BUSH-D6-GCB 2 1/P UPPER
15 4402 232180 SPRING-550 1 5/P UPPER
16 4402 232170 SPRING-815 1 5/P UPPER
17 4401 784260 ROLLER-RGT-F/S 1 1/KP UPPER
18 4400 823760 GEAR-08-20-LA5 2 1/P UPPER
19 4402 233530 COLLER-GAP-GEAR 1 5/P UPPER
20 4401 782590 K-SFT-SPT-F/S 1 1/P
21 4401 773030 K-ROL-SPT-CCW-H 1 1/P
22 4408 307270 ARBOR-16-POM-S 1 1/P
23 4401 784210 SPR-1.0-15.60RF 1 5/P
24 4408 535810 COVER-SP-CL-BL 1 1/P
25 4401 773020 ASM-ROL-SPT-CCW 1 1/C
30 4401 784040 ASM-ARM-SET-ROL 1 1/P
32 4402 222280 PWA-F-PEM-366-0 1 1/C UPPER
33 4401 782670 BKT-BLIND-F/S-L 1 1/P LOWER
34 4401 784180 RUBBER-ARM-SET2 1 1/P
35 4401 773040 ROL-SPT-RUB-H 1 1/C
36 4400 827900 CLIP-WH-STACK 1 5/P
71 4842 040665 TPAN3006MSZN3L 13 50/P
73 7405 005031 ERR050SKZN3A 12 50/P
74 7405 007031 ERR070SKZN3A 1 50/P
12 TOSHIBA
5560 LCF-FRAME-ASM MARCH 2004
13
5560 MARCH 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 907420 FRAME-F-LCF 1 N/A***
2 4401 907430 FRAME-R-LCF 1 N/A***
3 4401 907440 FRAME-M-LCF 1 N/A***
5 4401 907460 STAY-LOW-LCF 1 1/P
6 4401 907450 STAY-TOP-LCF 1 1/P
7 4401 907600 GUIDE-PAPER-LCF 1 1/P
8 4401 908380 COVER-BASE-LCF 1 1/P
9 4401 908520 K-BRKT-SW-LCF 1 1/P
10 4843 231858 SM-VX-01-1C23 1 1/D
11 4401 907470 GUIDE-SIDE-F 1 1/P
12 4401 907480 GUIDE-SIDE-R 1 1/P
13 4401 908570 SPL-SW-LCF 1 1/P
14 4843 232065 SM-DE2L-BAAA 1 1/P
15 4401 915870 WH-LCF-DOOR-152 1 N/A***
16 4401 908560 COV-SW-DOOR 1 1/P
17 4401 779870 LBL-LCF-CAUTION 1 5/P
18 4407 685930 HOLDER-WH 1 5/P
20 4402 830920 SCREW-FRAME 1 1/P
21 4401 907150 BRKT-CONECT-LCF 1 1/P
24 4401 908350 COVER-IN-F 1 1/P
25 4401 908360 COVER-IN-R 1 1/P
26 4401 908370 KNOB-LCF 1 1/P
27 4401 779680 BKT-STOP-LCF 1 1/P
28 4401 915360 WH-LCF-152 1 1/P
29 4842 414631 GMT-OCB-625 2 10/P
30 4843 390942 BD/W-EDS-2 1 10/P
32 4400 827900 CLIP-WH-STACK 6 5/P
33 4401 779370 CUSHION-STOP 1 5/P
34 4401 768390 LBL-PSH-CAUTION 1 5/P
35 4401 907580 BRKT-POSITION 2 1/P
36 4401 908190 BRKT-SW-BTM 1 1/P
37 4401 908180 BRKT-HOLD-BTM 1 1/P
38 4401 908200 ACT-BTM-SW 1 1/P
39 4400 678850 SZ-HOME-140 1 1/C
40 4401 908290 SPRING-040-40 1 1/P
51 4842 040650 TPAN40*06MSZN3L 40 50/P
53 4842 040690 TZPAN3006MSZN3L 16 50/P
54 7040 201011 PAN20*10MSZN3AI 2 50/P
57 4842 040700 TZPAN4008MSZN3L 2 50/P
61 4842 040060 TPAN40*08MSZN3L 6 50/P
63 7040 300611 PAN30*06MSZN3A 1 50/P
64 4842 040117 THPAN4006MSZN3L 1 50/P
65 7405 003031 ERR030SKZN3A 1 50/P
66 4842 040062 TPAN3014MSZN3L 2 50/P
13 TOSHIBA
5560 LCF-DRIVE-ASM MARCH 2004
14
5560 MARCH 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 908110 BRKT-DRIVE-1 1 1/P
2 4401 908220 SHAFT-WORM 1 1/P
3 4401 908270 WORM-1.0-16 1 1/P
4 4408 510800 BRG-688ZZNR 2 1/P
5 4408 530130 STOPPER-WORM 1 1/P
6 4346 312020 PIN 1 10/P
7 4401 908170 PLY/T-3GT-22 1 1/P
8 4401 908080 FLANGE-ROL-GEAR 2 1/P
9 4401 908070 GEAR-1.0-70-ROL 2 1/P
10 4401 908310 WIRE-ROPE-LCF-L 2 1/P
11 4401 908320 WIRE-ROPE-LCF-S 2 1/P
12 4401 908240 BRKT-DRIVE-2 1 1/P
13 4401 908260 STUD-DRIVE-1 3 1/P
14 4401 908250 WORM-WHEEL-74 1 1/P
15 4401 908010 BRKT-PLY-3 2 1/P
16 4401 908030 STUD-PLY-2 2 1/P
17 4401 907960 PULLEY-LCF 8 1/P
18 4401 908060 K-MOTOR-LCF 1 1/C
19 4401 908140 BLT/T-3GT123-60 1 1/P
20 4401 908000 BRKT-PULLEY-2 2 1/P
21 4401 907970 STUD-PLY-1 6 1/P
22 4401 908040 GUIDE-ROPE-ELV 8 1/P
23 4401 907940 GUIDE-TARY-LCF 4 1/P
24 4401 907540 STAY-TRAY-LCF 2 1/P
25 4401 907530 GUIDE-TRAY 2 1/P
26 4401 907510 TRAY-LCF 1 1/PP
27 4407 907140 BRAKE-PAD 1 5/P 027 1
27 1 4402 881120 BRAKE-PAD 1 5/P C E H F98B203 027
28 4401 908390 EDGING-EO12-044 2 5/P
29 4402 867000 K-BASE-TRAY-LCF 1 1/P
42 4842 040650 TPAN40*06MSZN3L 14 50/P
44 4842 011062 9HSS30/04MSFB 2 50/P
45 4842 011081 9HSS40/04MSFB 1 50/P
47 7405 007031 ERR070SKZN3A 8 50/P
49 4842 040723 TPPAN4006MSZN3A 9 50/P
50 4842 040690 TZPAN3006MSZN3L 6 50/P
14 TOSHIBA
5560 FEED-GUIDE-ASM MARCH 2004
15
5560 MARCH 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4400 746580 BASE-GUIDE-OP-2 1 1/P
2 4401 907610 GUIDE-PA-OPEN-1 2 1/P
3 4401 783960 SCREW-LINK-M3 4 10/P
4 4401 783840 SPE-GUIDE-OPEN 2 5/P
5 4401 907620 GUIDE-PA-OPEN-2 2 1/P
6 4400 746560 LINK-GUIDE-OP-2 2 1/P
7 4400 325930 PIN-BKT-CON-H 4 10/P
8 4401 783870 BKT-SPE-LOCK 1 1/P
9 4401 783860 SHAFT-LOCK-LCF 1 1/P
10 4401 783880 LEV-GUIDE-OP-F 1 1/P
11 4401 783900 HOOK-LOCK-LCF 2 1/P
12 4401 783910 SPE-LOCK-LCF 1 5/P
13 4401 783930 LEVER-LOCK-LCF 1 1/P
14 4401 784310 K-BRKT-SW-LCF 1 1/P
15 4401 797750 ASM-LCFLOCK-150 1 1/D
16 4401 784340 SPL-SW-LCF 1 1/P
18 4407 685930 HOLDER-WH 2 5/P
19 4401 768350 LABEL-H 1 10/P
30 4842 040650 TPAN40*06MSZN3L 4 50/P
31 4842 040665 TPAN3006MSZN3L 4 50/P
32 7640 401011 ZPAN40*10MSZN3A 5 50/P
33 7405 007031 ERR070SKZN3A 1 50/P
34 4842 040689 TZPAN3006MSZN3A 2 50/P
36 7040 201011 PAN20*10MSZN3AI 2 50/P
37 7405 003031 ERR030SKZN3A 1 50/P
15 TOSHIBA
5560 ADD-FRONT-FRAME-ASM MARCH 2004
16
5560 MARCH 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 900810 FRAME-MD-F 1 N/A***
2 4401 776290 LOCK-GUIDE-OP 1 1/P
4 4843 391164 BD/W-EDS-1717U 1 10/P
5 4401 776530 STAY-L-EXIT 1 1/P
6 4401 759500 STAY-FUSER 1 1/P
7 4401 754050 K-BKT-BLC-L 1 1/P
8 4402 310950 STAY-TR-BOX 1 1/P
9 4401 776580 BRUSH-SUS-E 1 1/KP
10 4401 775510 STAY-SFB 1 1/P
11 4401 772960 SHAFT-STAY 2 1/P EXCEPT TAD
11A 4401 772960 SHAFT-STAY 3 1/P TAD
12 4401 777710 SHAFT-TRAY-A 1 1/P
13 4401 777720 COLLER-SFT-TRAY 2 5/P
14 4843 390888 CLP/W-WS-2U 2 5/P
51 4842 040690 TZPAN3006MSZN3L 10 50/P
52 7405 006031 ERR060SKZN3A 4 50/P
53 4842 040060 TPAN40*08MSZN3L 12 50/P
54 7040 400811 PAN40*08MSZN3AI 7 50/P
55 4842 040665 TPAN3006MSZN3L 1 50/P
16 TOSHIBA
5560 ADD-DEC-ASM MARCH 2004
17
5560 MARCH 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
6 4401 910220 K-STAY-DEC 1 1/P
16 4401 910270 SFT-DEC-ADJ 1 1/P
17 4401 910280 SFT-DEC-1 1 1/P
18 4401 910290 SFT-DEC-2 1 1/P
19 4401 910310 ROLLER-DEC 5 1/P
20 4401 910370 BELT-DEC 5 1/P
21 4400 825510 GEAR-08-20-4.5 1 1/P
22 4407 403790 NPIN2-8 1 10/P
23 4346 312020 PIN 1 10/P
24 4346 312030 BUSHING 2 5/P
25 4407 976990 BUSH-D6-GCB 2 1/P
26 4407 734980 BUSH-6-GCB 2 5/P
27 4401 909970 SPRING-900 2 5/P
28 4401 910320 ADJUSTER-DEC 2 1/P
56 7405 005031 ERR050SKZN3A 5 50/P
57 7405 007031 ERR070SKZN3A 3 50/P
58 4842 040700 TZPAN4008MSZN3L 2 50/P
17 TOSHIBA
5560 ADD-REAR-FRAME-ASM MARCH 2004
18
5560 MARCH 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 900910 FRAME-MD-R 1 N/A***
2 4401 754050 K-BKT-BLC-L 1 1/P
3 4401 787380 BKT-FRM-MD-R 1 1/P
4 4401 764680 STAY-D-HEATER 1 1/P
5 4401 764690 COV-STAY-D-HEAT 1 1/P
6 4401 772940 BKT-PFC-150 1 1/P
7 4843 390857 CLP/W-LWS-4U 4 5/P
8 4843 391164 BD/W-EDS-1717U 3 10/P
9 4843 390860 PWZ-SPS-6U 6 5/P
10 4843 390870 PWZ-SPLS-6U 7 5/P
11A 4401 764840 BRKT-D-HEATER 1 1/P MF-6550U,E,A
11H 4401 764840 BRKT-D-HEATER 1 1/P AUD
12A 4401 797600 ASM-DHT-115-150 1 1/D MF-6550U
12B 4401 797610 ASM-DHT-220-150 1 1/D MF-6550E
12C 4401 797620 ASM-DHT-240-150 1 1/D MF-6550A
12H 4401 797620 ASM-DHT-240-150 1 1/D AUD
13A 4407 965320 PWA-F-FUS-351UC 1 1/C MF-6550U
13B 4407 965330 PWA-F-FUS-351EU 1 1/C MF-6550E,A
13H 4407 965330 PWA-F-FUS-351EU 1 1/C AUD
14A 4407 551150 THERMOSTAT-30 1 1/D MF-6550U,E,A
14H 4407 551150 THERMOSTAT-30 1 1/D AUD
15 4402 321310 PWA-F-PFC-154 1 1/SB
16 4843 390856 CLP/W-LWS-3U 1 5/P
17 4402 325520 IC-154PFC-01 1 1/S 017 1 IC2
17 1 4402 325520 IC-154PFC-01 0 1/S B - E F97H992 017 DG7 IC2
50 4842 040060 TPAN40*08MSZN3L 10 50/P
51 4842 040690 TZPAN3006MSZN3L 6 50/P
52 4842 040665 TPAN3006MSZN3L 1 50/P
18 TOSHIBA
5560 ADD-DRIVE-ASM MARCH 2004
19
5560 MARCH 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 777330 BKT-MOT-RGT-ADD 1 1/P
2 4401 916060 M/P-ADD-152 1 1/C
3 4401 772670 PULLEY22-3M 1 1/P
4 4401 772680 FLANGE-23 1 1/P
5 4407 902170 DUMPER-MOTOR 1 1/P
6 4408 604650 BRKT-MOTOR-547 1 1/P
7 4401 777300 K-BKT-MOT-FED-A 1 1/P
8 4401 772820 K-G18-P78 1 1/P
9 4401 772900 K-MOT-FEED 1 1/C
10 4401 772870 BELT-106110-3 1 1/P
11 4401 777350 STUD-PLY40-G20H 4 1/P
12 4401 777480 STUD-RGST-PLY 1 1/P
13 4401 777550 K-G20-08-P40-2M 5 1/P
14 4401 777990 K-GEAR-20-08-OW 1 1/P
15 4401 776420 BELT-73060-4 1 1/P
16 4401 776400 BELT-106139-4SZ 1 1/P
17 4401 776390 BELT-106115-3Z 1 1/P
18 4402 205100 BELT-106162-3S 2 1/P
19 4401 776380 BELT-106159-3Z 1 1/P
20 4407 906230 GEAR-08-30 1 1/P
21 4407 403790 NPIN2-8 2 10/P
22 4407 640340 GEAR-20-0.8-D6 1 1/P
23 4402 833110 CLUTCH-6-L 1 1/P
24 4346 312020 PIN 1 10/P
25 4402 205010 PLY-40-2M-S 1 1/P
26 4408 603650 PLY-2MZ40-3MZ18 1 1/P
60 4842 040690 TZPAN3006MSZN3L 5 50/P
61 4842 011065 9HSS30/08MSFB 2 50/P
62 4842 040060 TPAN40*08MSZN3L 3 50/P
63 7405 005031 ERR050SKZN3A 12 50/P
64 7040 300411 PAN30*04MSZN3A 3 50/P
65 7640 300651 ZPAN30*06MSZN3A 5 50/P
19 TOSHIBA
5560 ADD-TRANSPORT-ASM MARCH 2004
20
5560 MARCH 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 909690 ROLLER-PASS-TR 3 1/KP
2 4407 734980 BUSH-6-GCB 3 5/P
3 4407 403790 NPIN2-8 3 10/P
4 4400 825510 GEAR-08-20-4.5 3 1/P
5 4346 312030 BUSHING 5 5/P
6 4401 777380 ROL-PASS-STK 1 1/KP
7 4346 312020 PIN 1 10/P
8 4401 777260 KNOB-ROL-AL-A 1 1/P
9 4401 776230 ROLL-IDLE-STK-H 1 1/KP
10 4407 957140 SPRING-850 2 5/P
11 4407 976990 BUSH-D6-GCB 2 1/P
12 4401 910340 GUIDE-DEC-U1 1 1/PP
13 4401 909670 GUIDE-S-EXT-C7 1 1/P
14 4401 909510 K-GUIDE-S-ENT 1 1/PP
15 4401 909980 ASM-SPL-ROL-ADD 6 1/D
16 4401 777400 K-HINGE-OPG-E 1 1/P
17 4401 777410 K-HINGE-OPG-F 1 1/P
18 4401 909790 SPE-GUIDE-DEC-L 2 1/P
19 4401 910350 GUIDE-DEC-U2 1 1/PP
21 4401 910360 GUIDE-DEC-L 1 1/PP
22 4401 909770 PLATE-SUB-OP-C7 1 1/P
24 4401 909780 BKT-SUB-OP-C7 1 1/P
25 4401 777450 BKT-HANDLE-OPG 1 1/P
26 4401 776660 HOOK-GUIDE-OP 1 1/P
27 4401 777460 SHAFT-OPG-ADD 1 1/P
28 4402 232680 SPE-6.3-0.6 1 1/P
29 4401 776670 HANDLE-GUIDE-OP 1 1/P
30 4401 768370 LABEL-K 1 10/P
31 4401 768380 LABEL-L 1 10/P
61 7405 005031 ERR050SKZN3A 9 50/P
62 7405 007031 ERR070SKZN3A 6 50/P
63 4842 040690 TZPAN3006MSZN3L 14 50/P
64 4842 040060 TPAN40*08MSZN3L 14 50/P
65 4842 040665 TPAN3006MSZN3L 7 50/P
66 4842 040692 TZPAN3008MSZN3L 1 50/P
20 TOSHIBA
5560 ADD-STACKING-ASM MARCH 2004
21
5560 MARCH 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4402 205370 BASE-STACK 1 N/A***
2 4400 822980 SHEET-WALL-S 1 1/KP
3 4401 909480 DAMPER-HAND-T8 1 1/P
4 4401 910010 STAY-GUIDE-STK1 1 1/P
5 4400 824210 HOLDER-SW-P-366 1 1/P
6 4402 222370 PWA-F-PEM-MD4-0 1 1/C
7 4401 795820 WH-PFC-ADD-150 1 1/P
9 4401 777840 K-SHAFT-SCREW 1 1/C
10 4400 822960 BUSH-PAPER-END 1 1/P
11 4401 909960 STAY-P-END-152 1 1/P
12 4407 734980 BUSH-6-GCB 2 5/P
13 4400 826400 BELT-106071-4.0 1 1/P
14 4401 776260 BKT-MOTOR-PE-H 1 1/P
15 4402 222990 SND-GATE-545-C 1 1/D
16 4402 310530 K-MOTOR-SCREW 1 1/C
17 4401 908840 SPACER-STK-WALL 4 5/P
18 4401 910110 PLATE-SW-STACK 1 1/P
19 4400 327830 CAM-ADJ-LENS 1 1/P
20 4842 414629 GMT-OCB-375 1 10/P
21 4401 910040 K-GUIDE-STK-C7 1 1/PP
22 4400 801130 PULLEY-Z23 1 1/P
23 4400 822650 PLY-23-48-2M 1 1/P
24 4402 310510 K-MOTOR-SLIDE 1 1/C
25 4407 963860 BELT-HTD-76-2M 1 1/P
26 4401 776810 BELT-106348-3SZ 1 1/P
27 4401 910060 K-WALL-STACK-F 1 1/P
28 4401 910080 K-WALL-STACK-R 1 1/P
29 4400 824230 STOPPER-BELT 2 1/P
30 4400 824240 SLIDER-WALL 2 1/P
31 4401 910100 STAY-SW-STACK 1 1/P
32 4400 678850 SZ-HOME-140 1 1/C
33 4402 321840 WH-ADD-154 1 1/P
34 4843 390941 BD/W-EDS-1 1 10/P
35 4401 776740 BKT-GUIDE-STK 1 1/P
36 4400 828050 SLIDER-SET 2 1/P(2)
38 4843 391391 CLP/WUAMS-05-2 1 5/P
39 4407 685930 HOLDER-WH 1 5/P
40 4401 910020 PLATE-STACK 1 1/P
41 4400 823400 PLY-Z30-2M 1 1/P
42 4400 822950 BUSH-SCREW-PE 1 1/P
43 4401 777360 SHAFT-SCREW-PE 1 1/P
44 4402 321850 WH-PFC-GATE-154 1 1/P
45 4843 391092 BD/W-T18S 1 10/P
61 4842 040690 TZPAN3006MSZN3L 7 50/P
62 4842 040060 TPAN40*08MSZN3L 5 50/P
63 7120 300811 12PAN3008MSZN3A 1 50/P
64 4842 040700 TZPAN4008MSZN3L 2 50/P
65 7040 300611 PAN30*06MSZN3A 2 50/P
66 4842 040665 TPAN3006MSZN3L 4 50/P
67 7405 003031 ERR030SKZN3A 2 50/P
68 4842 040124 TZPAN3014MSZN3L 1 50/P
69 7640 400851 ZPAN40*08MSZN3A 2 50/P
70 7640 301451 ZPAN30*14MSZN3A 1 50/P
71 7640 300651 ZPAN30*06MSZN3A 1 50/P
21 TOSHIBA
5560 ADD-FEEDER-ASM MARCH 2004
22
5560 MARCH 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 777000 STAY-FEED-ADD 1 1/P
2 4401 777010 BKT-FED-ROL-ADD 1 1/P
3 4401 777020 SHAFT-ROL-FED-A 1 1/P
4 4400 884670 PLY-20-ROL 1 1/P
5 4407 403790 NPIN2-8 2 10/P
6 4401 776410 BELT-106162-2SZ 1 1/P
7 4407 734980 BUSH-6-GCB 5 5/P
8 4402 038470 ROL-FEED-1 1 1/C
9 4402 038460 K-ROL-FEED-1 1 1/P
10 4402 833110 CLUTCH-6-L 1 1/P
11 4407 907410 STOP-RING-6 2 5/P
12 4401 776900 STAY-SEP-ADD 1 1/P
13 4401 776910 K-BKT-SEP-ROL-A 1 1/P
14 4401 776930 LEV-ROL-SEP-ADD 1 1/P
15 4401 771690 SPE-SEP-907 1 5/P
16 4401 776970 K-SFT-ROL-SEP-A 1 1/P
17 4401 773030 K-ROL-SPT-CCW-H 1 1/P
18 4408 307270 ARBOR-16-POM-S 1 1/P
19 4401 784210 SPR-1.0-15.60RF 1 5/P
20 4408 535810 COVER-SP-CL-BL 1 1/P
21 4401 909600 GUIDE-SEP-ADD 1 1/PP
22 4401 776960 SCREW-SEP-ADD 2 10/P
23 4401 776950 SPE063-060-0253 2 5/P
24 4408 502410 COLLAR-6-15 1 1/P
25 4401 777520 K-BRKT-SOL-PICK 1 1/P
26 4402 206010 ARM-SEND-PICK 1 1/P
27 4400 825810 SND-FEED-MD3 1 1/D
28 4400 816400 SM-E21-51HX-001 1 1/C
29 4401 777540 SPE-PICK-ADD 1 5/P
30 4400 826150 CYLINDER-PICK 1 1/P
31 4400 826140 PISTON-PICK-UP 1 1/P
32 4402 205430 ARM-PISTON 1 1/P
33 4401 777510 GEAR-18-1-SPE 1 1/P
34 4400 801510 COLLER-MOT-P 1 5/P
35 4400 538970 BRG-W686ZZNR 1 1/P
36 4401 776470 SHAFT-PICK-ADD 1 1/P
37 4401 909940 ARM-PICK-UP 2 1/P
38 7434 201239 WPIN20/12SKFB 2 50/P
39 4400 825750 ROL-PICK-ADD 1 1/KP
40 4408 338630 K-PLY/T-2M-Z20 1 1/P
41 4407 973140 BELT-HTD-93-2M 1 1/P
42 4400 825960 K-PLY/2M-Z20 2 1/P
43 4401 909580 STAY-PICK-ADD 1 1/P
44 4401 776580 BRUSH-SUS-E 1 1/KP
45 4401 909980 ASM-SPL-ROL-ADD 2 1/D
47 4401 777580 CUSH-PICK-ADD 1 5/P
61 4842 040690 TZPAN3006MSZN3L 18 50/P
62 7405 005031 ERR050SKZN3A 13 50/P
63 4842 040700 TZPAN4008MSZN3L 1 50/P
64 4842 040124 TZPAN3014MSZN3L 1 50/P
65 7040 300611 PAN30*06MSZN3A 2 50/P
66 4842 011081 9HSS40/04MSFB 1 50/P
22 TOSHIBA
5560 ADD-ALIGNING-ASM MARCH 2004
23
5560 MARCH 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 909070 GUIDE-RGST-OP 1 1/PP
2 4401 776240 ROLLER-ALIN-ADD 1 1/KP
3 4407 403790 NPIN2-8 1 10/P
4 4400 823760 GEAR-08-20-LA5 1 1/P
5 4407 976990 BUSH-D6-GCB 2 1/P
6 4402 232170 SPRING-815 1 5/P
7 4402 232180 SPRING-550 1 5/P
8 4401 777110 STAY-RGST-OP 1 1/P
9 4401 777470 SPL-RGOP-ADD 2 1/P
10 4401 777130 RAIL-RGST-OP-R 1 1/P
11 4401 777120 RAIL-RGST-OP-F 1 1/P
12 4401 777140 K-BKT-JOINT-RGO 2 1/P
13 4401 777280 SHAFT-STOP-RGOP 1 1/P
14 4401 777210 BKT-STOP-RGST 2 1/P
15 4401 777220 SHAFT-ROL-STOP 2 1/P
16 4401 777230 ROLL-STOP-RGST 2 1/P
17 4400 802080 BUSH-8 2 5/P
18 4401 777240 BKT-HANDLE-RGOP 1 1/P
19 4401 777250 HANDLE-RGST-OP 1 1/P
20 4402 310920 ROLL-RGT-ADD-C6 1 ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
