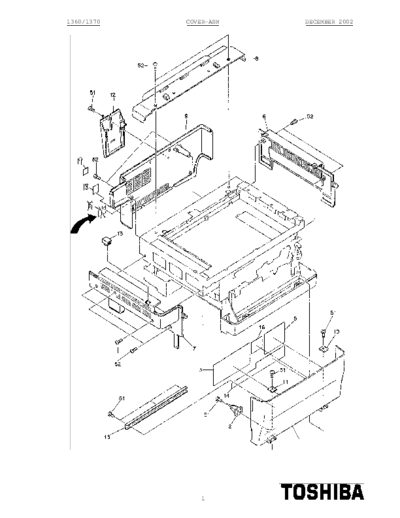

Image preview - the first page of the document
>> Download Toshiba 1360_1370pc documenatation <<
Text preview - extract from the document
1360/1370 COVER-ASM DECEMBER 2002
1
1360/1370 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1A 4402 861250 F-COV-F-1360 1 1/PP F97C852 1360
1B 4402 861350 F-COV-F-1370 1 1/PP F97C852 1370
2 4402 843500 ACTR-SW-DOOR 1 1/P
3 4402 841670 LBL-INST-TNR1 1 1/KP
5 4402 841960 LBL-INST-TNR2 1 1/KP
6 4402 841620 COVER-RIGHT-U 1 1/PP
7 4402 841610 COVER-LEFT 1 1/PP
8 4402 841640 COVER-TOP 1 1/PP
9 4402 841650 COVER-REAR 1 1/PP
10 4407 686030 PLATE-HINGE 1 1/P
11 4407 686960 PLATE-HINGE-L 1 1/P
12 4400 553270 MANUAL-POKET 1 1/PP
13 4402 841750 CAP-COVER-LEFT 1 1/P
14 4402 841590 LBL-INST-TNR3-E 1 5/KP FOR EUROPE
15 4402 841570 BRKT-FRONT-COV 1 1/P
16 4402 844590 LBL-MEMORY-F120 1 5/KP
18A 4400 945700 LABEL-CANADA 1 5/P NAD
19B 4402 090460 LABEL-CE 1 5/P FOR EUROPE
51 4842 040846 PTBR30*08MSZN3A 8 50/P
52 4842 040684 TBID3006MSCR3C 10 50/P
11 4407 686960 PLATE-HINGE-L 1 1/P
1
TOSHIBA
1360/1370 CONTROL-PANEL-ASM DECEMBER 2002
2
1360/1370 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4402 842100 COV-CONP 1 1/PP
2A 4402 861900 PANEL-DSP-1370U 1 1/KP F97C852 1370 NAD
2B 4402 861910 PANEL-DSP-1370E 1 1/KP F97C852 1370 OTHERS
3 4402 842150 KEYTOP-C/S 1 1/D
4 4402 842160 KEYTOP-TEN 1 1/D
5 4402 842170 KEYTOP-PRINT 1 1/D
6A 4402 862000 KEYTOP-FNC 1 1/P F97C852 1360
6B 4402 862000 KEYTOP-FNC 2 1/P F97C852 1370
7 4402 862010 KEYTOP-65 1 1/P F97C852 1370
8 4402 862020 KEYTOP-141 1 1/P F97C852 1370
9 4402 862030 KEY-TOP-DSP 1 1/P F97C852 1370
10 4402 842250 ARM-SLIDE-V 1 1/P
11 4402 842260 BLIND-SLIDE-V 1 1/P
12 4402 862040 KNOB-SLIDE 1 1/P F97C852
13 4402 842300 COV-IN 1 1/PP
14 4402 842310 BRKT-CONP 2 1/P
15 4402 858050 PWA-F-PNL-121 1 1/SB 1370
16 4402 858600 WH-PNL-121 1 1/P
17 4400 357700 CTR-E650B-523 1 1/D
18 4402 842350 SHIELD-MYLAR 1 1/P
19 4402 861800 PANEL-DSP-1360 1 1/KP F97C852 1360
20 4402 858110 PWA-F-PNL-120 1 1/SB 1360
21 4400 553200 LBL/W-DRUM 1 1/KP
41 4842 040848 PTBR30*12MSZN3A 2 50/P
42 4842 040495 PTBR30*06MSZN3A 15 50/P
43 4842 040692 TZPAN3008MSZN3L 2 50/P
44 4842 040690 TZPAN3006MSZN3L 3 50/P
2
TOSHIBA
1360/1370 TABLE-ASM DECEMBER 2002
3
1360/1370 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4402 841810 COVER-PLATEN 1 1/PP
2 4402 841830 SHEET-PLATEN-JU 1 1/KP
3 4402 841840 TOP-POCKET 1 1/PP
4 4402 841850 HINGE-PLATEN 1 1/P
5 4402 841870 BKT-HINGE-R 1 1/P
6 4402 841880 BKT-HINGE-L 1 1/P
31 4842 040846 PTBR30*08MSZN3A 4 50/P
32 4842 040704 TZPAN4012MSZN3L 2 50/P
3
TOSHIBA
1360/1370 UPPER-UNIT-ASM DECEMBER 2002
4
1360/1370 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4402 843020 FRAME-UP-F 1 N/A***
2 4402 843860 ACTR-SW-SHELL 1 1/P
3 4402 843330 SHAFT-ARM-LOCK 1 1/P
4 4402 843340 ARM-LOCK-F 1 1/P
5 4402 843950 LABEL-ARM-LOCK 1 5/P
6 4402 843350 ARM-LOCK-R 1 1/P
7 4402 843960 SPE-ARM-LOCK 1 5/P
8 4402 847230 GUIDE-CLN 1 1/P
9 4402 843140 GUIDE-DEV 1 1/P
10 4402 843200 ASM-BAR-TORSION 1 1/P
12 4402 844080 MYLAR-GUIDE-CL2 1 5/KP
13 4402 844210 SPL-ROL-GUIDE 2 1/P
14 4402 844220 ROLLER-GUIDE-CL 2 1/P
41 4842 040690 TZPAN3006MSZN3L 10 50/P
42 7640 300851 ZPAN30*08MSZN3A 2 50/P
43 7405 005031 ERR050SKZN3A 1 50/P
44 4842 040692 TZPAN3008MSZN3L 1 50/P
4
TOSHIBA
1360/1370 DRIVE-ASM DECEMBER 2002
5
1360/1370 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4402 844270 K-FRAME-U-R 1 N/A***
2 4402 853110 GEAR-0.8-Z32-20 1 1/P
3 4402 853100 GEAR-0.8-Z28-20 1 1/P
4 4402 853010 BRKT-ARM-FUSER 1 1/P
5 4402 853020 GEAR-0.8-Z35-20 1 1/P
6 4402 853170 BRKT-SFT-ARM-FU 1 1/P
7 4402 853160 BRKT-DRIVE-DEV 1 1/P
8 4402 844230 BRKT-COV-R 1 1/P
9 4843 390803 CLP/W-OCB-375 1 5/P
10 4843 306486 J-0-175694-3 1 5/P
11 4402 853030 GEAR-20/0.8-Z28 1 1/P
12 4402 853040 STUD-6-41-M3 1 1/P
16 4402 853080 K-FRAME-DRIVE 1 1/P
17 4402 858800 M/DC-MAIN-121 1 1/C
18 4402 852860 K-PLY/T-3M-MTR 1 1/P
19 4402 852880 K-PLY/T-3M-DEV 1 1/P
20 4402 852900 GEAR-Z26-DEV 1 1/P
21 4400 353370 PLY-TENSION-F 1 1/P
22 4402 852910 PLY/T-3M-30-FED 1 1/P
23 4402 853180 BRKT-FULL-SW 1 1/P
24 4402 859600 SP-CS3A-B2BA 1 1/D
25 4402 853200 BRKT-ARM-FEED 1 1/P
26 4402 852960 GEAR-0.8-Z37 1 1/P
27 4402 852970 STUD-6-26-M3 1 1/P
28 4402 852920 BLT/T-73133-4 1 1/P
29 4843 390887 CLP/W-WS-1U 1 5/P
30 4402 842890 THMS-DRUM-121 1 1/C
31 4402 844260 BRKT-COV-R-SUB 1 1/P
32 4348 141020 WASHER 1 10/P
71 7640 300851 ZPAN30*08MSZN3A 2 50/P
72 7405 005031 ERR050SKZN3A 1 50/P
73 4842 040690 TZPAN3006MSZN3L 12 50/P
74 4842 040696 TZPAN3012MSZN3L 2 50/P
5
TOSHIBA
1360/1370 OPTICAL-DRIVE-1-ASM DECEMBER 2002
6
1360/1370 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4402 851520 BASE-OPT 1 N/A***
2 4402 852990 SHEET-CRG 1 5/KP
3 4402 851550 MIRROR-6-120 1 1/C
4 4402 851560 SPL-MIRROR1-R/6 2 5/P
5 4402 851470 COVER-OPT-L 1 1/PP
6 4402 858910 K-M/P-SCN-121 1 1/C
7 4402 851680 PLY/T-25/39 1 1/P
8 4402 851690 STUD-PLY/T-OPT 1 1/P
9 4402 851780 K-PLY/T-ADJ-OPT 1 1/P
10 4402 851750 K-BRKT-BLT-ADJ 1 1/P
11 4363 271330 SPE-063-080-235 1 5/P
12 4402 851710 BLT/T-2M-75-4 1 1/P
13 4402 851700 BLT/T-2M-475-4 1 1/P
14 4402 851660 SHAFT-SCAN-120 1 1/P
15 4402 850700 FELT-OPT-121 2 1/P
16 4402 851810 BRKT-SHAFT-SCAN 1 1/P
17 4402 851730 WIRE/R-SCAN-120 1 1/P
18 4402 842620 SZ-HOME-121 1 1/P
19 4402 851490 COV-OPT-L-SLIT 1 1/PP
20 4402 851480 GLASS-DUSTPROOF 1 1/S
21 4402 850570 HLDR-CABLE-OPT 1 1/P
22 4402 851300 SEAL-HOLE-OPT 1 5/P
23 4402 851370 TAPE-WHITE-120 1 1/KP
24B 4407 737310 BAND-SG-130 1 5/P 1370
25 4402 852790 SEAL-BASE-OPT 1 1/KP
26 4402 851250 SEAL-MIRROR6-F 1 5/P
27 4402 851260 SEAL-MIRROR6-R 1 5/P
61 4842 040690 TZPAN3006MSZN3L 7 50/P
62 4842 040724 TPPAN4006MSZN3L 1 50/P
63 7640 300851 ZPAN30*08MSZN3A 1 50/P
65 7405 007031 ERR070SKZN3A 1 50/P
66 7405 005031 ERR050SKZN3A 1 50/P
67 4842 040846 PTBR30*08MSZN3A 1 50/P
6
TOSHIBA
1360/1370 OPTICAL-DRIVE-2-ASM DECEMBER 2002
7
1360/1370 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1B 4402 851580 GUIDE-L/M 1 1/P 1370
2B 4402 851530 SHEET-LENS 1 5/KP 1370
3B 4402 851540 SHEET-MIRROR 1 5/P 1370
4A 4402 856330 BASE-CRG3-1340 1 N/A*** 1360
4B 4402 852620 K-CRG3 1 1/P 1370
5 4402 852060 HOLDER-MIR4/5-F 1 1/P
6 4402 852130 HOLDER-MIR4/5-R 1 1/P
7 4402 852070 MIRROR-4-120 1 1/C
8 4402 852080 MIRROR-5-120 1 1/S
9 4402 852090 SPL-MIRROR4/5 4 5/P
10B 4402 852630 K-BKT-LINK-CRG3 1 1/P 1370
11B 4402 852260 RLR-LINK-CRG3 1 1/P 1370
12 4402 851310 SEAL-CRG3 2 5/P
13B 4402 852120 PL-GUIDE-CRG3 1 1/P 1370
14A 4402 856340 BASE-LENS-1340 1 N/A*** 1360
14B 4402 852150 K-BASE-LENS 1 N/A*** 1370
15 4402 852250 BRKT-LENS 1 N/A***
16 4402 852180 LENS-155-6.7 1 N/A***
17 4402 852200 BAND-LENS 1 N/A***
18 4402 852210 COVER-LENS 1 1/P
19B 4402 852220 PLATE-H/P-L/M 1 N/A*** 1370
20B 4402 851320 SEAL-COV-LENS 1 5/P 1370
21B 4402 851340 BRUSH-BASE-LENS 1 N/A*** 1370
22B 4402 852230 PL-GUIDE-LENS 1 1/P 1370
23B 4402 852240 PLATE-BELT-LENS 1 1/P 1370
24B 4402 851910 K-DRIVE-L/M 1 1/P 1370
25B 4402 858820 K-M/P-CAM-121 1 1/C 1370
29B 4402 852000 PLY/T-16-Z20 1 1/P 1370
30B 4402 852710 K-IDLE-L/M 1 1/P 1370
31B 4402 852740 PLY/T-16 1 1/P 1370
32B 4402 852010 BLT/T-2M-242-4 1 1/P 1370
33B 4402 851890 BRKT-SENSOR-L/M 1 1/P 1370
34B 4402 842620 SZ-HOME-121 1 1/P 1370
35B 4402 852750 SPE-CRG3 1 5/P 1370
36 4402 851830 BLK-AES-120 1 1/P
37 4402 858020 PWA-F-AES-121 1 1/SB
38A 4402 858710 WH-AES-120 1 1/P 1360
38B 4402 858610 WH-ZOOM-121 1 1/P 1370
39 4843 390803 CLP/W-OCB-375 1 5/P
40 4402 851590 COVER-OPT-U 1 1/PP
41 4402 851620 STAY-GLASS-F 1 1/P
42 4402 851630 STAY-GLASS-R 1 1/P
43 4400 831600 CUSH-GLASS 8 5/P
44 4402 851400 GLASS-395-266-4 1 1/S
45 4402 851280 K-PLT-GLASS-ORG 1 1/PP
46A 4402 851430 LBL-SCALE-UC 1 1/KP USA SIZE
46B 4402 851440 LBL-SCALE-EUR 1 1/KP EUR SIZE
47B 4402 852360 BOLT-CRG3 1 10/P 1370
49B 4408 363830 CLP/W-UAMS-05-2 1 5/P 1370
50A 4402 854700 ASM-LENS-1340-S 1 1/C 1360
50B 4402 854710 ASM-LENS-1350-S 1 1/C 1370
51 4402 852390 SHEET-STAY-GLAS 1 5/P
52B 4402 852760 MYL-COV-OPT-U 1 5/P 1370
53A 4402 850720 SEAL-COV-OPT-U 1 5/P 1360
61A 4842 040690 TZPAN3006MSZN3L 17 50/P 1360
61B 4842 040690 TZPAN3006MSZN3L 28 50/P 1370
62 7043 300813 BID30*08MSCR1AI 2 50/P
63B 7405 002531 ERR025SKZN3A 2 50/P 1370
64B 4842 040920 TPAN30*04MSZN3A 1 50/P 1370
66B 4842 040665 TPAN3006MSZN3L 2 50/P 1370
68B 7405 003031 ERR030SKZN3A 3 50/P 1370
69 4842 040846 PTBR30*08MSZN3A 2 50/P
70A 4842 040710 TPPAN3006MSZN3L 6 50/P 1360
70B 4842 040710 TPPAN3006MSZN3L 2 50/P 1370
7
TOSHIBA
1360/1370 OPTICAL-UNIT-1-ASM DECEMBER 2002
8
1360/1370 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4402 852490 K-BASE-CRG1 1 1/PP
2 4402 852540 MIRROR-1-120 1 1/S
3 4402 852580 SPL-MIRROR1-F 1 5/P
4 4402 851560 SPL-MIRROR1-R/6 1 5/P
5 4402 852560 REFLECTOR-U-120 1 1/PP
6 4402 852570 REFLECTOR-L-120 1 1/PP
7 4402 852590 PLATE-ADJ-EXPO 2 1/P
8A 4402 859020 LP-92-250W 1 1/S 100V SERIES
8B 4402 859030 LP-184-250W 1 1/S 200V SERIES
9 4400 328270 BRG-DR22 1 1/P
10 4400 326500 K-SLIDER-CRG1 1 1/P
11 4400 327810 HOLDER-BLADE-F 1 1/P
12 4400 326400 BLADE-LAMP-EXPF 1 1/P
13 4400 327800 BLADE-FUSE-EXP 1 1/P
14 4400 321200 K-FU/T-091G4 1 1/P
15 4400 358440 TUBE/I-TFE-523 1 5/P
16 4402 852660 HOLDER-BLADE-R 1 1/P
17 4400 326440 BLADE-LAMP-EXPR 1 1/P
18A 4402 858420 WH-EXPO-121 1 1/P 100V SERIES
18B 4402 858520 WH-EXPO-121E 1 1/P 200V SERIES
19 4346 754010 SKB-BAND-1 2 5/P
20 4402 851720 PLATE-BELT-120 1 1/P
21 4402 851800 PLATE-WIRE-120 1 1/P
22 4402 851380 REFL-SIDE-F 1 1/P
23 4402 851390 REFL-SIDE-R 1 1/P
24 4402 852610 PL-ADJ-EXPO-FR 2 1/P
51 7040 300611 PAN30*06MSZN3A 1 50/P
52 7040 300411 PAN30*04MSZN3A 8 50/P
53 7040 301011 PAN30*10MSZN3A 2 50/P
54 7640 300651 ZPAN30*06MSZN3A 2 50/P
55 4842 040480 THPAN3006MSZN3L 1 50/P
56 7360 600011 6/0NUT60MSZN3A 1 50/P
57 7040 300660 PAN30*06BSDG 3 50/P
58 7640 300851 ZPAN30*08MSZN3A 2 50/P
8
TOSHIBA
1360/1370 OPTICAL-UNIT-2-ASM DECEMBER 2002
9
1360/1370 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4402 852290 BASE-CRG2 1 N/A***
2 4402 852300 GUIDE-CRG2 1 1/P
3 4402 852370 HLDER-MIR2/3-F 1 1/P
4 4402 852320 HLDER-MIR2/3-R 1 1/P
5 4402 852330 K-PLY/Z-WIRE 2 1/P
6 4402 852400 MIRROR-2-120 1 1/C
7 4402 852410 MIRROR-3-120 1 1/C
8 4402 852420 SPL-MIRROR2/3 2 1/P
9 4402 852440 SPL-MIRROR2-F 1 1/P
10 4400 327110 BUSH-CRG2 2 1/P
11 4400 329240 GUIDE-CABLE-V 1 1/P
12 4400 329610 RING-CRG2-V 2 5/P
13 4400 328470 FOOT-CRG 1 1/P
14 4402 851560 SPL-MIRROR1-R/6 1 5/P
31 4842 040690 TZPAN3006MSZN3L 8 50/P
32 7040 301211 PAN30*12MSZN3AI 1 50/P
33 7360 300011 6/0NUT30MSZN3A 1 50/P
9
TOSHIBA
1360/1370 FEEDER-ASM DECEMBER 2002
10
1360/1370 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4402 845710 FRAME-FEED-F 1 1/P
2 4402 845750 FRAME-FEED-R 1 1/P
3 4402 843700 TERMINAL-BIAS 1 1/P
4 4402 843710 PLT-BIAS 1 1/P
5 4400 532330 SPC-BIAS-240 1 5/P
6 4402 858690 WH-DEV-BIAS-121 1 1/P
7 4402 844810 K-GUIDE-P-L 1 1/KP
8 4402 844850 MYLAR-GUIDE-L 2 5/KP
9 4402 845860 STAY-FEED 1 1/P
10 4402 845040 BRUSH-ALIGN-L 1 1/S
11 4402 842640 SZ-RGT-121 1 1/C
12 4402 858640 WH-FED-121 1 1/P
13 4402 843110 GUIDE-PAPER-U 1 N/A***
14 4402 843130 MYLAR-GUIDE-U 1 N/A***
15 4350 120890 CLR-030*0030F 2 5/P
16 4402 844410 ROLLER-ALIGN-L 1 1/KP
17 4402 845180 GEAR-Z30-0.5 1 1/P
19 4407 734980 BUSH-6-GCB 1 5/P
20 4402 858980 CLT-30E-CW-30 2 1/D
21 4402 845890 KNOB-RGT 1 1/P
22 4402 845340 SHAFT-CLT-FEED 1 1/P
23 4400 802070 BUSH-6L 3 5/P
24 4402 844440 BKT-CLH-FEED-1 1 1/P
25 4402 845080 GEAR-Z27-Z35 1 1/P
26 4402 844460 ROLLER-ALIGN-U 1 1/KP
27 4402 845190 GEAR-Z20-0.5 1 1/P
28 4402 845260 BUSH-ALIGN-U 2 5/P
29 4402 845830 SPE-ROL-RGT-F 1 5/P YELLOW
30 4402 845840 SPE-ROL-RGT-R 1 5/P BLACK
31 4402 845140 SHAFT-ROL-FEED 1 1/P
32 4402 845130 K-ROLL-FEED 2 1/P
33 4402 833100 CLUTCH-6-R 1 1/D
34 4402 845120 ROL-FEED-120 2 1/P
35 4402 845770 ROL-GUIDE-FED-R 1 1/P
36 4402 845380 GEAR-Z25-0.8 1 1/P
37 4402 842630 SZ-P-EMP-121 1 1/C
38 4402 845760 ROL-GUIDE-FED-F 1 1/P
39 4407 972860 STOP-RING-6.5 1 5/P
40 4402 845780 SPE-ROL-FEED-F 1 5/P
41 4402 845790 SPE-ROL-FEED-R 1 5/P
42 4402 845930 BUSH-CLT 1 5/P
43 4402 845360 GEAR-Z15-0.8 2 1/P
44 4402 845920 ARM-JOINT-CLT 1 1/P
45 4843 308158 J-6-175694-2 1 1/P BLACK
46 4843 306485 J-D-175694-2 1 5/P WHITE
47 4402 843100 K-GUIDE-P-U 1 1/PP
49 4402 846040 BRKT-BRUSH-ALN 1 1/P
50 4402 844450 STUD-6-23-M3 1 5/P
70 4842 040846 PTBR30*08MSZN3A 1 50/P
71 4842 011063 9HSS30/05MSFB 2 50/P
72 7405 005031 ERR050SKZN3A 9 50/P
73 4842 040665 TPAN3006MSZN3L 7 50/P
74 4842 904018 HPIN20/06SUSH7 1 50/P
75 4842 904020 HPIN20/12SUSH7 1 10/P
76 4407 403790 NPIN2-8 2 10/P
77 4842 904035 HPIN20/10SUSH7 1 50/P
78 4842 040666 TPAN3008MSZN3L 2 50/P
79 4842 040690 TZPAN3006MSZN3L 1 50/P
80 7043 300613 BID30*06MSCR1AI 1 50/P
10
TOSHIBA
1360/1370 MANUAL-TRAY-ASM DECEMBER 2002
11
1360/1370 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4402 843150 STAY-DEV-PUSH 1 1/P
2 4402 843900 HOLDER-DEV 2 1/P
3 4402 843910 PUSHER-DEV 2 1/P
4 4402 843920 ROLLER-PUSHER 2 5/P
5 4402 844120 SPC-STAY-PUS-DN 2 5/P
6 4402 843870 MYLAR-STAY 1 5/KP
7 4402 841630 COVER-RIGHT-L 1 1/PP
8 4402 845600 GUIDE-BYPASS-F 1 1/P
9 4402 845610 GUIDE-BYPASS-R 1 1/P
10 4402 845620 RACK-BYPASS 2 1/P
11 4402 845660 PINION-08-14 1 5/P
12 4402 845630 K-PLT-ADJUST 1 1/P
13A 4402 841900 K-COV-BYPASS-LT 1 1/PP LT SIZE
13B 4402 841910 K-COV-BYPASS-A4 1 1/PP A4 SIZE
51 4842 040690 TZPAN3006MSZN3L 8 50/P
52 7120 300611 12PAN3006MSZN3A 1 50/P
53 4842 040846 PTBR30*08MSZN3A 2 50/P
11
TOSHIBA
1360/1370 DRUM-ASM DECEMBER 2002
12
1360/1370 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 6608 4569 OD-1350 1 SUPPLY
2 4402 849420 DRUM-SHAFT 1 1/P
3A 6608 4575 TB-1350 1 SUPPLY 10QTY/SET
3B 6608 4576 TB-1350E 1 SUPPLY FOR EUR.
10 4842 040714 TPPAN3010MSZN3L 1 50/P
12
TOSHIBA
1360/1370 MAIN-CHARGER-ASM DECEMBER 2002
13
1360/1370 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
0 4402 849300 ASM-CH-M 1 1/C
1 4402 849310 TERMINAL-F-M 1 1/P
2 4402 849340 LID-F-M 1 1/P
3 4407 682120 HANGER-WIRE 1 1/P
4 4407 402190 SPRING-TENS-CH 1 5/P
5 4402 849370 WIRE-CH-263 1 5/S
6 4402 849330 CASE-CH-M 1 1/P
7 4402 849350 LID-R-M 1 1/P
8 4402 849360 PLT-CONNECT-M 1 1/P
9 4402 849320 TERMINAL-R-M 1 1/P
0 4402 849300 ASM-CH-M 1 1/C
13
TOSHIBA
1360/1370 TRANSFER-CHARGER-ASM DECEMBER 2002
14
1360/1370 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4402 849030 CASE-CH-TR 1 1/P
2 4402 849010 TERMINAL-F 1 1/P
3 4402 849020 TERMINAL-R 1 1/P
4 4402 849050 PLATE-CH-TR 1 1/P
5 4402 849060 PLT-CONNECT-TR 2 5/P
6 4407 402190 SPRING-TENS-CH 2 5/P
7 4402 849370 WIRE-CH-263 2 5/S
8 4400 768230 HANGER-WIRE-H 2 1/P
9 4402 849380 SUPPORTOR-N 1 1/P
10 4402 849080 LID-F 1 1/P
11 4402 849090 LID-R 1 1/P
12 4350 120890 CLR-030*0030F 1 5/P
13 4402 849460 GUIDE-PAPER-LOW 1 1/P
15 4402 849000 ASM-CH-TR 1 1/C
16 4402 849400 SPC-CH-TR 1 5/P
17 4402 843730 PLT-EARTH-TR 1 1/P
18 4402 849470 SPC-BIAS-G-U 1 5/P
61 4842 040846 PTBR30*08MSZN3A 2 50/P
63 4842 040692 TZPAN3008MSZN3L 1 50/P
64 4842 040694 TZPAN3010MSZN3L 1 50/P
65 7120 300811 12PAN3008MSZN3A 1 50/P
66 7040 300611 PAN30*06MSZN3A 1 50/P
14
TOSHIBA
1360/1370 CLEANER-ASM DECEMBER 2002
15
1360/1370 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
0 4402 850100 ASM-CLEANER 1 1/C
1 4402 850230 PUSHER-NOZZLE 1 1/P
2 4402 850250 NOZZLE-CLN-OUT 1 1/P
3 4402 850480 SPC-AUG120 1 5/P
4 4407 683340 BUSH-4 2 5/P
5 4402 850240 NOZZLE-CLN-IN 1 1/P
6 4402 850260 SPC-1.0-22.5 1 1/P
7 4402 850110 K-FRM-CLN 1 1/PP
8 4402 850340 SEAL-U-CL 1 5/P
9 4402 850220 K-AUGER-CLN-120 1 1/P
10 4402 850140 PLATE-ROOF 1 1/P
11 4400 537630 SPE-GR 1 5/P
12 4402 850150 GRID-120 1 1/KP
13 4402 850400 GEAR-15-0.8 1 1/P
14 4402 850460 SEAL-CL-NOZZLE 1 1/P
15 4409 832880 BL-1350D 1 10/S
16 4402 850190 K-BLADE-REC 1 1/S
17 4402 850410 GEAR-25-18 1 1/P
18 4402 850330 SEAL-NOZZLE 1 5/P
19 4402 850500 SEAL-CL-U 2 5/P
20 4402 850520 SEAL-CL-F-L 1 5/P
21 4402 850530 SEAL-CL-R-L 1 5/P
22 4402 850540 SEAL-NOZZLE-IN 1 5/P
23 4402 850550 CAP-CLN-U-TNR 1 1/P
24 4402 850590 SEAL-STOP-DRUM 1 5/P
51 7640 300651 ZPAN30*06MSZN3A 5 50/P
52 4842 040846 PTBR30*08MSZN3A 2 50/P
53 7405 003031 ERR030SKZN3A 2 50/P
54 7400 104011 1HWAS040MSZN3A 2 50/P
55 4842 040847 PTBR30*10MSZN3A 2 50/P
56 7403 006039 CRR/S060SKFB 1 50/P
15
TOSHIBA
1360/1370 DEVELOPER-ASM DECEMBER 2002
16
1360/1370 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
0A 4402 849800 ASM-DEVELOPER-U 1 1/C W/O-I12-USA
0B 4402 849810 ASM-DEVELOPER 1 1/C W/O-I12-EUR
1 4402 849870 K-CASING-DEV 1 1/C
2 4402 849840 MG-ROLL-120 1 1/C
3 4402 847800 MIXER-1-120 1 1/P
4 4402 847760 K-MIXER-2-120 1 1/P
5 4402 847820 GEAR-26-14 1 1/P
6 4402 847830 GEAR-26 1 1/P
7 4402 847840 GEAR-28 1 1/P
8 4402 847850 GEAR-21 1 1/P
9 4402 848280 K-PLATE-DEV 1 1/P
10 4402 847670 K-DOCTOR-120 1 1/P
11 4402 847890 SPL-MG 1 1/P
12 4402 849860 K-COV-DEV 1 1/S
13 4402 848750 SEAL-DC 1 5/P
14 4402 848300 LID-NOZZLE-D 1 1/P
15 4402 848390 PLT-LID-TNR 1 5/P
16 4402 848000 SEAL-SIDE-F 1 5/P
17 4402 848010 SEAL-SIDE-R 1 5/P
18 4402 848020 BUSH-DEV 1 5/P
19 4402 859550 SNR-ATC-121 1 1/D
20A 4402 848530 GEAR-CPG-TNR-U 1 1/P U.S.A/CANADA
20B 4402 848080 GEAR-CPG-TNR 1 1/P FOR EUROPE
21 4402 848100 ROLL-GUIDE-120 2 1/P
22 4402 848110 BRKT-DOCTOR 1 1/P
23 4402 848200 K-BRKT-T-MOT 1 1/P
24 4402 848150 WHEEL-Z30-JOINT 1 1/P
25 4402 847690 GEAR-Z26-JOINT 1 1/P
26 4402 848220 HOOK-TNR-B 1 1/P
27 4402 847710 K-NOZ-DEV-120 1 1/P
28 4402 848260 COVER-ATS 1 1/P
29 4402 848290 SPC-CPG-TNR 1 5/P
30 4402 848310 COV-DEV-F 1 1/P
31 4402 848330 HOOK-TNR-A 1 1/P
32 4407 728150 BUSH-6 1 5/P
33 4400 541340 K-BUSH-6-10 3 1/P
34 4402 848090 COV-T-MOT 1 1/P
35 4402 848830 SEAL-DEV-SL 1 5/P
36 4402 848230 SEAL-COV-DEV 1 1/P
37 4402 847990 BLADE-DEV-SL 1 5/P
38 4402 858840 K-M/DC-TNR-121 1 1/C
39 4402 848780 SEAL-COV-DEV-F 1 5/P
40 4402 848980 SEAL-COV-DEV-F 1 5/P
41 4402 848990 SEAL-COV-DEV-R 1 5/P
42 4402 848910 MYLAR-GUIDE-DEV 1 5/KP
43 4402 848900 K-GUIDE-PAPER-D 1 1/P
44 4843 308027 J53358-0810 1 10/P
45B 4402 848970 COV-DEV-CNCT 1 1/P 200V SERIES
46 4402 847660 BLADE-DEV-SL2 1 5/KP
47 4402 848880 SEAL-GUIDE-CR 1 5/P
48 4402 848870 SEAL-DEV-GP 2 5/P
49 4402 848670 SHEET-DEV 1 1/KP
50 4402 849850 SEAL-SL 1 5/P
51 4402 849830 LBL-DEV 1 10/P
61 7640 300851 ZPAN30*08MSZN3A 12 50/P
62 7403 004039 CRR/S040SKFB 1 50/P
63 4842 040846 PTBR30*08MSZN3A 6 50/P
64 7043 300664 BID30*06BSCR3CI 1 50/P
65 7405 005031 ERR050SKZN3A 4 50/P
66 7405 004031 ERR040SKZN3A 4 50/P
67 7040 260411 PAN26*04MSZN3AI 1 50/P
68 4842 040495 PTBR30*06MSZN3A 2 50/P
16
TOSHIBA
1360/1370 FUSER-1-ASM DECEMBER 2002
17
1360/1370 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4402 846400 K-BRKT-FUSER-U 1 1/P
2 4409 832830 HR-1350-U 1 1/S
3 4400 536140 BUSH-HR-24 2 1/P
4 4400 536180 GEAR-32 1 1/P
5 4402 846630 GEAR-27 1 1/P
6 4402 846760 ASM-ROL-U-EXIT 1 1/KP
7 4400 536230 BUSH-4-7 1 5/P
8 4402 858480 WH-EARTH-121 1 1/P
9 4402 846830 BRKT-SCRAPER 1 1/P
10 4400 536240 SCRAPER-FU 3 4/P
11 4400 536420 SPR-SCRAPER-R 1 1/P
12 4407 674190 SPR-SCRAPER 1 5/P
13 4402 846650 GUIDE-FUSER 1 1/P
14 4402 846640 GEAR-25 1 1/P
15 4402 846670 HOLDER-LAMP 2 1/P
16A 4402 859000 HTR-115-900W 1 1/S 100V SERIES
16B 4402 859010 HTR-230-900W 1 1/S 200V SERIES
17 4402 846810 BRUSH-EXIT-120 1 1/KP
18 4402 846800 BRUSH-FUSER-120 1 1/C
19 4402 846780 HLD-BL-THERM 1 1/P
20 4402 842840 THMS-HTR-121-N 1 1/C
21 4402 859350 K-THRMO-121E 1 1/C
22 4400 345540 CLAMP-HARNESS 3 5/P
23A 4402 858400 WH-HTR-121 1 1/P 100V SERIES
23B 4402 858490 WH-HTR-121E 1 1/P 200V SERIES
24 4409 832970 BL-1350H 1 10/S
25 4402 846510 COVER-FUSER 1 1/PP
26 4402 846540 LABEL-FUSER 1 5/P
27 4400 536490 LABEL-HOT 1 5/P
61 7405 005031 ERR050SKZN3A 1 50/P
62 7405 003031 ERR030SKZN3A 1 50/P
63 7403 024039 CRR/S240SKFB 2 50/P
64 4842 040690 TZPAN3006MSZN3L 2 50/P
65 7640 300851 ZPAN30*08MSZN3A 9 50/P
66 4842 040480 THPAN3006MSZN3L 2 50/P
67 7640 300651 ZPAN30*06MSZN3A 1 50/P
68 4842 040665 TPAN3006MSZN3L 1 50/P
69 7640 300821 ZPAN30*08MSZN3A 2 50/P
17
TOSHIBA
1360/1370 FUSER-2-ASM DECEMBER 2002
18
1360/1370 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4402 844660 FRAME-LOW-F 1 1/P
2 4402 846100 K-FRAME-L-R 1 1/P
3 4402 846860 BASE-FUSER 1 1/P
4 4402 846490 SPC100-120-0262 2 5/P
5 4402 846730 BRKT-ARM-FUS-F 1 1/P
6 4402 846740 BRKT-ARM-FUS-R 1 1/P
7 4402 846580 SPL-EXIT-ROL-L 2 1/P
8 4407 674240 IDLER-L-EXIT 2 1/P
9 4402 846590 BRG-1260-HR 2 1/P
10 4409 824720 HR-1210-L 1 1/S
11 7400 106011 1HWAS060MSZN3A 4 50/P
12 4843 390942 BD/W-EDS-2 2 10/P
13 4402 843880 PLT-SPRING 1 1/P
14 4402 858780 WH-FUSER-121 1 1/P
15 4402 845910 BKT-FEED-DRIVE 1 1/P
16 4843 390855 CLP/W-LWS-2U 1 5/P
17 4364 478290 CLP-UAMS-05-0 1 10/P
18 4402 847100 GUIDE-FU-EN-1 1 1/P
19 4402 847110 GUIDE-FU-EN-2 1 1/P
20 4402 847120 GUIDE-FU-EN-3 1 1/P
21 4843 391378 CLP/W-MN-2 1 5/P
60 4842 040690 TZPAN3006MSZN3L 7 50/P
61 7405 005031 ERR050SKZN3A 1 50/P
62 4842 040692 TZPAN3008MSZN3L 3 50/P
18
TOSHIBA
1360/1370 BASE-ASM DECEMBER 2002
19
1360/1370 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4402 843620 FRAME-BASE 1 N/A***
2 4400 531060 FOOT-13-518 4 10/P
3 4402 843640 COVER-FEED-TURN 1 1/PP
4 4402 843850 PLT-BASE 1 1/P
5 4402 843690 GUIDE-TURN 1 1/P
7 4402 846910 BRKT-EXIT-SW 1 1/P
8 4402 842650 SZ-EXIT-121 1 1/C
9 4402 858730 WH-EXIT-SW-121 1 1/P
10 4402 841970 TRAY 1 1/PP
11 4346 754010 SKB-BAND-1 3 5/P
12 4402 844290 SPE-COV-315 2 5/P
13 4402 844030 MYLAR-NAIL 2 5/P
14 4402 844100 LBL-LINE-LIMIT 1 5/P
15 4402 843940 LBL-COV-FEED 1 5/P
16 4402 844130 SPL-EARTH-FEED 1 1/P
17B 4402 840990 LABEL-CAUTION 1 5/P 1370
18 4402 840980 LBL-SERVICE 1 5/P
19 4402 841400 LBL-COV-OPEN 1 5/P
20 4402 844300 LBL-FRAME-BASE 1 1/KP
21 4402 844350 MYLAR-COV-FEED 1 5/P
41 4842 040846 PTBR30*08MSZN3A 1 50/P
42 4842 040495 PTBR30*06MSZN3A 2 50/P
43 4842 040847 PTBR30*10MSZN3A 6 50/P
19
TOSHIBA
1360/1370 DUCT-FAN-ASM,HLD-DCH-ASM DECEMBER 2002
20
1360/1370 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4402 843370 DUCT-FAN 1 1/P
2 4402 843530 PUSHER-FELT 2 1/P
3 4402 843790 SPC900-080-0340 2 5/P
4 4402 858940 FAN-DC-121 1 1/D
5 4402 843520 SEAL-FAN 1 1/P
8 4402 843380 FILTER-U-121 1 1/C
9 4402 844040 SEAL-DUCT 1 5/P
11 4402 849280 K-HOLD-DCH 1 1/PP
12A 4402 859570 HOLDER-DCH-121 1 1/P 1370
13 4402 858170 PWA-F-ERS-121 1 1/SB
14 4402 849170 COV-LAMP-ERS 1 1/PP
15 4402 849190 SPL-GRID-BIAS 1 1/P
16 4402 849180 SPL-CH-M 1 1/P
17A 4402 858720 WH-OPT-120 1 1/P 1360
17B 4402 858620 WH-OPT-121 1 1/P 1370
21 4402 849640 MYLAR-WALL-DCH 1 5/KP
23B 4402 859560 ASM-DCH-121 1 1/C 1370
42 4842 040690 TZPAN3006MSZN3L 5 50/P
43 7040 260511 PAN26*05MSZN3AI 2 50/P
20
TOSHIBA
1360/1370 ELECTRICAL-UNIT-1-ASM DECEMBER 2002
21
1360/1370 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4402 858880 PS-HVT-M-121 1 1/C
2 4402 849210 TERMINAL-M-CH 1 1/P
3 4402 849260 PLT-TERM-M 1 1/P
4 4402 849240 SPC-TERM-M 1 5/P
5 4402 849220 SPL-BIAS-GRID 1 1/P
7 4402 858920 FAN-DC-OPT-121 1 1/C
8 4402 851360 FILTER-OPT-120 1 1/P
9 4402 843590 BRKT-PWB-LGC 1 1/P
10 4843 390869 PWZ-SPLS-4U 4 5/P
11 4843 390859 PWZ-SPS-4U 2 5/P
12A 4402 861050 PWA-F-LGC-1360U 1 1/SB F97C852 1360 NAD
12B 4402 842510 PWA-F-LGC-120M 1 1/SB F97C852 1360 OTHERS
13A 4402 861160 PRA-T123E2-U01S 1 1/S F97C852 NAD
13B 4402 859970 PRA-T121E2-E03S 1 1/S F97C852 OTHERS
14 4402 861120 PRA-123M-03 1 1/S F97C852
15A 4402 861080 PWA-F-LGC-1370U 1 1/SB F97C852 1370 NAD
15B 4402 842500 PWA-F-LGC-121M 1 1/SB F97C852 1370 OTHERS
51 4842 040495 PTBR30*06MSZN3A 2 50/P
52 4842 040480 THPAN3006MSZN3L 1 50/P
53 4842 040690 TZPAN3006MSZN3L 8 50/P
12A 4402 861050 PWA-F-LGC-1360U 1 1/SB F97C852 1360 NAD
21
TOSHIBA
1360/1370 ELECTRICAL-UNIT-2-ASM DECEMBER 2002
22
1360/1370 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4402 859500 PS-HVT-T-121 1 1/C
2 4402 849130 ASM-TERMINAL-TR 1 1/P
4A 4402 861140 PS-ACC-123U 1 1/C F97C852 004A1 100V SERIES
4A1 4402 864550 PS-ACC-121-U 1 1/C C E H F98B171 004A 100V SERIES
4B 4402 858870 PS-ACC-121-E 1 1/C F97C852 200V SERIES
5 4402 843560 BRKT-SW-INLET 1 1/P
6 4843 390871 PWZ-SPLS-7U 2 5/P
7 4402 859230 SP-FA1L-AA22 1 1/D
8 4843 390942 BD/W-EDS-2 1 10/P
9 4346 754010 SKB-BAND-1 1 5/P
10A 4402 858070 PWA-F-FUS-121U 1 N/A*** 100V SERIES
10B 4402 858080 PWA-F-FUS-121E 1 N/A*** 200V SERIES
11A 4402 859330 K-INLT-FUS-121U 1 1/C 100V SERIES
11B 4402 859340 K-INLT-FUS-121E 1 1/C 200V SERIES
12 4402 843890 BRKT-ACC 1 1/P
15 4402 843750 K-SFT-SW-MAIN 1 1/P
16 4402 843420 CASE-SW-MAIN 1 N/A***
17 4402 843430 KNOB-SW-MAIN 1 N/A***
18 4400 532930 CAP-SW 1 N/A***
19 4402 844090 SPC-MSW-120 1 N/A***
20 4402 843470 SHAFT-CAM 2 N/A***
21 4402 843440 CAM-SW-DOOR 1 N/A***
22 4402 843450 CAM-SW-SHELL 1 N/A***
23 4402 843480 SPE050-040-0155 1 N/A***
24 4402 843410 SPC045-035-0115 1 N/A***
25X 4402 843980 BRKT-DH 1 1/P AUD
25Y 4402 843980 BRKT-DH 1 1/P MF-1350U
25Z 4402 843980 BRKT-DH 1 1/P MF-1350E
26X 4402 859390 SHEET-PTC-121 1 5/P AUD
26Y 4402 859390 SHEET-PTC-121 1 5/P MF-1350U
26Z 4402 859390 SHEET-PTC-121 1 5/P MF-1350E
27X 4402 859190 K-PTC-230-121 1 1/C AUD
27Y 4402 859180 K-PTC-120-121 1 1/C MF-1350U
27Z 4402 859190 K-PTC-230-121 1 1/C MF-1350E
28X 4402 858430 WH-DAMPHTR-121 1 1/P AUD
28Y 4402 858430 WH-DAMPHTR-121 1 1/P MF-1350U
28Z 4402 858430 WH-DAMPHTR-121 1 1/P MF-1350E
29 4843 390854 CLP/W-LWS-1U 1 5/P
30X 4402 844150 ASM-BKT-DH-230 1 1/D AUD
30Y 4402 844140 ASM-BKT-DH-120 1 1/P MF-1350U
30Z 4402 844150 ASM-BKT-DH-230 1 1/D MF-1350E
31 4402 844180 BRKT-COV-SW-1 1 1/P
32 4402 844190 BRKT-COV-SW-2 1 1/P
33 4402 859600 SP-CS3A-B2BA 1 1/D
34 4402 858770 WH-U-COV-121 1 1/P
35A 4408 425350 CBL/P-INLET-UC 1 1/P NAD
35B 4400 395940 CBL/P-INLET-EUR 1 1/P MJD
35C 4400 494790 CBL/P-INLET-UK 1 1/P UKD
35D 4400 494940 CBL/P-INLET-AU 1 1/P AUD
35E 4400 358250 CBL/P-INLET-ST 1 1/P SAD
35F 4400 395940 CBL/P-INLET-EUR 1 1/P ASD
36 4402 843400 ASM-SW-MAIN 1 1/C
37 4402 844320 PLT-BIAS-L 1 1/P
38 4402 844330 SPC051-040-0120 1 5/P
60 4842 040846 PTBR30*08MSZN3A 10 50/P
61 4842 040480 THPAN3006MSZN3L 3 50/P
62 4842 040690 TZPAN3006MSZN3L 4 50/P
63 7040 300611 PAN30*06MSZN3A 4 50/P
64 7040 400660 PAN40*06BSDG 1 50/P
65 7402 004032 0TWAS040SKZN3A 1 50/P
66 7405 002031 ERR020SKZN3A 2 50/P
67 4842 040665 TPAN3006MSZN3L 2 50/P
68 7040 401011 PAN40*10MSZN3AI 2 50/P
69 4842 040711 TPPAN3008MSZN3A 1 50/P
22
TOSHIBA
1360/1370 CASSETTE-UC-ASM DECEMBER 2002
23
1360/1370 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4402 846110 CST-120 1 1/PP
2 4402 844500 K-WALL-ADJ-F 1 1/P
3 4402 844510 K-WALL-ADJ-R 1 1/P
4 4402 844560 K-STOP-WALL-S 2 1/P
5 4402 845570 LEVER-CST-F 1 1/P
6 4402 846150 K-PLATE-CST-121 1 1/P
7 4400 556130 BACK-PLATE 1 1/P
8 4402 845450 LABEL-LIMIT-T 1 5/P
9 4407 678600 SPC-CONE-Z-D 1 1/P
10 4402 846170 SPC-CONE-121 2 1/P
11 4407 678420 BKT-CST-PLATE-F 1 1/P
12 4407 678430 BKT-CST-PLATE-R 1 1/P
13 4407 726480 PINION-18-395 1 1/P
14 4407 678190 RACK-SIDE-WALL 2 1/P
15 4402 845530 K-COVER-BTM-CST 1 1/PP
16 4402 845580 LEVER-CST-R 1 1/P
17 4402 845690 LBL-SIZE-CST-UC 1 5/P
20 4402 845700 LBL-ARROW-CST 1 5/P
21 4402 841100 LBL-INST-CST-T 1 5/KP
31 7120 300611 12PAN3006MSZN3A 4 50/P
32 4842 040495 PTBR30*06MSZN3A 3 50/P
33 7405 003031 ERR030SKZN3A 2 50/P
23
TOSHIBA
1360/1370 CASSETTE-EU-ASM DECEMBER 2002
24
1360/1370 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4402 846110 CST-120 1 1/PP
2 4402 844500 K-WALL-ADJ-F 1 1/P
3 4402 844510 K-WALL-ADJ-R 1 1/P
4 4407 678420 BKT-CST-PLATE-F 1 1/P
5 4407 678430 BKT-CST-PLATE-R 1 1/P
6 4402 846150 K-PLATE-CST-121 1 1/P
7 4400 556130 BACK-PLATE 1 1/P
8 4402 845450 LABEL-LIMIT-T 1 5/P
9 4407 678600 SPC-CONE-Z-D 1 1/P
10 4402 846170 SPC-CONE-121 2 1/P
11 4402 845680 LBL-SIZE-CST-EU 1 5/P
20 4402 845700 LBL-ARROW-CST 1 5/P
21 4402 841100 LBL-INST-CST-T 1 5/KP
31 4842 040495 PTBR30*06MSZN3A 6 50/P
24
TOSHIBA
1360/1370 PWA-LGC(EXCEPT NAD) DECEMBER 2002
30
1360/1370 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
0A 4402 842510 PWA-F-LGC-120M 1 1/SB 1360
0B 4402 842500 PWA-F-LGC-121M 1 1/SB 1370
1 4402 858370 PWB-F-LGC-121K 1 N/A***
2 4402 858970 HT-SINK-120 1 1/P
4A 4402 859150 JUMPER-W-7.5 1 10/P 1360
4B 4402 859150 JUMPER-W-7.5 2 10/P 1370
11 4843 113784 IC-STK6712BMK3 1 1/S
12B 3040 274687 IC-TD62308FTP2 1 1/S 1370
14 4843 113438 IC-LM2902M(EL) 1 5/S
15 4843 112761 IC-MB88342PF 1 5/S
16 4843 112458 IC-MC14538BFL 1 5/S
17 4843 114935 IC-LB1823M-TPT2 1 1/S
18 3040 277105 IC-TD62801F 1 5/S
20 4843 113438 IC-LM2902M(EL) 1 5/S
21 4843 112762 IC-DM7407M 1 5/S
22 3040 709198 TC140G12AF-0125 1 1/S
23 3040 571093 TMP90CM40AF2507 1 1/S
24 3040 485645 IC-TC74HCU04AF 1 1/S
25 4843 112956 IC-SLA6022 1 1/S
26 4843 112762 IC-DM7407M 1 5/S
28 3040 485629 IC-TC74HC14AFTP 1 5/S
29 3040 349270 IC-TA75393F 1 5/S
30 4843 112766 IC-MC74HC132FL 1 5/S
31 3040 274647 IC-TD62305F(TP2 1 5/S
32 3040 274687 IC-TD62308FTP2 1 1/S
33 3040 274687 IC-TD62308FTP2 1 1/S
34 4843 112636 IC-UPC494GS 1 1/S
35 3040 376602 IC-TA78DL05AP 1 5/S
51 3036 868550 Q-2SD1417 1 5/S
52 3036 548970 Q-2SA1428-Y 1 5/P
53 3036 335471 Q-2SC2712-Y-85R 1 5/P
54 3036 335471 Q-2SC2712-Y-85R 1 5/P
55 3036 335471 Q-2SC2712-Y-85R 1 5/P
56 3036 541131 Q-2SA1162YTE85R 1 5/P
57 3036 014012 Q-RN2401(TE85R) 1 5/P
58 3036 004012 Q-RN1401(TE85R) 1 5/P
59 3036 014012 Q-RN2401(TE85R) 1 5/P
60 3036 004012 Q-RN1401(TE85R) 1 5/P
61 3036 004012 Q-RN1401(TE85R) 1 5/P
62 3036 004012 Q-RN1401(TE85R) 1 5/P
63 3036 541131 Q-2SA1162YTE85R 1 5/P
64 3036 548970 Q-2SA1428-Y 1 5/P
81 3037 568277 D-1S1834(LC6) 1 5/P
82 3037 568277 D-1S1834(LC6) 1 5/P
83 3037 568277 D-1S1834(LC6) 1 5/P
84 3037 151102 D-1SS193(TE85R) 1 5/P
85 3037 238212 D-02CZ3.3X-85R 1 5/P
87 3037 238422 D-02CZ5.1Y-85R 1 5/P
88 3037 238212 D-02CZ3.3X-85R 1 5/P
89 3037 151102 D-1SS193(TE85R) 1 5/P
90 3037 151102 D-1SS193(TE85R) 1 5/P
91 3037 150651 D-1SS184(TE85R) 1 5/P
92 3037 238212 D-02CZ3.3X-85R 1 5/P
93 3037 151102 D-1SS193(TE85R) 1 5/P
94 3037 238422 D-02CZ5.1Y-85R 1 5/P
95 3037 150651 D-1SS184(TE85R) 1 5/P
96 3037 151102 D-1SS193(TE85R) 1 5/P
97 3037 151102 D-1SS193(TE85R) 1 5/P
121 4843 250421 X-CST10.0MTW 1 5/S
131 3038 601100 LP-TLR123 1 5/P
141 4843 321564 SKT-CLC10280101 1 5/S IC3
142 4843 321562 SKT-CLC10180101 1 1/S IC9
151 4843 410402 CE-04W1C220M 1 10/P
152 4843 410787 CE-04W1H4R7M 1 5/P
153 4843 410402 CE-04W1C220M 1 10/P
154 4843 406674 CE-04W1H101M 1 10/P
155 4843 410397 CE-04W1C4R7M 1 10/P
157 4843 410413 CE-04W1V2R2M 1 10/P
158 4843 411175 CE04W1H470M-F 1 10/P
159 4843 410400 CE-04W1C100M 1 10/P
160 4843 410279 CQ92◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
