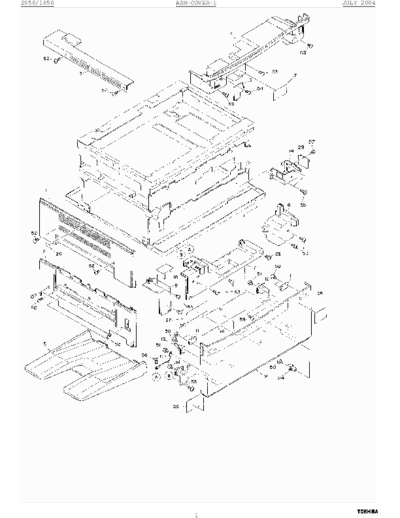

Image preview - the first page of the document
>> Download Toshiba 1650_2050pc documenatation <<
Text preview - extract from the document
2050/1650 ASM-COVER-1 JULY 2004
1
2050/1650 JULY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4400 910790 COV-LEFT-U 1 1/PP 001 1
1 1 4400 945690 COV-LEFT-U 1 1/PP C E E F5A381 001
2 4400 914830 COV-LEFT-L-176 1 1/PP
3 4400 752090 COV-TOP-LEFT-O 1 1/PP
4 4400 752050 COV-INNER-U 1 1/PP
5 4402 803900 LID-COV-INNER-U 1 1/P
6 4402 803860 COV-CTR 1 1/PP
7 4400 912060 COV-WH 1 1/PP
8 4402 803780 COV-INNER-L 1 1/PP
9A 4400 910660 K-COV-F-U 1 1/PP ED-2050
9B 4400 930570 K-COV-F-178UE 1 1/PP ED-1650
10 4402 803510 STOP-F-COV-170 1 1/P
11 4402 201360 PLATE-MG 2 1/P
12 4402 803840 HINGE-COV-F 2 1/P
13 4402 803550 PUSHER-SW-U 1 1/P
14 4400 723550 LBL-INST-COV-F 1 1/KP
15 4400 741200 TRAY-101 1 1/PP
17 4402 800870 LABEL-DRUM-170 1 5/P
18 4400 831630 LBL-HOT 1 5/P
19 4402 802560 BKT-KEY-CTR 1 1/P
24 4402 807610 STOPPER-HANDLE 1 1/P
25 4402 200680 LBL-MEMORY-A545 1 5/P
26 4400 750700 LBL-BLIND 1 10/P
27C 4400 910690 LBL-INST-TNR3-E 1 5/P EUD
27D 4400 910690 LBL-INST-TNR3-E 1 5/P GSD
27E 4400 910690 LBL-INST-TNR3-E 1 5/P FRD
27F 4400 910690 LBL-INST-TNR3-E 1 5/P SED
27G 4400 910690 LBL-INST-TNR3-E 1 5/P UKD
28D 4402 031690 LBL-BLUE-ANGEL 1 5/P GSD
29 4400 912980 PLATE-CTR 1 1/P 029 1 200V SERIES
29 1 4400 912990 PLATE-CTR 1 1/P C B J F4F178 029 200V SERIES
REFER TO BSI NO. F4F214
30C 4400 911080 LBL-INST-TNR 1 1/KP A B J F4D135 EUD
CAUTION LABEL FOR THE PIRATED TONER
30D 4400 911080 LBL-INST-TNR 1 1/KP A B J F4D135 GSD
CAUTION LABEL FOR THE PIRATED TONER
30E 4400 911080 LBL-INST-TNR 1 1/KP A B J F4D135 FRD
CAUTION LABEL FOR THE PIRATED TONER
30F 4400 911080 LBL-INST-TNR 1 1/KP A B J F4D135 SED
CAUTION LABEL FOR THE PIRATED TONER
30G 4400 911080 LBL-INST-TNR 1 1/KP A B J F4D135 UKD
CAUTION LABEL FOR THE PIRATED TONER
50 4842 040846 PTBR30*08MSZN3A 7 50/P
51 7640 300651 ZPAN30*06MSZN3A 5 50/P
52 4842 040605 TBID40*10MSCR3C 9 50/P
53 4842 040700 TZPAN4008MSZN3L 14 50/P
54 7640 400651 ZPAN40*06MSZN3A 1 50/P
55 4842 040650 TPAN40*06MSZN3L 2 50/P
56 7040 400611 PAN40*06MSZN3AI 1 50/P
57 7040 300611 PAN30*06MSZN3A 2 50/P 057 1 200V SERIES
57 1 4842 040709 TPPAN3006MSZN3A 2 50/P C B J F4F178 057 200V SERIES
REFER TO BSI NO. F4F214
1 TOSHIBA
2050/1650 ASM-COVER-2 JULY 2004
2
2050/1650 JULY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4400 914820 COV-REAR-L 1 1/PP
2 4400 914900 COV-REAR-U 1 1/PP 002 1
2 1 4400 945680 COV-REAR-U 1 1/PP C E E F5A381 002 CA5/QA5
3 4400 914800 COV-RIGHT-L-F 1 1/PP
4 4400 914810 COVER-RIGHT-L-R 1 1/PP
5 4402 803990 COV-RIGHT-U 1 1/PP
6 4400 912920 COV-TOP-REAR 1 1/PP
7 4402 803360 COV-TOP-RIGHT 1 1/PP
8A 4400 740530 LABEL-FCC 1 10/P TAD
9A 4400 361560 STICKER-W-TAIS 1 N/A*** TAD
10D 4407 773470 LABEL-GS 1 5/P GSD
11F 4407 900890 LBL-NEMKO/SETI 1 5/P SED
12 4408 543130 LBL-SERVICE-T 1 5/P
14 4408 541410 BOOK-HOLDER-T 1 1/PP
15 4400 912150 K-BKT-COV-HANES 1 1/P
16D 4402 200640 LBL-RECYCLE 1 5/P GSD
17 4400 912330 COVER-SCREW 1 1/P
19A 4401 768740 LBL-PATENT 1 5/P A B J F4F200 019A1 CG4/QG4 TAD
19A1 4401 768740 LBL-PATENT 0 5/P B - J F97A793 019A TAD
21B 4400 945700 LABEL-CANADA 1 5/P A - C F5B397 CA5/QA5 CSD
22G 4402 090460 LABEL-CE 1 5/P A - C F95H495 CH5/GH5 UKD
50 4842 040635 TBID40*08MSCR3C 7 50/P
51 4842 040060 TPAN40*08MSZN3L 3 50/P
52 4842 040605 TBID40*10MSCR3C 13 50/P
53 7640 400851 ZPAN40*08MSZN3A 1 50/P
2 TOSHIBA
2050/1650 ASM-CONTROL-PANEL JULY 2004
3
2050/1650 JULY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4400 910840 COVER-PNL-CONT 1 1/PP
1C 4400 741400 COVER-PNL-CONT 1 1/PP E - J F5B395 001C1 EUD
1C1 4402 828300 COVER-PNL-CONT 1 1/PP C B D F97H968 001C EUD
1D 4400 741400 COVER-PNL-CONT 1 1/PP E - J F5B395 001D1 GSD
1D1 4402 828300 COVER-PNL-CONT 1 1/PP C B D F97H968 001D GSD
1E 4400 741400 COVER-PNL-CONT 1 1/PP E - J F5B395 001E1 FRD
1E1 4402 828300 COVER-PNL-CONT 1 1/PP C B D F97H968 001E FRD
1F 4400 741400 COVER-PNL-CONT 1 1/PP E - J F5B395 001F1 SED
1F1 4402 828300 COVER-PNL-CONT 1 1/PP C B D F97H968 001F SED
1G 4400 741400 COVER-PNL-CONT 1 1/PP E - J F5B395 001G1 UKD
1G1 4402 828300 COVER-PNL-CONT 1 1/PP C B D F97H968 001G UKD
1Z 4400 910840 COVER-PNL-CONT 1 1/PP - - - F5B395 001Z1 OTHERS
1Z1 4400 911070 COVER-PNL-CONT 1 1/PP C B D F96B611 001Z CC6/QC6 OTHERS
2 4402 803280 SLIDE-PNL-CONT 1 1/P
3 4402 803850 COVER-SLIDE 1 1/P
4 4402 803290 CATCH-SLIDE 1 1/P
5 4402 202200 MG-CLIP 1 1/KP
6A 4400 910870 OP-SHEET-L-U176 1 1/KP 006A1 USA SIZE
6A1 4400 946210 OP-SHEET-L-U176 1 1/KP C E E F95G476 006A CJ5/QJ5 USA SIZE
6B 4400 910880 OP-SHEET-L-E176 1 1/KP 006B1 EUR SIZE
6B1 4400 946220 OP-SHEET-L-E176 1 1/KP C E E F95G476 006B CJ5/QJ5 EUR SIZE
6G 4400 910880 OP-SHEET-L-E176 1 1/KP 006G1 UKD
6G1 4400 946220 OP-SHEET-L-E176 1 1/KP C E E F95G476 006G CJ5/QJ5 UKD
7A 4400 910750 OP-SHEET-R-U176 1 1/KP 007A1 USA SIZE
7A1 4400 946270 OP-SHEET-R-U176 1 1/KP C E E F95G476 007A CJ5/QJ5 USA SIZE
7B 4400 910770 OP-SHEET-R-E176 1 1/KP 007B1 EUR SIZE
7B1 4400 946290 OP-SHEET-R-E176 1 1/KP C E E F95G476 007B CJ5/QJ5 EUR SIZE
7C 4400 910760 OP-SHET-R-AU176 1 1/KP 007C1 AUD
7C1 4400 946280 OP-SHET-R-AU176 1 1/KP C E E F95G476 007C CJ5/QJ5 AUD
7D 4400 930530 OP-SHEET-R-U178 1 1/KP 007D1 USA ED-1650
7D1 4400 946340 OP-SHEET-R-U178 1 1/KP C E E F95G476 007D CJ5/QJ5 USA ED-1650
7E 4400 930550 OP-SHEET-R-E178 1 1/KP 007E1 EUR ED-1650
7E1 4400 946360 OP-SHEET-R-E178 1 1/KP C E E F95G476 007E CJ5/QJ5 EUR ED-1650
7F 4400 930540 OP-SHET-R-AU178 1 1/KP 007F1 AUD ED-1650
7F1 4400 946350 OP-SHET-R-AU178 1 1/KP C E E F95G476 007F CJ5/QJ5 AUD ED-1650
8 4400 960370 PWA-F-PNL-176UE 1 1/SB
8C 4400 960080 PWA-F-PNL-101UE 1 1/SB A D J F5B395 EUD
8D 4400 960080 PWA-F-PNL-101UE 1 1/SB A D J F5B395 GSD
8E 4400 960080 PWA-F-PNL-101UE 1 1/SB A D J F5B395 FRD
8F 4400 960080 PWA-F-PNL-101UE 1 1/SB A D J F5B395 SED
8G 4400 960080 PWA-F-PNL-101UE 1 1/SB A D J F5B395 UKD
8Z 4400 960370 PWA-F-PNL-176UE 1 1/SB - - - F5B395 OTHERS
9 4400 912360 MYLAR-SHIELD 1 1/KP
9C 4400 741430 MYLAR-SHIELD 1 1/KP A D J F5B395 EUD
9D 4400 741430 MYLAR-SHIELD 1 1/KP A D J F5B395 GSD
9E 4400 741430 MYLAR-SHIELD 1 1/KP A D J F5B395 FRD
9F 4400 741430 MYLAR-SHIELD 1 1/KP A D J F5B395 SED
9G 4400 741430 MYLAR-SHIELD 1 1/KP A D J F5B395 UKD
9Z 4400 912360 MYLAR-SHIELD 1 1/KP - - - F5B395 OTHERS
11 4400 912210 KEY-1 1 1/P
12 4400 912220 KEY-2 1 1/P
13 4400 912230 KEY-3 1 1/P
14 4400 912240 KEY-4 1 1/P
15 4400 912250 KEY-5 1 1/P
16 4400 912260 KEY-6 1 1/P
17 4400 912270 KEY-7 1 1/P
18 4400 912280 KEY-8 1 1/P
19 4400 912290 KEY-9 1 1/P
20 4400 912200 KEY-0 1 1/P
21 4400 912300 KEY-CL 1 1/P
22 4400 912310 KEY-COPY 1 1/P
23 4402 803220 BKT-PNL-CONT-L 1 1/P
24 4400 357700 CTR-E650B-523 1 1/D
25 4402 202680 MG-CATCH-22 2 1/P
26 4402 803230 BKT-PNL-CONT-C 1 1/P
27 4402 803240 BKT-PNL-CONT-R 1 1/P
28 4843 390942 BD/W-EDS-2 1 10/P
29 4400 728110 COV-PNL-MG 2 1/P
30 4400 912330 COVER-SCREW 1 1/P
32 4402 815500 WH-PNL-170 1 1/P
33 4400 781710 WH-RST/PNL-170V 1 1/P
3 TOSHIBA
2050/1650 JULY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
34 4400 912370 MYLAR-KEY-L 4 5/P F - J F4B100 034 1
34 1 4400 912370 MYLAR-KEY-L 0 5/P C - E F95K534 034
35 4400 912380 MYLAR-KEY-S 2 5/P F - J F4B100 035 1
35 1 4400 912380 MYLAR-KEY-S 0 5/P C - E F95K534 035
40 7040 300611 PAN30*06MSZN3A 3 50/P
41 4842 040846 PTBR30*08MSZN3A 22 50/P
70 4402 825720 BKT-STAY-CONP 1 1/P A B D F96E688 SERVICE ONLY
3 TOSHIBA
2050/1650 ASM-UPPER-FRAME JULY 2004
4
2050/1650 JULY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4400 911890 STAY-UP-FAN-G 1 N/A***
2 4402 801680 PLATE-SIDE-FAN 2 1/P
3 4402 801370 STAY-UPPER 1 N/A***
4 4400 960820 M/DC-FAN60-176 1 1/C
5 4402 807120 BKT-PUSH-DEV 1 1/P
6 4402 203810 HOLDER-PUSHER 2 1/P
7 4402 203800 PUSHER-DEV 2 1/P
8 4402 807530 SPRING-SET-DEVF 1 5/P
9 4400 325930 PIN-BKT-CON-H 1 10/P
10 4400 912430 K-LEV-SET-DEV 1 1/P
11 4400 960230 PWA-LGC-176 1 1/SB 011 1
11 1 4400 960060 PWA-F-LGC-176-4 1 1/SB C B C F95H495 011 CH5/QH5
FOR MACHINES EXCEPT FOR EUROPE, THE INTERCHANGEABILITY IS "E"
12 4400 724830 GUIDE-ENT-DRM 1 1/P
13 4402 807070 GUIDE-DEV 1 1/P
14 4402 807190 SPRING-SET-DEVR 1 5/P
15 4400 916020 FRAME-REAR-U 1 N/A***
16 4402 813180 ROLLER-RGT-I-U 1 1/KP
17 4407 403790 NPIN2-8 1 10/P
18 4402 813190 GEAR-15-1.0 1 1/P
19 4407 976990 BUSH-D6-GCB 2 1/P
20 4407 957140 SPRING-850 1 5/P
21 4402 801760 PUSHER-SW-DOOR 1 1/P
22 4402 807000 BUSH-SLIDE-DEV 2 1/P
23 4402 802440 SPE-060-300 1 5/P
24 4402 807620 BKT-CON-DEV 1 1/P
25 4400 911830 BKT-COV-REAR-L 1 1/P
26 4402 801020 FRAME-FRONT-U 1 N/A***
28 4407 547370 SPRING-25 1 5/P
29 4843 390854 CLP/W-LWS-1U 1 5/P
30 4400 741190 BRUSH-ALN-U-W 1 1/S
31 4402 802510 BKT-COVER-LGC 1 1/P
32 4400 754150 BKT-CONECT-200 1 1/P
33 4402 801400 K-BKT-BALANC-U 2 1/P
34 4402 812390 BKT-LOCK-FRAME 2 1/P
35 4402 801350 DUCT-F 1 1/P
36 4402 801360 DUCT-R 1 1/P
37 4400 911480 FILTER-U-176 1 1/P
38 4843 390856 CLP/W-LWS-3U 1 5/P
39 4843 390868 PWZ-SPLS-3U 1 5/P
41 4843 390855 CLP/W-LWS-2U 1 5/P
42 4402 815620 WH-DEV-170 1 1/P
43 4402 807030 SCREW-SOCKET 2 10/P
44 4843 390888 CLP/W-WS-2U 3 5/P
45A 4400 960510 K-SRAM-T176U 1 1/S 045A1 IC23,USA
45A1 4400 960540 K-SRAM-T176U 1 1/S E - J F4B100 045A2 045A IC23,USA
45A2 4400 960580 K-SRAM-T176U 1 1/S C E J F4F208 045A1 CF4 IC23,USA
45B 4400 960520 K-SRAM-T176E 1 1/S 045B1 IC23,EUR
45B1 4400 960550 K-SRAM-T176E 1 1/S E - J F4B100 045B2 045B IC23,EUR
45B2 4400 960590 K-SRAM-T176E 1 1/S C E J F4F208 045B1 CF4 IC23,EUR
46A 4400 960450 PRA-T176M-02 1 1/S 046A1 IC22,ED-2050
46A1 4400 960460 PRA-T176M-03 1 1/S C B B F4D131 046A2 046A CC4 IC22,ED-2050
46A2 4400 960480 PRA-T176M-04 1 1/S C B J F4F208 046A3 046A1 CF4 IC22,ED-2050
46A3 4400 961000 PRA-T176M-05 1 1/S C B D F4L375 046A2 CK4 IC22,ED-2050
46B 4400 930820 PRA-T178M-02 1 1/S 046B1 IC22,ED-1650
46B1 4400 930830 PRA-T178M-03 1 1/P C B B F4D131 046B2 046B QC4 IC22,ED-1650
46B2 4400 930840 PRA-T178M-04 1 1/S C B D F4L375 046B1 QK4 IC22,ED-1650
47 4402 807510 BKT-BRUSH-ALN 1 1/P
48 4402 200660 LBL-LOCK-OPEN 1 5/P
49 4402 200670 LBL-LOCK-CLOSE 1 5/P
50 4402 801210 DUCT-CLN 1 1/P
51 4400 741890 BKT-FAN-EXIT 1 1/P
52 4402 807540 SPE-060-254 1 5/P
53 4400 741880 DAMPER-FAN-EXIT 1 1/P
55 4402 203820 SCREW-BKT-DEV 2 50/P
56 4843 390857 CLP/W-LWS-4U 1 5/P
81 4842 040690 TZPAN3006MSZN3L 2 50/P
82 4842 040665 TPAN3006MSZN3L 10 50/P
84 4842 040060 TPAN40*08MSZN3L 12 50/P
85 4842 040650 TPAN40*06MSZN3L 4 50/P
86 4842 040684 TBID3006MSCR3C 1 50/P
4 TOSHIBA
2050/1650 JULY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
91 7405 005031 ERR050SKZN3A 3 50/P
4 TOSHIBA
2050/1650 ASM-BASE JULY 2004
5
2050/1650 JULY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4400 916420 FRAME-BASE-176 1 N/A***
2 4400 911220 GUIDE-CST-R-F 1 1/PP 002 1
2 1 4400 932540 GUIDE-CST-R-F 1 1/P C B J F4H263 002 2 002 CJ414416
QJ415109
2 2 4400 932400 GUIDE-CST-R-F 1 1/P C B J F4L374 002 1 CK4/QK4
3 4400 911230 GUIDE-CST-R-R 1 1/PP 003 1
3 1 4400 932420 GUIDE-CST-R-R 1 1/P C B J F4L374 003 CK4/QK4
4 4400 911250 K-BKT-GUIDE-CST 1 1/P 004 1
4 1 4400 932520 K-BKT-GUIDE-CST 1 1/P C B J F4H263 004 CJ414416
QJ415109
5 4400 911210 GUIDE-CST-L-176 1 1/PP 005 1
5 1 4400 932440 GUIDE-CST-L 1 1/P C B J F4L374 005 CK4/QK4
6 4400 911280 K-BKT-GUIDE-ROL 1 1/P 006 1
6 1 4400 932590 BKT-GUIDE-ROL-L 1 1/P C B J F4H263 006 CJ414416
QJ415109
7 4402 811990 FOOT-8-20 4 1/P
8 4400 912100 BLIND-DF-TR 1 1/P
9 4843 390856 CLP/W-LWS-3U 2 5/P
10 4400 419020 Z/PWB-2196-VO 4 5/P
11 4843 390855 CLP/W-LWS-2U 3 5/P
12 4843 390854 CLP/W-LWS-1U 2 5/P
13 4843 390871 PWZ-SPLS-7U 2 5/P
14 4843 390860 PWZ-SPS-6U 1 5/P
15 4400 916440 SEAL-SLIT-COV 1 1/C
16 4400 932560 ROLL-CST-19S 2 1/P A B J F4H263 CJ414416
QJ415109
17 4400 916320 K-FRAME-TRAY-UP 1 1/P
18 4400 916310 LEVER-GEAR-40 1 1/P
19 4400 916300 LEVER-GEAR-20 1 1/P
20 4400 916220 ASM-ARM-TRAY 1 1/P 020 1
20 1 4400 926320 ASM-ARM-TRY-177 1 1/P C E E F4F178 020
23 4400 916360 SPE-TRAY-UP-CA 1 5/P
24 4400 916350 BKT-FRM-TRY-SUB 1 1/P
25 4402 202680 MG-CATCH-22 1 1/P
26 4402 832990 GUIDE-CST-F-PFD 1 1/P
27 4402 801470 BALANCER-F170 2 1/P
28 4402 801420 K-BKT-BALANC-L 2 1/P
29 4400 916590 GUIDE-CST-P 1 1/P
30 4402 816610 SP-ESE-15404 1 1/C
31 4843 390856 CLP/W-LWS-3U 1 5/P
50 4842 040704 TZPAN4012MSZN3L 9 50/P
51 4842 040867 PTBR40*14MSZN3A 4 50/P
52 4842 040060 TPAN40*08MSZN3L 3 50/P
53 4842 040692 TZPAN3008MSZN3L 3 50/P
54 4842 040702 TZPAN4010MSZN3L 5 50/P 054 1
54 1 4842 040702 TZPAN4010MSZN3L 1 50/P E - J F4B100 054
55 4842 040702 TZPAN4010MSZN3L 1 50/P
57 4842 040665 TPAN3006MSZN3L 1 50/P
58 7405 005031 ERR050SKZN3A 2 50/P
59 4842 040061 TPAN40*10MSZN3L 4 50/P F - J F4B100
5 TOSHIBA
2050/1650 ASM-PROCESS JULY 2004
6
2050/1650 JULY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4402 816400 PS-HVT-M-170 1 1/C
2 4402 809110 TERMINAL-HVT-CH 1 1/P
3 4402 809560 BKT-HLD-RST-CH 1 1/P
4 4400 857600 K-HLD-RST-CH 1 1/P
5 4843 018065 RN1/4PR033KF 1 10/P
6 4843 404212 CM92C1H101KZ 1 10/P 006 1
6 1 4843 412737 CC-45CH1H101JYS 1 10/P E - J F4J295 006
7 4400 857580 BLADE-CH 1 1/P
8 4400 781700 WH-RST-CH-170V 1 1/P
10 4402 809570 BLADE-RST-CH 1 1/P
11 4402 809930 ASM-DCH-170 1 1/C
12 4402 809120 SPL-HVT-CH 1 5/P
13 4402 809130 SPL-BIAS-GRID 1 1/P
14 4402 809530 STOPPER-PWA-ERS 1 1/P
17 4402 809510 HOLDER-LAMP-ERS 1 1/P
18 4402 809520 COVER-LAMP-ERS 1 1/P
19 4400 960100 PWA-F-ERS-176 1 1/C
20 4402 808590 BKT-CLN-WIRE 1 1/P
25 4402 802520 BKT-HVT-M 1 1/P
51 4842 040134 TPAN3020MSZN3A 1 50/P
52 7040 300611 PAN30*06MSZN3A 1 50/P
53 4842 040846 PTBR30*08MSZN3A 2 50/P
54 7640 301251 ZPAN30*12MSZN3A 2 50/P
55 4842 040060 TPAN40*08MSZN3L 5 50/P
56 4842 040700 TZPAN4008MSZN3L 3 50/P
57 4842 040665 TPAN3006MSZN3L 1 50/P
58 4842 040690 TZPAN3006MSZN3L 1 50/P
6 TOSHIBA
2050/1650 ASM-INDEX JULY 2004
7
2050/1650 JULY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1A 4400 770650 K-BASE-INDI 1 1/P ED-2050
1B 4400 770660 K-BASE-IND-SPOT 1 1/P ED-1650
2 4400 370350 K-M/P-DCM-527 1 1/C
3 4407 952410 COLLAR-IND 1 10/P ED-2050
4 4400 723330 INDICATOR-F 1 1/P ED-2050
5 4400 723340 INDICATOR-R 1 1/P ED-2050
6 4407 952380 BELT-HTD348-2M 1 1/P ED-2050
7 4402 220610 WH-IND-545 1 1/P ED-2050
8 4400 752430 HINGE-STOPPER-F 1 1/P
9 4400 770640 STOPPER-ORG 1 1/P
10 4402 825120 SPE050-050-0184 1 5/P
12A 4400 925770 LBL-SCALE-UC177 1 1/KP USA SIZE
12B 4400 925780 LBL-SCALE-ER177 1 1/KP EUR SIZE
13 4400 723290 BKT-STOP-IND 1 1/P
14 4400 752440 HINGE-STOPPER-R 1 1/P
15 4400 854460 SPACER-ORG-79 2 5/P 015 1 ED-1650
15 1 4400 854460 SPACER-ORG-79 0 5/P E - J F4B100 015 ED-1650
17 4402 825350 TAPE-WHITE-170 1 1/KP
41 4346 754010 SKB-BAND-1 1 5/P ED-2050
51 7040 200411 PAN20*04MSZN3AI 2 50/P ED-2050
52 4842 040495 PTBR30*06MSZN3A 2 50/P
53 7043 400613 BID40*06MSCR1AI 2 50/P
54 4842 040650 TPAN40*06MSZN3L 1 50/P ED-2050
55 7402 004032 0TWAS040SKZN3A 1 50/P 055 1 ED-2050
55 1 7402 004032 0TWAS040SKZN3A 0 50/P E - J F4B100 055 ED-2050
56 7124 300611 12FLT3006MSZN3A 1 50/P
57 4842 040060 TPAN40*08MSZN3L 1 50/P
7 TOSHIBA
2050/1650 ASM-FEEDER-1 JULY 2004
8
2050/1650 JULY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4400 917100 K-FRAME-FRONT-L 1 N/A***
2 4400 916700 K-FRAME-REAR-L 1 N/A***
3 4400 916530 STAY-RGT-SW 1 1/P
4 4400 916510 K-GUIDE-PAPER-2 1 1/KP
5 4400 916570 K-GUIDE-P-1-176 1 1/KP
6 4402 813620 BKT-RGT-SW 1 1/P
7 4400 781600 SZ-P-RGT-170V 1 1/C
8 4843 391176 CLP/W-UAMS05L 2 5/P
11 4400 756430 K-BKT-BYPASS-U 1 1/P
12 4400 756410 ACT-BYPASS 1 1/P ED-2050
13 4400 756490 SPE-SND-BYPASS 1 5/P ED-2050
14A 4400 756420 BKT-SHAFT-FEED 1 1/P ED-2050
14B 4400 918320 BKT-SFT-FEED176 1 1/P ED-1650
15 4400 756460 BKT-BYPASS-U2 1 1/P ED-2050
16 4400 882280 SCREW-GUIDE-FED 2 10/P ED-2050
17 4400 756470 STOPPER-PAPER 1 1/P ED-2050
18 4400 756550 BKT-GUIDE-STOP 1 1/P ED-2050
19A 4400 918380 SFT-ROL-FEED-U 1 1/P ED-2050
19B 4400 918280 SFT-ROLL-FD-U76 1 1/P ED-1650
20 4407 734980 BUSH-6-GCB 2 5/P
21 4402 813640 ARM-PICK-U-170 2 1/P ED-2050
22 4407 403790 NPIN2-8 1 10/P ED-2050
23 4400 884670 PLY-20-ROL 1 1/P ED-2050
27A 4400 756530 K-ROL-FEED-U-2 1 1/P 027A1 ED-2050
27A1 4401 773050 K-ROL-FED-CW-H 1 1/P E - J F4B100 027A ED-2050
27B 4401 773050 K-ROL-FED-CW-H 1 1/P ED-1650
28 4402 814000 BELT-160-SZ2M 1 1/P ED-2050
29A 4407 907410 STOP-RING-6 2 5/P ED-2050
29B 4407 907410 STOP-RING-6 1 5/P ED-1650
30 4402 813660 SFT-ROL-PICK-U 1 1/P ED-2050
31 4402 813680 PLY-20 1 1/P ED-2050
32 4401 773060 K-ROL-P/U-CW-H 1 1/P ED-2050
33 4402 816780 SZ-GP1A71M1 1 1/C
34A 4400 756610 BKT-PAPER-SW 1 1/P ED-2050
34B 4400 918310 BKT-PAPER-SW176 1 1/P ED-1650
35A 4402 813220 LEV-PAPER-SW 1 1/P ED-2050
35B 4400 918290 LEV-PAPER-SW176 1 1/P ED-1650
36 4402 814490 SCREW-BYPASS-Z 1 10/P
37A 4400 756620 COV-PAPER-SW 1 1/P ED-2050
37B 4400 918300 COV-PAPER-SW176 1 1/P ED-1650
38A 4400 744200 WH-M-FED-102 1 1/P ED-2050
38B 4400 961600 WH-M-FED-176 1 1/P ED-1650
39 4400 902490 BAND-PS100 1 5/P
40 4407 980920 BUSH-4-5 8 5/P
41 4402 816870 K-RESISTOR-170F 1 1/P
42 4408 300990 SCREW40*10MSCR 1 5/P
43 4400 744310 SND-FED-170 1 1/D ED-2050
60 4842 040060 TPAN40*08MSZN3L 6 50/P 060 1
60 1 4842 040060 TPAN40*08MSZN3L 7 50/P D E E F4H257 060 CH4/QH4
61 4842 040061 TPAN40*10MSZN3L 7 50/P 061 1
61 1 4842 040061 TPAN40*10MSZN3L 6 50/P D - E F4H257 061 CH4/QH4
62 4842 040665 TPAN3006MSZN3L 4 50/P
64 7405 005031 ERR050SKZN3A 4 50/P
65 7040 300611 PAN30*06MSZN3A 2 50/P ED-2050
8 TOSHIBA
2050/1650 ASM-FEEDER-2 JULY 2004
9
2050/1650 JULY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4400 756330 ROLLER-RGT-U 1 1/KP
2 4402 813120 GEAR-20-1.0 1 1/P
3 4842 904035 HPIN20/10SUSH7 1 50/P
4 4400 756300 BUSH-22 2 1/P
6 4400 917020 ASM-CLUTCH-30-8 1 1/P 006 1
6 1 4400 917330 ASM-CLUTCH-30-8 1 1/D C E E F96A589 006
7 4400 917870 SHAFT-CLT-FEED 1 1/P
9 4400 917850 SPRING-COUP 1 5/P
10 4400 802080 BUSH-8 2 5/P
11 4400 917810 COUPRING-D-SLID 1 5/P
12 4400 917030 ASM-CLUTCH-30-6 1 1/P 012 1
12 1 4400 917340 ASM-CLUTCH-30-6 1 1/D C E E F96A589 012 2 012
12 2 4400 916680 ASM-CLUTCH-30-6 1 1/D C B D F97L134 012 1
13 4400 916910 SHAFT-COUP-FED 1 1/P
14 4400 917480 COUPLING-FE-ROL 1 5/P 014 1
14 1 4400 927170 COUPLING-FE-ROL 1 5/P C B E F4F218 014 CH4/QH4
15 4842 904020 HPIN20/12SUSH7 1 10/P
16A 4400 756760 BKT-BYPASS-L 1 1/P ED-2050
16B 4400 918100 BKT-BYPASS-L176 1 1/P ED-1650
17 4400 756710 K-PAD-SPT-U 1 1/P
18 4402 834670 SCREW-SW-M3 2 10/P
19 4400 917760 BKT-FEED-ROL-2 1 1/P 019 1
19 1 4400 917290 BKT-FEED-ROL-2 1 1/P E - J F4B100 019 2 019
19 2 4400 917130 BKT-FEED-ROL-2 1 1/P C B E F4F178 019 1 CE4/QE4
20 4400 917230 ARM-JOINT-FEED 1 1/P 020 1
20 1 4400 947880 ARM-JOINT-FEED 1 1/P C E E F4J295 020 CJ414701
QJ415354
21 4400 916820 GEAR-Z24H 2 1/P
22 4400 917210 CLR-JOINT-FEED 1 5/P
23 4402 235600 ASM-CLUTCH-10K 1 1/D
24 4400 917220 STUD-ARM-JOINT 1 1/P
25 4400 917240 GEAR-Z24-IDLE 1 1/P
26 4400 802070 BUSH-6L 2 5/P
28 4400 917160 SPE-JOINT-FEED 1 5/P 028 1
28 1 4400 917190 SPE-JOINT-FEED 1 5/P C E E F4J295 028 CG4/QG4
29 4400 755300 GEAR-Z24-IDLE 1 1/P
30 4400 756730 SPRING-SPT-UL 1 5/P
31 4400 756740 SPRING-SPT-UR 1 5/P
32 4400 916260 TRAY-M-FEED-176 1 1/P ED-1650
33 4400 918360 GUIDE-F-176 1 1/P ED-1650
34 4400 918370 GUIDE-R-176 1 1/P ED-1650
35A 4400 918160 LBL-TRAY-U-176 1 5/P ED-1650 USA
35B 4400 918170 LBL-TRAY-E-176 1 5/P ED-1650 EUR
36 4402 814300 RACK-BYPASS 2 1/P 036 1 ED-1650
36 1 4400 948540 RACK-BYPASS 2 1/P C E J F95D427 036 QG5 ED-1650
37 4407 408370 PUSH-NUT-3 4 10/P ED-1650
38 4407 726480 PINION-18-395 1 1/P ED-1650
39 4400 918260 K-PLT-PINION176 1 1/P ED-1650
40 4400 917960 BKT-PC-CL 1 1/P
41 4400 917280 COV-CLUTCH 1 1/P F - J F4B100 041 1
41 1 4400 917140 COV-CLUTCH 1 1/P C B E F4F178 041 CE4/QE4
50 7405 004031 ERR040SKZN3A 1 50/P
51 7405 005031 ERR050SKZN3A 12 50/P
52 7405 007031 ERR070SKZN3A 4 50/P
53 7403 006039 CRR/S060SKFB 1 50/P
54 7403 007039 CRR/S070SKFB 1 50/P 054 1
54 1 7403 008039 CRR/S080SKFB 1 50/P E - J F4B100 054
55A 4842 040060 TPAN40*08MSZN3L 6 50/P 055A1 ED-2050
55A1 4842 040060 TPAN40*08MSZN3L 7 50/P E - J F4B100 055A2 055A ED-2050
55A2 4842 040060 TPAN40*08MSZN3L 6 50/P D - E F4D135 055A1 ED-2050
55B 4842 040060 TPAN40*08MSZN3L 8 50/P 055B1 ED-1650
55B1 4842 040060 TPAN40*08MSZN3L 9 50/P E - J F4B100 055B2 055B ED-1650
55B2 4842 040060 TPAN40*08MSZN3L 8 50/P D - E F4D135 055B1 ED-1650
56 4842 011063 9HSS30/05MSFB 1 50/P
57 4842 040495 PTBR30*06MSZN3A 1 50/P F - J F4B100 ED-1650
58 4842 040650 TPAN40*06MSZN3L 1 50/P F - J F4B100 058 1
58 1 4842 040650 TPAN40*06MSZN3L 2 50/P D - E F4D135 058
59 4842 040665 TPAN3006MSZN3L 1 50/P F - J F4B100
9 TOSHIBA
2050/1650 ASM-FEEDER-3 JULY 2004
10
2050/1650 JULY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4400 916800 PLY-25-G30H 1 1/P
2 4400 917790 PLY-25-G35 1 1/P
3 4402 832590 GEAR-29-1.0 2 1/P
4 4400 917710 GEAR-Z30-Z20 1 1/P
5 4402 831170 ASM-CLT-10K-30 1 1/C
6A 4402 817980 K-BKT-TRAY 1 1/P ED-2050
6B 4400 918060 K-BKT-TRAY-178 1 1/P ED-1650
7 4402 205790 SPC-CH-TR 1 5/P
8 4843 391236 BD/W-EDH-18U 2 5/P
9 4843 390854 CLP/W-LWS-1U 2 5/P
10 4400 741810 STUD-24-18-BELT 1 1/P
11 4402 801630 GEAR-24-18-M1 1 1/P
12 4400 539470 WH-FG-518 1 1/P
13A 4400 960660 WH-DC-PWR-176JU 1 1/P TAD
13B 4400 960660 WH-DC-PWR-176JU 1 1/P CSD
13C 4400 960670 WH-DC-PWR-176E 1 1/P EUD
13D 4400 960670 WH-DC-PWR-176E 1 1/P GSD
13E 4400 960670 WH-DC-PWR-176E 1 1/P FRD
13F 4400 960670 WH-DC-PWR-176E 1 1/P SED
13G 4400 960670 WH-DC-PWR-176E 1 1/P UKD
13H 4400 960670 WH-DC-PWR-176E 1 1/P AUD
13I 4400 960660 WH-DC-PWR-176JU 1 1/P TWD
13J 4400 960660 WH-DC-PWR-176JU 1 1/P SAN
13K 4400 960670 WH-DC-PWR-176E 1 1/P EUN
13L 4400 960670 WH-DC-PWR-176E 1 1/P AUN
14 4843 381339 Z-PW-LCBS-010N 3 5/P 014 1
14 1 4843 381339 Z-PW-LCBS-010N 5 5/P E - J F4B100 014
15A 4400 960680 WH-FEED-176JU 1 1/P TAD
15B 4400 960680 WH-FEED-176JU 1 1/P CSD
15C 4400 960690 WH-FEED-176E 1 1/P EUD
15D 4400 960690 WH-FEED-176E 1 1/P GSD
15E 4400 960690 WH-FEED-176E 1 1/P FRD
15F 4400 960690 WH-FEED-176E 1 1/P SED
15G 4400 960690 WH-FEED-176E 1 1/P UKD
15H 4400 960690 WH-FEED-176E 1 1/P AUD
15I 4400 960680 WH-FEED-176JU 1 1/P TWD
15J 4400 960680 WH-FEED-176JU 1 1/P SAN
15K 4400 960690 WH-FEED-176E 1 1/P EUN
15L 4400 960690 WH-FEED-176E 1 1/P AUN
16 4400 916770 COV-CLUTCH 1 1/P 016 1
16 1 4400 916770 COV-CLUTCH 0 1/P E - J F4B100 016
18 4400 960030 PWA-F-FED-176 1 1/C
19 4400 917670 K-GEAR-Z30-Z15 1 1/P
20 4400 917930 BELT-3M-76-6.5 1 1/P
21 4400 917180 SPE-RGT-T-419 1 1/P
22 4400 917070 K-BKT-TENS-176 1 1/P
23 4400 335180 PULLEY-TENSION 1 1/P
24G 4400 724850 BKT-CNCT-200-L 1 1/P UKD
25G 4400 961610 WH-TUV-176L 1 1/P UKD
26G 4402 807030 SCREW-SOCKET 1 10/P 026G1 UKD
26G1 4402 807030 SCREW-SOCKET 2 10/P E - J F5B398 026G UKD
40A 4842 040060 TPAN40*08MSZN3L 3 50/P 040A1 OTHERS
40A1 4842 040060 TPAN40*08MSZN3L 2 50/P D - E F4D135 040A OTHERS
40G 4842 040060 TPAN40*08MSZN3L 4 50/P 040G1 UKD
40G1 4842 040060 TPAN40*08MSZN3L 3 50/P D - E F4D135 040G UKD
41 4842 040711 TPPAN3008MSZN3A 1 50/P
42 4842 040665 TPAN3006MSZN3L 1 50/P 042 1
42 1 4842 040665 TPAN3006MSZN3L 0 50/P E - J F4B100 042
43 7405 005031 ERR050SKZN3A 16 50/P
44 4842 011063 9HSS30/05MSFB 1 50/P
45 4842 040650 TPAN40*06MSZN3L 1 50/P A B E F4D135
10 TOSHIBA
2050/1650 ASM-FEEDER-4 JULY 2004
11
2050/1650 JULY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4400 917590 FRAME-FEED-F-6 1 N/A***
2 4400 917600 FRAME-FEED-R-6 1 N/A***
3 4400 917610 BKT-FEED-GU-176 1 1/P
4 4400 916540 BRKT-PAD-SEP 1 1/P
5 4400 917570 GUIDE-FEED-176 1 1/P
6 4400 917560 ROLLER-FEED 1 1/P
7 4407 734980 BUSH-6-GCB 2 5/P
8 4400 802070 BUSH-6L 2 5/P
9 4346 312020 PIN 2 10/P
10 4400 917480 COUPLING-FE-ROL 1 5/P 010 1
10 1 4400 927170 COUPLING-FE-ROL 1 5/P C B E F4F218 010 CH4/QH4
11 4400 917880 SHAFT-FEED 1 1/P
12 4400 917820 COUPRING-FEED 1 5/P
13 4400 884670 PLY-20-ROL 1 1/P
14 4400 916980 ARM-PICK-R-176 1 1/P
15 4401 773050 K-ROL-FED-CW-H 1 1/P
16 4400 916970 ARM-PICK-F-176 1 1/P
17 4407 403790 NPIN2-8 3 10/P
18 4407 973140 BELT-HTD-93-2M 1 1/P
19 4400 916960 PLY-TENS-PICK 1 1/P
20 4402 833100 CLUTCH-6-R 1 1/D
21 4402 231780 PLY-20-2M 1 1/P
22 4400 917630 ROL-PICK-UP 1 1/KP
23 4407 907410 STOP-RING-6 1 5/P
24 4400 916950 COV-SW-EMPTY 1 1/P 024 1
24 1 4400 917010 COV-SW-EMPTY 1 1/P C B E F95J517 024 CJ5/QJ5
25 4402 816600 SNSR-PEM-170 1 1/C
26 4400 917550 ROLLER-FEED-I 1 1/P
27 4407 976990 BUSH-D6-GCB 2 1/P
28 4400 885120 SPRING-300 2 5/P
29 4402 811970 MAG-CATCH-2 1 1/P
30 4400 960760 WH-CST1-176 1 1/P
31 4400 902490 BAND-PS100 1 5/P
32 4400 918000 COV-OPEN-176 1 1/P
33 4400 917750 PLT-MG 2 1/P
34 4400 917420 SE-PCSW303B1B 1 1/C
35 4400 917900 K-PAD-176 1 1/C 035 1
35 1 4400 927500 K-PAD-HOLDER 1 1/C C E J F4F218 035
COMMUNITY WITH THE OTHER MODELS
36 4400 917940 SPE-SEP-176-200 1 5/P
37 4400 916990 BKT-SW 1 1/P
38 4400 961310 SZ-P-FED-176 1 1/C
39 4400 917970 LEVER-ARM-1 1 1/P
40 4400 917980 LEVER-ARM-2 1 1/P
42 4402 203820 SCREW-BKT-DEV 4 50/P
43 4400 917990 SPE-LEVER-ARM 1 5/P
44 4400 823760 GEAR-08-20-LA5 2 1/P
45 4400 919720 LABEL-9*13-AQUA 1 5/P
60 4842 040665 TPAN3006MSZN3L 11 50/P
61 7405 005031 ERR050SKZN3A 13 50/P
62 4842 040690 TZPAN3006MSZN3L 6 50/P 062 1
064
62 1 4842 040690 TZPAN3006MSZN3L 2 50/P D - E F95E435 062 CE5/QE5
63 4842 040495 PTBR30*06MSZN3A 4 50/P
64 4842 040692 TZPAN3008MSZN3L 4 50/P C E E F95E435 062 CE5/QE5
11 TOSHIBA
2050/1650 ASM-BELT JULY 2004
12
2050/1650 JULY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4402 801840 BKT-BELT-F170 1 1/P 001 1
1 1 4400 948610 BKT-BELT-F179 1 1/P C E E F95E435 001 CH5/QH5
2 4402 801850 DUCT-BELT 1 1/PP
3 4407 974570 BUSH-6-MU 2 5/P
4 4402 801580 SHAFT-BELT-I 1 1/P
5 4402 801530 BELT-TRANSPORT2 2 1/P
6 4402 801520 BELT-TRANSPORT1 1 1/P
7 4402 801610 SEAL-DUCT-BELT 1 1/KP
8 4407 956590 GEAR-10-20-6 1 1/P
9 4402 801570 SHAFT-BELT 1 1/P
10 4407 734980 BUSH-6-GCB 1 5/P
11 4402 801650 ROL-BELT-20-50 2 1/P
12 4402 801560 ROL-BELT-20-100 1 1/P
13 4400 802070 BUSH-6L 1 5/P
14 4346 312020 PIN 2 10/P
51 4842 040846 PTBR30*08MSZN3A 4 50/P
52 4842 040700 TZPAN4008MSZN3L 1 50/P
61 7405 005031 ERR050SKZN3A 3 50/P
62 7405 007031 ERR070SKZN3A 1 50/P
12 TOSHIBA
2050/1650 ASM-SCAN-DRIVE-1 JULY 2004
13
2050/1650 JULY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4400 729290 BELT-2M-60-4-C 1 1/P
2 4400 922280 K-BKT-PLY-EX-F 1 1/P
3 4400 922490 K-PULLEY-CRG2 2 1/P
4 4400 335180 PULLEY-TENSION 4 1/P
5 4400 922290 K-BKT-PLY-EX-R 1 1/P
8 4400 770330 BKT-HINGE-PTN-L 1 1/P
9 4400 770310 BKT-HINGE-PTN-R 1 1/P 009 1
9 1 4400 946940 BKT-HINGE-PTN-R 1 1/P C E E F5A381 009 CA5/QA5
10 4400 781650 K-M/P-L/M-V 2 1/C
11 4402 217850 GUIDE-HINGE-R 1 1/P
12A 4402 815970 FAN-DC-OPT-170V 1 1/C TAD,CSD
12B 4400 741350 FAN-DC-OPT-102 1 1/C OTHERS
13 4843 390854 CLP/W-LWS-1U 1 5/P
15 4402 217840 GUIDE-HINGE-L 1 1/P
16A 4402 805740 FILTER-OPT 1 1/KP TAD,CSD
16B 4400 471370 FILTER-OPT 1 1/KP 016B1 OTHERS
16B1 4400 741370 FILTER-OPT 1 1/KP E - J F95E435 016B OTHERS
20 4400 922010 K-SCAN-MOT-176 1 1/C
21 4400 922020 BKT-SCN-MOT-176 1 1/P
22 4843 390871 PWZ-SPLS-7U 2 5/P
23 4402 815660 WH-SCN-170 1 1/P
26 4402 804730 PULLEY-31 1 1/P
27 4402 815600 WH-DC-OPT-170 1 1/P
51 4842 040665 TPAN3006MSZN3L 4 50/P
52 7040 300611 PAN30*06MSZN3A 2 50/P
53 4842 040711 TPPAN3008MSZN3A 1 50/P
54 4842 040692 TZPAN3008MSZN3L 4 50/P
55 4842 040060 TPAN40*08MSZN3L 12 50/P
56 4842 040690 TZPAN3006MSZN3L 2 50/P
57 7403 006039 CRR/S060SKFB 2 50/P
58 7405 005031 ERR050SKZN3A 4 50/P
13 TOSHIBA
2050/1650 ASM-SCAN-DRIVE-2 JULY 2004
14
2050/1650 JULY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4400 921470 K-BASE-OPT 1 N/A***
2 4402 805550 SHEET-CRG 2 1/KP
3 4402 804560 SHEET-CRG-MIR 1 1/KP
4 4400 770480 K-BKT-DRIVE-OPT 1 1/P
5 4402 804470 GEAR-46-14 2 1/P
6 4402 804480 GEAR-30-14 1 1/P
7 4402 804490 PULLEY-16-Z33 1 1/P
8 4402 217550 PULLEY-16 1 1/P
9 4402 804550 BELT-2M-330 1 1/P
10 4400 922080 STAY-GLASS-F 1 N/A***
11 4402 816780 SZ-GP1A71M1 3 1/C
12 4402 815610 WH-OPT-SW-170 1 1/P
13 4400 770930 RAIL-CRG-LENS 1 N/A***
14 4400 770940 SHEET-CRG-LENS 1 1/KP
15 4402 805680 BKT-MIRROR-6 1 1/P
16 4402 804150 MIRROR-6 1 1/C
17 4402 804340 SPL-MIRROR 2 1/P
18 4400 922090 STAY-GLASS-R 1 N/A***
19A 4400 831600 CUSH-GLASS 14 5/P EUR
19B 4400 831600 CUSH-GLASS 4 5/P OTHERS
21 4843 391367 BD/W-EDS-0607M 1 5/P
22 4400 771150 SHAFT-SCAN 1 1/P
23 4402 804750 FLANGE-PLY-SCAN 2 1/P
24 4400 771170 PULLEY-25-50 2 1/P
25 4408 510800 BRG-688ZZNR 2 1/P
26 4402 805450 CLAMP-CABLE-CRG 1 1/P
27 4400 902490 BAND-PS100 2 5/P
29 4843 390855 CLP/W-LWS-2U 3 5/P
30 4400 841470 SCREW40X08-T 4 50/P
31 4400 770920 K-RAIL-CRG-LENS 1 1/P
32 4400 921850 ASM-BELT-CRG-F 1 1/P
33 4400 921860 ASM-BELT-CRG-R 1 1/P
34 4400 922200 K-BKT-CRG2-F 1 1/P
35 4400 922490 K-PULLEY-CRG2 4 1/P
36 4400 922210 K-BKT-CRG2-R 1 1/P
51 7040 300611 PAN30*06MSZN3A 5 50/P
52 4842 040665 TPAN3006MSZN3L 5 50/P
53 4842 040690 TZPAN3006MSZN3L 1 50/P
54 4842 040480 THPAN3006MSZN3L 5 50/P
55 4842 040709 TPPAN3006MSZN3A 4 50/P
59 4842 011083 9HSS40/06MSFB 4 50/P
71 7405 005031 ERR050SKZN3A 8 50/P
72 7405 007031 ERR070SKZN3A 4 50/P
73 7403 006039 CRR/S060SKFB 4 50/P
14 TOSHIBA
2050/1650 ASM-MAIN-DRIVE JULY 2004
15
2050/1650 JULY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4400 911810 K-FRAME-DRIVE-M 1 N/A***
2 4400 960800 M/DC-MAIN-176 1 1/C
3 4400 911850 K-PLY-30-92H-20 1 1/P
4 4400 755070 K-PLY-30-30H 1 1/P
5 4402 802910 BELT-3M-Z169 1 1/P
6 4400 781770 K-T-FUL-SW-170V 1 1/C
7 4843 390878 PWZ-SPLS-20U 1 5/P
9 4400 911910 K-FRAME-DRIVE-S 1 1/P
10 4400 911980 K-GEAR-Z26H 1 1/P
11 4402 802950 JOINT-DEV 1 1/P
12 4402 802980 K-GEAR-Z20H 1 1/P
13 4400 755270 K-GEAR-20H-50H 1 1/P
14 4400 755380 BUSH-SHAFT-DRUM 1 1/P
15 4402 802790 BKT-DRIVE-DEV 1 1/P
16 4402 802800 ARM-JOINT-FUSER 1 1/P
17 4402 802540 K-GEAR-36-24 1 1/P
18 4402 802840 K-GEAR-Z28 1 1/P
19 4402 802450 BLOCK-DRIVE-HTR 1 1/P
20 4402 802830 STUD-JOINT-R 1 1/P
21 4402 802810 STUD-JOINT-L 1 1/P
51 4842 040690 TZPAN3006MSZN3L 2 50/P
52 7040 200811 PAN20*08MSZN3AI 1 50/P
53 4842 040665 TPAN3006MSZN3L 3 50/P
54 4842 040725 TPPAN4008MSZN3A 2 50/P
55 4842 040704 TZPAN4012MSZN3L 2 50/P 055 1
55 1 4842 040706 TZPAN4014MSZN3L 2 50/P C E E F4J295 055
56 4842 040650 TPAN40*06MSZN3L 3 50/P
61 7405 005031 ERR050SKZN3A 2 50/P
62 7405 007031 ERR070SKZN3A 2 50/P
15 TOSHIBA
2050/1650 ASM-CRG-1 JULY 2004
16
2050/1650 JULY 2004
Q'TY SPE
ITEM PARTS PARTS NAME
Q'TY
/ / PRICE P I R BSI TO FROM SERIAL REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4400 921660 STAY-CRG1 1 1/P
2 4402 805610 HOLDER-MRR-1-F 1 1/P
3 4402 805620 HOLDER-MRR-1-R 1 1/P
4 4402 216590 REFLECTOR-L 1 1/PP
5 4402 216580 REFLECTOR-U 1 1/PP
6A 4400 733240 LP-92-300W-U 1 1/S TAD
6B 4400 733240 LP-92-300W-U 1 1/S CSD
6C 4402 816120 LP-184-300W-10A 1 1/S EUD
6D 4402 816120 LP-184-300W-10A 1 1/S GSD
6E 4402 816120 LP-184-300W-10A 1 1/S FRD
6F 4402 816120 LP-184-300W-10A 1 1/S SED
6G 4402 816120 LP-184-300W-10A 1 1/S UKD
6H 4402 816120 LP-184-300W-10A 1 1/S AUD
6I 4400 733240 LP-92-300W-U 1 1/S TWD
6J 4400 733240 LP-92-300W-U 1 1/S SAN
6K 4402 816120 LP-184-300W-10A 1 1/S EUN
6L 4402 816120 LP-184-300W-10A ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
