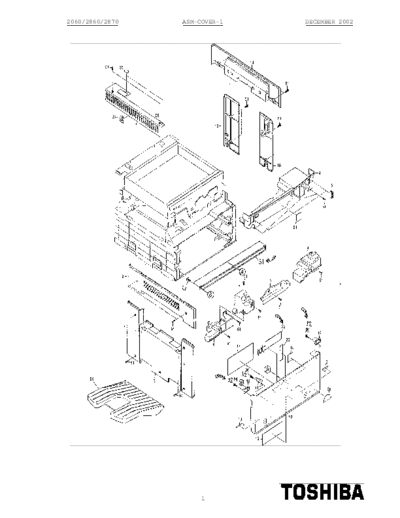

Image preview - the first page of the document
>> Download Toshiba 2060_2860_2870pc documenatation <<
Text preview - extract from the document
2060/2860/2870 ASM-COVER-1 DECEMBER 2002
1
2060/2860/2870 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 970220 COV-TOP-L 1 1/PP
2 4401 970240 COV-LEFT-U 1 1/PP
3 4401 970270 COV-LEFT-L 1 1/PP 003 1
3 1 4401 987790 COV-LEFT-L 1 1/PP C B F F98C228 003 CSA850119
CRA848418
4 4401 970160 K-COV-IN-F-U 1 1/PP
5 4402 202680 MG-CATCH-22 2 1/P
6 4401 943060 K-COV-IN-M-L 1 1/PP
7 4401 941390 COV-IN-M-L-U 1 1/PP
8 4401 941350 COV-IN-M-M 1 1/PP
9 4401 941360 COV-IN-M-R 1 1/PP
10A 4401 970090 F-COV-FRONT 1 1/PP 010A1 2060
10A1 4401 970070 F-COV-FRONT 1 1/PP C B D F98A143 010A SA8 2060
10B 4401 971210 F-COV-F-2860 1 1/PP 010B1 2860
10B1 4401 971240 F-COV-F-2860 1 1/PP C B D F98A143 010B RA8 2860
10C 4401 971220 F-COV-F-2870 1 1/PP 010C1 2870
10C1 4401 971250 F-COV-F-2870 1 1/PP C B D F98A143 010C OA8 2870
11 4401 970120 PUSHER-SW-D-L 1 1/P
12 4402 201360 PLATE-MG 2 1/P
13 4401 970110 PIN-HINGE 2 1/P
14 4401 970230 COV-RIGHT-U 1 1/PP
15A 4402 372120 K-COV-RIGHT 1 1/PP 2870
15B 4401 970260 COV-RIGHT-L-R 1 1/PP OTHERS
16A 4401 994640 COV-RIGHT-LCF-T 1 1/PP 2870
16B 4401 970250 COV-RIGHT-L-F 1 1/PP OTHERS
17 4401 971490 LBL-INST-TNR 1 1/KP
18 4400 660510 LBL-MEMORY-140 1 5/P
19B 4401 971000 LBL-PM-210 1 1/KP MJD,MFD
20B 4401 971010 LBL-INST-TNR-E 1 1/P MJD,MFD
21 4400 660500 LABEL-DRUM-140 1 5/P
22B 4402 841590 LBL-INST-TNR3-E 1 5/KP 022B1 MJD,MFD
22B1 4400 910690 LBL-INST-TNR3-E 1 5/KP C D D F98A143 022B SA8/RA8 MJD,MFD
23 4401 942050 TRAY-EXIT-F210 1 1/PP
24 4401 970350 LID-COV-TOP-L 1 1/P
25 4400 912330 COVER-SCREW 2 1/P
26A 4401 910990 LBL-ENERGY-T 1 5/P NAD
31 4401 970450 STAY-COV-FRONT 1 1/P A D D F98A143 SA8/RA8
51 4842 041794 TBIDS-40*08-CP 23 50/P
52 4842 040846 PTBR30*08MSZN3A 6 50/P C B D F98A143 SA8/RA8
1
TOSHIBA
2060/2860/2870 ASM-COVER-2 DECEMBER 2002
2
2060/2860/2870 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 970370 K-COV-REAR-U 1 1/PP
2 4401 970290 COV-REAR-L 1 1/PP
3 4401 970210 COV-TOP-C 1 1/PP
4 4401 970430 K-COV-TOP-R 1 1/PP
5 4401 966260 TRAY-BYPASS-U 1 1/PP
6 4401 966360 TRAY-BYPASS-M 1 1/PP
7 4401 966270 TRAY-BYPASS-L 1 1/PP
8 4401 966280 GUIDE-F 1 1/P
9 4401 966290 GUIDE-R 1 1/P
10 4401 966600 RACK-BYPASS 2 1/P
11 4407 726480 PINION-18-395 1 1/P
12 4401 966370 K-PLATE-PINION 1 1/P
13 4402 818340 SPC-PIN-TRAY-N 2 5/P
14 4402 814310 PIN-TRAY-M-FE 2 5/P
15A 4401 966710 LBL-TRAY-U 1 1/KP USA SIZE
15B 4401 966720 LBL-TRAY-E 1 1/KP EUR SIZE
16 4401 966730 LBL-TRAY-SFB 1 5/P
17 4400 901130 PAD-BRAKE 1 5/P
18 4401 966610 BUSH-IDLER 1 5/P
19 4401 966300 K-BRKT-TRAY-F 1 1/P E - J F97C862
20 4407 958550 CAP-ARM-FUSER 1 1/P
21 4401 965000 COVER-FEED-U 1 1/PP
22 4401 965010 COVER-FEED-L 1 1/PP 022 1
22 1 4401 967170 COVER-FEED-L 1 1/PP C B E F97D891 022 SB7/RB7
23 4401 964990 GUIDE-COV-FED-U 1 1/PP
24 4401 965020 GUIDE-COV-FED-L 1 1/PP
25 4402 811970 MG-CATCH-2 1 1/P
26 4401 983080 SZ-FED-210 1 1/C
27 4402 859600 SP-CS3A-B2BA 1 1/D
28 4401 979090 WH-PSTPCL-210 1 1/P
29 4401 970910 COV-REAR-L-SUB 1 1/P
31 4408 543130 LBL-SERVICE-T 1 5/P
32 4401 970380 FILTER-COV-REAR 1 1/P
33A 4400 945700 LABEL-CANADA 1 5/P NAD
34A 4401 971560 LBL-WRNTY-TAIS 1 1/KP NAD
35A 4400 740530 LABEL-FCC 1 10/P NAD
36 4401 966990 BRKT-COV-FEED 1 1/P
51 4842 040846 PTBR30*08MSZN3A 16 50/P
52 4842 040684 TBID3006MSZN3L 2 50/P
53 4842 040495 PTBR30*06MSZN3A 4 50/P
54 4842 041794 TBIDS-40*08-CP 12 50/P F - J F97I043
2
TOSHIBA
2060/2860/2870 ASM-CONTROL-PANEL DECEMBER 2002
3
2060/2860/2870 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1A 4401 943770 F-COV-CONP-U 1 1/PP 001A1 NAD
1A1 4401 943730 F-COV-CONP-U 1 1/PP C B E F97H976 001A SG7/RG7 NAD
1B 4401 943790 F-COV-CONP-AU 1 1/PP 001B1 TWD
1B1 4401 943750 F-COV-CONP-AU 1 1/PP C B E F97H976 001B SG7/RG7 TWD
1C 4401 943790 F-COV-CONP-AU 1 1/PP 001C1 SAD
1C1 4401 943750 F-COV-CONP-AU 1 1/PP C B E F97H976 001C SG7/RG7 SAD
1D 4401 943790 F-COV-CONP-AU 1 1/PP 001D1 ASD
1D1 4401 943750 F-COV-CONP-AU 1 1/PP C B E F97H976 001D SG7/RG7 ASD
1E 4401 943790 F-COV-CONP-AU 1 1/PP 001E1 AUD
1E1 4401 943750 F-COV-CONP-AU 1 1/PP C B E F97H976 001E SG7/RG7 AUD
1F 4401 943780 F-COV-CONP-E 1 1/PP 001F1 MJD
1F1 4401 943740 F-COV-CONP-E 1 1/PP C B E F97H976 001F SG7/RG7 MJD
1G 4401 943780 F-COV-CONP-E 1 1/PP 001G1 MFD
1G1 4401 943740 F-COV-CONP-E 1 1/PP C B E F97H976 001G SG7/RG7 MFD
2 4401 943810 COV-SP/FU 1 1/P 002 1
2 1 4401 944080 COV-SP/FU 1 1/P C E E F97H976 002 SE7/RE7
3 4401 943820 KEY-ZOOM 1 1/D
4A 4401 943830 KEY-PREV/INFO 1 1/D MJD,MFD
4B 4401 943980 KEY-PREV/HELP 1 1/D OTHERS
5 4401 943840 KEY-DARKNESS 1 1/D
6 4401 943850 KEY-TEN 1 1/D
7 4401 943860 KEY-PRINT 1 1/P
8 4401 943880 KEY-FU/C 1 1/P
9 4401 943890 KEY-OPTION 1 1/D
10 4401 943900 KEY-COP/ORG 1 1/D
11 4401 943910 COV-LED-OP 10 5/P 011 1
11 1 4401 944050 COV-LED-OP 10 5/P C B E F97D891 011 SB7/RB7
12 4401 943950 MYLAR-SHIELD 1 1/KP
13 4401 943960 BRKT-CONP-L 1 1/P
14 4401 943970 BRKT-CONP-C 1 1/P
15 4401 943990 BRKT-CONP-R 1 1/P
16 4401 944000 BRKT-CTR 1 1/P
17A 4401 944110 PANEL-DSP-U 1 1/KP NAD
17B 4401 944130 PANEL-DSP-AU 1 1/KP TWD
17C 4401 944130 PANEL-DSP-AU 1 1/KP SAD
17D 4401 944130 PANEL-DSP-AU 1 1/KP ASD
17E 4401 944130 PANEL-DSP-AU 1 1/KP AUD
17F 4401 944120 PANEL-DSP-E 1 1/KP MJD
17G 4401 944120 PANEL-DSP-E 1 1/KP MFD
18 4402 822490 PLATE-MG-DF 2 1/P 2870
19 4401 944210 OP-SHEET-U 1 1/KP
20 4401 977650 PWA-F-DSP-210 1 N/A***
21 4401 977680 PWA-F-KEY-210 1 N/A***
22 4401 985640 CBL-P2/30-22 1 N/A***
23 4401 983010 CTR-E660B-210 1 1/C
24 4401 983050 K-LCD-210 1 1/C
25 4842 414630 GMT-OCB-500 1 10/P
26 4402 822490 PLATE-MG-DF 2 1/P 026 1
26 1 4401 943940 RUBER-MGN 1 1/P E - J F97E910 026
27 4401 977730 ASM-DSP-210 1 1/SB
28 4401 944040 MYLAR-CONP 1 5/P
29 4401 944020 LABEL-MEMORY 1 1/P F - J F97D891
31 4401 944070 SEAL-BRKT-CONP 1 5/P A B E F97D891 SB7/RB7
32 4401 944090 SEAL-LCD 2 5/P A B E F97H976 SE7/RE7
35A 4401 944220 OP-SHEET-E 1 1/KP A - J F97E912 ENGLISH
35B 4401 944230 OP-SHEET-G 1 1/KP A - J F97E912 GERMAN
35C 4401 944240 OP-SHEET-F 1 1/KP A - J F97E912 FRENCH
35D 4401 944250 OP-SHEET-S 1 1/KP A - J F97E912 SPANISH
35E 4401 944260 OP-SHEET-I 1 1/KP A - J F97E912 ITALIAN
51 4842 040370 TBID3006MSZN3L 1 50/P
52 4842 040495 PTBR30*06MSZN3A 31 50/P
53 7040 300611 PAN30*06MSZN3AI 1 50/P
54 7044 401064 FLT40*10MSCR3C 2 50/P
3
TOSHIBA
2060/2860/2870 ASM-UPPER-FRAME-1 DECEMBER 2002
4
2060/2860/2870 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 941420 FRAME-U-F 1 N/A***
2 4401 941470 PUSHER-SW-D-U 1 1/P
3 4401 942200 K-BRKT-BLC-U 1 1/P
4 4401 942500 K-STAY-DEV 1 1/KP
5 4401 942400 PUSHER-DEV-210 2 5/P
6 4401 942410 HLD-PUSH-DEV 2 1/P
7 4401 942420 SPC-PUSH-DEV 2 5/P
8 4402 843920 ROLLER-PUSHER 2 5/P
9 4401 941510 STAY-CLN 1 N/A***
10 4401 984230 K-DCH-210 1 1/C
11 4401 947550 K-LAMP-ERS 1 1/C
12 4401 977260 PWA-F-ERS-210 1 1/SB
13 4401 941720 DUCT-EXIT 1 N/A***
14 4401 981630 FAN-DC-210N 3 1/C
15 4401 979120 WH-FAN-UNIT-210 1 1/P
16 4401 941710 FILTER-FAN-EXIT 1 1/C
17 4401 962840 DUCT-FAN-OPT 1 1/P
19 4401 962850 COV-FILTER-FAN 1 1/P
20 4401 962860 FILTER-FAN-80 1 1/P
21 4401 941750 K-BRKT-BLC-L 1 1/P
22 4401 942620 BALANCER-210-F 1 1/P
23 4401 941460 PLATE-LOCK-F 1 1/P
24 4401 942650 MYLAR-DUCT 4 5/KP
25 4401 942710 MYLAR-DUCT-F 2 1/KP
26 4401 960500 STAY-GLASS-F 1 1/P
27 4400 831600 CUSH-GLASS 3 5/P
28 4401 963080 MAGNET-DF-SNSR 1 1/P
29 4401 960460 MYLAR-GLASS-F 1 5/P
30 4843 390854 CLP/W-LWS-1U 1 5/P 030 1
30 1 4843 390854 CLP/W-LWS-1U 1 5/P D B E F98C244 030 EC8/NC8
31 4401 980660 WH-SUB-DHT-210 1 1/P
32 4842 414629 GMT-OCB-375 1 10/P
33 4401 943220 PLT-FRM-U-F 1 1/P
34 4401 943230 SEAL-FRM-U-F 1 1/P
35 4401 942720 K-BKT-DUCT-EXIT 1 1/P
36 4401 946440 MYLAR-DUCT-R 1 5/KP
37 4401 946450 MYLAR-DUCT-F 1 5/KP
38 4401 946420 SEAL-FRM-U-F2 1 5/P
51 4842 041794 TBIDS-40*08-CP 18 50/P
52 4842 040370 TBID3006MSZN3L 9 50/P 052 1
52 1 4842 040370 TBID3006MSZN3L 10 50/P D - E F97D891 052
53 4842 040686 TBID3008MSCR3C 2 50/P
54 7120 404011 12PAN4040MSZN3A 2 50/P
55 7405 007031 ERR070SKZN3A 1 50/P
57 7405 005031 ERR050SKZN3A 1 50/P
58 7044 250665 FLT25*06BSNI3EI 1 50/P
59 4842 040495 PTBR30*06MSZN3A 2 50/P
60 4843 390855 CLP/W-LWS-2U 1 5/P C B E F98C244 EC8/NC8
4
TOSHIBA
2060/2860/2870 ASM-UPPER-FRAME-2 DECEMBER 2002
5
2060/2860/2870 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 943120 FRAME-U-R 1 N/A***
2 4401 947430 K-TERM-CH-M 1 1/P
3 4401 947470 SPL-GRID-210 1 1/P
4 4401 942200 K-BKT-BLC-U 1 1/P
5 4843 390869 PWZ-SPLS-4U 4 5/P
6 4400 678890 THMS-DRM-140 1 1/P
7 4401 962840 DUCT-FAN-OPT 1 1/P
8 4401 981630 FAN-DC-210N 1 1/C
9 4401 963110 COV-FAN-OPT-R 1 1/P
11 4401 941560 BRKT-COV-R-L 1 1/P
12 4401 941540 BRKT-DF-L 1 1/P
13 4843 390942 BD/W-EDS-2 2 10/P
14 4401 941530 BRKT-DF-R 1 1/P
15 4843 390856 CLP/W-LWS-3U 3 5/P
16 4401 989000 BRKT-KEY-CTR-M 1 1/P 016 1
16 1 4401 941550 BRKT-KEY-CTR 1 1/P E - J F97C862 016
17 4401 979480 WH-IF-ADF-210 1 1/P
18 4401 960510 STAY-GLASS-R 1 1/P 018 1
18 1 4402 492220 STAY-GLASS-R 1 1/P C E J F97I043 018
19 4400 831600 CUSH-GLASS 3 5/P
20A 4400 678510 PS-LRG-JU0411Y 1 1/C 100V SERIES
20B 4400 678520 PS-LRG-JE0411Y 1 1/C 200V SERIES
21 4401 961020 BKT-MOT-SCAN 1 1/P
22 4400 928650 DUMP-MOTOR-177 1 1/P
23 4401 961060 K-MOT-SCAN-210 1 1/C
24 4400 928640 BKT-MOT-SCAN177 1 1/P
25 4401 961140 BLT/T-2GT174X40 1 1/P
26 4363 271540 SPE-080-090-336 1 5/P
27 4401 970500 COV-IN-R-U 1 1/P
28 4401 941750 K-BRKT-BLC-L 1 1/P
29 4401 942630 BALANCER-210-R 1 1/P
30 4843 390855 CLP/W-LWS-2U 1 5/P
31 4401 960470 MYLAR-GLASS-R 1 5/KP
32 4401 941480 K-PLATE-FRM 1 1/P
33 4401 969490 BUSH-BYPASS-CLT 1 1/P
34 4401 969440 GEAR-10S028-06 2 1/P
35 4401 969460 K-GP10S20/3G 1 1/P
36 4401 969470 BRKT-F/C-PLY 1 1/P
37A 4401 962890 BRKT-PLATEN-SW 1 1/P 2860,2870
38A 4401 983000 SZ-LG248L1 1 1/C 038A1 2860,2870
38A1 4401 983230 SZ-LG248L1 1 1/C C B D F97G964 038A SF7/RF7 2860,2870
39A 4400 928890 ACTUATOR-P-SW-G 1 1/P 2860,2870
40A 4402 218250 CYLINDER-P-SW 1 1/P 2860,2870
41A 4402 218260 SPC060-040-0680 1 5/P 2860,2870
42 4843 390854 CLP/W-LWS-1U 1 5/P
51 4842 040370 TBID3006MSZN3L 10 50/P 051 1
51 1 4842 040370 TBID3006MSZN3L 11 50/P D - E F97D891 051
52 7120 404011 12PAN4040MSZN3A 2 50/P
53 4842 041794 TBIDS-40*08-CP 25 50/P
54 7405 007031 ERR070SKZN3A 1 50/P
55 4402 203820 SCREW-BKT-DEV 1 50/P
56 7043 400613 BID40*06MSCR1AI 2 50/P
57 4842 040665 TPAN3006MSZN3L 2 50/P
5
TOSHIBA
2060/2860/2870 ASM-MIDDLE-FRAME DECEMBER 2002
6
2060/2860/2870 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 941200 FRAME-M-F 1 N/A*** 001 1
1 1 4402 491030 FRAME-M-F 1 N/A*** C - J F97I043 001
2 4843 391236 BD/W-EDH-18U 2 5/P
3 4401 986800 SZ-AJ8R2094RB01 1 1/C 003 1
3 1 4401 981100 SZ-AJ8R2094ZU01 1 1/D E - J F97C862 003
4 4400 678360 SZ-DOOR-140 1 1/D
5 4401 941240 BRKT-SW-MAIN 1 1/P
6 4401 941250 BRKT-SW-DOOR 1 1/P
7 4401 941260 GUIDE-SW-DOOR 1 1/P
8 4401 941270 STUD-SW-DOOR 1 1/P
9 4407 907410 STOP-RING-6 2 5/P
10 4401 941280 HINGE-F-R 1 1/P
11 4401 941290 HINGE-F-L 1 1/P
12A 4401 980700 WH-ACMAIN-210U 1 N/A*** NAD
12B 4401 980690 WH-ACMAIN-210 1 N/A*** TWD
12C 4401 980690 WH-ACMAIN-210 1 N/A*** SAD
12D 4401 980690 WH-ACMAIN-210 1 N/A*** ASD
12E 4401 980690 WH-ACMAIN-210 1 N/A*** AUD
12F 4401 980700 WH-ACMAIN-210U 1 N/A*** NJD
12G 4401 980700 WH-ACMAIN-210U 1 N/A*** MFD
13 4401 979070 WH-RSTSW-F-210 1 1/P
14 4401 941210 K-FRAME-M-R 1 N/A*** 014 1
14 1 4402 490980 K-FRAME-M-R 1 N/A*** C - J F97I043 014
15 4401 969700 K-GG10S019/08H 1 1/P
16 4401 969740 BRKT-RGT/GEAR 1 1/P 016 1
16 1 4402 491150 BRKT-RGT/GR-212 1 1/P C E F F98B188 016 SK7/RK7
17 4843 390856 CLP/W-LWS-3U 1 5/P
18 4843 390942 BD/W-EDS-2 2 10/P
19 4843 390855 CLP/W-LWS-2U 10 5/P
20 4843 391240 ED/W-EDS-2323U 1 5/P
21 4401 964680 BRKT-RGST-UNIT 1 1/P
22 4401 942000 K-BRKT-FRM-M-R 1 1/P
23 4401 941850 GEAR-10S021-06 1 1/P
24 4407 972860 STOP-RING-6-5 1 5/P
25 4401 968500 GG10S019/10S027 1 1/P
26 4401 968510 STUD-TRAN/BLT-G 1 1/P 026 1
26 1 4401 968550 STUD-TRAN/BLT-G 1 1/P C B D F97D898 026 SB7/RB7
27 4401 980620 WH-H/L-210 1 1/P
28 4401 979470 WH-LOW-UNIT-210 1 1/P
29 4401 969520 SPL020-S304-DRV 1 1/P
30 4402 297020 ROL-IDL-ADU 1 5/P
31 4402 205790 SPC-CH-TR 1 5/P
32 4843 390854 CLP/W-LWS-1U 1 5/P
33 4401 979170 WH-IF-GND-210 1 1/P
34 4401 942250 COV-HVT 1 1/P
35 4401 979160 WH-GB-BELT-210 1 1/P
36 4843 390941 BD/W-EDS-1 1 10/P
51 4842 040684 TBIDS3006MSCR3C 4 50/P
52 4842 040370 TBID3006MSZN3L 8 50/P
53 7043 300613 BID30*06MSCR1AI 2 50/P
54 4842 041794 TBIDS-40*08-CP 14 50/P
55 4842 040118 THPAN4008MSZN3L 1 50/P
56 4842 040060 TPAN40*08MSZN3L 1 50/P
57 4842 041824 TBIDP-40*10-3C 4 50/P A B J F97I043
6
TOSHIBA
2060/2860/2870 ASM-BASE-FRAME DECEMBER 2002
7
2060/2860/2870 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 942890 K-BASE-LOW 1 N/A*** 001 1
1 1 4401 941000 BASE-LOW 1 N/A*** C - E F97D891 001 SB7/RB7
2 4407 720020 FOOT 2 1/P
3 4402 811990 FOOT-8-20 2 1/P
4 4401 941180 BRKT-HANDLE 2 1/P
5 4401 941190 BRKT-COV-HANDLE 2 1/P
6 4401 940860 FOOT-EXIT 1 1/PP
7 4401 940870 K-BRKT-ROLL-L 2 1/P
8 4401 941130 PLATE-FOOT 1 1/P
9 4401 940890 FRAME-ACC 1 N/A***
10 4401 941140 K-BRKT-ADU-IN 2 1/P
11 4402 294250 K-BRKT-DRAWER 1 1/P
12 4402 294280 SPC-135-090-465 2 5/P
13 4843 390941 BD/W-EDS-1 1 10/P
14 4401 979500 WH-IF-ADU-210 1 1/P
15 4401 941230 BASE-MID 1 N/A*** 015 1
15 1 4402 490940 BASE-MID 1 N/A*** C - J F97I043 015
16 4401 941940 GUIDE-LOW-ADU 1 1/P
17 4843 390869 PWZ-SPLS-4U 1 5/P
18 4843 390856 CLP/W-LWS-3U 3 5/P
19 4843 390855 CLP/W-LWS-2U 5 5/P
20 4843 390860 PWZ-SPS-6U 3 5/P
21 4401 947630 TERM-HVT-TR 1 1/P
22 4402 809320 PLT-TERM-HVT-TR 2 1/P
23 4402 205740 SPC-TERM-HVT-TR 2 1/P
24 4401 947670 TERM-HVT-M 1 1/P
25 4401 947680 PLT-TERM-HVT-M 2 1/P
26 4401 947690 SPC036-040-130 2 5/P
27 4401 981650 PS-HVT-210 1 1/S
28 4401 979140 WH-HVT-210 1 1/P
29 4401 941380 BRKT-D-HEATER 1 1/P
30A 4401 981280 K-DHT-L-210U 1 1/D 100V SERIES
30B 4401 981290 K-DHT-L-210-E 1 1/D 200V SERIES
31A 4407 965320 PWA-F-FUS-351UC 1 1/C 100V SERIES
31B 4407 965330 PWA-F-FUS-351EU 1 1/C 200V SERIES
32 4400 741340 THRS-CS-7SA 1 1/D
33 4843 390870 PWZ-SPLS-6U 3 5/P
34 4401 942230 BRKT-CON-LCF 1 1/P
35 4843 391236 BD/W-EDH-18U 1 5/P
36 4843 390941 BD/W-EDS-1 1 10/P
37 4401 979400 WH-IF-LCF-210 1 1/P
38 4401 943170 BRKT-STOP-C-L 1 1/P
42 4401 942570 STAY-BASE-F 1 N/A*** A - E F97D891 SB7/RB7
51 4842 041800 SCREW-M4-7-R 3 50/P
52 4842 041794 TBIDS-40*08-CP 20 50/P
53 4842 040495 PTBR30*06MSZN3A 5 50/P
54 4842 040370 TBID3006MSZN3L 5 50/P
55 4842 040118 THPAN4008MSZN3L 1 50/P
56 4842 040698 TZPAN4006MSZN3L 1 50/P 056 1
56 1 4842 040700 TZPAN4008MSZN3L 1 50/P E - J F97D891 056
57 4842 030665 TPAN3006MSZN3L 1 50/P
58 4842 040118 THPAN4008MSZN3L 1 50/P
59 4842 040060 TPAN40*08MSZN3L 8 50/P 059 1
59 1 4842 040060 TPAN40*08MSZN3L 6 50/P D B E F98C244 059 EC8/NC8
63 4842 040061 TPAN40*10MSZN3L 2 50/P C B E F98C244 EC8/NC8
7
TOSHIBA
2060/2860/2870 ASM-REAR-FRAME DECEMBER 2002
8
2060/2860/2870 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 942220 BRKT-CONNECT-S 1 N/A***
2 4401 979490 WH-IF-SORT-210 1 1/P
3 4401 979430 WH-IF-PFP-210 1 1/P
4 4401 941300 PLATE-CBL 1 1/P
5 4401 981080 INLET-AP300-2A2 1 1/P
6 4401 980650 WH-ACSUB-210 1 1/P
7A 4401 981340 PS-ACC-210U 1 1/S 100V SERIES
7B 4401 981460 PS-ACC-210E 1 1/C 200V SERIES
8 4401 941170 BRKT-LGC 1 N/A***
9 4843 391236 BD/W-EDH-18U 1 5/P
10 4843 390941 BD/W-EDS-1 1 10/P
11 4843 390855 CLP/W-LWS-2U 3 5/P
13 4843 390870 PWZ-SPLS-6U 4 5/P
14 4843 390860 PWZ-SPS-6U 2 5/P
15A 4401 977610 PWA-F-LGC-210 1 1/SB 2060
15B 4401 977710 PWA-F-LGC-211 1 1/SB 2860,2870
16A 4401 978370 PRA-T210UC-050 1 1/S 016A1 NAD
16A1 4401 978430 PRA-T210UC-060 1 1/S C B D F97C867 016A2 016A SA7/RA7 NAD
16A2 4401 978480 PRA-T210UC-070 1 1/S C B D F97D879 016A3 016A1 SB7/RB7 NAD
16A3 4401 978610 PRA-T210UC-080 1 1/S C B D F97D879 016A4 016A2 NAD
16A4 4401 978690 PRA-T210UC-100 1 1/S C B D F97L101 016A5 016A3 SL7/RL7 NAD
16A5 4401 978910 PRA-T210UC-110 1 1/S C E E F98B187 016A4 SB8/RB8 NAD
16B 4401 978390 PRA-T210GFS-050 1 1/S 016B1 AUD
16B1 4401 978450 PRA-T210GFS-060 1 1/S C B D F97C867 016B2 016B SA7/RA7 AUD
16B2 4401 978500 PRA-T210GFS-070 1 1/S C B D F97D879 016B3 016B1 SB7/RB7 AUD
16B3 4401 978630 PRA-T210GFS-080 1 1/S C B D F97D879 016B4 016B2 AUD
16B4 4401 978710 PRA-T210GFS-100 1 1/S C B D F97L101 016B5 016B3 SL7/RL7 AUD
16B5 4401 978930 PRA-T210GFS-110 1 1/S C E E F98B187 016B4 SB8/RB8 AUD
16C 4401 978380 PRA-T210GDF-050 1 1/S 016C1 OTHERS
16C1 4401 978440 PRA-T210GDF-060 1 1/S C B D F97C867 016C2 016C SA7/RA7 OTHERS
16C2 4401 978490 PRA-T210GDF-070 1 1/S C B D F97D879 016C3 016C1 SB7/RB7 OTHERS
16C3 4401 978620 PRA-T210GDF-080 1 1/S C B D F97D879 016C4 016C2 OTHERS
16C4 4401 978700 PRA-T210GDF-100 1 1/S C B D F97L101 016C5 016C3 SL7/RL7 OTHERS
16C5 4401 978920 PRA-T210GDF-110 1 1/S C E E F98B187 016C4 SB8/RB8 OTHERS
16D 4401 978540 PRA-T210IEP-080 1 1/C A - J F97D879 016D1 SERVICE ONLY
16D1 4401 978720 PRA-T210IEP-100 1 1/S C B D F97L101 016D2 016D SERVICE ONLY
16D2 4401 978940 PRA-T210IEP-110 1 1/S C E E F98B187 016D1 SERVICE ONLY
16E 4401 978550 PRA-T210NDP-080 1 1/S A - J F97D879 016E1 SERVICE ONLY
16E1 4401 978730 PRA-T210NDP-100 1 1/S C B D F97L101 016E2 016E SERVICE ONLY
16E2 4401 978950 PRA-T210NDP-110 1 1/S C E E F98B187 016E1 SERVICE ONLY
16F 4401 978560 PRA-T210SNF-080 1 1/S A - J F97D879 016F1 SERVICE ONLY
16F1 4401 978740 PRA-T210SNF-100 1 1/S C B D F97L101 016F2 016F SERVICE ONLY
16F2 4401 978960 PRA-T210SNF-110 1 1/S C E E F98B187 016F1 SERVICE ONLY
17A 4401 978010 K-SRAM-T210U 1 1/S 017A1 USA
17A1 4401 978820 K-SRAM-T210U-S 1 1/S C B J F97L103 017A NAD
17B 4401 978020 K-SRAM-T210E 1 1/S 017B1 EUR
17B1 4401 978830 K-SRAM-T210E-S 1 1/S C B J F97L103 017B MJD,MFD,UKD
17C 4401 978840 K-SRAM-T210A-S 1 1/S F - J F97L103 TWD,SAD
17D 4401 978840 K-SRAM-T210A-S 1 1/S F - J F97L103 ASD,CND
17E 4401 978850 K-SRAM-T210AU-S 1 1/S F - J F97L103 AUD
18 4401 970510 COV-IN-R-L 1 1/P
19 4843 390857 CLP/W-LWS-4U 1 5/P
20A 4408 425350 CBL/P-INLET-UC 1 1/P 100V SERIES
20B 4400 395940 CBL/P-INLET-EUR 1 1/P 200V SERIES
51 4842 040370 TBID3006MSZN3L 2 50/P
52 4842 041794 TBIDS-40*08-CP 13 50/P 052 1
52 1 4842 041794 TBIDS-40*08-CP 12 50/P D - E F97H976 052 2 052 SG7/RG7
52 2 4842 040060 TPAN40*08MSZN3L 8 50/P D B E F98D264 052 1 SE8/RE8
53 4842 040686 TBID3008MSCR3C 2 50/P 053 1
53 1 4842 041885 TBID3008MSZN3L 2 50/P C E E F97D891 053 SA7/RA7
54 4842 040117 THPAN4006MSZN3L 1 50/P 054 1
54 1 7040 400660 PAN40*06BSDG 1 50/P C B E F97H976 054 SH7/RH7
56 4842 040748 TBID4008MSZN3L 1 50/P C E E F97H976 SG7/RG7
57 4842 080091 TWAS040MSZN3A 1 50/P A B E F97H976 SH7/RH7
60 4842 041800 SCREW-M4-7-R 4 50/P C B E F98D264 SE8/RE8
8
TOSHIBA
2060/2860/2870 ASM-INDICATOR DECEMBER 2002
9
2060/2860/2870 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 962960 K-STAY-OPT-L 1 1/P
2 4401 962950 K-M/P-DCM-210 1 1/C
3 4407 952410 COLLAR-IND 1 10/P
4 4401 962930 INDICATOR-F 1 1/P
5 4401 962940 INDICATOR-R 1 1/P
6 4401 962920 BLT/T800-2GT2.5 1 1/P
7 4401 960590 F-PLT-GLASS-ORG 1 1/PP
8 4401 963050 TAPE-WHITE-IND 1 5/KP
9 4401 963060 SPL-INDICATOR 1 1/P
10A 4401 960410 LABEL-SCALE-U 1 1/KP USA SIZE
10B 4401 960420 LABEL-SCALE-E 1 1/KP EUR SIZE
51 7040 200411 PAN20*04MSZN3AI 2 50/P
52 7043 400613 BID40*06MSCR1AI 2 50/P
53 4842 040370 TBID3006MSZN3L 2 50/P
54 4401 963070 WAS-INDICATOR 1 10/P
9
TOSHIBA
2060/2860/2870 ASM-MAIN-DRIVE DECEMBER 2002
10
2060/2860/2870 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 968200 K-BRKT-MAIN-MOT 1 1/P 001 1
1 1 4401 968300 K-BRKT-MAIN-MOT 1 N/A*** C - E F97H976 001 SG7/RG7
2 4401 968260 K-GP05H57/3GT 1 1/P
3 4401 968270 G-GP05H056/2GT 1 1/P
4 4401 968360 BLT/T-248-2GT-3 1 1/P
5 4401 968370 BLT/T-246-3GT-4 1 1/P
6 4401 968410 ARM-FUSER 1 1/P
7 4401 968460 K-GP10S021/3GT 1 1/P
8 4401 968440 STUD-ARM-FUSER 1 1/P
9 4401 968450 STUD-FUS-G25 3 1/P 009 1
9 1 4401 968450 STUD-FUS-G25 2 1/P D - E F97H976 009 SG7/RG7
10 4401 968540 BLT/T-324-3GT-4 1 1/P
11 4401 968560 K-GEAR-10S025 1 1/P
12 4401 969040 K-BRKT-HOLD-PLY 1 1/P
13 4401 969100 PLY/T-2GT040-06 1 1/P
14 4401 969080 GEAR-08H026-06B 1 1/P
15 4401 969120 GEAR-10S023-06 1 1/P
16 4401 969130 GEAR-08H020-06 1 1/P
17 4401 969140 SFT-PRO/DRM 1 1/P
18 4401 969150 BUSH-SHAFT-DRUM 1 1/P
20 4401 968580 K-GP08H24/3G24 1 1/P
21 4401 969640 ARM-RGT 1 1/P
22 4401 969650 GEAR-08H026-06L 1 1/P
23 4401 969660 GEAR-08H026-06R 1 1/P
24 4401 969670 SFT-ARM-RGT 1 1/P
25 4402 859600 SP-CS3A-B2BA 1 1/D
26 4401 969090 BLT/T-324-3GT-6 1 1/P
27 4400 802070 BUSH-6L 3 5/P
28 4843 390856 CLP/W-LWS-3U 2 5/P
29 4407 972860 STOP-RING-6-5 5 5/P 029 1
29 1 4407 972860 STOP-RING-6-5 6 5/P D D E F97H976 029 SG7/RG7
30 4401 979220 WH-TFULL-SW-210 1 1/P
31 4401 981610 M/DC-MAIN-210 1 1/C
32 4400 335180 PULLY-TENSION 2 1/P 032 1
32 1 4400 335180 PULLY-TENSION 3 1/P D D E F97H976 032 SG7/RG7
33 4402 297020 ROL-IDL-ADU 1 5/P
34 4401 969520 SPL020-S304-DRV 1 1/P
35 4843 390854 CLP/W-LWS-1U 1 5/P
36 4401 968490 BRKT-DRUM-TENSN 1 1/P
39 4401 969800 SFT-PRO/DRM-3 1 1/P 039 1
39 1 4401 969840 SFT-PRO/DRM-N 1 1/P C B E F97H976 039 SH7/RH7
40 4407 959970 BRG-696ZZNR 1 1/P
41 4401 968290 BRKT-ADJ-DRIVE 1 N/A*** A - E F97H976 SG7/RG7
42 4401 968530 STUD-TNS-DRV 2 1/P C B E F97H976 SG7/RG7
SH7/RH7
51 4842 040370 TBID3006MSZN3L 10 50/P
52 7640 300651 ZPAN30*06MSZN3A 6 50/P 052 1
52 1 7640 300651 ZPAN30*06MSZN3A 8 50/P D D E F97H976 052 SG7/RG7
53 7405 005031 ERR050SKZN3A 1 50/P
54 4408 256620 PIN-2-10 2 10/P
56 4842 040706 TZPAN4014MSZN3L 2 50/P
57 4842 040665 TPAN3006MSZN3L 1 50/P
10
TOSHIBA
2060/2860/2870 ASM-SCAN-DRIVE DECEMBER 2002
11
2060/2860/2870 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1A 4401 960200 K-BASE-OPT 1 N/A*** 2060
1B 4401 960190 K-BASE-OPT-J 1 N/A*** 2860,2870
2 4401 960920 STOP-WIRE-EX 2 5/P
3 4401 960830 K-RAIL-CRG-F 1 1/P
4 4401 960840 K-RAIL-CRG-R 1 1/P
5 4401 960900 K-BKT-PLY 4 1/P
6 4401 961100 BKT-TENS-WIRE-F 1 1/P
7 4401 961110 BKT-TENS-WIRE-R 1 1/P
8 4401 983000 SZ-LG248L1 3 1/C 008 1
8 1 4401 983230 SZ-LG248L1 3 1/C C B D F97G964 008 SF7/RF7
9 4401 961780 BKT-HOME-SW-L/M 1 1/P
11 4401 979060 WH-L/M-SW-210 1 1/P
12 4401 961240 SCREW-M5-SFT 1 1/P 012 1
12 1 4401 961350 SCREW-M5-SFT 1 1/P C B E F97H976 012 SH7/RH7
13 4401 960990 SHAFT-DRIVE-SCN 1 1/P
14 4400 665770 KIT-PLY-WIRE 1 1/P 2PC./1PACK
15 4401 960980 WIRE-SCAN 2 1/P
16 4408 510800 BRG-688ZZNR 2 1/P
17 4401 961010 PLY/T-2GT039F08 1 1/P
18 4401 961120 SPE-100-120-440 2 1/P
19 4400 336190 STOP-RING-8 2 5/P
20 4401 961210 K-BKT-DRIVE-L/M 1 1/P
21 4401 961790 G10S-10/G05S-88 1 1/P
22 4401 961270 G05S-88/P2GT016 1 1/P
23 4401 961750 K-M/P-L/M-210 2 1/C
24 4401 979040 WH-L/M-MOT-210 1 1/P
25 4401 961740 COVER-WH-L/M 1 1/P
26 4401 961130 GUIDE-WH-CRG1 1 1/P 026 1
26 1 4401 961190 GUIDE-WH-CRG1 1 1/P C B E F97H976 026 SE7/RE7
27 4401 961310 K-BKT-TENS-LENS 1 1/P
28 4400 665870 PLY/T-2GT016F06 1 1/P
29 4401 961340 SPE-065-070-263 1 5/P
30 4401 961290 BLT/T-2GT810X30 1 1/P
31 4843 391562 CLP/W-LWS-05 1 10/P
32 4401 961250 SHAFT-L/M 1 1/P
33 4401 961260 BKT-STOP-SFT 1 1/P
34 4401 961150 BRKT-WIRE-EX-F 1 1/P
35 4401 961160 BRKT-WIRE-EX-R 1 1/P
37A 4401 981410 ASM-DHT-U2-115 1 1/C 100V SERIES
37B 4401 981420 ASM-DHT-U2-240 1 1/C 200V SERIES
37C 4401 981410 ASM-DHT-U2-115 1 1/C SAD
37D 4401 981420 ASM-DHT-U2-240 1 1/C ASD
37E 4401 981420 ASM-DHT-U2-240 1 1/C AUD
38 4843 390942 BD/W-EDS-2 1 10/P
39A 4401 981150 ASM-D-HTR-U-115 1 1/C 100V SERIES
39B 4401 981170 ASM-D-HTR-U-240 1 1/C 200V SERIES
40 4843 391177 CLP/W-UAMS05S 4 5/P
41 4843 391178 CLP/W-UAMS05W 1 5/P A D E F97D891
51 4842 040370 TBID3006MSZN3L 27 50/P
52 7640 300851 ZPAN30*08MSZN3A 3 50/P
37C 4401 981410 ASM-DHT-U2-115 1 1/C SAD
11
TOSHIBA
2060/2860/2870 ASM-FEEDER-1 DECEMBER 2002
12
2060/2860/2870 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 964790 K-FRM-FEED 1 N/A***
2 4401 964490 K-GUIDE-SUB 2 1/C 002 1
2 1 4401 964380 GUIDE-FEED-SUB 2 1/P C E E F97D891 002 SC7/RC7
3 4401 964370 BRKT-CONNECT 1 1/P
5 4401 964510 K-BRKT-CLT 1 1/P
6 4401 966910 PUSHER-LVR 1 1/P
7 4401 964310 BRKT-ROL-SEP 1 1/P
8 4401 964320 ARM-PICK-UP 1 1/P
9 4401 964580 SPA-ARM-PICK 1 1/P
10 4401 964340 SHAFT-ARM-PICK 1 1/P
11 4401 964480 ACT-P-EMP 1 1/P
12 4401 964330 LEVER-PICK-UP 1 1/P
13 4401 964450 K-ROL-PICK-UP 1 1/KP
14 4401 964470 ARM-PICK-R 1 1/P
15 4402 231780 PLY-20-2M 1 1/P
16 4400 884670 PLY-20-ROL 1 1/P
17 4402 833100 CLUTCH-6-R 1 1/D
18 4401 964410 K-ROL-FEED 1 1/P
19 4401 964460 ARM-PICK-F 1 1/P
20 4401 964440 SHAFT-ROLL-FEED 1 1/P
21 4401 964540 BLT/T-120-2GT-2 1 1/P
22 4400 802070 BUSH-6L 4 5/P
23 4407 972860 STOP-RING-6-5 2 5/P
24 4401 969940 ASM-CLT-G28-CC6 1 1/C
25 4401 979560 WH-CST-UNIT-210 1 1/P
26 4401 964230 HOLDER-ROL-SEP 1 1/P 026 1
26 1 4401 967200 K-HLDR-ROL-SEP 1 1/P C B E F97D891 026 SB7/RB7
27 4401 964240 LEVER-ROL-SEP 1 1/P
28 4401 964250 SHAFT-SEP 1 1/P
29 4401 964290 K-ROLL-SPT 1 1/P
30 4401 964360 ARBOR-SPT-F 1 1/P
31 4401 964270 ARBOR-SPT-R 1 1/P
32 4401 983000 SZ-LG248L1 2 1/C 032 1
32 1 4401 983230 SZ-LG248L1 2 1/C C B D F97G964 032 SF7/RF7
33 4401 784210 SPR-1.0-15.60RF 1 5/P
34 4401 966010 CASE-DRV-TRY-1 1 1/P
35 4401 966020 CASE-DRV-TRY-2 1 1/P
36 4401 981710 K-M-DC-TRAY-210 1 1/C
37 4401 966040 G05H-45/G05S-15 1 1/P
38 4401 966070 G06S-13/G05S-80 1 1/P
39 4401 966060 GR-06S030-70-08 1 1/P
40 4401 966080 G06S-33/G08-14 1 1/P
41 4401 966090 GR-08S35-100-12 1 1/P
42 4401 966050 SPC172-100-3400 1 1/P
43 4401 966920 SPC054-050-1500 2 5/P
44 4401 966980 COV-SPE/ARBOR 1 1/P
45 4402 833110 CLUTCH-6-L 1 1/P
46 4401 966640 STAY-BRKT-SPT 1 1/P
47 4843 390941 BD/W-EDS-1 1 10/P
48 4401 966970 COV-WH-FED-UNIT 1 1/P
49 4842 414629 GMT-OCB-375 1 10/P
50 4401 967230 COV-FEED-WH-F 1 1/P A B E F97D891 SB7/RB7
61 4842 011062 9HSS30/04MSFB 2 50/P
62 4842 040370 TBID3006MSZN3L 16 50/P
63 4842 904019 HPIN20/08SUSH7 2 50/P
64 7405 005031 ERR050SKZN3A 1 50/P
65 4842 040846 PTBR30*08MSZN3A 7 50/P
66 7043 300613 TBID30*06MSCR1A 1 50/P
67 7640 300411 ZPAN30*04MSZN3A 2 50/P A B E F97D891 SB7/RB7
12
TOSHIBA
2060/2860/2870 ASM-FEEDER-2 DECEMBER 2002
13
2060/2860/2870 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 966810 GUIDE-U-TURN-U 1 1/P
2 4401 964820 GUIDE-U-TURN-L 1 1/PP
3 4401 966830 ROLL-FEEDER-IDL 2 1/KP
4 4407 976990 BUSH-D6-GCB 4 1/P
5 4407 972860 STOP-RING-6-5 5 5/P
6 4408 302710 SPRING-770 4 5/P
7 4401 964830 BRKT-UTURN-SW 2 1/P
8 4401 983080 SZ-FED-210 1 1/C 008 1
8 1 4401 983080 SZ-FED-210 2 1/C E - J F97C862 008
9 4401 979100 WH-PSTPCU-210 2 1/P
10 4401 966870 K-GUIDE-FEED 1 1/P 010 1
10 1 4401 967270 K-GUIDE-FEED 1 1/P C E E F97D891 010
11 4401 964890 GUIDE-OPEN 2 1/P
12 4401 964950 SPA-GUIDE-OP 2 1/P
13 4402 203820 SCREW-BKT-DEV 2 50/P
14 4402 834670 SVREW-SW-M3 2 10/P
15 4843 390941 BD/W-EDS-1 1 10/P
16 4401 966860 K-ROL-FEEDER 2 1/KP
17 4401 940950 K-FRAME-FED-R-L 1 N/A*** 017 1
17 1 4402 490840 K-FRAME-FED-R-L 1 N/A*** C - J F97I043 017
18 4401 940940 K-FRAME-FED-F-L 1 N/A***
19 4401 940920 RAIL-FEED-U 1 1/P
20 4401 940930 RAIL-FEED-L 1 1/P
21 4401 964900 K-BKT-HINGE-U 1 1/P F - J F97E910
22 4401 964910 K-BKT-HINGE-L 1 1/P 022 1
22 1 4401 967160 K-BKT-HINGE-L 1 1/P C B E F97D891 022 SB7/RB7
23 4400 802080 BUSH-8 2 5/P
24 4401 968170 STUD-FEED-G/P 1 1/P
25 4401 968540 BLT/T-324-3GT-4 1 1/P
26 4401 968600 K-BRKT-FEED-UNT 1 1/P 026 1
26 1 4402 491000 K-BRKT-FEED-UNT 1 1/P C E J F97I043 026
27 4401 968620 BRKT-FEED-COV 1 1/P
28 4401 968640 K-GP10S028/3GT 1 1/P
29 4401 968780 BUSH-SHAFT-ADU 1 1/P
30 4401 969440 GEAR-10S028-06 3 1/P
31 4401 964970 GUIDE-TRY-MOT 1 1/P
32 4401 966330 K-BRKT-TRAY-R 1 1/P
33 4401 968660 PLY/T-3GT015-06 2 1/P
34 4408 256620 PIN-2-10 1 10/P
35 4408 636730 CLUTCH-6-08R 1 1/D
36 4400 670130 BRG-ONEWAY-6-L 1 1/P
37 4401 968670 PLY/T-3GT020-06 1 1/P
38 4400 336190 STOP-RING-8 4 5/P
39 4401 968680 BLT/T-258-3GT-4 1 1/P 039 1
39 1 4401 968690 BLT/T-258-3GT-3 1 1/P E - J F97C862 039
40 4401 969920 ASM-CLT-G28-CW6 1 1/C
41 4407 855640 BUSH-8*5.5 2 5/P 041 1
41 1 4402 461720 BUSH-8*5.5-GCB 2 5/P C E F F98B188 041 SK7/RK7
42 4401 979350 WH-CST-210 1 1/P
44 4843 390942 BD/W-EDS-2 2 10/P
45 4401 966840 MYLAR-GUIDE-OPN 1 1/KP
46 4843 390855 CLP/W-LWS-2U 3 5/P 046 1
46 1 4843 390855 CLP/W-LWS-2U 1 5/P D - E F97D891 046
47 4407 958550 CAP-ARM-FUSER 2 1/P
48 4400 932560 ROLL-CST-19S 2 1/P
49 4843 391499 CLP/W-UAMS05L46 1 10/P
50 4402 816610 SP-ESE15404 2 1/C
51B 4402 301040 K-BKT-HINGE 1 1/P 2870
52 4401 966300 K-BKT-TRAY-F 1 1/P
53 4401 969600 K-BRKT-REAR-SFT 1 1/P
54 4401 996640 PLY-IDLE-INT 1 1/P 054 1
54 1 4401 968720 PLY-IDLE-INT 1 1/P C B E F97C870 054 SA7/RA7
55 4400 344330 SCREW-CON-DEV-V 1 10/P
56 4842 090261 FNUT030MSZN3A 1 10/P 056 1
56 1 4842 090261 FNUT030MSZN3A 0 10/P B - E F97D891 056
57 4400 902490 BAND-PS100 1 5/P A B E F97D891 SB7/RB7
58 4401 967240 STOP-RING-6-7 1 5/P A D E F97D891 SB7/RB7
60 4842 040370 TBID3006MSZN3L 14 50/P 060 1
067
13
TOSHIBA
2060/2860/2870 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
60 1 4842 040370 TBID3006MSZN3L 13 50/P D - E F97D891 060 SB7/RB7
61A 4842 041794 TBIDS-40*08-CP 13 50/P OTHERS
61B 4842 041794 TBIDS-40*08-CP 16 50/P 2870
62 4842 011062 9HSS30/40MSFB 1 50/P
63 7043 300613 BID30*06MSCR1A 1 50/P
65 7405 005031 ERR050SKZN3A 4 50/P
66 7040 300411 PAN30*04MSZN3A 4 50/P
67 7640 400851 ZPAN40*08MSZN3A 2 50/P C B E F97D891 060 SB7/RB7
83 4401 966930 COV-WH-FEED-U 1 1/P F - J F97I043
84 4401 966940 COV-WH-FEED-L 1 1/P F - J F97I043
13
TOSHIBA
2060/2860/2870 ASM-BYPASS DECEMBER 2002
14
2060/2860/2870 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 965160 K-BKT-BYPASS-L 1 1/P
2 4401 966580 K-BKT-SZ-ACT 1 1/P
3 4401 983000 SZ-LG248L1 1 1/C 003 1
3 1 4401 983230 SZ-LG248L1 1 1/C C B D F97G964 003 SF7/RF7
4 4401 965190 ACT-PAPER-SW 1 1/P
5 4401 966570 HLDR-SHAFT-BYP 1 1/P
6 4401 965270 ARM-STOPPER 2 5/P
7 4401 965250 LEVER-STOPPER-F 1 1/P
8 4401 965260 LEVER-STOPPER-R 1 1/P
9 4401 965230 STOPPER-SHEET-F 1 1/P
10 4401 965240 STOPPER-SHEET-R 1 1/P
11 4401 966550 K-BKT-LIFT-PICK 1 1/P
12 4401 965200 HOLDER-PICK-UP 1 1/P
13 4402 242330 SPACER-DF 1 5/P
14 4401 965280 COLLAR-BYPASS 1 5/P
15 4401 966500 K-ROLL-PICK-BYP 1 1/P
16 4401 965380 SHAFT-PICK-BYP 1 1/P
17 4401 969920 ASM-CLT-G28-CW6 1 1/C
18 4401 965300 ARBOR-PICK-UP 1 1/P
19 4407 401720 SPRING-CLUTCH-R 1 5/P
20 4401 965340 SLEEVE-BYPASS 1 1/P
21 4401 965310 LEVER-PICK 1 1/P
22 4401 965350 SPA130-100-R 1 1/P
23 4401 966470 BUSH-6-3.7 2 5/P
24 4401 966400 PLY/T-2GT020-06 1 1/P
25 4402 038460 K-ROL-FEED-1 1 1/P
26 4402 833110 CLUTCH-6-L 1 1/P
27 4401 965220 BLT/T142-2GT2.8 1 1/P
28 4401 965370 SHAFT-BYPASS 1 1/P
29 4400 802070 BUSH-6L 2 5/P
30 4407 972860 STOP-RING-6-5 4 5/P
31 4401 966560 EDGING-17 1 5/P
32 4346 754010 SKB-BAND-1 1 5/P
33 4401 965150 BRKT-BYPASS-U 1 1/P
34 4843 390941 BD/W-EDS-1 1 10/P
35 4401 966530 GUIDE-ENT-BYP-F 1 1/P
36 4401 966540 GUIDE-ENT-BYP-R 1 1/P
37 4401 966490 K-STAY-BYPASS-L 1 1/P
38 4401 966440 GUIDE-BYPASS-L 1 1/P
39 4401 965130 K-PAD-SPT-BYP 1 1/P
40 4401 965360 SPE057-070-0249 1 5/P
41 4401 966660 PAD-LEVER-SPT 1 5/P A B E F97K089
61 4842 011062 9HSS30/04MSFB 1 50/P
62 4842 040370 TBID3006MSZN3L 6 50/P
63 4842 040846 PTBR30*08MSFB 1 50/P
64 7405 005031 ERR-050SKZN3A 3 50/P
65 7405 003031 ERR-030SKZN3A 5 50/P
66 4842 011083 9HSS40/06MSFB 1 50/P
67 4842 041794 TBIDS-40*08-CP 6 50/P
14
TOSHIBA
2060/2860/2870 ASM-ALIGNING DECEMBER 2002
15
2060/2860/2870 DECEMBER 2002
Q'TY SPE
ITEM PARTS Q'TY BSI SERIAL
PARTS NAME / / PRICE P I R TO FROM REMARKS
NO. NO. PAGE PACK IN NONE NO. NO.
1 4401 964690 FRAME-RGST 1 1/P
2 4401 964780 K-GUIDE-RGST 1 1/S
3 4401 964730 MYLAR-GUIDE-RGT 1 5/KP
4 4401 964740 GUIDE-RGST-U 1 1/P
5 4401 964670 BUSH-GUIDE-RGST 2 5/P
6 4401 964630 ROLLER-RGT-L 1 1/KP
7 4401 964660 GEAR-10S020-08 1 1/P
8 4400 802080 BUSH-8 4 5/P
9 4401 964720 KNOB-RGST 1 1/P
10 4400 336190 STOP-RING-8 1 5/P
11 4401 964610 ROLLER-RGT-U 1 1/KP
12 4402 813190 GEAR-15-1.0 1 1/P
13 4401 964650 BUSH0610*1360-P 1 5/P
14 4407 547370 SPRING-25 1 5/P
15 4407 957140 SPRING-850 1 5/P
16 4401 969900 ASM-CLT-G28-CW8 1 1/C
17 4401 964760 K-BKT-BRUSH 1 1/S
18 4401 964700 ACT-SW-RGST 1 1/P
19 4401 964710 SPA-RGST-SW 1 1/P
20 4401 983000 SZ-LG248L1 1 1/C 020 1
20 1 4401 983230 SZ-LG248L1 1 1/C C B D F97G964 020 SF7/RF7
21 4843 390941 BD◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
