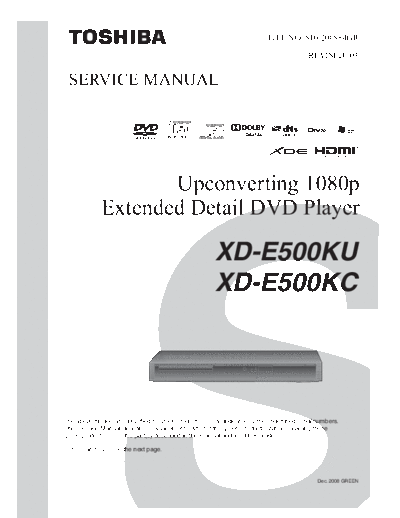

                                                                                    FILE NO. 810-200884GR

                                                                                             REVISED: 03


                                        DIGITAL VIDEO

                     Upconverting 1080p
              Extended Detail DVD Player


                                                                     480p   1080p
                                                                     720p   1080i

The above models are classified as green products (*1), as indicated by the underlined serial numbers.
This Service Manual describes replacement parts for the green products. When repairing these
green product(s), use the part(s) described in this manual and lead-free solder (*2).

For (*1) and (*2), see the next page.

                                                                                               Dec. 2008 GREEN
The EC is actively promoting the WEEE & RoHS Directives that define standards for recycling
and reuse of Waste Electrical and Electronic Equipment and for the Restriction of the use of
certain Hazardous Substances. From July 1, 2006, the RoHS Directive will prohibit any
marketing of new products containing the restricted substances.
Increasing attention is given to issues related to the global environmental. Toshiba Corporation
recognizes environmental protection as a key management tasks, and is doing its utmost to
enhance and improve the quality and scope of its environmental activities. In line with this,
Toshiba proactively promotes Green Procurement, and seeks to purchase and use products,
parts and materials that have low environmental impacts.
Green procurement of parts is not only confined to manufacture. The same green parts used in
manufacture must also be used as replacement parts.

(*2)                            LEAD-FREE SOLDER
This product is manufactured using lead-free solder as a part of a movement within the consumer
products industry at large to be environmentally responsible. Lead-free solder must be used in
the servicing and repair of this product.

                    This product is manufactured using lead free solder.


The melting temperature of lead-free solder is higher than that of leaded solder by 86
