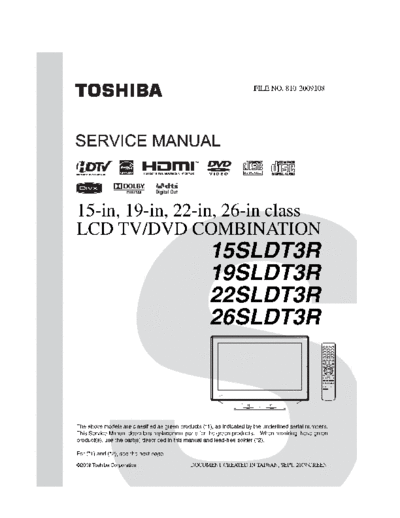

                                                                       FILE NO. 810-2009108




15-in, 19-in, 22-in, 26-in class
LCD TV/DVD COMBINATION
                                                     15SLDT3R
                                                     19SLDT3R
                                                     22SLDT3R
                                                     26SLDT3R



The above models are classified as green products (*1), as indicated by the underlined serial numbers.
This Service Manual describes replacement parts for the green products. When repairing these green
product(s), use the part(s) described in this manual and lead-free solder (*2).

For (*1) and (*2), see the next page.
