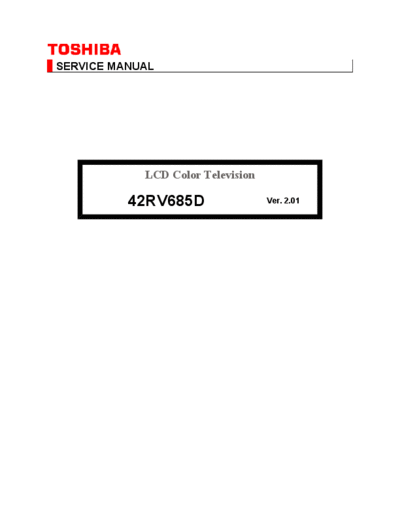

Image preview - the first page of the document
схема и сервис мануал на английском Toshiba 42RV685D Ver. 2.01 (1)


>> Download схема и сервис мануал на английском Toshiba 42RV685D Ver. 2.01 (1) documenatation <<

Text preview - extract from the document
SERVICE MANUAL




            LCD Color Television

          42RV685D                 Ver. 2.01
     ADJUSTMENT


Service Mode

Entering to Service Mode




                                   1. Press     button once on remote control.












                                   2. Press     button again and hold button down.











       Service Mode display

                                   3. While holding the      button, press MENU
                                      button on TV set.




Displaying the Adjustment Menu

Press MENU button on TV.

          Service Mode





        Press   Press

        Adjustment Mode





Key Function in the Service Mode

The following key entry during display of adjustment menu provides special functions.


     CAUTION: Never try to perform initialization unless you have changed the
     memory IC.




 Test signal selection                          button (on remote control)

 Selection of the adjustment items          PROGRAMME             (on TV or remote control)

 Change of the data value                   Volume      +/- (on TV or remote control)

 Adjustment menu mode ON/OFF                MENU button (on TV)

 Initialization of the memory (IC510)       "i+" + PROGRAMME        button on TV

 Reset the count of operating
                                            "i+" + PROGRAMME        button on TV
 protect circuit to "00"

 Turn off TV Micro I2C bus communication    "i+" + Volume    button on TV

 "RCUT" selection                           1 button

 "GCUT" selection                           2 button

 "BCUT" selection                           3 button

 "CNTX" selection                           4 button

 "COLC" selection                           5 button

 "UVTT" selection                           6 button

 Automatic A/D Adjustment
                                            7 button
 (PC, Component, Composite (PAL, NTSC))

 Self diagnostic display ON/OFF             9 button





Selecting the Adjusting Item

Every pressing of PROGRAMME   button in the Service Mode changes the adjustment
items in the order of table below. (  button for reverse order)
SETTING & ADJUSTING DATA

[ SERVICE MODE ]

ADJUSTING ITEMS AND DATA IN THE SERVICE MODE:

Note:

The image system data of RCUT-BDRV is different by each image format.
The PAL value is indicated in the table.

 Item                      Name of adjustment                      Address
RCUT RED CUT                                                       --

GCUT GREEN CUT                                                     --

BCUT BLUE CUT                                                      --

RDRV RED DRIVE                                                     --

GDRV GREEN DRIVE                                                   --

BDRV BLUE DRIVE                                                    --

BRTC BRIGHTNESS CENTER                                             --

COLC COLOR CENTER                                                  --

UVTT BASE BAND TINT                                                --

CNTX CONTRAST MAX                                                  --

OPT1 TV SET OPTION 1                                               00F1

OPT2 TV SET OPTION 2                                               00F2

OPT3 TV SET OPTION 3                                               00F3

OPT4 TV SET OPTION 4 (PANEL OPT DATA FOR VENDOR & SIZE) 00F4

OPT5 TV SET OPTION 5                                               00F5

SETID MODEL ID                                                     00FE

OPT6 TV SET OPTION 6                                               00E8

OPT7 TV SET OPTION 7                                               00E9

OPT8 TV SET OPTION 8                                               00EA

HTLID HOTEL ID                                                     00E0

VOLX MAXIMUM VOLUME LEVEL                                          --
Factory preset data will be loaded after setting Model ID data.
(Refer to Initialization of Memory Data of IC510 and setting data of signal board.)




Adjusting the Data

Pressing of VOLUME    +/- button will change the value of data in the range from 00H to
FFH. The variable range depends on the adjusting item.




Setting TVOP

Enter Service Mode and select menu of TVOP by pressing P  or P  during display of
adjustment menu. After selecting TVOP, press   + or   - to set I2C check function to
disable or enable as below.

     TVOP               FUNCTION DESCRIPTION                          1     0 (Normal)
 D5 (bit5) I2C check between TV-Micro and Standby-Micro (WDT) Disable Enable





Setting Panel Option Data

For a complete list of OPT4 data values corresponding to the model, see MODEL ID
TABLE.
Enter Service Mode and select menu of OPT4 by pressing P  or P  during display of
adjustment menu. After selecting OPT4, press   + or   - to set OPT4 value as table
below.


OPT4

Ex. OPT4 value 0x65 indicates that panel vendor is SAMSUNG and panel size is 32.
Upper 4bit is decided as below table.

                                                  OPT4 (Upper 4bit)
                            D7         D6      D5         D4       D3       D2       D1       D0
                           (bit7)    (bit6)   (bit5)     (bit4)   (bit3)   (bit2)   (bit1)   (bit0)
 Panel         LGD             0          0        0       1
 vendor        SHARP           0          0        1       0

               CMO             0          0        1       1

               AUO             0          1        0       0

               IPS             0          1        0       1

               SAMSUNG         0          1        1       0


Lower 4bit is decided as below table.

                                                       OPT4 (Lower 4bit)

                            D7         D6      D5         D4       D3       D2       D1       D0
                           (bit7)    (bit6)   (bit5)     (bit4)   (bit3)   (bit2)   (bit1)   (bit0)
 Panel size 32                                                      0        1        0        1

               37                                                   0        1        1        0

               40                                                   1        1        1        0

               42                                                   0        1        1        1

               46                                                   1        0        1        0

               47                                                   1        0        0        0

               52                                                   1        0        1        1

               55                                                   1        1        0        0





Convert from Bit (Binary) to Hex

The table for converting from bit (D7-D0) to hex (0x**).

                                    BIT (Binary)

 High nibble               D7        D6       D5         D4
 Low nibble                D3        D2       D1         D0
 HEX                 0     0          0        0          0
                  1          0         0           0      1

                  2          0         0           1      0

                  3          0         0           1      1

                  4          0         1           0      0

                  5          0         1           0      1

                  6          0         1           1      0

                  7          0         1           1      1

                  8          1         0           0      0

                  9          1         0           0      1

                  A          1         0           1      0

                  B          1         0           1      1

                  C          1         1           0      0

                  D          1         1           0      1

                  E          1         1           1      0

                  F          1         1           1      1


E.g. If Bit D7-0 = 0101 1010, Hex data is 0x5A.




Exit from Service Mode

Pressing POWER button to turn off the TV once.




Initialization of TV Micro Data

After replacing Digital Board, the following initialization is required.

 1)  Enter Service Mode.

 2)  Select menu of ID by pressing P        or P    during display of adjustment menu in the
Service Mode.

 3)  Change ID data into MODEL ID to initialize by pressing   + or   -, refer to
     "MODEL ID TABLE".
     For example, if initializing 37RV685D, change MODEL ID into "0x39".
     Note:
     MODEL ID is hex value.

 4)  Execute initialization of the memory.
     Refer to "KEY FUNCTION IN THE SERVICE MODE".
     Press "i+" + PROGRAMME   button on TV.

 5)  Enter Service Mode and select Version Check Mode. Confirm if the MODEL ID
     corresponding to the model name is set correctly. If not, do over again from the start.
     Note:
     In case initialization by setting wrong MODEL ID is done, there is a possibility of
     abnormal display.

 6)  Check the picture carefully. If necessary, adjust any adjustment item above.
     Perform "Auto tune" on the owner's manual.

MODEL ID TABLE

 MODEL ID (HEX)         Model name        Panel vendor OPT4 Data (HEX)
 0x38               32RV685D/RV675D SAMSUNG               0x65

 0x39               37RV685D/RV675D LGD                   0x16

 0x3A               42RV685D/RV675D AUO                   0x47





Initializing Data setting flowchart after replacing the Signal Unit





Test Signal Selection

Every pressing of   button on the remote control changes the built-in test patterns on
screen as described below in Service Mode.









     Picture           Signal



                    Red raster
                       Green raster




                       Blue raster




                       All Black




                       All White







Self Diagnostic Function

     1. Press "9" button on remote control during display of adjustment menu in the Service
        Mode. The diagnosis will begin to check if interface among IC's is executed properly.

     2. During diagnosis, the following displays are shown.

* Self check displays and items are subject to the models.
TV CPU SW Version:
Version information of TV Micro SW: Display 1 byte data. (Hex)

EEPROM Version:
Version information of TV Micro EEPROM: Display 1 byte data. (Hex)

Power On Time: Total time the TV has been powered on. (Unit: Hours) (Decimal)

Main PLL: Displays Data 11 - Data 18 (8 bytes) of tuner control data. (Hex)

BL_STATUS:
BL_STATUS 1 : The total number of times that the panel did not light. (backlight double-
              light also failed) (Decimal)
BL_STATUS 2 : The number of times that the backlight failed to light. (Decimal)

Block:
   UV               :   ATV reception mode
   V1 - V7          :   VIDEO 1-7 input mode.
   DTV              :   DTV mode
   For current input:   OK: Signal Sync Detected
                        NG: No Sync Detected
TV Status: "official" is normal.
Bus Errors: "none" is normal.

Block:

     UV        ATV
                  1
     V1
          (SCART (FULL))
                  2
     V2
          (SCART (S+AV))
                 3
     V3
           (Composite)

     V4       HDMI1

     V5       HDMI2

     V6       HDMI3

     V7       HDMI4

     V8          --

     V9          --

     PC         PC
                 3
 YUV
           (Component)

 DTV DTV (Digital Only)





Version Check Mode

     1. Press "9" button twice on remote control during display of adjustment menu in the
        Service Mode.

     2. During Version Check, the following displays are shown.

* Version check displays and items are subject to the models.
TV Model:
TV Model ID:
Boot Code Version:
Core SW Version:
Seine SW Version:
TV Micro SW Version:
 Version information of TV Micro SW. Display 1 byte data.
TV Micro EEPROM Version:
 Version information of EEPROM. Display 1 byte data.
EDID Checksum:
 Pass/Fail Result Listed for HDMI 1-4 (left to right)
Global Data Version:
 Version information of panel/picture data (string)
LCD Panel Opt:
 Panel Option (OPT4) Data. Display 1 byte data.
 (see Setting Panel Option Data)
Factory Test Status:
 Optional Data Bits that is used by factory.
Country Shipout ID:
 Country/Region TV is configured for. Options are: UK, France, Continental, Russia, Nordic
A/D Adjust COMP: Component input
     OK          A/D adjustment set correctly.
     NG          A/D adjustment set incorrect.
     --          A/D adjustment is not needed because the picture format is not used.


A/D Adjust RGB: RGB (SCART or PC) input
 OK/NG/-- Same as "A/D Adjust COMP"




Setting Hotel Mode

Hotel Mode allows the customized settings for following hotel options according to various
hotel requirements.

          Enable/Disable all Front Panel keys.

          Enable all Front Panel keys except for Input Selection key.

          Enable/Disable the remote control.

          Disable access to all Setup menu items except for Language Setting.

          Disable access to the Setup menu (grayed out).

          Limit the maximum Volume level.

          Force POS/VIDEO Channel/Input, when the TV is turned on.

          Force volume setting, when the TV is turned on.

          Force picture setting when the TV is turned on.

          Force the TV on while main power (AC power) is ON.

There are three ways to set up Hotel Mode Options: via Service Mode, Hotel Mode Settings
menu, and Hotel Clone menu.




Setting Hotel Mode via Service Mode
Enter Service Mode and select Hotel Mode menu by pressing P  or P .
After selecting Hotel Mode, press   + to enter details setting in Hotel Mode.

To select menu, press P  or P  and press OK to enter the adjustment menu of following
table data.
To move the cursor in the adjustment, press   + or   -.

  1. By pressing P  or P , following table data setting will change the value either 1 or 0
     on selected items as follows;


OPT2

                                                                                        0
   OPT2           FUNCTION DESCRIPTION                              1
                                                                                  (Normal)
D7 (bit7)   Enable mode that TV standby will be       Enable                      Disable
            appeared in forced when turning the       (This function is ignored
            main power ON                             when D6 is set to 1.)

D6 (bit6)   Enable mode that TV On will be            Enable                      Disable
            appeared in forced when turning the
            main power ON

D5 (bit5)   FRONT Key                                 Disable                     Enable

D4 (bit4)   All keys except input selector key        Disable                     Enable
            (Video/TV)

D3 (bit3)   User remote control operation             Disable                     Enable
                                                      (Only setting of Service
                                                      Mode and Super User
                                                      mode are possible.)

D2 (bit2)   Disable SET UP MENU except                Disable                     Enable
            language.                                 (Display language only)
            (tuning etc.)

D1 (bit1)   Disable SETUP MENU                        Disable                     Enable

D0 (bit0)   HOTEL Mode                                On (Enable the setting of   Off
                                                      D1 to D7)                   (Normal)


VOLX

Set speaker volume to suitable sound volume level.
  VOLX                 FUNCTION DESCRIPTION                           1         0 (Normal)
D7 (bit7) ~
              Max Limiter of Volume Control                  0x00 ~ 0x64
D0 (bit0)


OPT6

  OPT6                 FUNCTION DESCRIPTION                        1            0 (Normal)
D7 (bit7)     Enable mode that POS or VIDEO program          Enable           Disable
              number will be appeared in forced when turn
              ON the main power

D6 (bit6) ~ POS or VIDEO program number                      0 ~ 127 [decimal] (Normal: 0)
D0 (bit0)                                                    POS number: 0 ~ 99
                                                             VIDEO number: 100 ~ 127
                                                             (DTV = 100, VIDEO = 101,
                                                             VIDEO = 102..)
                                                             100 is used as ATV when
                                                             DTV option is disable.


OPT7

  OPT7                 FUNCTION DESCRIPTION                           1         0 (Normal)
D7 (bit7)     Enable mode that speaker volume will be set    Enable           Disable
              in forced when turning the main power ON

D6 (bit6) ~ Forced speaker volume                            0 ~ 100 [decimal] (Normal: 0)
D0 (bit0)                                                    Value above 100 is no effect.


OPT8

  OPT8                 FUNCTION DESCRIPTION                           1         0 (Normal)
D7 (bit7) ~                       No use                              -                -
D4 (bit4)

D3 (bit3)     RF tuning operation by position up/down on     Disable          Enable
              remote or front panel of the TV set, number,
              and previous key when HDMI or PC input

D2 (bit2)     Enable mode that picture mode will be set in   Enable           Disable
              forced when turning the main power ON
 D1 (bit1) ~ Forced picture mode                         0 [dec]: Auto View (Normal)
 D0 (bit0)                                               1 [dec]: Dynamic
                                                         2 [dec]: Standard
                                                         3 [dec]: Movie





Setting Hotel Mode via Hotel Mode Settings Menu




                                        1. Press     button once on remote control.










                                        2. Press     button again and hold button down.









     (Hotel Mode Settings menu)

                                        3. While holding the     button, press P    button
                                           on TV set.

     4. To enable Hotel Mode, use the   or   buttons to select "On" while "Hotel Mode" item
        is highlighted. When Hotel Mode is on, the various options are enabled.




     5. Press   and   buttons to select the item, and then press   and   buttons to change the
        setting.

     6. Press [Exit] button to finish Hotel Mode setting.



Settings in "Hotel Mode Settings" menu

     Hotel Mode                                                         Corresponding
                       Options                  Description                             Value
        Setting                                                          Option Data
 Hotel Mode          Off          Disable                               OPT2, D0        0

                     On           Enable                                                1

 Control Panel       On           Enable all front panel keys           OPT2, D5 ~ D4   00

                     Off          Disable all front panel keys                          10

                     Off          Disable all front panel keys except                   01
                     (Except      for "Input"
                     Input)

 Remote              On           Enable                                OPT2, D3        0

                     Off          Disable                                               1
                                  (except for Service Mode function)

 SETUP Menu          On           Enable access to Setup menu           OPT2, D2 ~ D1   00
                  Off         Disable access to Setup menu                           01

                  Off         Disable access to Setup menu                           10
                  (Except     except for Language Setting
                  Language)

Max Volume        0 ~ 100     Limited maximum volume level           VOLX, D7 ~ D0   0x00
                                                                                     ~
                                                                                     0x64

Change            Off         TV Tunes to the last channel or        OPT6, D7        0
POS/VIDEO                     input viewed when the TV is turned
                              on

                  On          TV tunes to preset                                     1
                              "POS/VIDEO" (channel/input) when
                              the TV is turned on

POS/VIDEO         0 ~ 99      0 ~ 99                                 OPT6, D6 ~ D0   0x00
(only available               (ATV Channel Position)                                 ~
when "Change                                                                         0x63
POS/VIDEO" is     100         DTV Input                                              0x64
On)                           (ATV Input if DTV disabled)

                  101 ~ 108   External Inputs                                        0x65
                              101 (Video 1), 102 (Video 2), ...108                   ~
                              (PC)                                                   0x6C

Change Volume Off             The last TV volume level remains       OPT7, D7        0
                              not changed.

                  On          Force TV volume level when the TV                      1
                              is turned on

Volume            0 ~ 100     Preset speaker volume when the         OPT7, D6 ~ D0   0x00
(only available               TV is turned ON                                        ~
when "Change                                                                         0x64
Volume" is On)

Change            Off         The last Picture Setting Mode          OPT8, D2        0
Selectable                    remains not changed
Picture           On          Force Picture Setting Mode to                          1
                              "Selectable Picture" mode when
                              the TV is turned on

Selectable        AutoView    Force Picture Mode to AutoView         OPT8, D1 ~ D0   00
 Picture                      when the TV is turned on
 (only available   Dynamic    Force Picture Mode to Dynamic                     01
 when "Change                 when the TV is turned on
 Selectable
                   Standard   Force Picture Mode to Standard                    10
 Picture" is On)
                              when the TV is turned on

                   Movie      Force Picture Mode to Movie when                  11
                              the TV is turned on

 Change TV         Disabled   TV returns to previous Standby/On OPT2, D7 ~ D6   00
 Power                        State when the main power is
                              applied

                   Force On   Force TV ON when the main power                   01
                              is applied

                   Force      Force TV Standby when the main                    10
                   Standby    power is applied

 Position Change On           RF tuning by P     ,P   , and      OPT8, D3       0
 on HDMI/PC                   RETURN keys is enabled
 Input             Off        When the input source is HDMI or                  1
                              PC Input, RF tuning by P , P ,
                              and RETURN keys is disabled





Copying Hotel Mode Options via Hotel Clone Menu

The following Hotel Mode Options can be copied to other same model TVs using USB Drive
via Hotel Clone menu:

         OPT2

         OPT6

         OPT7

         OPT8

         VOLX
         DTV Channel Setup

         ATV Channel Setup

               Programme (position)

               System

               Colour System

               Programme Skip

               AFT

               Label



Saving the Hotel Mode Settings of the TV to USB Drive

     1. Configure the hotel mode settings via Service Mode or the Hotel Mode Settings menu.

     2. Enter Hotel Clone menu by following steps a - c.


                                              a. Press     button once on remote control.










                                              b. Press     button again and hold button down.









       (Hotel Clone menu display)

                                              c. While holding the     button, press P     button
                                                 on TV set.





     3. Press   or   buttons to select "TV to USB".






     4. Insert a USB Drive and press OK to copy the settings to the USB Drive.

     5. After copy is completed successfully and the message is shown, remove the USB
        Drive.



Loading the Hotel Mode Settings from USB Drive to TV

     1. Enter Hotel Clone menu as shown in previous section.

     2. Select "USB to TV" by pressing   or   buttons.





     3. Insert the USB drive carrying the copied settings, and press OK to copy settings to the
        TV.

     4. After the copy is completed successfully, the message is shown and the set reboots
        automatically.

     5. Remove the USB drive.

     6. If the copy is not completed, an error message is shown and the set does not reboot.
        Repeat from step-a again, or repeat the steps of saving from TV to USB Drive.




LED Indications

The LEDs on the TV (at the bottom of the TV) indicate the TV's status, as described below.
There are 3 LEDS (from left to right): PowerOn/Standby, OnTimer, ProgramTimer.

         PowerOn/Standby LED

               Red ON (solid) = The TV power cord is plugged in, but TV is in Standby.

               Green ON (solid) = The TV is powered on.

         OnTimer LED

               Green ON (solid) = The OnTimer is set.

         ProgrammeTimer LED

               Orange ON (solid) = The On timer is set.

               Red ON (solid) = The On timer is operating.



            LED Indication             Condition                      Solution
 1 PowerOn/Standby LED:            BUS Error          Turn OFF the TV and unplug the power
      Green blinks continuously.                      cord.
      Other LEDs: OFF.                                Plug the power cord in again and turn ON
                                                       the TV.

 2 PowerOn/Standby LED:             Power Protect      Turn OFF the TV and unplug the power
      Red blinks continuously.      Error              cord.
      Other LEDs: OFF.                                 Plug the power cord in again and turn ON
                                                       the TV.

 3 PowerOn/Standby LED:             Back Light Error   Turn OFF the TV and unplug the power
      Orange blinks continuously.                      cord.
      Other LEDs: OFF.                                 Plug the power cord in again and turn ON
                                                       the TV.

 4 OnTimer LED:                     Fan Stop Error     Turn OFF the TV and unplug the power
      Green blinks continuously.                       cord.
      Other LEDs: OFF.                                 Plug the power cord in again and turn ON
                                                       the TV.





DTV Software Update - While Watching TV

     1. Extract the update files onto a USB drive.

     2. Turn on the TV set.

     3. Connect the USB drive to the USB port on the side panel.
        The following message is displayed:






     4. Highlight OK and press the OK key on the remote.

     5. The status of the update is displayed during update.
        Never turn off the power while updating.


     6. When the update is complete, the following message is displayed.






     7. Disconnect the USB drive.

     8. The TV set is automatically turned off and then on.




DTV Software Update - from Boot Up

     1. Extract the update files onto a USB drive.

     2. Unplug the TV.

     3. Connect the USB drive to the USB port on the side panel.

     4. Press and hold the menu button on the control panel of the TV set.

     5. Plug in the TV and watch the LEDs on the front of the TV set.

           a. After several seconds, the orange PowerOn/Standby LED and the green OnTimer
              LED light is on, indicating that the TV set is being updated.

           b. Once the update started, release the menu button.

     6. When only the PowerOn/Standby LED is turned to green, the update has completed
   successfully.
   If the update is unsuccessful, the PowerOn/Standby LED is red.

7. Unplug the TV set.

8. Disconnect the USB drive.
   PANEL IDENTIFICATION


Panel Identification

If the several panels are alternatively used in the same model without amending the model
name, the identification marking will be shown at the last digit of the set serial number on the
specification label on the back cover.

In servicing, do not alter the panel because several setting and parts are different.

 Marking         Panel Vendor      Marking        Panel Vendor      Marking        Panel Vendor

       A    AUO                       J                               S       SHARP

       B                             K       SAMSUNG                  T

       C    CMO                      L       LGD                      U

       D                             M                                V

       E                             N                                W

       F                             P                                X

       G                             Q                                Y

       H    IPS                      R                                Z




With this alternative use, some of key parts may differ and their combinations are
indicated with the suffix marking on the location number in the part list
(Miscellaneous).

e.g.

   Location No.         Part No.                      Description

B001A                75XXXXXX        LCD Panel, 32" LGD

B001B                75XXXXXX        LCD Panel, 32" AUO

MZ01A                75XXXXXX        LDVS Cable for 32" LGD Panel

MZ01B                75XXXXXX        LDVS Cable for 32" AUO Panel


Please refer to the Parts List for correct part numbers.
SPECIFICATION
PARTS LIST



         Block            Location      Parts No.        Description
U01AS   MAIN   (PE0719)   U01AS      75016322       PC BOARD ASSY, PE0719C, MAIN
U01AS   MAIN   (PE0719)   B320       75011088       SCREW, SFS-4S-B1WM
U01AS   MAIN   (PE0719)   B321       75011088       SCREW, SFS-4S-B1WM
U01AS   MAIN   (PE0719)   C1000      75013662       CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1001      75013662       CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1002      75012560       CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1003      75014626       CAPACITOR, C2012JB1A106K
U01AS   MAIN   (PE0719)   C1004      75012560       CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1005      75012560       CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1006      75012560       CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1007      75012560       CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1008      75012560       CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1009      75012560       CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1010      75012560       CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1011      75012560       CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1012      75012560       CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1013      75012560       CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1014      75012560       CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1015      75012560       CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1016      75012560       CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1017      75012560       CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1018      75012557       CAPACITOR, CERA CHIP, 50V JB 102K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1019      75012557       CAPACITOR, CERA CHIP, 50V JB 102K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1020      75013662       CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1021      75013662       CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1022      75012557       CAPACITOR, CERA CHIP, 50V JB 102K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1023      75012560       CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1024      75012560       CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1025      75012560       CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1028      75012560       CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1029      75013662       CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1030      75013662       CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1032      75014626       CAPACITOR, C2012JB1A106K
U01AS   MAIN   (PE0719)   C1033      75013662       CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1034      75013662       CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1035      75012557       CAPACITOR, CERA CHIP, 50V JB 102K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1036      75012557       CAPACITOR, CERA CHIP, 50V JB 102K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1037      75012557       CAPACITOR, CERA CHIP, 50V JB 102K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1038      75012557       CAPACITOR, CERA CHIP, 50V JB 102K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1040      75012560       CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1041      75012560       CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1042   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1043   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1046   75012602   CAPACITOR, CERA CHIP, 6.3V JB 105K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1048   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1049   75014622   CAPACITOR, CERA CHIP(1608), 10V JB 225K, GRM188B31A
U01AS   MAIN   (PE0719)   C1069   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1070   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1078   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1079   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1080   75014626   CAPACITOR, C2012JB1A106K
U01AS   MAIN   (PE0719)   C1081   75012601   CAPACITOR, CERA CHIP, 50V CH 100D 1005 SIZE, C1005CH
U01AS   MAIN   (PE0719)   C1082   75012601   CAPACITOR, CERA CHIP, 50V CH 100D 1005 SIZE, C1005CH
U01AS   MAIN   (PE0719)   C1085   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1086   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1087   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1088   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1089   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1090   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1091   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1094   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1095   75014612   CAPACITOR, CERA CHIP(1005), 50V CH 5R0C, C1005CH1H0
U01AS   MAIN   (PE0719)   C1096   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1097   75014622   CAPACITOR, CERA CHIP(1608), 10V JB 225K, GRM188B31A
U01AS   MAIN   (PE0719)   C1098   75010607   CAPACITOR, ELECTROLYTIC CHIP, EEEFK1C221XP
U01AS   MAIN   (PE0719)   C1099   75014612   CAPACITOR, CERA CHIP(1005), 50V CH 5R0C, C1005CH1H0
U01AS   MAIN   (PE0719)   C1100   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1101   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1102   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1103   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1104   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1105   75012557   CAPACITOR, CERA CHIP, 50V JB 102K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1106   75014619   CAPACITOR, CERA CHIP(1005), 25V JB 153K, C1005JB1E15
U01AS   MAIN   (PE0719)   C1107   75013657   CAPACITOR, CERA CHIP (1005), 50V CH 151J, C1005CH1H
U01AS   MAIN   (PE0719)   C1108   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1110   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1111   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1112   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1113   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1116   75014611   CAPACITOR, CERA CHIP(1005), 50V CH 4R0C, C1005CH1H0
U01AS   MAIN   (PE0719)   C1117   75014611   CAPACITOR, CERA CHIP(1005), 50V CH 4R0C, C1005CH1H0
U01AS   MAIN   (PE0719)   C1118   75012602   CAPACITOR, CERA CHIP, 6.3V JB 105K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1120   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1121   75012602   CAPACITOR, CERA CHIP, 6.3V JB 105K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1125   75012602   CAPACITOR, CERA CHIP, 6.3V JB 105K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1130   75014791   CAPACITOR, EEFCD0G101ER
U01AS   MAIN   (PE0719)   C1133   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1134   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1135   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1136   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1137   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1138   75014626   CAPACITOR, C2012JB1A106K
U01AS   MAIN   (PE0719)   C1139   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1140   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1141   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1142   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1144   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1146   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1147   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1148   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1149   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1150   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1151   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1152   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1153   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1154   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1155   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1156   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1157   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1160   75012602   CAPACITOR, CERA CHIP, 6.3V JB 105K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1161   75012602   CAPACITOR, CERA CHIP, 6.3V JB 105K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1162   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1163   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1164   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1165   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1166   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1167   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1168   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1169   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1170   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1173   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1174   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1176   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1177   75014626   CAPACITOR, C2012JB1A106K
U01AS   MAIN   (PE0719)   C1178   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1179   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1180   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1181   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1182   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1183   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1184   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1185   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1186   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1187   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1188   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1189   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1190   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1191   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1192   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1193   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1194   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1195   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1196   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1197   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1198   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1199   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1200   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1201   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1202   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1203   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1204   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1205   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1206   75012557   CAPACITOR, CERA CHIP, 50V JB 102K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1208   75014633   CAPACITOR, CERA CHIP(1608), 6.3V JB 475K, C1608JB0J4
U01AS   MAIN   (PE0719)   C1209   75012602   CAPACITOR, CERA CHIP, 6.3V JB 105K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1210   75012557   CAPACITOR, CERA CHIP, 50V JB 102K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1211   75012557   CAPACITOR, CERA CHIP, 50V JB 102K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1212   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1213   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1214   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1215   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1216   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1217   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1218   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1219   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1220   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1221   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1222   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1223   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1224   75012557   CAPACITOR, CERA CHIP, 50V JB 102K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1225   75014633   CAPACITOR, CERA CHIP(1608), 6.3V JB 475K, C1608JB0J4
U01AS   MAIN   (PE0719)   C1226   75012602   CAPACITOR, CERA CHIP, 6.3V JB 105K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1227   75012557   CAPACITOR, CERA CHIP, 50V JB 102K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1228   75012557   CAPACITOR, CERA CHIP, 50V JB 102K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1229   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1230   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1231   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1232   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1233   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1234   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1244   75014626   CAPACITOR, C2012JB1A106K
U01AS   MAIN   (PE0719)   C1263   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1271   75011492   CAPACITOR, CERAMIC CHIP, 50V 2C 200J, GRM1552C1H20
U01AS   MAIN   (PE0719)   C1272   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1275   75011492   CAPACITOR, CERAMIC CHIP, 50V 2C 200J, GRM1552C1H20
U01AS   MAIN   (PE0719)   C1281   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1282   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1283   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1284   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1285   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1286   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1287   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1288   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1289   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1290   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1291   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1292   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1293   75014633   CAPACITOR, CERA CHIP(1608), 6.3V JB 475K, C1608JB0J4
U01AS   MAIN   (PE0719)   C1294   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1295   75014633   CAPACITOR, CERA CHIP(1608), 6.3V JB 475K, C1608JB0J4
U01AS   MAIN   (PE0719)   C1296   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1300   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1301   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1302   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1303   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1304   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1305   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1306   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1307   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1308   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1309   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1310   75009876   CAPACITOR, CERAMIC CHIP (1608), GRM188B31C105KA92D
U01AS   MAIN   (PE0719)   C1311   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1312   75014622   CAPACITOR, CERA CHIP(1608), 10V JB 225K, GRM188B31A
U01AS   MAIN   (PE0719)   C1322   75014626   CAPACITOR, C2012JB1A106K
U01AS   MAIN   (PE0719)   C1323   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1324   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1325   75014626   CAPACITOR, C2012JB1A106K
U01AS   MAIN   (PE0719)   C1326   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1327   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1328   75014633   CAPACITOR, CERA CHIP(1608), 6.3V JB 475K, C1608JB0J4
U01AS   MAIN   (PE0719)   C1329   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1330   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1331   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1332   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1333   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1334   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1335   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1336   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1337   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1338   75012602   CAPACITOR, CERA CHIP, 6.3V JB 105K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1339   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1340   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1341   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1342   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C1343   75014626   CAPACITOR, C2012JB1A106K
U01AS   MAIN   (PE0719)   C1344   75012601   CAPACITOR, CERA CHIP, 50V CH 100D 1005 SIZE, C1005CH
U01AS   MAIN   (PE0719)   C1345   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1346   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1600   75009876   CAPACITOR, CERAMIC CHIP (1608), GRM188B31C105KA92D
U01AS   MAIN   (PE0719)   C1601   75014622   CAPACITOR, CERA CHIP(1608), 10V JB 225K, GRM188B31A
U01AS   MAIN   (PE0719)   C1602   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C1603   75001957   CAPACITOR, ELECTROLYTIC CHIP, EEEFK1C101P
U01AS   MAIN   (PE0719)   C1604   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C3006   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C3007   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C3140   75014615   CAPACITOR, CERA CHIP(1005), 50V CH 121J, C1005CH1H1
U01AS   MAIN   (PE0719)   C3141   75014626   CAPACITOR, C2012JB1A106K
U01AS   MAIN   (PE0719)   C3142   75014626   CAPACITOR, C2012JB1A106K
U01AS   MAIN   (PE0719)   C3143   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C3144   75014794   CAPACITOR, CERA CHIP(1005), 50V JB 561K, GRM155B11H
U01AS   MAIN   (PE0719)   C3145   75014626   CAPACITOR, C2012JB1A106K
U01AS   MAIN   (PE0719)   C3146   75014794   CAPACITOR, CERA CHIP(1005), 50V JB 561K, GRM155B11H
U01AS   MAIN   (PE0719)   C3147   75014626   CAPACITOR, C2012JB1A106K
U01AS   MAIN   (PE0719)   C3148   75014615   CAPACITOR, CERA CHIP(1005), 50V CH 121J, C1005CH1H1
U01AS   MAIN   (PE0719)   C3149   75014626   CAPACITOR, C2012JB1A106K
U01AS   MAIN   (PE0719)   C3200   75014626   CAPACITOR, C2012JB1A106K
U01AS   MAIN   (PE0719)   C3201   75014629   CAPACITOR, CERA CHIP(1608), 50V JB 103K, C1608JB1H1
U01AS   MAIN   (PE0719)   C3203   75014629   CAPACITOR, CERA CHIP(1608), 50V JB 103K, C1608JB1H1
U01AS   MAIN   (PE0719)   C3206   75014629   CAPACITOR, CERA CHIP(1608), 50V JB 103K, C1608JB1H1
U01AS   MAIN   (PE0719)   C3207   75014629   CAPACITOR, CERA CHIP(1608), 50V JB 103K, C1608JB1H1
U01AS   MAIN   (PE0719)   C3300   75010771   CAPACITOR, ELECTROLYTIC CHIP, MVJ16VC47MF60E0
U01AS   MAIN   (PE0719)   C3301   75009876   CAPACITOR, CERAMIC CHIP (1608), GRM188B31C105KA92D
U01AS   MAIN   (PE0719)   C3412   75012557   CAPACITOR, CERA CHIP, 50V JB 102K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C3600   75014795   CAPACITOR, CERA CHIP(1005), 50V JB 272K, GRM155B11H
U01AS   MAIN   (PE0719)   C3601   75014796   CAPACITOR, CERAMIC CHIP(1005), GRM155B11A273KA01D
U01AS   MAIN   (PE0719)   C3602   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C3603   75004452   CAPACITOR, CERAMIC CHIP, 3216 GRM31CB30J476ME18L
U01AS   MAIN   (PE0719)   C3604   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C3606   75013698   CAPACITOR, CERA CHIP (1005), 50V CH 330J, C1005CH1H
U01AS   MAIN   (PE0719)   C3701   75014626   CAPACITOR, C2012JB1A106K
U01AS   MAIN   (PE0719)   C3702   75013660   CAPACITOR, CERA CHIP (1005), 50V JB 472K, C1005JB1H4
U01AS   MAIN   (PE0719)   C3703   75012645   CAPACITOR, CERAMIC CHIP(2012), GRM219B11H333KA01D
U01AS   MAIN   (PE0719)   C3704   75010499   CAPACITOR, ELECTROLYTIC CHIP, 16V 471M 3D LIFE LOW
U01AS   MAIN   (PE0719)   C3705   75012559   CAPACITOR, CERA CHIP, 10V JB 473K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C3706   75014623   CAPACITOR, CERA CHIP(1608), 25V JB 105K, GRM188B31E
U01AS   MAIN   (PE0719)   C3707   75014623   CAPACITOR, CERA CHIP(1608), 25V JB 105K, GRM188B31E
U01AS   MAIN   (PE0719)   C3708   75012645   CAPACITOR, CERAMIC CHIP(2012), GRM219B11H333KA01D
U01AS   MAIN   (PE0719)   C3709   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C3710   75014626   CAPACITOR, C2012JB1A106K
U01AS   MAIN   (PE0719)   C3711   75014623   CAPACITOR, CERA CHIP(1608), 25V JB 105K, GRM188B31E
U01AS   MAIN   (PE0719)   C3712   75012645   CAPACITOR, CERAMIC CHIP(2012), GRM219B11H333KA01D
U01AS   MAIN   (PE0719)   C3713   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C3714   75014633   CAPACITOR, CERA CHIP(1608), 6.3V JB 475K, C1608JB0J4
U01AS   MAIN   (PE0719)   C3715   75014623   CAPACITOR, CERA CHIP(1608), 25V JB 105K, GRM188B31E
U01AS   MAIN   (PE0719)   C3716   75014623   CAPACITOR, CERA CHIP(1608), 25V JB 105K, GRM188B31E
U01AS   MAIN   (PE0719)   C3717   75013660   CAPACITOR, CERA CHIP (1005), 50V JB 472K, C1005JB1H4
U01AS   MAIN   (PE0719)   C3719   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C3721   75012645   CAPACITOR, CERAMIC CHIP(2012), GRM219B11H333KA01D
U01AS   MAIN   (PE0719)   C3722   75014623   CAPACITOR, CERA CHIP(1608), 25V JB 105K, GRM188B31E
U01AS   MAIN   (PE0719)   C3723   75012559   CAPACITOR, CERA CHIP, 10V JB 473K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C3724   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C3725   75014626   CAPACITOR, C2012JB1A106K
U01AS   MAIN   (PE0719)   C3726   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C3730   75014630   CAPACITOR, CERA CHIP(1608), 50V JB 104K, C1608JB1H1
U01AS   MAIN   (PE0719)   C3731   75014630   CAPACITOR, CERA CHIP(1608), 50V JB 104K, C1608JB1H1
U01AS   MAIN   (PE0719)   C3732   75005708   CAPACITOR, CHIP CERA, 50V B 0.33UF K, C2012JB1H334K
U01AS   MAIN   (PE0719)   C3733   75014630   CAPACITOR, CERA CHIP(1608), 50V JB 104K, C1608JB1H1
U01AS   MAIN   (PE0719)   C3735   75014629   CAPACITOR, CERA CHIP(1608), 50V JB 103K, C1608JB1H1
U01AS   MAIN   (PE0719)   C3736   75005708   CAPACITOR, CHIP CERA, 50V B 0.33UF K, C2012JB1H334K
U01AS   MAIN   (PE0719)   C3737   75014630   CAPACITOR, CERA CHIP(1608), 50V JB 104K, C1608JB1H1
U01AS   MAIN   (PE0719)   C3738   75014629   CAPACITOR, CERA CHIP(1608), 50V JB 103K, C1608JB1H1
U01AS   MAIN   (PE0719)   C3741   75014629   CAPACITOR, CERA CHIP(1608), 50V JB 103K, C1608JB1H1
U01AS   MAIN   (PE0719)   C3742   75014629   CAPACITOR, CERA CHIP(1608), 50V JB 103K, C1608JB1H1
U01AS   MAIN   (PE0719)   C3800   75013705   CAPACITOR, CERA CHIP(2012), 25V B 475K, GRM21BB31E4
U01AS   MAIN   (PE0719)   C3801   75013705   CAPACITOR, CERA CHIP(2012), 25V B 475K, GRM21BB31E4
U01AS   MAIN   (PE0719)   C3802   75012558   CAPACITOR, CERA CHIP, 50V JB 222K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C3803   75012558   CAPACITOR, CERA CHIP, 50V JB 222K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C3804   75009876   CAPACITOR, CERAMIC CHIP (1608), GRM188B31C105KA92D
U01AS   MAIN   (PE0719)   C3805   75009876   CAPACITOR, CERAMIC CHIP (1608), GRM188B31C105KA92D
U01AS   MAIN   (PE0719)   C3806   75010771   CAPACITOR, ELECTROLYTIC CHIP, MVJ16VC47MF60E0
U01AS   MAIN   (PE0719)   C3807   75010771   CAPACITOR, ELECTROLYTIC CHIP, MVJ16VC47MF60E0
U01AS   MAIN   (PE0719)   C3808   75010771   CAPACITOR, ELECTROLYTIC CHIP, MVJ16VC47MF60E0
U01AS   MAIN   (PE0719)   C3809   75010771   CAPACITOR, ELECTROLYTIC CHIP, MVJ16VC47MF60E0
U01AS   MAIN   (PE0719)   C3810   75014626   CAPACITOR, C2012JB1A106K
U01AS   MAIN   (PE0719)   C3811   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C3812   75010771   CAPACITOR, ELECTROLYTIC CHIP, MVJ16VC47MF60E0
U01AS   MAIN   (PE0719)   C3814   75014621   CAPACITOR, CERA CHIP(1608), 25V JB 224K, GRM188B31E
U01AS   MAIN   (PE0719)   C3815   75013656   CAPACITOR, CERA CHIP (1005), 50V CH 101J, C1005CH1H
U01AS   MAIN   (PE0719)   C3816   75014626   CAPACITOR, C2012JB1A106K
U01AS   MAIN   (PE0719)   C3817   75014622   CAPACITOR, CERA CHIP(1608), 10V JB 225K, GRM188B31A
U01AS   MAIN   (PE0719)   C3818   75012560   CAPACITOR, CERA CHIP, 10V JB 104K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C3819   75014615   CAPACITOR, CERA CHIP(1005), 50V CH 121J, C1005CH1H1
U01AS   MAIN   (PE0719)   C3821   75014626   CAPACITOR, C2012JB1A106K
U01AS   MAIN   (PE0719)   C3822   75013662   CAPACITOR, CERA CHIP (1005), 25V JB 103K, C1005JB1E1
U01AS   MAIN   (PE0719)   C3823   75014794   CAPACITOR, CERA CHIP(1005), 50V JB 561K, GRM155B11H
U01AS   MAIN   (PE0719)   C3825   75014794   CAPACITOR, CERA CHIP(1005), 50V JB 561K, GRM155B11H
U01AS   MAIN   (PE0719)   C3826   75014626   CAPACITOR, C2012JB1A106K
U01AS   MAIN   (PE0719)   C3827   75014615   CAPACITOR, CERA CHIP(1005), 50V CH 121J, C1005CH1H1
U01AS   MAIN   (PE0719)   C3828   75014626   CAPACITOR, C2012JB1A106K
U01AS   MAIN   (PE0719)   C6000   75012557   CAPACITOR, CERA CHIP, 50V JB 102K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C6001   75013659   CAPACITOR, CERA CHIP (1005), 50V JB 152K, C1005JB1H1
U01AS   MAIN   (PE0719)   C6002   75013659   CAPACITOR, CERA CHIP (1005), 50V JB 152K, C1005JB1H1
U01AS   MAIN   (PE0719)   C6006   75012557   CAPACITOR, CERA CHIP, 50V JB 102K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C6007   75012557   CAPACITOR, CERA CHIP, 50V JB 102K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C6008   75013659   CAPACITOR, CERA CHIP (1005), 50V JB 152K, C1005JB1H1
U01AS   MAIN   (PE0719)   C6009   75013659   CAPACITOR, CERA CHIP (1005), 50V JB 152K, C1005JB1H1
U01AS   MAIN   (PE0719)   C6014   75012557   CAPACITOR, CERA CHIP, 50V JB 102K 1005 SIZE, C1005JB
U01AS   MAIN   (PE0719)   C6015   75012555   CAPACITOR, CERA CHIP, 50V CH 470J 1005 SIZE, C1005CH
U01AS   MAIN   (PE0719)   C6016   75012555   CAPACITOR, CERA CHIP, 50V CH 470J 1005 SIZE, C1005CH
U01AS   MAIN   (PE0719)   C6017   75012555   CAPACITOR, CERA CHIP, 50V CH 470J 1005 SIZE, C1005CH
U01AS   MAIN   (PE0719)   C6018



◦ Jabse Service Manual Search 2022 ◦ Jabse PravopisonTap.bg ◦ Other service manual resources online : FixyaeServiceinfo
