>> Download Toshiba 32WL66P 37WL66P 42WL66P 32WLG66 32WLT66 37WLG66 37WLT66 42WLG66 42WLT66 int or no audio int or no analo documenatation <<Text preview - extract from the documentTechnical Bulletin
Model(s)
32WLT66, 37WLT66, 42WLT66, 47WLT66
Symptom
Int or No Analogue Tuning,
Int or No Audio,
Timer Light Flashing,
Self check says "MSP" faulty
Cause
Connection problem with connector PJ22 between AV input board and Video Module.
Cure

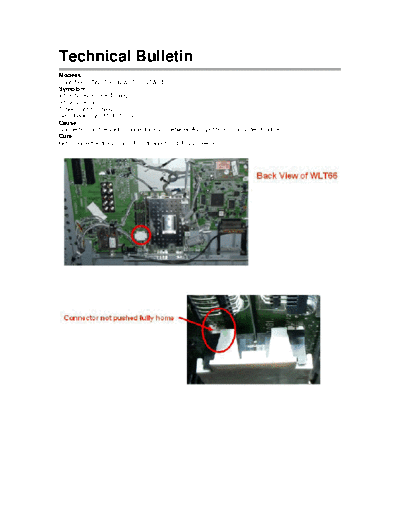

Refit connector, from Signal PCB to Input PCB PJ22, See pics:
