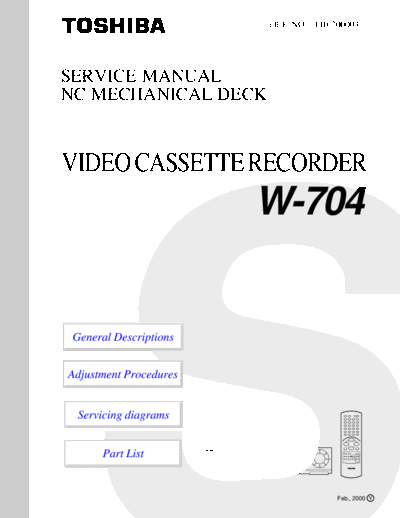

Image preview - the first page of the document



>> Download hfe_toshiba_w-704_service_en documenatation <<

Text preview - extract from the document

                        FILE NO. 110-200003




SERVICE MANUAL
NC MECHANICAL DECK


VIDEO CASSETTE RECORDER
                        W-704


 General Descriptions
 General Descriptions


Adjustment Procedures
           Procedures


 Servicing Diagrams
 Servicing diagrams


      Parts List
      Part


                                      Feb., 2000 Y
SAFETY NOTICE
                                          SAFETY PRECAUTIONS

LEAKAGE CURRENT CHECK
Plug the AC line cord directly into a 120V AC outlet (do      Measure the AC voltage across the 1500 W resistor.
not use an isolation transformer for this check). Use an      The test must be conducted with the AC switch on and
AC Voltmeter, having 5000 W per volt or more sensitiv-        then repeated with the AC switch off. The AC voltage
ity. Connect a 1500 W 10 W resistor, paralleled by a          indicated by the meter may not exceed 0.3 V. A read-
