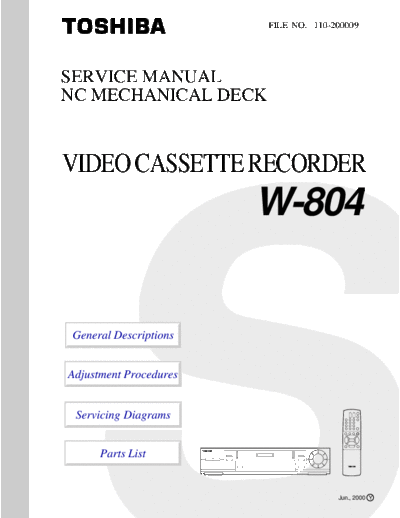

Image preview - the first page of the document



>> Download hfe_toshiba_w-804_service_en documenatation <<

Text preview - extract from the document

                        FILE NO. 110-200009




SERVICE MANUAL
NC MECHANICAL DECK


VIDEO CASSETTE RECORDER
                        W-804


General Descriptions
General Descriptions


           Procedures
Adjustment Procedures


 Servicing Diagrams
           Diagrams


      Parts List
      Parts List


                                      Jun., 2000 Y
SAFETY NOTICE
                                          SAFETY PRECAUTIONS

LEAKAGE CURRENT CHECK
Plug the AC line cord directly into a 120V AC outlet (do     Measure the AC voltage across the 1500  resistor.
not use an isolation transformer for this check). Use an     The test must be conducted with the AC switch on and
AC Voltmeter, having 5000  per volt or more sensitiv-        then repeated with the AC switch off. The AC voltage
ity. Connect a 1500  10 W resistor, paralleled by a          indicated by the meter may not exceed 0.3 V. A read-
0.15
