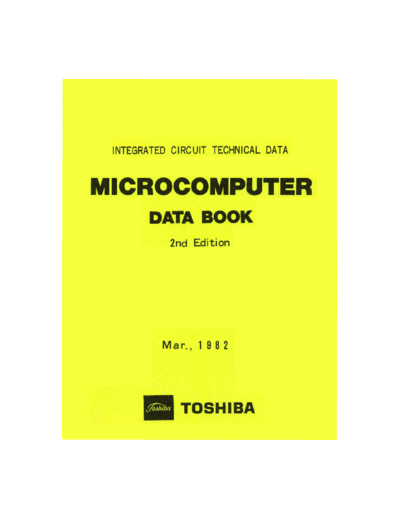

Image preview - the first page of the document
1982_Toshiba_Microprocessor_Data_Book


>> Download 1982_Toshiba_Microprocessor_Data_Book documenatation <<

Text preview - extract from the document
 INTEGRATED CIRCUIT TECHNICAL DATA



MICROCOMPUTER
       DATA BOOK
           2nd Edition




          Mar. , 1 9 8 2




             TOSHIBA
                           PREFACE


   Since LSIs for the microcomputer manufactured first in Japan
by Toshiba was put on the market in 1973, Toshiba has devoted
efforts in strengthening its semiconductor devices for micro-
computer. Toshiba has been developing various highly efficient
and low power consumption type LSIs for microcomputers to
more and more diversifying application fields, and supplying
numerous kinds of new products to users.
   This manual covers the technical description of LSIs for
microcomputers supplied by Toshiba, including TLCS-43 Series
(NMOS), TLCS-46A Series (CMOS) and TLCS-47 Series (NMOS
and CMOS) 4-bit single chip microcomputer, TLCS-84 Series
(NMOS and CMOS) 8-bit single chip microcomputer and TLCS-
85A Family (NMOS) 8-bit microcomputer.
  In addition to this manual, the technical description of the
microcomputer development system is also available.
   Further, examples of application circuits listed in this manual
are only for reference in using the LSIs. Toshiba will not assume
any responsibility for problem relative to patent rights which
may be generated from use of the said application circuits.




                                                                     1
                                    CONTENTS

                                                                                        Page


4BIT SINGLE CHIP MICROCOMPUTER
TLCS43 (NMOS)
