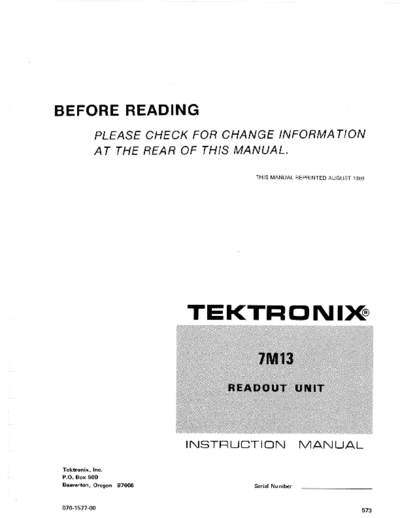

Image preview - the first page of the document
>> Download 7M13-Service documenatation <<
Text preview - extract from the document
BEFORE READING
PLEASE CHECK FOR CHANGE INFORMATION
AT THE REAR OF THIS MANUAL .
THIS MANUAL REPRINTED AUGUST 1980
TEKTRONIX
7M13
READOUT UNIT
INSTRUCTION MANUAL
Tektronix, Inc.
P .O . Box 500
Beaverton, Oregon 97005 Serial Number
070-1577-00 573
TABLE OF CONTENTS
Page
SECTION 1 OPERATING INSTRUCTIONS 1-1
CONTROLS 1-1
OPERATION 1-2
Channel Selection 1-2
Erase 1-2
Data Display 1-2
Modify 1-2
Camera Counter Operation 1-2
SECTION 2 THEORY OF OPERATION 2-1
INTRODUCTION 2-1
THEORY OF OPERATION 2-1
SECTION 3 MAINTENANCE 3-1
INTRODUCTION 3-1
PREVENTIVE MAINTENANCE 3-1
Cleaning 3-1
Lubrication 3-1
TROUBLESHOOTING 3-1
Troubleshooting Procedure 3-1
REPLACEMENT PARTS 3-3
Standard Parts 3-3
Special Parts 3-3
Ordering Parts 3-3
REPACKAGING FOR SHIPMENT 3-4
SECTION 4 PERFORMANCE CHECK 4-1
INTRODUCTION 4-1
PERFORMANCE CHECK PROCEDURE 4-1
SECTION 5 ELECTRICAL PARTS LIST 5-1
SECTION 6 DIAGRAMS AND CIRCUIT BOARD ILLUSTRATIONS 6-1
SECTION 7 MECHANICAL PARTS LIST 7-1
CHANGE INFORMATION
REV . B, APR . 1977
LIST OF ILLUSTRATIONS
Fig. 1-1 7M13 READOUT UNIT III
Fig. 1-2 7M13 CONTROLS AND CONNECTORS iv
Fig. 3-1 SEMICONDUCTOR LEAD CONFIGURATIONS 3-2
Fig. 6-1 A1-7M13 Readout Unit Logic Circuit Board
1O Front Panel Switching
2O Readout Unit Logic
Fig . 1-1 . 7M13 Readout Unit .
7M13 FEATURES
The 7M13 Readout Unit (Fig . 1-1) provides front panel keyboard operation of any Tektronix 7000 series oscilloscope
readout system . A built-in camera counter displays a presettable camera count in channel 2. The camera count can be
advanced manually by pushbutton or automatically through the operation of a camera shutter .
1-Z 7M13 Controls and Connectors
10
9
11
Fig . . .
Section 1-7M13
OPERATING INSTRUCTIONS
CONTROLS
All controls and connectors for operation of the 7M13 Readout Unit are located on the front panel of
the instrument. These are illustrated in Fig. 1-2. The controls and their functional descriptions are listed
below.
WRITE UPPER
FYI Illuminated pushbutton switch for selecting channel 1 (upper) display position .
WRITE LOWER
1_21 Illuminated pushbutton switch for selecting channel 2 (lower) display position .
Character Switches
IE Pushbutton switches that provide character selection and generation for display on the CRT.
CAMERA COUNTER (P)RESET
D Pushbutton switch for resetting and presetting the camera counter.
Release Latch
1-
51 Releases plug-in lock for removal of instrument from the mainframe.
CAMERA COUNTER PUSH ON
Illuminated pushbutton switch for activating the camera counter.
CAMERA COUNTER ADVANCE
Pushbutton switch for manually advancing the camera counter.
CAMERA COUNTER SYNC IN
Jack for connecting the camera counter advance to a camera shutter for automatic operation.
SPACE
F-1
0 Pushbutton switch that provides spacing in the readout display.
MODIFY
[FBI Pushbutton switch that allows changing the last entered character without erasing the display.
ERASE
Pushbutton switch for erasing the display from the selected channel .
Operating Instructions-7M13
OPERATION
The 7M13 Readout Unit will operate in any plug-in compartment of a Tektronix 7000-series
oscilloscope equipped with a readout system . The 7M13 Readout Unit is activated by pressing it firmly into
position in a compartment of the oscilloscope mainframe . The display will appear on the CRT in the
position associated with the selected plug-in slot .
Channel Selection
UPPER
The WRITE pushbuttons provide channel selection . Channel 1 is selected by pressing the
pushbutton and channel 2 by pressing the LOWER pushbutton . These pushbuttons illuminate (in
compatible mainframes) to indicate the position selected .
Erase
The ERASE pushbutton must be pressed before entering data for display . This clears the selected
channel of any previously entered data and resets the 7M13 circuits to accept new data . The ERASE
pushbutton does not affect the camera counter display .
Data Display
Both channels have a display capacity of ten characters or spaces . Each character, including the decimal
point, requires one space in the display .
Each character pushbutton switch is labeled with the character it selects . Pressing any of these switches
causes its associated character to be displayed on the CRT . Spacing between characters or words is provided
by the SPACE pushbutton . Pressing this switch causes the display to skip one space .
Subsequent pressing of a character switch when all ten display spaces are filled will cause the tenth space
character to be replaced with the newly selected one .
Modify
The MODIFY pushbutton allows the last entered character to be changed without erasing the display .
This switch must be pressed and held while the new character switch is pressed . The last entered character
will then be replaced with the newly entered one .
Camera Counter Operation
The CAMERA COUNTER is activated by pressing the PUSH ON switch . The switch locks in and
illuminates when the CAMERA COUNTER is selected . This causes the 2-digit camera count to be displayed
in channel 2 .
The camera counter display is set to zero by pressing the (P)RESET switch . Once this is done, two zeros
will appear in the display as the camera count . If it is desired to set the camera count to some number other
than zero, the (P)RESET switch must be pressed and held while the desired number is entered . When
presetting the CAMERA COUNTER, the first number pressed will be entered as the tens digit and the
second as the units digit.
Operating Instructions-7M13
A maximum of eight additional characters can be entered in channel 2 when the CAMERA COUNTER is
activated . The camera counter display appears in character positions 4 and 5 of channel 2 when no other
data is present. As other data is entered, the camera counter display will automatically shift to the right .
The camera count can be advanced by pressing the ADVANCE pushbutton . Each time this button is
pressed, it advances the camera count by 1 .
The camera count can also be advanced by the action of a camera shutter . This is accomplished by using
the remote advance cable provided with the Readout Unit. The cable is connected to the normally open
jack of any Tektronix C-50 series camera and to the SYNC IN jack on the front panel of the Readout Unit.
When connected in this manner, the camera count will be advanced each time the camera shutter is
operated .
An optional remote advance cable, Tektronix Part Number 012-0364-01, is available on special order.
This cable permits connection of the CAMERA COUNTER SYNC IN jack to cameras with ASA shutter
connectors .
Section 2-7M13
THEORY OF OPERATION
INTRODUCTION
The 7M13 Readout Unit provides front panel operation of the readout system of any Tektronix 7000
series oscilloscope . It will operate in any plug-in position in the oscilloscope mainframe . The readout
display will appear on the CRT in the position associated with the selected plug-in compartment . Refer to
the mainframe service manual for the readout system circuit description and to diagram 1 in this manual for
the following circuit description .
. THEORY OF OPERATION
The WRITE pushbuttons select either the UPPER or LOWER (channels 1 and 2 respectively) memory
IC's for data storage . This routes the output of U202B through U168C for the UPPER and through U168D
for the LOWER channel selection. The signal is then presented to the appropriate column and row memory,
write enable inputs .
Each channel has a ten character capacity . As each successive character pushbutton is pressed, the
output of U132C causes U198 to advance its count to the next character position address . This continues
until all character positions are filled . U129B locks in the tenth position and is reset by pressing ERASE .
Pressing a character button when all ten positions are filled will cause the tenth character to be replaced
with the newly selected one .
The ERASE pushbutton, when pressed, fires single-shot U170B. The pulse from U170B clears U129B
and allows pulses derived from time slot information (output of U163D) to be presented through U168A,
U168B, and U132C to U198 (address-to-memory) . The output of U168B is also presented to the
write-into-memory circuits. These pulses cause U198 to count through all data addresses, while the
write-into-memory circuits allow the data present on the data inputs to the row and column IC's to be
written into the memories. No data is present on the inputs to the memories during ERASE . This "no data"
condition is interpreted as a skip command and results in a blank display for that channel . When single-shot
U170B returns to its normal state, it triggers single-shot U170A to reset U129B and the address-to-memory
counter, U198 .
Time slot pulses 2 through 10 are routed through Q177 and 0185 . These pulses are used to advance
U195, the read from memory address IC . Time slot 1 is routed through Q190 and is used to reset U195 at
the end of each count .
The address multiplexer (U200) determines which address, either time slot (output of U195) or data
(output of U198), will be directed to the memory select inputs. Normally, U200 directs time slot addresses
to these inputs for data readout, however, when a character pushbutton is pressed on the front panel of the
Readout Unit, the output of U202A causes the multiplexer to switch and read the address at the outputs of
U198.
Pressing a character button supplies ground closures to the inputs of U109 (column data) and U103 (row
data) . U109 and U103 are decimal-to-BCD converters . They generate the coded character information
presented to the memory data inputs ; column data to U280 and U260, row data to U240 and U220 .
Since all characters generate column data, the outputs of U109 (through diodes CR109, CR110, CR111,
and CR112) are used to inititate the write-into-memory command signals and to trigger the
address-to-memory . This signal, through U202A, is also used to switch the address multiplexer (U200) from
the read-from-memory address (output of U105) so that data stored in the memories can be read and
Theory Of Operation-7M13
displayed on the CRT. Only when a write command signal is present (output of U202A) can U200 read the
address present at the output of U198 . When the address-to-memory command signal is presented to the
memories, information present on the data inputs to the memories will be accepted for storage. Once this is
accomplished, U200 returns to reading the addresses from U195 (time slot information) and the newly
stored character is displayed on the CRT.
The MODIFY pushbutton permits interruption of the address advance pulse (output of U132C) . When
pressed and held, the MODIFY pushbutton allows the last entered character to be changed regardless of its
position in the display.
The SPACE pushbutton generates only row data, therefore, CR102 is used to allow generation of the
write-into-memory and associated signals through the output of U168B. This allows data for space
generation to be stored in the memories and displayed in the same manner as a character.
The camera counter works only through the lower, channel 2, display position . When the camera
counter is selected, it causes time slots 9 and 10 to be reserved for the camera counter display. This is
accomplished by the output of U166A which blocks the memories during these time slots to allow camera
counter information from U159 (units digit) and U161 (tens digit) to be displayed .
Pressing (P)RESET clears U129A, blocks U166D and resets U154 and U157 to zero. The output of
U105E activates the current necessary for zero character generation when no data is present at the outputs
of U159 and U161 . Pressing a number pushbutton (while pressing and holding the (P)RESET pushbutton)
enters that number in the tens position, U157, which is enabled by U132B. The action of U122, when the
number pushbutton is pressed, causes U129A to switch . This allows the next number to be entered as a
units digit in U154-now enabled by U132A.
Camera counter data is presented to the inputs of U265 during time slots 9 and 10 . U161 is activated by
U163C during time slot 9. U159 is activated during time slot 10 by U163B.
The ADVANCE pushbutton, when pressed, provides a ground closure for advancing the camera count .
The SYNC IN jack provides the same function when connected to a camera shutter.
The output of U202A provides an over-ride of the blocking action of U166A during time slots 9 and 10
when the camera counter is selected . This permits entry of other information during these time slots. The
camera counter display is not erased by the ERASE pushbutton .
The outputs of U225, U245, U265, and U285 determine which characters are generated in the readout
system . Refer to the schematic diagram for the functional identification of these IC's . These IC's convert
the BCD input to an output current . This is accomplished by using the BCD inputs to select current inputs
to pins 10, 11, 12, 13, and 14 which are used either singly or combined to produce the proper current
outputs (row and column) for character generation in the readout system .
Section 3-7M13
MAINTENANCE
Change information, if any, affecting this section will be found at the rear of this manual .
INTRODUCTION
This section contains maintenance, troubleshooting, and part ordering information . Further maintenance
information relating to components, color codes, and soldering techniques can be found in the Tektronix
7000-series mainframe manuals .
PREVENTIVE MAINTENANCE
Preventive maintenance, consisting of cleaning, visual inspection, lubrication, etc ., performed on a
regular basis, will improve the reliability of this instrument. Periodic checks on the semiconductor devices
used in the unit are not recommended as a preventive maintenance measure . See semiconductor-checking
information given under troubleshooting .
Cleaning
Avoid the use of chemical cleaning agents which mght damage the plastics in this instrument.
Avoid chemicals containing benzene, toluene, xylene, acetone, or similar solvents.
Front Panel . Loose dust may be removed with a soft brush or cloth . Water and a mild detergent may be
used ; however, abrasive cleaners should not be used .
Interior . Cleaning the interior of the unit should be done with low-velocity compressed air to blow off
the accumulated dust . Hardened dirt can be removed with a soft, dry paint brush, cotton-tipped swab, or a
cloth dampened with a solution of mild detergent and water .
Lubrication
Use a cleaning-type lubricant on interconnecting plug contacts and switch contacts . A lubrication kit
containing necessary lubricating materials and instructions is available through any Tektronix Field Office.
Order Tektronix Part Number 003-0342-01 .
TROUBLESHOOTING
The following is provided to augment information contained in other sections of this manual when
troubleshooting the 7M13 . The schematic diagrams and theory of operation should be used to full
advantage . Schematic diagrams appear on foldout pages in section 6 of this manual . The circuit board
drawing appears on the back of the foldout diagram . Each board mounted electrical component is
identified on the drawing by its circuit number .
Troubleshooting Procedure
This troubleshooting procedure is arranged in an order that checks the simple trouble possibilities before
proceeding with more extensive troubleshooting .
REV B SEP 1979
Maintenance-7M13
Check Associated Equipment
is
Before troubleshooting the 7M13 Readout Unit, check that the equipment used with this instrument
operating correctly . If possible, substitute another unit known to be operating correctly into the mainframe
interconnecting
and see if the problem persists . Check that the input is properly connected and that the
leads are not defective .
Many
Visual Check. Visually check the portion of the instrument in which the trouble is suspected .
troubles can be located by visual indications, such as unsoldered connections, broken wires, damaged circuit
boards, damaged components, etc .
components in
Individual Components. The following methods are provided for checking the individual
the 7M13 . Components that are soldered in place are best checked by disconnecting one end to isolate the
measurement from the effects of related circuitry . Fig . 3-1 shows the lead configuration of the
semiconductor devices used in this instrument .
1 . TRANSISTORS AND INTEGRATED CIRCUITS . The best check of transistor and integrated circuit
operation is actual performance under operating conditions . If a transistor or integrated circuit is suspected
of being defective, it can best be checked by substituting a component known to be good . However, be sure
that circuit conditions are not such that a replacement might also be damaged . If substitute transistors are
not available, use a dynamic tester, such as Tektronix Type 576 . Static-type testers may be used, but since
Fig .
they do not check operation under simulated operating conditions, some defects may go unnoticed .
3-1 shows base pin arrangements of semiconductor devices . Be sure the power is off before attempting to
remove or replace any transistor or integrated circuit.
substitution . A good
Integrated circuits can be checked with a voltmeter, test oscilloscope, or by direct
circuits using integrated circuits . Use
understanding of the circuit description is essential to troubleshooting
leads are not
care when checking voltages and waveforms around the integrated circuits so that adjacent
shorted together . An integrated-circuit test clip provides a convenient means of clipping a test probe to the
tool .
14- and 16-pin integrated circuits . This device also doubles as an integrated-circuit extraction
C
B B
Index
Fig. 3-1 . Semiconductor Lead Configuration .
3-2
Maintenance-7M13
2 . DIODES: A diode can be checked for an open or shorted condition by measuring the resistance
between terminals . With an ohmmeter scale having an internal source of between 800 millivolts and 3 volts,
the resistance should be very high in one direction and very low when the leads are reversed .
Do not use an ohmmeter scale that has a high internal current. High currents may damage the
diodes.
3 . RESISTORS. Check resistors with an ohmmeter . Resistor tolerance is given in the Electrical Parts
List. Resistors normally do not need to be replaced unless the measured value varies widely from the
specified value.
4 . CAPACITORS. A leaky or shorted capacitor can be detected by checking resistance with an
ohmmeter on the highest scale . Use an ohmmeter which will not exceed the voltage rating of the capacitor.
The resistance reading should be high after initial charge of the capacitor . An open capacitor can best be
detected with a capacitance meter, or by checking whether the capacitor passes AC signals .
REPLACEMENT PARTS
Standard Parts
All electrical and mechanical part replacements for the 7M13 can be obtained through your local
Tektronix Field Office or representative. However, many of the standard electronic components can be
obtained locally in less time than is required to order them from Tektronix, Inc . Before purchasing or
ordering replacement parts, check the parts lists for value, tolerance, rating, and description .
NOTE
When selecting replacement parts, it is important to remember that the physical size and shape
of the component may affect its performance in the instrument. All replacement parts should
be direct replacements unless it is known that a different component will not adversely affect
the instrument performance.
Special Parts
Some parts are manufactured or selected by Tektronix to satisfy particular requirements, or are
manufactured for Tektronix to our specifications. These special parts are indicated in the parts list by an
asterisk preceding the part number . Most of the mechanical parts used in this instrument have been
manufactured by Tektronix . Order all special parts directly from your local Tektronix Field Office or
representative .
Ordering Parts
When ordering replacement parts from Tektronix, Inc., refer to the Parts Ordering Information and
Special Notes and Symbols on the page immediately preceding the Electrical Parts List section . Include the
following information :
1 . Instrument type (7M13)
2 . Instrument Serial Number
3 . A description of the part (if electrical, include the circuit number)
4. Tektronix Part Number
Maintenance-7M73
REPACKAGING FOR SHIPMENT
If the Tektronix instrument is to be shipped to a Tektronix Service Center for service or repair, attach a tag
showing : owner (with address) and the name of an individual at your firm that can be contacted, complete
instrument serial number and a description of the services required .
Save and re-use the package in which your instrument was shipped. If the original packaging is unfit for use
or not available, repackage the instrument as follows :
Surround the instrument with polyethylene sheeting to protect the finish of the instrument . Obtain a
carton of corrugated cardboard of the correct carton strength and having inside dimensions of no less than
six inches more than the instrument dimensions . Cushion the instrument by tightly packing three inches of
dunnage or urethane foam between carton and instrument, on all sides. Seal carton with shipping tape or
industrial stapler .
The carton teat strength for your instrument is 200 pounds.
Section 4-7M13
PERFORMANCE CHECK
INTRODUCTION
This section outlines the procedure for checking the performance of the 7M13 Readout Unit . This
procedure assumes that the associated test instruments are working properly .
TABLE 4-1
Recommended Test Equipment
Description Usage Recommended Type
Oscilloscope Necessary for using the 7M13 . It Any Tektronix 7000 series oscil-
must be equipped with a readout loscope equipped with readout.
system .
Camera For use in checking the remote Any Tektronix C-50 series camera.
(optional) camera count advance.
PERFORMANCE CHECK PROCEDURE (Refer to Fig. 1-2.)
The 7M13 Readout Unit must be plugged into the Tektronix 7000-series mainframe for these
performance checks. Both the mainframe and the readout unit should be allowed to warm up for about 20
minutes after power is applied. Make sure the mainframe readout system is turned on . Once the warm-up
period is completed, the unit should be checked as follows:
1 . Select the channel 1 WRITE position by pressing the UPPER pushbutton .
2. Press the ERASE pushbutton to clear the selected channel .
3. Press, one at a time, the first ten character pushbuttons (two top horizontal rows) . Each character
should appear in the display in the order it was selected .
4 . Press the ERASE pushbutton to clear the display.
5. Repeat step 3 selecting the next ten character buttons. Erase the display, then, select the next ten
character buttons and so on till all characters and symbols have been displayed in channel 1 .
6. Press the ERASE pushbutton .
7. Check the SPACE pushbutton by alternately selecting characters and spaces to fill all ten positions in
the display.
8. Press the ERASE pushbutton .
Performance Check-7M13
9. Select any character or symbol for display in the first character position .
10 . Press and hold the MODIFY pushbutton while selecting, at random, several different characters or
symbols . The character selected in step 9 should change to each successively selected character or symbol
without shifting to the next display position .
11 . Release the MODIFY pushbutton and repeat steps 9 and 10 for each of the remaining character
display positions. This check is not necessary for the tenth (last) character position .
12 . Press the ERASE pushbutton .
13 . Select the channel 2 WRITE position by pressing the LOWER pushbutton .
14. Repeat steps 2 through 12 for channel 2.
15 . Select the CAMERA COUNTER by pressing the ON-OFF pushbutton .
16 . Zero the camera counter display by pressing and releasing the (P)RESET pushbutton . The display
should read 00 in channel 2.
17 . Press and hold the (P)RESET pushbutton while pressing two of the number pushbuttons. The
numbers selected should now appear as the camera count. For example, if numbers 2 & 3 are pressed in
that order, the display will read 23 .
18 . Press the ADVANCE pushbutton . The camera count should increase by one unit each time this
button is pressed and released .
19 . Connect the shutter of a Tektronix C-50 series camera to the SYNC IN jack on the front panel of
the Readout Unit using the remote advance cable supplied with the instrument .
20 . Operate the shutter (the camera should not contain film for this check) and check that the camera
count is advanced by one unit each time the shutter operates .
NOTE
If a C-50 series camera is not available for this check, step 20 can be made by shorting the
shutter connector prongs of the remote advance cable together. This will simulate the camera
shutter action and cause the camera count to advance.
Section 5-7M13
REPLACEABLE
ELECTRICAL PARTS
PARTS ORDERING INFORMATION
Replacement parts are available from or through your local Tektronix, Inc . Field Office
or representative .
Changes to Tektronix instruments are sometimes made to accommodate improved
components as they become available, and to give you the benefit of the latest circuit
improvements developed in our engineering department . It is therefore important, when
ordering parts, to include the following information in your order: Part number, instrument
type or number, serial number, and modification number if applicable.
If a part you have ordered has been replaced with a new or improved part, your local
Tektronix, Inc. Field Office or representative will contact you concerning any change in part
number .
Change information, if any, is located at the rear of this manual .
SPECIAL NOTES AND SYMBOLS
X000 Part first added at this serial number
00X Part removed after this serial number
ITEM NAME
In the Parts List, an Item Name is separated from the description by a colon ( :) .
Because of space limitations, an Item Name may sometimes appear as incomplete . For
further Item Name identification, the U .S . Federal Cataloging Handbook H6-1 can be
utilized where possible .
ABBREVIATIONS
ACTR ACTUATOR PLSTC PLASTIC
ASSY ASSEMBLY QTZ QUARTZ
CAP CAPACITOR RECP RECEPTACLE
CER CERAMIC RES RESISTOR
CKT CIRCUIT RF RADIO FREQUENCY
COMP COMPOSITION SEL SELECTED
CONN CONNECTOR SEMICOND SEMICONDUCTOR
ELCTLT ELECTROLYTIC SENS SENSITIVE
ELEC ELECTRICAL VAR VARIABLE
INCAND INCANDESCENT WW WIREWOUND
LED LIGHT EMITTJNG DIODE XFMR TRANSFORMER
NONWIR NON WIREWOUND XTAL CRYSTAL
Replaceable Electrical Parts-7M13
CROSS INDEX-MFR . CODE NUMBER TO MANUFACTURER
Mfr . Code Manufacturer Address City, State, Zip
01121 ALLEN-BRADLEY COMPANY 1201 2ND STREET SOUTH MILWAUKEE, WI 53204
01295 TEXAS INSTRUMENTS, INC., SEMICONDUCTOR P 0 BOX 5012, 13500 N CENTRAL
GROUP EXPRESSWAY DALLAS, TX 75222
07263 FAIRCHILD SEMICONDUCTOR, A DIV. OF
FAIRCHILD CAMERA AND INSTRUMENT CORP . 464 ELLIS STREET MOUNTAIN VIEW, CA 94042
08806 GENERAL ELECTRIC CO ., MINIATURE
LAMP PRODUCTS DEPARTMENT NELA PARK CLEVELAND, OH 44112
14552 MICRO SEMICONDUCTOR CORP . 2830 F FAIRVIEW ST . SANTA ANA, CA 92704
27014 NATIONAL SEMICONDUCTOR CORP . 2900 SEMICONDUCTOR DR . SANTA CLARA, CA 95051
56289 SPRAGUE ELECTRIC CO . NORTH ADAMS, MA 01247
72982 ERIE TECHNOLOGICAL PRODUCTS, INC . 644 W . 12TH ST . ERIE, PA 16512
80009 TEKTRONIX, INC . P 0 BOX 500 BEAVERTON, OR 97077
82389 SWITCHCRAFT, INC . 5555 N . ELSTON AVE . CHICAGO, IL 60630
91637 DALE ELECTRONICS, INC . P. 0 . BOX 609 COLUMBUS, NE 68601
REV B, JUL 1980
5-2
Replaceable Electrical Parts-7M13
Tektronix Serial/Model No . Mfr
Ckt No . Part No . Eff Dscont Name & Description Code Mfr Part Number
Al 670-2939-00 B010100 B059999 CKT BOARD ASSY :ROW COL DRIVER 80009 670-2939-00
Al 670-2939-01 B060000 CKT BOARD ASSY :ROW COL DRIVER 80009 670-2939-01
A2 670-2938-00 CKT BOARD ASSY :KEYBOARD INTERFACE 80009 670-2938-00
A3 670-2936-00 CKT BOARD ASSY :CHANNEL SWITCH 80009 670-2936-00
A4 670-2935-00 CKT BOARD ASSY :MODIFY ERASE SWITCH 80009 670-2935-00
A5 670-2937-00 CKT BOARD ASSY :CAMERA COUNTER MODE SWITCH 80009 670-2937-00
A6 670-2940-00 CKT BOARD ASSY :KEYBOARD SWITCH 80009 670-2940-00
C116 283-0177-00 XB070000 CAP .,FXD,CER DI :lUF,+80-20%,25V 56289 273C5
C117 283-0003-00 CAP.,FXD,CER DI :O .OIUF,+80-20%,150V 72982 855-558Z5U-1032
C122 283-0003-00 CAP .,FXD,CER DI :O .O1UF,+80-20%,150V 72982 855-558Z5U-1032
C125 283-0003-00 CAP.,FXD,CER DI :O .O1UF,+80-20%,150V 72982 855-558Z5U-103Z
C147 283-0003-00 CAP .,FXD,CER DI :O .O1UF,+80-20%,150V 72982 855-558Z5U-103Z
C152 283-0003-00 CAP .,FXD,CER DI :O .O1UF,+80-20%,150V 72982 855-558Z5U-103Z
C170 283-0059-00 CAP .,FXD,CER DI :IUF,+80-20%,25V 72982 8131N031Z5UO105Z
C174 283-0080-00 CAP .,FXD,CER DI :0 .022UF,+80-20%,25V 56289 19C611
C196 281-0543-00 CAP .,FXD,CER DI :270PF,10%,500V 72982 301055X5P271K
C202 283-0003-00 CAP .,FXD,CER DI :0 .01UF,+80-20%,150V 72982 855-558Z5U-103Z
C204 283-0000-00 CAP .,FXD,CER DI :O .OOIUF,+100-0%,500V 72982 831-516E102P
C208 290-0512-00 CAP .,FXD,ELCTLT :22UF,20%,15V 56289 196D226XO015KA1
CR102 152-0141-02 SEMICOND DEVICE :SILICON,30V,50NA 01295 1N4152R
CR108 152-0141-02 SEMICOND DEVICE :SILICON,30V,50NA 01295 1N4152R
CR109 152-0141-02 SEMICOND DEVICE :SILICON,30V,50NA 01295 1N4152R
CR110 152-0141-02 SEMICOND DEVICE :SILICON,30V,50NA 01295 1N4152R
CR111 152-0141-02 SEMICOND DEVICE :SILICON,30V,50NA 01295 IN4152R
CR112 152-0141-02 SEMICOND DEVICE :SILICON,30V,50NA 01295 1N4152R
CR114 152-0141-02 SEMICOND DEVICE :SILICON,30V,50NA 01295 1N4152R
CR127 152-0141-02 SEMICOND DEVICE :SILICON,30V,50NA 01295 1N4152R
CR142 152-0141-02 SEMICOND DEVICE :SILICON,30V,50NA 01295 1N4152R
CR180 152-0141-02 SEMICOND DEVICE :SILICON,30V,50NA 01295 1N4152R
CR181 152-0141-02 SEMICOND DEVICE :SILICON,30V,50NA 01295 1N4152R
CR182 152-0141-02 SEMICOND DEVICE :SILICON,30V,50NA 01295 1N4152R
CR183 152-0141-02 SEMICOND DEVICE :SILICON,30V,50NA 01295 1N4152R
CR184 152-0141-02 SEMICOND DEVICE :SILICON,30V,50NA 01295 1N4152R
CR185 152-0141-02 SEMICOND DEVICE :SILICON,30V,50NA 01295 1N4152R
CR186 152-0141-02 SEMICOND DEVICE :SILICON,30V,50NA 01295 1N4152R
CR187 152-0141-02 SEMICOND DEVICE :SILICON,30V,50NA 01295 1N4152R
CR188 152-0141-02 SEMICOND DEVICE :SILICON,30V,50NA 01295 1N4152R
CR190 152-0141-02 SEMICOND DEVICE :SILICON,30V,50NA 01295 1N4152R
CR191 152-0141-02 SEMICOND DEVICE :SILICON,30V,50NA 01295 1N4152R
CR193 152-0141-02 SEMICOND DEVICE :SILICON,30V,50NA 01295 1N4152R
DS1 150-0048-01 LAMP,INCAND :5V,0 .06A,SEL 08806 683AS15
DS4 150-0102-01 LAMP,INCAND :5V,0 .06A 80009 150-0102-01
J6 131-0407-00 JACK,TELEPHONE :W/HARDWARE 82389 TR-2A
Q116 151-0190-00 TRANSISTOR :SILICON,NPN 07263 5032677
Q119 151-0190-00 TRANSISTOR :SILICON,NPN 07263 5032677
Q143 151-0190-00 TRANSISTOR :SILICON,NPN 07263 S032677
Q146 151-0190-00 TRANSISTOR :SILICON,NPN 07263 S032677
Q149 151-0190-00 TRANSISTOR :SILICON,NPN 07263 5032677
Q177 151-0190-00 TRANSISTOR :SILICON,NPN 07263 5032677
Q185 151-0190-00 TRANSISTOR :SILICON,NPN 07263 5032677
Q190 151-0190-00 TRANSISTOR :SILICON,NPN 07263 S032677
Q209 151-0190-00 TRANSISTOR :SILICON,NPN 07263 5032677
Q216 151-0190-00 TRANSISTOR :SILICON,NPN 07263 5032677
R110 315-0273-00 RES .,FXD,CMPSN :27K OHM,5%,0 .25W 01121 CB2735
REV G, JUL 1980 5- 3
Replaceable Electrical Parts-7M13
Tektronix Serial/Model No . Mfr
Dscont Name & Description - Code Mfr Part Number
Ckt No . Part No . Eff
315-0244-00 RES .,FXD,CMPSN :240K OHM,5%,0 .25W 01121 CB2445
R114
RES .,FXD,CMPSN :IOK OHM,5%,0 .25W 01121 CB1035
R116 315-0103-00
315-0432-00 RES .,FXD,CMPSN :4 .3K OHM,5%,0 .25W 01121 CB4325
R118
315-0473-00 RES .,FXD,CMPSN :47K OHM,5%,0 .25W 01121 CB4735
R125
315-0473-00 RES .,FXD,CMPSN:47K OHM,5%,0 .25W 01121 CB4735
R127
RES .,FXD,CMPSN:47K OHM,5%,0 .25W 01121 CB4735
R130 315-0473-00
315-0622-00 RES .,FXD,CMPSN :6 .2K OHM,5%,0 .25W 01121 CB6225
R140
R141 315-0622-00 RES .,FXD,CMPSN :6 .2K OHM,5%,0 .25W 01121 CB6225
RES .,FXD,CMPSN :4 .3K OHM,5%,0 .25W 01121 CB4325
R144 315-0432-00
R145 315-0753-00 RES .,FXD,CMPSN :75K OHM,5%,0 .25W 01121 CB7535
RES .,FXD,CMPSN :IOK OHM,5%,0 .25W 01121 CB1035
R146 315-0103-00
R148 315-0432-00 RES.,FXD,CMPSN :4 .3K OHM,5%,0 .25W 01121 CB4325
RES .,FXD,CMPSN :47K OHM,5%,0 .25W 01121 CB4735
R170 315-0473-00
RES .,FXD,CMPSN :47K OHM,5%,0 .25W 01121 CB4735
R172 315-0473-00
RES .,FXD,CMPSN :47K OHM,5%,0 .25W 01121 CB4735
R174 315-0473-00
RES .,FXD,CMPSN:620 OHM,5%,0 .25W 01121 CB6215
R177 315-0621-00
315-0512-00 RES .,FXD,CMPSN :5 .1K OHM,5%,0 .25W 01121 CB5125
R179
RES .,FXD,CMPSN :IOK OHM,5%,0 .25W 01121 CB1035
R180 315-0103-00
RES .,FXD,CMPSN:1 .5K OHM,5%,0 .25W 01121 CB1525
R183 315-0152-00
RES .,FXD,CMPSN:6 .2K OHM,5%,0 .25W 01121 CB6225
R185 315-0622-00
RES .,FXD,CMPSN :IK OHM,5%,0 .25W 01121 CB1025
R190 315-0102-00
RES .,FXD,CMPSN :5 .1K OHM,5%,0 .25W 01121 CB5125
R192 315-0512-00
RES .,FXD,CMPSN :1OK OHM,5%,0 .25W 01121 CB1035
R193 315-0103-00
315-0473-00 RES .,FXD,CMPSN :47K OHM,5%,0 .25W 01121 CB4735
R197
315-0273-00 RES .,FXD,CMPSN :27K OHM,5%,0 .25W 01121 CB2735
R202
RES .,FXD,CMPSN :27K OHM,5%,0 .25W 01121 CB2735
R204 315-0273-00
315-0241-00 RES .,FXD,CMPSN :240 OHM,5%,0 .25W 01121 CB2415
R206
B010100 B029999 RES .,FXD,CMPSN :47K OHM,5%,0 .25W 01121 CB4735
R207 315-0473-00
315-0273-00 B030000 RES .,FXD,CMPSN :27K OHM,5%,0 .25W 01121 CB2735
R207
RES .,FXD,CMPSN :75K OHM,5%,0 .25W 01121 CB7535
R208 315-0753-00
RES .,FXD,CMPSN:IOK OHM,5%,0 .25W 01121 CB1035
R209 315-0103-00
B010100 B029999 RES .,FXD,CMPSN :47K OHM,5%,0 .25W 01121 CB4735
R211 315-0473-00
B030000 RES .,FXD,CMPSN:27K OHM,5%,0 .25W 01121 CB2735
R211 315-0273-00
R213 315-0473-00 B010100 B029999 RES .,FXD,CMPSN:47K OHM,5%,0 .25W 01121 CB4735
R213 315-0273-00 B030000 RES .,FXD,CMPSN:27K OHM,5%,0 .25W 01121 CB2735
R215 315-0103-00 RES .,FXD,CMPSN :IOK OHM,5%,0 .25W 01121 CB1035
RES .,FXD,CMPSN :IOK OHM,5%,0 .25W 01121 CB1035
R216 315-0103-00
R221 315-0512-00 RES .,FXD,CMPSN :5 .1K OHM,5%,0 .25W 01121 CB5125
RES .,FXD,CMPSN :6 .2K OHM,5%,0 .25W 01121 CB6225
R222 315-0622-00
RES .,FXD,CMPSN :7 .5K OHM,5%,0 .25W 01121 CB7525
R223 315-0752-00
RES .,FXD,CMPSN :8 .2K OHM,5%,0 .25W 01121 CB8225
R224 315-0822-00
B010100 B049999 RES .,FXD,CMPSN :4 .3K OHM,5%,0 .25W 01121 CB4325
R226 315-0432-00
R226 315-0562-00 B050000 RES .,FXD,CMPSN :5 .6K OH4,5%,0 .25W 01121 CB5625
RES .,FXD,FILM :16 .9K 01*1,1%,0 .125W 91637 MFF1816G16901F
R227 321-0311-00
321-0340-00 RES .,FXD,FILM :34K OHM,1%,0 .125W 91637 MFF1816G34001F
R229
RES .,FXD,FILM :68 .1K OHM,1%,0 .125W 91637 MFF1816G68101F
R230 321-0369-00
321-0396-00 RES .,FXD,FILM :130K OHM,1%,0 .125W 91637 MFF1816GI3002F
R231
315-0510-00 XB060000 RES .,FXD,CMPSN :51 OHM,5%,0 .25W 01121 CB5105
R232
RES .,FXD,CMPSN:5 .1K OHM,5%,0 .25W 01121 CB5125
R241 315-0512-00
RES .,FXD,CMPSN:6 .2K OHM,5%,0 .25W 01121 CB6225
R242 315-0622-00
RES .,FXD,CMPSN:7 .5K OHM,5%,0 .25W 01121 CB7525
R243 315-0752-00
315-0822-00 RES .,FXD,CMPSN:8 .2K OHM,5%,0 .25W 01121 CB8225
R244
315-0432-00 B010100 B049999 RES .,FXD,CMPSN:4 .3K OHM,5%,0 .25W 01121 CB4325
R246
B050000 RES .,FXD,CMPSN :5 .6K O1R1,5%,0 .25W 01121 CB5625
R246 315-0562-00
RES .,FXD,FILM :16 .9K OHM,1%,0 .125W 91637 MFF1816GI6901F
R247 321-0311-00
RES .,FXD,FILM :34K OHM,1%,0 .125W 916,37 MFF1816G34001F
R249 321-0340-00
RES .,FXD,FILM :68 .1K OHM,1%,0 .125W 916-37 MFF1816G68101F
R250 321-0369-00
REV F, JUL 1980
54
Replaceable Electrical Parts-7M13
Tektronix Serial/Model No . Mfr
Ckt No . Part No . Eff Dscont Name & Description Code Mfr Part Number
R251 321-0396-00 RES .,FXD,FILM :130K OHM,1%,0 .125W 91637 MFF1816G13002F
R252 315-0510-00 XB060000 RES .,FXD,CMPSN :51 OHM,5%,0 .25W 01121 CB5105
R261 315-0512-00 RES .,FXD,CMPSN :5 .1K OHM,5%,0 .25W 01121 CB5125
R262 315-0622-00 RES .,FXD,CMPSN :6 .2K OHM,5%,0 .25W 01121 CB6225
R263 315-0752-00 RES .,FXD,CMPSN :7 .5K OHM,5%,0 .25W 01121 CB7525
R264 315-0822-00 RES .,FXD,CMPSN :8 .2K OHM,5%,0 .25W 01121 CB8225
R265 321-0396-00 RES .,FXD,FILM :130K OHM,1%,0 .125W 91637 MFF1816G13002F
R266 315-0432-00 B010100 B049999 RES .,FXD,CMPSN :4 .3K OHM,5%,0 .25W 01121 CB4325
R266 315-0562-00 B050000 RES .,FXD,CMPSN :5 .6K OHM,5%,0 .25W 01121 CB5625
R267 321-0311-00 RES .,FXD,FILM :16 .9K OHM,1%,0 .125W 91637 MFF1816GI6901F
R268 321-0340-00 RES .,FXD,FILM :34K OHM,1%,0 .125W 91637 MFF1816G34001F
8269 321-0369-00 RES .,FXD,FILM :68 .1K OHM,1%,0 .125W 91637 MFF1816G68101F
R270 321-0396-00 RES .,FXD,FILM :130K OHM,1%,0 .125W 91637 MFF1816G13002F
R272 315-0510-00 XB060000 RES .,FXD,CMPSN :51 OHM,5%,0 .25W 01121 CB5105
R281 315-0512-00 RES .,FXD,CMPSN :5 .1K OHM,5%,0 .25W 01121 CB5125
R282 315-0622-00 RES .,FXD,CMPSN :6 .2K OHM,5%,0 .25W 01121 CB6225
R283 315-0752-00 RES .,FXD,CMPSN :7 .5K OHM,5%,0 .25W 01121 CB7525
R284 315-0822-00 RES .,FXD,CMPSN :8 .2K OHM,5%,0 .25W 01121 CB8225
R286 315-0432-00 BO10100 B049999 RES .,FXD,CMPSN :4 .3K OHM,5%,0 .25W 01121 CB4325
8286 315-0562-00 B050000 RES .,FXD,CMPSN :5 .6K OHM,5%,0 .25W 01121 CB5625
R287 321-0311-00 RES .,FXD,FILM :16 .9K OHM,1%,0 .125W 91637 MFF1816GI6901F
R289 321-0340-00 RES .,FXD,FILM :34K OHM,1%,0 .125W 91637 MFF1816G34001F
R290 321-0369-00 RES .,FXD,FILM :68 .1K OHM,1%,0 .125W 91637 MFF1816G68101F
R291 321-0396-00 RES .,FXD,FILM :130K OHM,1%,0 .125W 91637 MFF1816G13002F
R292 315-0510-00 XB060000 RES .,FXD,CMPSN :51 OHM,5%,0 .25W 01121 CB5105
R301 308-0585-00 RES .,FXD,WW :50 OHM,0 .5%,5W 91637 RS5-KFOROOD
R303 315-0102-00 RES .,FXD,CMPSN :IK OHM,5%,0 .25W 01121 CB1025
S1 670-2936-00 SWITCH ASSY :PUSH BUTTON 80009 670-2936-00
S2A,B 670-2935-00 SWITCH ASSY :PUSH BUTTON 80009 670-2935-00
S3 670-2937-00 SWITCH ASSY :PUSH BUTTON 80009 670-2937-00
S4 670-2937-00 SWITCH ASSY :PUSH BUTTON 80009 670-2937-00
S5 670-2937-00 SWITCH ASSY :PUSH BUTTON 80009 670-2937-00
S10 670-2940-00 SWITCH ASSY :PUSH BUTTON 80009 670-2940-00
S11 670-2940-00 SWITCH ASSY :PUSH BUTTON 80009 670-2940-00
S12 670-2940-00 SWITCH ASSY :PUSH BUTTON 80009 670-2940-00
S13 670-2940-00 SWITCH ASSY :PUSH BUTTON 80009 670-2940-00
S14 670-2940-00 SWITCH ASSY :PUSH BUTTON 80009 670-2940-00
U103 156-0347-00 MICROCIRCUIT,DI :10-LINE TO 4-LINE ENCODER 80009 156-0347-00
U105 156-0058-00 MICROCIRCUIT,DI :HEX .INVERTER 80009 156-0058-00
U109 156-0347-00 MICROCIRCUIT,DI :10-LINE TO 4-LINE ENCODER 80009 156-0347-00
U112 156-0030-00 MICROCIRCUIT,DI :QUAD 2-INPUT NAND GATE 01295 SN7400(N OR J)
U122 156-0072-00 MICROCIRCUIT,DI :MONOSTABLE MV,TTL,14 DIP 80009 156-0072-00
U129 156-0039-00 MICROCIRCUIT,DI :DUAL J-K FLIP FLOP 80009 156-0039-00
U132 156-0047-00 MICROCIRCUIT,DI :TPL 3-INPUT POS NAND GATE 80009 156-0047-00
U135 156-0347-00 MICROCIRCUIT,DI :10-LINE TO 4-LINE ENCODER 80009 156-0347-00
U137 156-0058-00 MICROCIRCUIT,DI :HEX .INVERTER 80009 156-0058-00
U152 156-0072-00 MICROCIRCUIT,DI :MONOSTABLE MV,TTL,14 DIP 80009 156-0072-00
U154 156-0091-00 MICROCIRCUIT,DI :DIV BY 2 AND 5 RIPPLE CNTR 80009 156-0091-00
U157 156-0091-00 MICROCIRCLTIT,DI :DIV BY 2 AND 5 RIPPLE CNTR 80009 156-0091-00
U159 156-0057-00 MICROCIRCUIT,DI :QUAD 2-INPUT NAND GATE 01295 SN7401N OR J
U161 156-0057-00 MICROCIRCUIT,DI :QUAD 2-INPUT NAND GATE 01295 SN7401N OR J
U163 156-0043-00 MICROCIRCUIT,DI :QUAD 2-INPUT POS NOR GATE 80009 156-0043-00
U166 156-004.3-00 MICROCIRCUIT,DI :QUAD 2-INPUT POS NOR GATE 80009 156-0043-00
U168 156-0030-00 MICROCIRCUIT,DI :QUAD 2-INPUT NAND GATE 01295 SN7400(N OR J)
U170 156-0172-00 MICROCIRCUIT,DI :DUAL RETRIG ONE-SHOT W/CLR 80009 156-0172-00
U195 156-0079-00 MICROCIRCUIT,DI :DECADE COUNTER,TTL 80009 156-0079-00
REV F, JUL 1980 5-5
Replaceable Electrical Parts-7M13
Tektronix Serial/Model No . Mfr
Ckt No . Part No . Eff Dscont Name & Description Code Mfr Part Number
U198 156-0079-00 MICROCIRCUIT,DI :DECADE COUNTER,TTL 80009 156-0079-00
U200 156-0125-00 MICROCIRCUIT,DI :QUAD 2-INPUT MUX 80009 156-0125-00
U202 156-0172-00 MICROCIRCUIT,DI :DUAL RETRIG ONE-SHOT W/CLR 80009 156-0172-00
U220 156-0192-00 MICROCIRCUIT,DI :64-BIT READ/WHITE MEMORY 27014 DM/SN7489
U225 155-0038-01 MICROCIRCUIT,DI :5-BIT DGTL ANALOG CONV 80009 155-0038-01
U240 156-0192-00 MICROCIRCUIT,DI :64-BIT READ/WHITE MEMORY 27014 DM/SN7489
U245 155-0038-01 MICROCIRCUIT,DI :5-BIT DGTL ANALOG CONV 80009 155-0038-01
U260 156-0192-00 MICROCIRCUIT,DI :64-BIT READ/WHITE MEMORY 27014 DM/SN7489
U265 155-0038-01 MICROCIRCUIT,DI :5-BIT DGTL ANALOG CONV 80009 155-0038-01
U280 156-0192-00 MICROCIRCUIT,DI :64-BIT READ/WHITE MEMORY 27014 DM/SN7489
U285 155-0038-01 MICROCIRCUIT,DI :5-BIT DGTL ANALOG CONV 80009 155-0038-01
VR215 152-0243-00 SEMICOND DEVICE :ZENER,0 .4W,15V,5% 14552 IN965B
REV C, JUL 1980
5-6
Section 6-7M13
DIAGRAMS AND CIRCUIT BOARD ILLUSTRATIONS
Symbols and Reference Designators
Electrical components shown on the diagrams are in the following units unless noted otherwise:
Capacitors = Values one or greater are in picofarads (pF) .
Values less than one are in microfarads (IF) .
Resistors = Ohms (S2)
Symbols used on the diagrams are based on USA Standard Y32.2-1970.
Logic symbology is based on MIL-STD-806B in terms of positive logic. Logic symbols depict the logic function performed
and may differ from the manufacturer's data .
The following special symbols are used on the diagrams :
External Screwdriver adjustment .
oD
External control or connector.
Coax connector with grounded shield .
Refer to diagram number indicated in diamond.
Refer to waveform number indicated in hexagon.
Connection made to circuit board with interconnecting pin.
Blue tint encloses components located on circuit board .
Designates part of a complete circuit board.
The following prefix letters are used as reference designators to identify components or assemblies on the diagrams .
A Assembly, separable or repairable (circuit board, etc.) LR Inductor/resistor combination
AT Attenuator, fixed or variable M Meter
B Motor Q Transistor or silicon-controlled rectifier
BT Battery P Connector, movable portion
C Capacitor, fixed or variable R Resistor, fixed or variable
CR Diode, signal or rectifier RT Thermistor
DL Delay line S Switch
DS Indicating device (lamp) T Transformer
F Fuse TP Test point
FL Filter U Assembly, inseparable or non-repairable (integrated
H Heat dissipating device (heat sink, heat radiator, etc.) circuit, etc.)
HR Heater V Electron tube
J Connector, stationary portion VR Voltage regulator (zener diode, etc.)
K Relay Y Crystal
L Inductor, fixed or variable CW Clockwise control rotation
TO PZO2
P2 G~2~3
QSI I~
~--COMJ LIGHTS S?A
E~- -BV PWR
52B
LOWER
ROW ROW
-------~ DATA DATA
C--aPl-3
COLUMN
DATA <---PI-3 CDATAN i 6-CHPI-I COLUMN
DATA
P7-3 0 P7-7
0
P7-8 1
~~ E-a PI-4
_
E-aPI-2
1 6 .0
E-aPI-3
0 0 P7-8 aP7-5
P7-7
I E- 'aPl-2 CE+PI-4 ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
