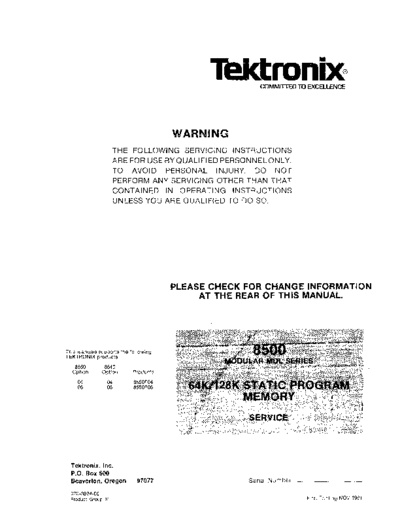

                                                      COMMITTED TO EXCELLENCE




                                      WARNING
                      THE FOLLOWING SERVICING INSTRUCTIONS
                      ARE FOR USE BY QUALIFIED PERSONNEL ONLY.
                      TO AVOID PERSONAL INJURY, DO NOT
                      PERFORM ANY SERVICING OTHER THAN THAT
                      CONTAINED IN OPERATING INSTRUCTIONS
                      UNLESS YOU ARE QUALIFIED TO DO SO.




                                      PLEASE CHECK FOR CHANGE INFORMATION
                                           AT THE REAR OF THIS MANUAL.




This manuaiS supports the following
TEKTRONIX products:

   8550         8540
  Option        Option     Products

    04           04        8550F04
    05           05        8550F05


                                                                                  '\':'In"t
                                                                                   ';:"i1:.;:~


                                                                                      ~.   \~~"*

                                                                                           d1"~
                                                                                    :.. ~1;(;
                                                                                  , 'jdtf




  Tektronix, Inc.
  P.O. Box 500
  Beaverton, Oregon          97077                  Serial Number _ _ _ _ _-

  070-3924-00
  Product Group 61                                                First Printing NOV 1981
