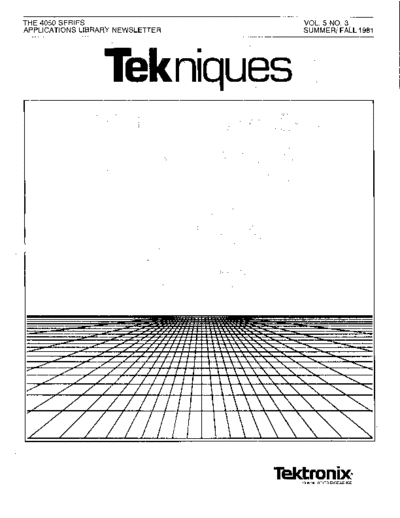

Image preview - the first page of the document



>> Download Tekniques_Vol_5_No_03 documenatation <<

Text preview - extract from the document

THE 4050 SERIES                   VOL. 5 NO.3
APPLICATIONS LIBRARY NEWSLETTER   SUMMER/ FALL 1981




                  Tekniques




                                  COMMITTED TO EXCELLENCE
Tekniques                                                                   Color Enhanced
In This Issue                                                              Dynamic Graphics:
Color Enhanced Dynamic
Graphics .......................... 2
Low-Cost CADD System
Communicates Numerically
and Graphically . . . . . . . . . . . . . . . . .. 5
New PLOT 50 Digitizing
Software Encodes Graphic
Images ............. : ............ 11
                                                        A New Option; A New Technology
Graphic Systems Workshops ........ 15
450,000 Byte Cartridge Tape ........ 15
Input/Output ...................... 17
Editor's Note .................... 18
Programming Tips ................ 19
BASIC Bits ...................... 26
Library Consolidation .............. 28
New Abstracts .................... 29




                                                       By Thomas W. Woody
                                                          Tektronix, Inc.                                   objects which are in the familiar green
                                                                                                            color. And displaying a refreshed image
                                                          Beaverton, OR
                                                                                                            over a stored image achieves a third co-
                                                                                                            lor - very useful for highlighting text or
                                                       Dynamic Graphics* brought powerful in-               objects.
                                                       teractivity to the TEKTRONIX 4054
                                                       Desktop Computer. Now the 4054 has                   Packaging a desktop computer with very
                                                       taken another technological leap: Color              high resolution (4096 x 4096 addressable
                                                       Enhanced Dynamic Graphics. This new                  points), Dynamic Graphics, and a second
                                                       option aliows refreshed objects to be                color required a major technological ad-
                                                       moved around on the graphics screen in               vancement. To understand this technolo-
                                                       a contrasting orange color. Enhancing                gy, let's take a look at the Direct View
                                                       Dynamic Graphics with color clearly dis-             Storage Tube (DVST), the Write-Thru
                                                       tinguishes refreshed objects from stored             operation, and the Over-Write features.




TEKniques, the 4050 Series Applications
Library Newsletter, is published by the                                                                                      l----~- CHARGEIMAGEAREA
Information Display Division of                                                                                                      (fully written, FW)

Tektronix, Inc., Group 451, P.O. Box 500,                                                                                  o\l!!i\-----I.-   PHOSPHOR

Beaverton, Oregon 97077. It is distributed
to TEKTRONIX 4050 Series users and                                                                                     V--H~_ _ _~           RAISED COLLECTORS
members of the
