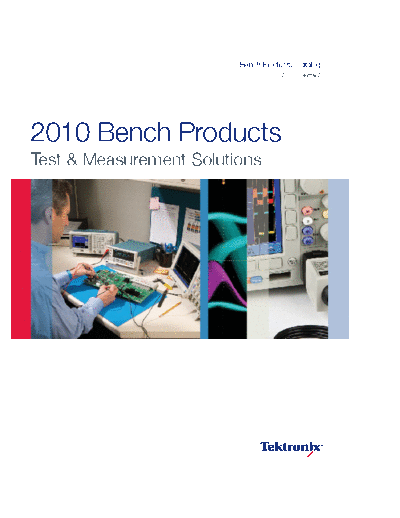

Image preview - the first page of the document
>> Download 48W_25025_1 documenatation <<
Text preview - extract from the document
Bench Products Catalog
2010, Volume 2
2010 Bench Products
Test & Measurement Solutions
Table of Contents
2010 Bench Products Catalog
Table of Contents
Connect Your Bench ........................3
Oscilloscopes ............................... 4-7
Table of Contents
Selection Guides .................................. 4, 6
Visit: www.tektronix.com/oscilloscopes
Digital Multimeters ...........................8
Selection Guide ....................................... 8
Visit: www.tektronix.com/dmm
Signal Generators ............................9
Visit: www.tektronix.com/signal_generators
Tektronix: The World's Standard in Oscilloscopes
Probes and Accessories ................10
8 out of 10 engineers around the world trust Tektronix to help them speed debug and
Visit: www.tektronix.com/accessories
test of tomorrow's designs. To complement our oscilloscopes, we offer a portfolio of
Service ...........................................11 bench instruments designed with the same ease-of-use you've come to expect from us
Visit: www.tektronix.com/service over the last 60 years. From dedicated buttons for common functions to USB ports for
saving data. Our instruments are designed to be quick to learn and simple to operate.
And, every Tektronix bench instrument is built to last, backed by a 3 year warranty.
About Tektronix:
www.tektronix.com
For more than sixty years, engineers have turned to Tektronix for test, measurement
and monitoring instrumentation to solve design challenges, improve productivity and
dramatically reduce time to market. You can always count on us to give you the domain
expertise, innovation, performance, practical advice and quality you need.
Tektronix offers a wide range of test and measurement solutions, from oscilloscopes
and probes to signal generators and spectrum analyzers, with much more in between
including our comprehensive line of bench instruments.
To see our full portfolio, please visit us at www.tektronix.com.
2 www.tektronix.com
Software
2010 Bench Products Catalog
Connect Your Bench
Connect Your Test Bench
with Tektronix Edition of National Instruments LabVIEW SignalExpressTM
To simplify your most complicated tasks, connect your test bench with LabVIEW SignalExpressTM from National Instruments,
included standard with Tektronix bench instruments*. Control your Tektronix instruments right from your PC. Automate measure-
ments and analyze data across multiple instruments. Capture and save results. Create reports. All from one intuitive software
package.
The optional Professional Version of SignalExpress (SIGEXPTE) offers over 200 built-in functions for extended analysis
including time and frequency domain analysis, limit testing, advanced data logging and customizable reports.
To download your free copy, visit: www.tektronix.com/signalexpress
* For a list of qualifying instruments, visit: www.tektronix.com/signalexpress.
www.tektronix.com 3
Basic Oscilloscope Selection
2010 Bench Products Catalog
Basic Oscilloscopes Selection Guide
TDS2000B Series TPS2000 Series TDS3000C Series
Basic Oscilloscopes Product Selection
To accurately visualize the intricate details of fast changing signals, you need an oscilloscope with uncompromised performance. Tektronix basic oscilloscopes feature
digital real-time sampling with at least x5 over sampling on all channels, all the time, to precisely capture today's complex signals.
TDS1000B/TDS2000B TPS2000 TDS3000C
Channels 2, 4 2, 4 (isolated) 2, 4
Bandwidth 40 MHz to 200 MHz 100 MHz to 200 MHz 100 MHz to 500 MHz
Rise Time 5.8 ns to 2.1 ns 3.5 ns to 2.1 ns 3.5 ns to 700 ps
Sample Rate 500 MS/s to 2 GS/s 1 GS/s to 2 GS/s 1.25 GS/s to 5 GS/s
Max Record Length 2.5 k points 2.5 k points 10 k points
Trigger Types Edge, Pulse (width), Video Edge, Pulse (width), Video Edge, Logic (Pattern, State), Pulse (Glitch,
Width, Runt, Slew Rate), Video, Extended
Video*, Comm*
*Optional
Optional Analysis -- TPS2PWR1: Power Measurement and TDS3AAM: Advanced Analysis
Analysis TDS3LIM: Limit Testing
TDS3SDI: 601 Serial Digital Video Analysis
TDS3TMT: Telecom Mask Testing
TDS3VID: HDTV and Custom Video Triggering
Connectivity USB Host, USB Device, GPIB* RS-232, Centronics, CompactFlash USB Host, LAN (10Base-T Ethernet)
Optional TDS3GV Module: GPIB, RS-232, and
*Optional
Video Out
Waveform Math 12 Automated Measurements, Arithmetic 11 Automated Measurements, Arithmetic 25 Automated Measurements, Arithmetic
and Analysis Waveform Math, FFT Waveform Math, FFT Waveform Math, FFT, Advanced Math*
*Optional
Software PC Communications Software: PC Communications Software: PC Communications Software:
