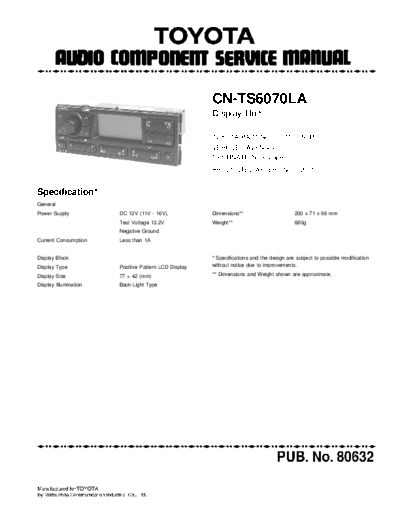

Image preview - the first page of the document



>> Download CN-TS6070 documenatation <<

Text preview - extract from the document

                                                      CN-TS6070LA
                                                      Display Unit

                                                      TOYOTA PART No. : 86110-05011
                                                      VEHICLE : AVENSIS
                                                      DESTINATION : Europe
                                                      PRODUCTED AFTER : Nov., 2001


Specification*
General
Power Supply           DC 12V (11V - 16V),            Dimensions**                       200 x 71 x 96 mm
                       Test Voltage 13.2V             Weight**                           680g
                       Negative Ground
Current Consumption    Less than 1A


Display Block                                         * Specifications and the design are subject to possible modification
Display Type           Positive Pattern LCD Display   without notice due to improvements.

Display Size           77
