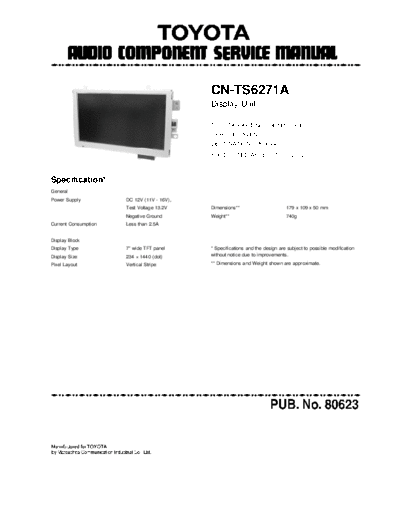

Image preview - the first page of the document



>> Download CN-TS6271 documenatation <<

Text preview - extract from the document

                                            CN-TS6271A
                                            Display Unit

                                            TOYOTA PART No. : 86111-20010
                                            VEHICLE : AVENSIS
                                            DESTINATION : Europe
                                            PRODUCTED AFTER : Nov., 2002



Specification*
General
Power Supply          DC 12V (11V - 16V),
                      Test Voltage 13.2V    Dimensions**                       179 x 109 x 50 mm
                      Negative Ground       Weight**                           740g
Current Consumption   Less than 2.5A


Display Block
Display Type          7" wide TFT panel     * Specifications and the design are subject to possible modification
Display Size          234
