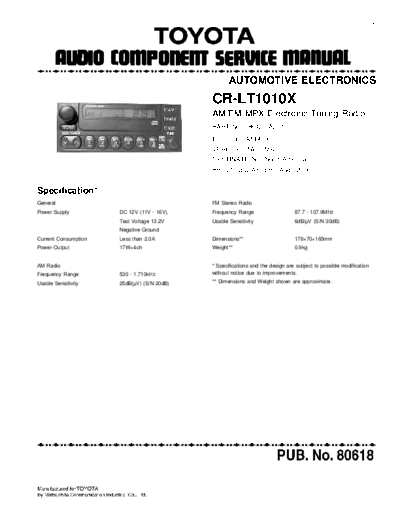

Image preview - the first page of the document
CR-LT1010


>> Download CR-LT1010 documenatation <<

Text preview - extract from the document
                                                                                                                   I0




                                                   AUTOMOTIVE ELECTRONICS
                                            CR-LT1010X
                                            AM/FM MPX Electronic Tuning Radio
                                            PART No. : 86120-AD010
                                            ID CODE : A51409
                                            VEHICLE : TACOMA
                                            DESTINATION : North America
                                            PRODUCED AFTER : Aug., 2000


Specification*
General                                     FM Stereo Radio
Power Supply          DC 12V (11V - 16V),   Frequency Range                    87.7 - 107.9MHz
                      Test Voltage 13.2V    Usable Sensitivity                 6dB/
