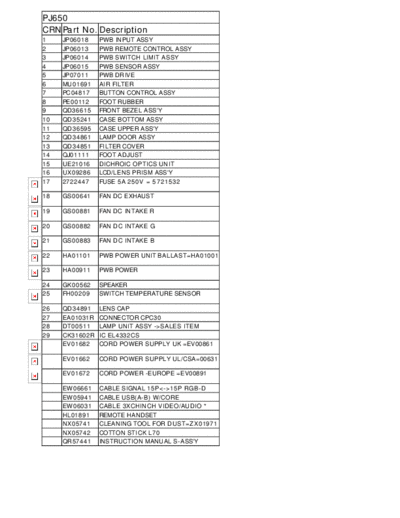

Image preview - the first page of the document
>> Download pj650-1__rspl documenatation <<
Text preview - extract from the document
PJ650
CRN Part No. Description
1 JP06018 PWB INPUT ASSY
2 JP06013 PWB REMOTE CONTROL ASSY
3 JP06014 PWB SWITCH LIMIT ASSY
4 JP06015 PWB SENSOR ASSY
5 JP07011 PWB DRIVE
6 MU01691 AIR FILTER
7 PC04817 BUTTON CONTROL ASSY
8 PE00112 FOOT RUBBER
9 QD36615 FRONT BEZEL ASS'Y
10 QD35241 CASE BOTTOM ASSY
11 QD36595 CASE UPPER ASS'Y
12 QD34861 LAMP DOOR ASSY
13 QD34851 FILTER COVER
14 QJ01111 FOOT ADJUST
15 UE21016 DICHROIC OPTICS UNIT
16 UX09286 LCD/LENS PRISM ASS'Y
17 2722447 FUSE 5A 250V = 5721532
18 GS00641 FAN DC EXHAUST
19 GS00881 FAN DC INTAKE R
20 GS00882 FAN DC INTAKE G
21 GS00883 FAN DC INTAKE B
22 HA01101 PWB POWER UNIT BALLAST=HA01001
23 HA00911 PWB POWER
24 GK00562 SPEAKER
25 FH00209 SWITCH TEMPERATURE SENSOR
26 QD34891 LENS CAP
27 EA01031R CONNECTOR CPC30
28 DT00511 LAMP UNIT ASSY ->SALES ITEM
29 CK31602R IC EL4332CS
EV01682 CORD POWER SUPPLY UK =EV00861
EV01662 CORD POWER SUPPLY UL/CSA=00631
EV01672 CORD POWER -EUROPE =EV00891
EW06661 CABLE SIGNAL 15P<->15P RGB-D
EW05941 CABLE USB(A-B) W/CORE
EW06031 CABLE 3XCHINCH VIDEO/AUDIO *
HL01891 REMOTE HANDSET
NX05741 CLEANING TOOL FOR DUST=ZX01971
NX05742 COTTON STICK L70
QR57441 INSTRUCTION MANUAL S-ASS'Y
