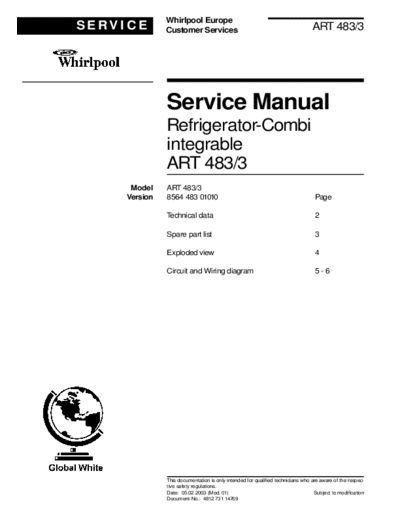

Image preview - the first page of the document
>> Download whirlpool_art_483_3 documenatation <<
Text preview - extract from the document
Whirlpool Europe
SERVICE Customer Services ART 483/3
Service Manual
Refrigerator-Combi
integrable
ART 483/3
Model ART 483/3
Version 8564 483 01010 Page
Technical data 2
Spare part list 3
Exploded view 4
Circuit and Wiring diagram 5-6
This documentation is only intended for qualified technicians who are aware of the respec-
tive safety regulations.
Date: 05.02.2003 (Mod. 01) Subject to modification
Document-No.: 4812 731 14769
21.01.2003 / Page 2 ART 483/3 Whirlpool Europe
Doc. No: 4812 731 14769 8564 483 01010 Customer Service SERVICE
Technical data
Factory Code CB 307 W Compressor (cooling)
Type EMT 26 CLP
Dimensions
Capacity (CECOMAF) 59 W
Height 173.5 cm
Width 54.0 cm Compressor (freezing)
Depth 51.8 cm
Type EMT 40 CLP
Capacity (CECOMAF) 91 W
Capacity
Total Refrigerant (cooling)
gross 281 l
net 263 l Type R 600 a
Cooling Quantity 25 g
gross 200 l
net 198 l
Refrigerant (freezing)
Freezing
gross 81 l
net 65 l Type R 600 a
Quantity 38 g
Electrical connection
Thermostat switching value (cooling)
Voltage 220 - 240 V
Frequency 50 Hz Switch on temperature
min. + 4.5 ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
