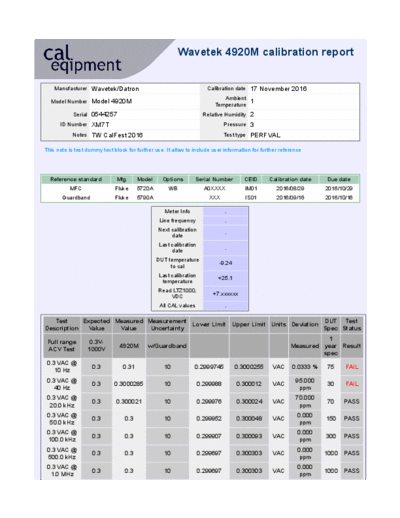

Image preview - the first page of the document
>> Download cq_example documenatation <<
Text preview - extract from the document
Wavetek 4920M calibration report
Manufacturer Wavetek/Datron Calibration date 17 November 2016
Ambient
Model Number Model 4920M 1
Temperature
Serial 0544257 Relative Humidity 2
ID Number XM7T Pressure 3
Notes TW CalFest 2016 Test type PERFVAL
This note is test dummy text block for further use. It allow to include user information for further reference
Reference standard Mfg Model Options Serial Number CEID Calibration date Due date
MFC Fluke 5720A WB A0XXXX IM01 2016/08/29 2016/10/29
Guardband Fluke 5790A XXX IS01 2016/09/16 2016/10/16
Meter Info .
Line frequency .
Next calibration
.
date
Last calibration
.
date
DUT temperature
-9.24
to cal
Last calibration
+25.1
temperature
Read LTZ1000,
+7.xxxxxx
VDC
All CAL values .
Test Expected Measured Measurement DUT Test
Lower Limit Upper Limit Units Deviation
Description Value Value Uncertainty Spec Status
1
Full range 0.3V-
4920M w/Guardband Measured year Result
ACV Test 1000V
spec
0.3 VAC @
0.3 0.31 10 0.2999745 0.3000255 VAC 0.0333 % 75 FAIL
10 Hz
0.3 VAC @ 95.000
0.3 0.3000285 10 0.299988 0.300012 VAC 30 FAIL
40 Hz ppm
0.3 VAC @ 70.000
0.3 0.300021 10 0.299976 0.300024 VAC 70 PASS
20.0 kHz ppm
0.3 VAC @ 0.000
0.3 0.3 10 0.299952 0.300048 VAC 150 PASS
50.0 kHz ppm
0.3 VAC @ 0.000
0.3 0.3 10 0.299907 0.300093 VAC 300 PASS
100.0 kHz ppm
0.3 VAC @ 0.000
0.3 0.3 10 0.299697 0.300303 VAC 1000 PASS
500.0 kHz ppm
0.3 VAC @ 0.000
0.3 0.3 10 0.299697 0.300303 VAC 1000 PASS
1.0 MHz ppm
1.0 VAC @ 0.000
1.0 1.0 10 0.999915 1.000085 VAC 75 PASS
10 Hz ppm
1.0 VAC @ 0.000
1.0 1.0 10 0.99996 1.00004 VAC 30 PASS
40 Hz ppm
1.0 VAC @ 0.000
1.0 1.0 10 0.99992 1.00008 VAC 70 PASS
20.0 kHz ppm
1.0 VAC @ 0.000
1.0 1.0 10 0.99984 1.00016 VAC 150 PASS
50.0 kHz ppm
1.0 VAC @ 0.000
1.0 1.0 10 0.99969 1.00031 VAC 300 PASS
100.0 kHz ppm
1.0 VAC @ 0.000
1.0 1.0 10 0.99899 1.00101 VAC 1000 PASS
500.0 kHz ppm
1.0 VAC @ 0.000
1.0 1.0 10 0.99899 1.00101 VAC 1000 PASS
1.0 MHz ppm
3.0 VAC @ 0.000
3.0 3.0 10 2.999745 3.000255 VAC 75 PASS
10 Hz ppm
3.0 VAC @ 0.000
3.0 3.0 10 2.99988 3.00012 VAC 30 PASS
40 Hz ppm
3.0 VAC @ 0.000
3.0 3.0 10 2.99976 3.00024 VAC 70 PASS
20.0 kHz ppm
3.0 VAC @ 0.000
3.0 3.0 10 2.99952 3.00048 VAC 150 PASS
50.0 kHz ppm
3.0 VAC @ 0.000
3.0 3.0 10 2.99907 3.00093 VAC 300 PASS
100.0 kHz ppm
3.0 VAC @ 0.000
3.0 3.0 10 2.99697 3.00303 VAC 1000 PASS
500.0 kHz ppm
3.0 VAC @ 0.000
3.0 3.0 10 2.99697 3.00303 VAC 1000 PASS
1.0 MHz ppm
10.0 VAC @
10.0 11.0 10 9.99915 10.00085 VAC 0.1000 % 75 FAIL
10 Hz
10.0 VAC @ 0.000
10.0 10.0 10 9.9996 10.0004 VAC 30 PASS
40 Hz ppm
10.0 VAC @ 0.000
10.0 10.0 10 9.9992 10.0008 VAC 70 PASS
20.0 kHz ppm
10.0 VAC @ 0.000
10.0 10.0 10 9.9984 10.0016 VAC 150 PASS
50.0 kHz ppm
10.0 VAC @ 0.000
10.0 10.0 10 9.9969 10.0031 VAC 300 PASS
100.0 kHz ppm
10.0 VAC @ 0.000
10.0 10.0 10 9.9899 10.0101 VAC 1000 PASS
500.0 kHz ppm
10.0 VAC @ 0.000
10.0 10.0 10 9.9899 10.0101 VAC 1000 PASS
1.0 MHz ppm
30.0 VAC @
30.0 31.0 10 29.99745 30.00255 VAC 0.0333 % 75 FAIL
10 Hz
30.0 VAC @ 0.000
30.0 30.0 10 29.9988 30.0012 VAC 30 PASS
40 Hz ppm
30.0 VAC @ 0.000
30.0 30.0 10 29.9976 30.0024 VAC 70 PASS
20.0 kHz ppm
30.0 VAC @ 0.000
30.0 30.0 10 29.9952 30.0048 VAC 150 PASS
50.0 kHz ppm
30.0 VAC @ 30.0 30.0 10 29.9907 30.0093 VAC 0.000 300 PASS
30.0 VAC @ 30.0 30.0 10 29.9907 30.0093 VAC 0.000 300 PASS
100.0 kHz ppm
30.0 VAC @ 0.000
30.0 30.0 10 29.9697 30.0303 VAC 1000 PASS
500.0 kHz ppm
30.0 VAC @ 0.000
30.0 30.0 10 29.9697 30.0303 VAC 1000 PASS
1.0 MHz ppm
100.0 VAC
100.0 101.0 10 99.9915 100.0085 VAC 0.0100 % 75 FAIL
@ 10 Hz
100.0 VAC 0.000
100.0 100.0 10 99.996 100.004 VAC 30 PASS
@ 40 Hz ppm
100.0 VAC 0.000
100.0 100.0 10 99.992 100.008 VAC 70 PASS
@ 20.0 kHz ppm
100.0 VAC 0.000
100.0 100.0 10 99.984 100.016 VAC 150 PASS
@ 50.0 kHz ppm
120.0 VAC
@ 100.0 120.0 100.0 10 119.9628 120.0372 VAC -0.1667 % 300 FAIL
kHz
120.0 VAC
@ 200.0 120.0 100.0 10 119.9628 120.0372 VAC -0.1667 % 300 FAIL
kHz
300.0 VAC 333.333
300.0 300.1 10 299.9745 300.0255 VAC 75 FAIL
@ 10 Hz ppm
300.0 VAC 0.000
300.0 300.0 10 299.988 300.012 VAC 30 PASS
@ 40 Hz ppm
300.0 VAC 0.000
300.0 300.0 10 299.976 300.024 VAC 70 PASS
@ 20.0 kHz ppm
300.0 VAC 0.000
300.0 300.0 10 299.952 300.048 VAC 150 PASS
@ 50.0 kHz ppm
1045.0 VAC
1045.0 1000.2 10 1044.952975 1045.047025 VAC -0.0429 % 35 FAIL
@ 45 Hz
1033.0 VAC
1033.0 1000.0 10 1032.912195 1033.087805 VAC -0.0319 % 75 FAIL
@ 20.0 kHz
1033.0 VAC
1033.0 1000.0 10 1032.912195 1033.087805 VAC -0.0319 % 75 FAIL
@ 33.0 kHz
1
Flatness
1V/3V 4920M w/Guardband Measured year Result
test WBV
spec
1.0 VAC @ 0.000
1.0 1.0 10 0.999415 1.000585 VAC 575 PASS
500.0 kHz ppm
3.0 VAC @ 0.000
3.0 3.0 10 2.99772 3.00228 VAC 750 PASS
10 Hz ppm
3.0 VAC @ 0.000
3.0 3.0 10 2.99922 3.00078 VAC 250 PASS
40 Hz ppm
3.0 VAC @ 0.000
3.0 3.0 10 2.99922 3.00078 VAC 250 PASS
500.0 kHz ppm
3.0 VAC @ 0.000
3.0 3.0 10 2.99922 3.00078 VAC 250 PASS
1.0 MHz ppm
3.0 VAC @ 0.000
3.0 3.0 10 2.99847 3.00153 VAC 500 PASS
10.0 MHz ppm
3.0 VAC @ 0.000
20.0 MHz 3.0 3.0 10 2.99697 3.00303 VAC ppm 1000 PASS
3.0 VAC @ 0.000
3.0 VAC @ 3.0 3.0 10 2.99397 3.00603 VAC 0.000 2000 PASS
30.0 MHz ppm
3.0 VAC @ 0.000
3.0 3.0 10 2.98797 3.01203 VAC 4000 PASS
40.0 MHz ppm
3.0 VAC @ 0.000
3.0 3.0 10 2.98797 3.01203 VAC 4000 PASS
50.0 MHz ppm
1
Full range
1V/3V 4920M w/Guardband Measured year Result
WBV Test
spec
1.0 VAC @ 0.000
1.0 1.0 10 0.998665 1.001335 VAC 1325 PASS
10 Hz ppm
1.0 VAC @ 0.000
1.0 1.0 10 0.998665 1.001335 VAC 1325 PASS
1.0 kHz ppm
1.0 VAC @ 0.000
1.0 1.0 10 0.998665 1.001335 VAC 1325 PASS
500.0 kHz ppm
3.0 VAC @ 0.000
3.0 3.0 10 2.99697 3.00303 VAC 1000 PASS
10 Hz ppm
3.0 VAC @ 0.000
3.0 3.0 10 2.99697 3.00303 VAC 1000 PASS
1.0 kHz ppm
3.0 VAC @ 0.000
3.0 3.0 10 2.99697 3.00303 VAC 1000 PASS
500.0 kHz ppm
3.0 VAC @ 0.000
3.0 3.0 10 2.99622 3.00378 VAC 1250 PASS
1.0 MHz ppm
3.0 VAC @ 0.000
3.0 3.0 10 2.99547 3.00453 VAC 1500 PASS
10.0 MHz ppm
3.0 VAC @ 0.000
3.0 3.0 10 2.99397 3.00603 VAC 2000 PASS
20.0 MHz ppm
3.0 VAC @ 0.000
3.0 3.0 10 2.99097 3.00903 VAC 3000 PASS
30.0 MHz ppm
3.0 VAC @ 0.000
3.0 3.0 10 2.98497 3.01503 VAC 5000 PASS
40.0 MHz ppm
3.0 VAC @ 0.000
3.0 3.0 10 2.98497 3.01503 VAC 5000 PASS
50.0 MHz ppm
Lab temperature maintained +24◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
