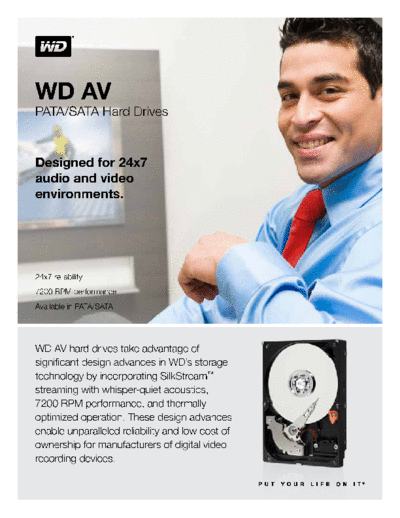

Image preview - the first page of the document



>> Download WD AV documenatation <<

Text preview - extract from the document

WD AV
PATA/SATA Hard Drives


Designed for 24x7
audio and video
environments.




24x7 reliability
7200 RPM performance
Available in PATA/SATA




WD AV hard drives take advantage of
significant design advances in WD's storage
technology by incorporating SilkStreamTM
streaming with whisper-quiet acoustics,
7200 RPM performance, and thermally
optimized operation. These design advances
enable unparalleled reliability and low cost of
ownership for manufacturers of digital video
recording devices.
WD AV
PATA/SATA Hard Drives



Product features

  24x7 reliability                                                       PAtA or SAtA interface                                                  SilkStream                                                             ramp load
  With a MTBF of 1 million hours,                                        Although most systems use hard drives                                   Optimized for smooth, continuous                                       Parks the recording heads off the disk
  these drives are designed to last in                                   with a SATA interface, some unique or                                   digital video playback of up to twelve                                 surface during spin up, spin down,
  always-on streaming digital audio/video                                legacy systems require drives with a                                    simultaneous HD streams.** SilkStream                                  and when the drive is off. This ensures
  environments such as PVR/DVR, DVR                                      PATA interface.                                                         is compatible with the ATA streaming                                   the recording head never touches the
  recorders, and surveillance                                                                                                                    command set allowing CE customers                                      disk surface resulting in improved long
  video recorders.                                                       compatible                                                              to use standard streaming management                                   term reliability due to less head wear,
                                                                         Tested for compatibility in a broad                                     and error recovery options.                                            and improved non-operational shock
  Quiet                                                                  range of AV products including set top                                                                                                         tolerance.
  Noise levels have been minimized to                                    boxes, DVD recorders, and mainstream                                    1 million hours mtBf
  less than one sone*
