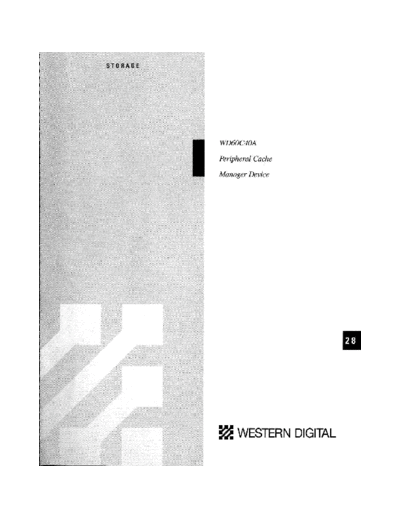

Image preview - the first page of the document
28_WD60C40A


>> Download 28_WD60C40A documenatation <<

Text preview - extract from the document
                                                                              WD60C40A

                                 TABLE OF CONTENTS
Section   Title                                                                      Page

1.0       INTRODUCTION                                                                28-1
          1.1  Architectural Description                                              28-1
          1.2  Features                                                               28-3
               1.2.1    Longitudinal Redundancy Checking                              28-3
               1.2.2    Through Parity                                                28-3
               1.2.3    Western Digital Bus Mode                                      28-3

2.0       PIN DESCRIPTION                                                             28-6

3.0       NON-CHANNEL REGISTERS                                                       28-8
          3.1  Option Register                                                        28-8
               3.1.1   RRC3 thru RRCO Refresh Rate Count Field                        28-8
              3.1.2    SRAM Static RAM Mode (Bit 4)                                   28-8
               3.1.3   CAW1, CAWO Column Address Width Field (Bits 6,5)               28-9
              3.1.4    MPAR Memory Parity Enable (Bit 7)                              28-9
          3.2 Option Register 2
