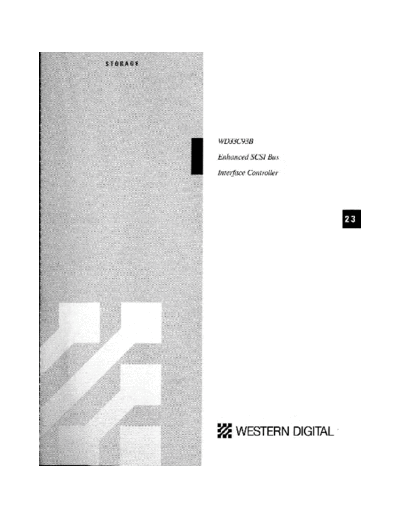

Image preview - the first page of the document



>> Download 23_WD33C93B documenatation <<

Text preview - extract from the document

                                                             WD33C938

                               TABLE OF CONTENTS
Section   Title                                                     Page

1.0       INTRODUCTION                                               23-1
          1.1  Description                                           23-1
          1.2  Features                                              23-1
          1.3  Differences Between the 33C93A and 33C93B             23-2

2.0       PIN DESCRIPTIONS                                           23-3
          2.1  Processor/DMA Interface                               23-3
          2.2  SCSI Interface                                        23-5

3.0       REGISTERS                                                  23-6
          3.1  Register Descriptions                                 23-7
               3.1.1    Auxiliary Status Register                    23-7
               3.1.2
               3.1.3
               3.1.4
               3.1.5
               3.1.6
               3.1.7
                        Address Register
                        Own ID/CDB Size Register
                        Control Register
                        Timeout Period Register
                        Command Descriptor Block Registers
                        Total Sectors Register
