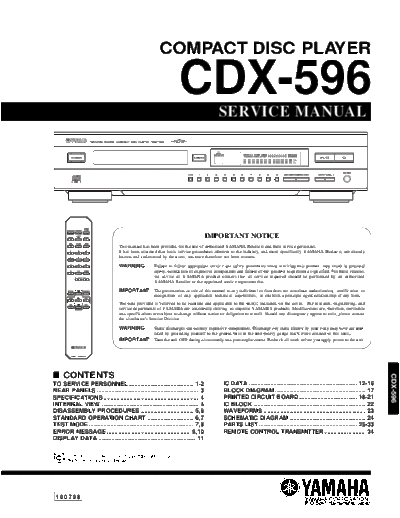

Image preview - the first page of the document



>> Download CDX-596 documenatation <<

Text preview - extract from the document

                                                                                                                                                                 CDX-596




                                                          COMPACT DISC PLAYER

                                                                     CDX-596               SERVICE MANUAL
                                                                                            SERVICE MANUAL




               TEXT/
                                                                                   IMPORTANT NOTICE
                                    This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel.
                                    It has been assumed that basic service procedures inherant to the industry, and more specifically YAMAHA Products, are already
                                    known and understood by the users, and have therefore not been restated.

                                    WARNING:           Failure to follow appropriate service and safety procedures when servicing this product may result in personal
                                                       injury, destruction of expensive components and failure of the product to perform as specified. For these reasons,
           -     OUTPUT LEVEL   +                      we advise all YAMAHA product owners that all service required should be performed by an authorized
                                                       YAMAHA Retailer or the appointed service representative.

                                    IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or
                                                       recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form.
                                    The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and
                                    service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable
                                    and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact
                                    the distributor's Service Division.

                                    WARNING:   Static discharges can destroy expensive components. Discharge any static electricity your body may have accumu-
                                               lated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss).
                                    IMPORTANT: Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power to the unit.


           4           00




s CONTENTS
                                                                                                                                                                                 CDX-596
TO SERVICE PERSONNEL ....................................... 1-2                              IC DATA .................................................................. 12-16
REAR PANELS .............................................................. 3                  BLOCK DIAGRAM ....................................................... 17
SPECIFICATIONS .......................................................... 4                   PRINTED CIRCUIT BOARD ................................... 18-21
INTERNAL VIEW ........................................................... 4                   IC BLOCK .................................................................... 22
DISASSEMBLY PROCEDURES ................................ 5,6                                   WAVEFORMS .............................................................. 23
STANDARD OPERATION CHART ............................ 6,7                                     SCHEMATIC DIAGRAM .............................................. 24
TEST MODE ................................................................ 7,8                PARTS LIST ............................................................ 25-33
ERROR MESSAGE ................................................... 9,10                        REMOTE CONTROL TRANSMITTER ......................... 34
DISPLAY DATA ........................................................... 11




 100708
              CDX-596




              s TO SERVICE PERSONNEL
              1. Critical Components Information.
                  Components having special characteristics are marked
                  and must be replaced with parts having specifications equal
                  to those originally installed.


              q   Meter impedance should be equivalent to 1500 ohm shunted
                  by 0.15
