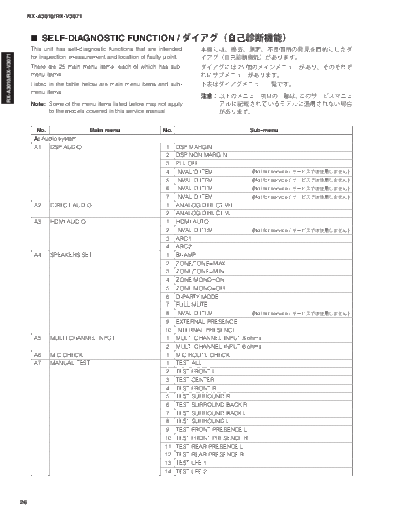

Image preview - the first page of the document
>> Download RXA3010_DIAG documenatation <<
Text preview - extract from the document
RX-A3010/RX-V3071
SELF-DIAGNOSTIC FUNCTION /
This unit has self-diagnostic functions that are intended
RX-A3010/RX-V3071
for inspection, measurement and location of faulty point.
There are 25 main menu items, each of which has sub-
menu items.
Listed in the table below are main menu items and sub-
menu items.
Note: Some of the menu items listed below may not apply
to the models covered in this service manual.
No. Main menu No. Sub-menu
A: Audio system
A1 DSP AUDIO 1 DSP MARGIN
2 DSP NON MARGIN
3 PLL OFF
4 INVALID ITEM (Not for service / )
5 INVALID ITEM (Not for service / )
6 INVALID ITEM (Not for service / )
7 INVALID ITEM (Not for service / )
A2 DIRECT AUDIO 1 ANALOG DIRECT VH
2 ANALOG DIRECT VL
A3 HDMI AUDIO 1 HDMI AUTO
2 INVALID ITEM (Not for service / )
3 ARC1
4 ARC2
A4 SPEAKERS SET 1 BI-AMP
2 ZONE/TONE=MAX
3 ZONE/TONE=MIN
4 ZONE MONO=ON
5 ZONE MONO=OFF
6 D-PARTY MODE
7 FULL MUTE
8 INVALID ITEM (Not for service / )
9 EXTERNAL PRESENCE
10 INTERNAL PRESENCE
A5 MULTI CHANNEL INPUT 1 MULTI CHANNEL INPUT 8 ohms
2 MULTI CHANNEL INPUT 6 ohms
A6 MIC CHECK 1 MIC ROUTE CHECK
A7 MANUAL TEST 1 TEST ALL
2 TEST FRONT L
3 TEST CENTER
4 TEST FRONT R
5 TEST SURROUND R
6 TEST SURROUND BACK R
7 TEST SURROUND BACK L
8 TEST SURROUND L
9 TEST FRONT PRESENCE L
10 TEST FRONT PRESENCE R
11 TEST REAR PRESENCE L
12 TEST REAR PRESENCE R
13 TEST LFE 1
14 TEST LFE 2
26
RX-A3010/RX-V3071
No. Main menu No. Sub-menu
RX-A3010/RX-V3071
D: Display system
D1 FL CHECK 1 FL CHECK
2 ALL SEGMENT OFF
3 ALL SEGMENT ON
4 CHECK PATTERN 1
5 CHECK PATTERN 2
Z: Zone system
Z1 ZONE TEST 1 AV1
2 AV2
3 AV3
4 AV4
5 AUDIO1
6 AUDIO2
7 AUDIO3
8 AUDIO4
9 V-AUX
10 PHONO
R: Radio and satellite broadcasting system
R1 SIRIUS (U model) 1 SIRIUS
2 SR
3 SSP
4 MAC
5 ADP
6 PRDID
7 SEQID
8 POWER OFF
U: Universal system
U1 iPod 1 DOCK CHECK
U2 USB 1 BF TEST 1kHz
2 BF TEST 20Hz (Not for service / )
3 BF TEST 20kHz (Not for service / )
4 USB FRONT 1 TRACK
5 USB FRONT 2 TRACK
N: Network system
N1 NETWORK 1 IP ADDRESS CHECK
2 MAC ADDRESS CHECK
3 LINE NOISE 10 (Not for service / )
4 LINE NOISE 100 (Not for service / )
5 EXT TEST
6 MAC ADDRESS
C: Communication system
C1 DIGITAL1 PCB CHECK 1 ALL
2 BUS FLASH ROM
3 BUS FPGA
4 I2C
5 FPGA RAM
6 BUS DIR
7 BUS DSP1
8 EEPROM
9 RS-232C LOOP BACK CHECK
(Not for service / )
10 LINK CHECK
11 PHY TEST
27
RX-A3010/RX-V3071
No. Main menu No. Sub-menu
RX-A3010/RX-V3071
C1 DIGITAL1 PCB CHECK 12 I2C EEPROM
13 BUS RAM
14 SYNC SERIAL
15 CLOCK GENERATION
16 APL ID CHECK
C2 DIGITAL2 CHECK 1 BUS DSP2
C3 HDMI INFORMATION 1 HDMI MODEL NAME
2 HDMI ID
V: Video system
V1 ANALOG VIDEO CHECK 1 ANALOG BYPASS
2 DIGITAL BYPASS
3 ZONE BYPASS
4 MUTE CHECK
5 TEST PATTERN
6 VIDEO IN
V2 DIGITAL VIDEO CHECK 1 LOOPBACK TEST 1
2 LOOPBACK TEST 2
3 LOOPBACK TEST 3
4 HDMI REPEAT
5 DIGITAL CVBS
6 DIGITAL Y/C
7 DIGITAL COMPONENT
8 DIGITAL COMPONENT SC
9 GUI-VIDEO OUT
V3 TEST PATTERN 1 480i
2 480p
3 720p 60Hz
4 1080i 60Hz
5 1080p 60Hz
6 576i
7 576p
8 720p 50Hz
9 1080i 50Hz
10 1080p 50Hz
11 1080p 24bit
12 1080p 24bit 3D/FP
13 720p 60Hz 3D/FP
14 720p 50Hz 3D/FP
15 1080i 60Hz 3D/SS
16 1080i 50Hz 3D/SS
17 720p 60Hz 3D/TB
18 720p 50Hz 3D/TB
19 1080p 24bit 3D/TB
P: Power and protection system
P1 SYSTEM MONITOR 1 DC
2 PS1/PS2
3 TMA1/TMA2
4 TMB3/TMB4 (Not for service / )
5 OUTPUT LEVEL
6 LIMITER CONTROL
7 L3 (J model)
8 KEY1/KEY2/KEY3
28
RX-A3010/RX-V3071
No. Main menu No. Sub-menu
RX-A3010/RX-V3071
P2 PROTECTION HISTORY 1 HISTORY 1
2 HISTORY 2
3 HISTORY 3
4 HISTORY 4
S: System and version system
S1 FIRMWARE UPDATE 1 F/W UPDATE (Not for service / )
S2 SET INFORMATION 1 MODEL
2 DESTINATION
3 DEBUG (Not for service / )
S3 FACTORY PRESET 1 PRESET INH/RSRV
S4 ROM VERSION/CHECKSUM 1 SYSTEM VERSION
2 MICROPROCESSOR VERSION
3 MICROPROCESSOR CHECKSUM
4 FLASH ROM VERSION
5 FLASH ROM CHECKSUM
6 BF VERSION
7 BF CHECKSUM
8 DSP1 VERSION
9 DSP1 CHECKSUM
10 DSP2 VERSION
11 DSP2 CHECKSUM
12 GUI VERSION
13 FPGA GUI VERSION
14 FPGA IP VERSION
15 SIRIUS VERSION (U model)
16 HQV VERSION
17 HD RADIO VERSION (U model)
29
RX-A3010/RX-V3071
Starting Self-Diagnostic Function
RX-A3010/RX-V3071
While pressing the "TONE/BALANCE" and "INFO" keys,
press the "MAIN ZONE " key to turn on the power.
The self-diagnostic function mode is activated.
Keys of this unit /
While pressing these keys, turn on the power.
Starting Self-Diagnostic Function in
the protection cancel mode
If the protection function works and causes hindrance
to troubleshooting, cancel the protection function by the
procedure below, and it will be possible to enter the self-
diagnostic function mode. (The protection functions other
than the excess current detect function will be disabled.)
While pressing the "TONE/BALANCE" and "INFO" keys,
press the "MAIN ZONE " key to turn on the power and
keep pressing those 2 keys for 3 seconds or longer.
The self-diagnostic function mode is activated with the
protection functions disabled.
In this mode, the "SLEEP" segment of the FL display flashes
to indicate that the mode is self-diagnostic function mode
with the protection functions disabled.
CAUTION!
Using this product with the protection function disabled
may cause further damage to this unit. Use special care
for this point when using this mode.
30
RX-A3010/RX-V3071
Canceling Self-Diagnostic Function
RX-A3010/RX-V3071
1. Before canceling self-diagnostic function, execute
setting for "S3. FACTORY PRESET" menu. (Memory
initialization inhibited or Memory initialized).
* In order to keep the user memory preserved, be
sure to select PRESET INHIBIT (Memory initialization
inhibited).
2. Press the "MAIN ZONE " key to turn off the power.
Display provided when Self-Diagnostic
Function started
The display is as described below depending on the
situation when this unit is turned off.
1. When the power is turned off by usual operation:
"NO PROTECT" is displayed. "A1-1. DSP MARGIN"
menu is displayed in a few seconds.
Opening message / Main menu display /
After a few seconds /
31
RX-A3010/RX-V3071
2. When the protection function worked to turn
RX-A3010/RX-V3071
off the power:
The information of protection function which worked at
that time is displayed. Then "A1-1. DSP MARGIN" menu
is displayed in a few seconds.
Note: At that time if you restart the self-diagnostic
function after turning off the power once, "NO
PROTECT" will be displayed. That is because
that situation is equal to "1. When the power is
turned off by usual operation:"
However the history of protection function is
stored in a back-up IC. For details, refer to "P2
PROTECTION HISTORY" menu.
2-1. When there is a history of protection function
due to excess current.
Cause: An excessive current flowed through the power
amplifier.
Supplementary information: As over current of the
power amplifier is detected, check condition of each
power transistor.
Turning on the power without correcting the abnormality
will cause the protection function to work immediately and
the power supply will instantly be shut off.
Notes)
