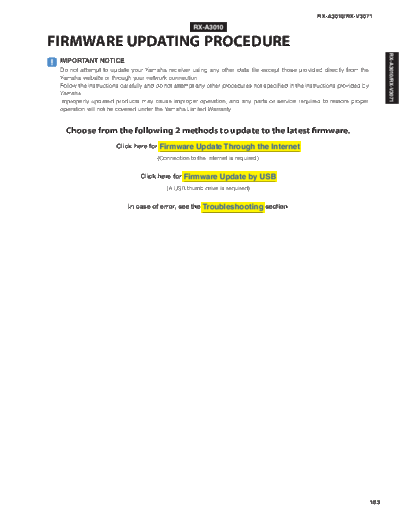

Image preview - the first page of the document
>> Download RXA3010_FIRMWARE UPDATING documenatation <<
Text preview - extract from the document
RX-A3010/RX-V3071
RX-A3010
FIRMWARE UPDATING PROCEDURE
RX-A3010/RX-V3071
IMPORTANT NOTICE
Do not attempt to update your Yamaha receiver using any other data file except those provided directly from the
Yamaha website or through your network connection.
Follow the instructions carefully and do not attempt any other procedures not specified in the instructions provided by
Yamaha.
Improperly updated products may cause improper operation, and any parts or service required to restore proper
operation will not be covered under the Yamaha Limited Warranty.
Choose from the following 2 methods to update to the latest firmware.
Click here for Firmware Update Through the Internet
(Connection to the Internet is required)
Click here for Firmware Update by USB
(A USB thumb drive is required)
In case of error, see the Troubleshooting section
183
RX-A3010/RX-V3071
RX-A3010
RX-A3010/RX-V3071
Firmware Update Through the Internet
Requirement: Internet connection
Your receiver is connected to the Internet if you can receive Internet radio stations.
(See owner's manual for details)
1 Power off the receiver (Standby mode)
2 Enter the ADVANCED SETUP mode
While pressing the STRAIGHT button, press the MAIN ZONE button and keep STRAIGHT button pressed until
" " appears on the front panel display.
* " " is displayed only for a few seconds.
3 Select "FIRM UPDATE" from the menu
a. Press the PROGRAM button until " " is displayed.
b. Then, press STRAIGHT button until " " is displayed.
4 Start firmware update
a. Press INFO button to start the update.
(Update process may take up to 15 minutes)
* If " " appears, this means your receiver is already up-to-date. In this case, power off to
exit from Advanced Setup. Your AV receiver is ready for normal use.
Firmware update in progress
Caution
DO NOT interrupt power during the update.
In case the power is accidentally cut off resulting in a condition where you can't recover normal operation, refer
to the troubleshooting method (Troubleshooting CASE 2) on the last page.
b. When completed, " " appears on the display.
c. Turn off the power of the receiver by pressing the MAIN ZONE button.
STRAIGHT button INFO button
MAIN ZONE button
PROGRAM button
184
RX-A3010/RX-V3071
RX-A3010
RX-A3010/RX-V3071
5 Check the updated firmware version
a. Power on the AV receiver and press the ON SCREEN button on the remote control.
b. Select "Information" > "System".
c. Confirm that the firmware version is updated to the latest version.
ON SCREEN button
Congratulations!
You have completed the firmware update. Your AV receiver is ready for normal use.
185
RX-A3010/RX-V3071
RX-A3010
RX-A3010/RX-V3071
Firmware Update by USB
Requirement: USB thumb drive, with enough free space to store over 25MB.
(File system with FAT16 or FAT32 format)
