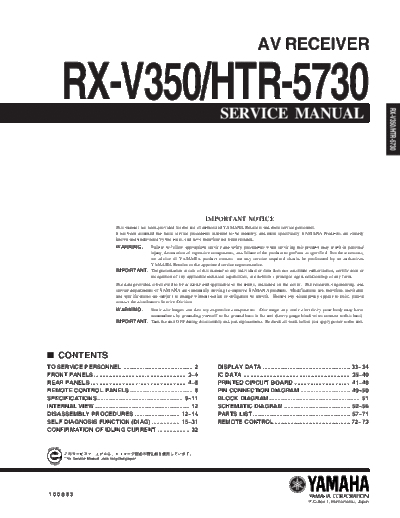

Image preview - the first page of the document
>> Download RX-V350 & HTR-5730 documenatation <<
Text preview - extract from the document
AV RECEIVER
RX-V350/HTR-5730 SERVICE MANUAL
RX-V350/HTR-5730
IMPORTANT NOTICE
This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel.
It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already
known and understood by the users, and have therefore not been restated.
WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal
injury, destruction of expensive components, and failure of the product to perform as specified. For these reasons,
we advise all YAMAHA product owners that any service required should be performed by an authorized
YAMAHA Retailer or the appointed service representative.
IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or
recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form.
The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and
service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable
and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please
contact the distributor's Service Division.
WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss).
IMPORTANT: Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit.
I CONTENTS
TO SERVICE PERSONNEL .......................................... 2 DISPLAY DATA ..................................................... 33~34
FRONT PANELS ........................................................ 3~4 IC DATA ................................................................. 35~40
REAR PANELS .......................................................... 4~8 PRINTED CIRCUIT BOARD .................................. 41~48
REMOTE CONTROL PANELS ...................................... 8 PIN CONNECTION DIAGRAM .............................. 49~50
SPECIFICATIONS .................................................... 9~11 BLOCK DIAGRAM ....................................................... 51
INTERNAL VIEW ......................................................... 12 SCHEMATIC DIAGRAM ........................................ 52~56
DISASSEMBLY PROCEDURES ........................... 12~14 PARTS LIST ........................................................... 57~71
SELF DIAGNOSIS FUNCTION (DIAG) 15~31 REMOTE CONTROL .............................................. 72~73
CONFIRMATION OF IDLING CURRENT 32
100883
P.O.Box 1, Hamamatsu, Japan
RX-V350/HTR-5730
I SELF DIAGNOSIS FUNCTION (DIAG)
There are 15 DIAG menu items, each of which has sub-menu items.
Listed in the table below are menu items and sub-menu items.
Note that not all menu items listed will apply to the models covered in this service manual.
No DIAG menu sub-menu
1 DSP THROUGH 1. ANALOG BYPASS
2. YSS 0dB
RX-V350/HTR-5730
3. YSS Presence 0dB
4. YSS FULL BIT
5. YSS FULL BIT P
2 RAM THROUGH RAM 0dB
3 DOLBY PRO LOGIC 1. PRO LOGIC I
2. PRO LOGIC II
3. Neo:6 (Not applied to these models)
4 SPEAKERS SET 1. FRONT: SMALL 0dB
2. CENTER: NONE
3. LFE/BASS: FRONT
4. PRESENCE MIX: 5ch
5. SURROUND B power (Not applied to these models)
6. Tone Control Flat
7. Tone Control +10dB
8. Tone Control -10dB
5 HP Test 1. FRONT 12 dB
2. FRONT 15 dB
6 OTHER INPUT EXTERNAL DECODER
7 DISPLAY CHECK 1. VFD CHECK (Initial display)
2. VFD DISP OFF (All segments OFF)
3. VFD DISP ALL (All segments ON 100%)
4. VFD DIMMER (All segments ON 50%)
5. CHECKED PATTERN (ON in lattice)
8 MANUAL TEST 1. TEST ALL
2. TEST FRONT L
3. TEST CENTER
4. TEST FRONT R
5. TEST SURROUND R
6. TEST SURROUND C (Not applied to these models)
7. TEST SURROUND L
8. TEST LFE
9 FACTORY PRESET 1. PRESET INHIBITED (memory initialization inhibited)
2. PRESET RESERVED (memory initialized)
10 AD DATA CHECK 1. DC/PS (protection indication)
/FAN TEST 2. THM/Fan
3. REC-OUT (Not applied to these models)
4. IMP SW/POWER LIMIT
5. K0/K1 (panel key)
6. FAN DRIVE TEST: HIGH (Not applied to these models)
7. FAN DRIVE TEST: MID (Not applied to these models)
8. FAN DRIVE TEST: LOW (Not applied to these models)
15
RX-V350/HTR-5730
No DIAG menu sub-menu
11 IF STATUS 1. INSIDE STATUS 1 (5 Byte)
2. INSIDE STATUS 2 (3 Byte)
3. CHANNEL STATUS 1 (5 Byte)
4. CHANNEL STATUS 2 (5 Byte)
5. CHANNEL STATUS 3 (5 Byte)
6. CHANNEL STATUS 4 (5 Byte)
7. CHANNEL STATUS 5 (4 Byte)
8. BSI (YSS) 1 (5 Byte)
RX-V350/HTR-5730
9. BSI (YSS) 2 (5 Byte)
10. BSI (YSS) 3 (5 Byte)
11. BSI (YSS) 4 (4 Byte)
12. BSI (CS) 1 (5 Byte)
13. BSI (CS) 2 (5 Byte)
14. BSI (CS) 3 (5 Byte)
15. BSI (CS) 4 (5 Byte)
16. BSI (CS) 5 (1 Byte)
17. YSS938-1 (5 Byte)
18. YSS938-2 (5 Byte)
19. YSS938-3 (4 Byte)
20. SECOND DECODER (3 Byte)
21. Mute Trigger (5 Byte)
12 DSP RAM CHECK 1. YSS938 BUS CHECK
2. PLD/SRAM BUS CHECK
13 SD DL CODE 1. ROM DATA Version
2. TOC Area 0
3. TOC Area 1
4. TOC Area 2
5. TOC Area 3
6. TOC Area 4
7. TOC Area 5
8. Sum check Area 0
9. Sum check Area 1
10. Sum check Area 2
11. Sum check Area 3
12. Sum check Area 4
13. Sum check Area 5
14 SOFT SWITCH 1. SW MODE
2. MODEL SETTING
3. TUNER DESTINATION
4. RDS EXIST
5. ZONE 2 EXIST
6. VIDEO FORMAT
15 ROM VERSION/CHECK SUM/ 1. VERSION
PORT 2. CHECK SUM ALL/PROGRAM
3. PORT
4. AAC PORT
16
RX-V350/HTR-5730
