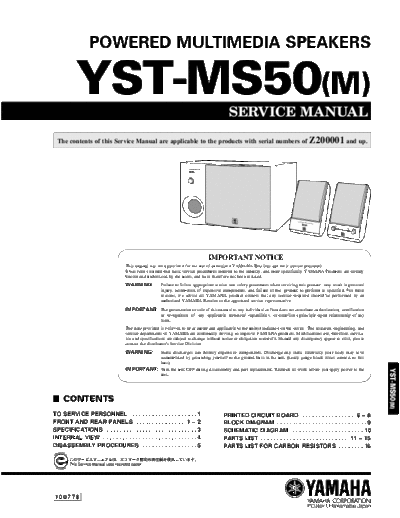

Image preview - the first page of the document
>> Download YST-MS50 documenatation <<
Text preview - extract from the document
POWERED MULTIMEDIA SPEAKERS
YST-MS50(M) SERVICE MANUAL
The contents of this Service Manual are applicable to the products with serial numbers of Z200001 and up.
POWERED
MULTIMEDIA
SPEAKERS YST-MS50
BASS
0
10
POWERED
MULTIMEDIA
SPEAKERS
VOLUME
IMPORTANT NOTICE
This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel.
It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already
known and understood by the users, and have therefore not been restated.
WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal
injury, destruction of expensive components, and failure of the product to perform as specified. For these
reasons, we advise all YAMAHA product owners that any service required should be performed by an
authorized YAMAHA Retailer or the appointed service representative.
IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification
or recognition of any applicable technical capabilities, or establish a principle-agent relationship of any
form.
The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and
service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevita-
ble and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please
contact the distributor's Service Division.
WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this
buss).
IMPORTANT: Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the
YST-MS50(M)
unit.
s CONTENTS
TO SERVICE PERSONNEL . . . . . . . . . . . . . . . . . . . . 1 PRINTED CIRCUIT BOARD . . . . . . . . . . . . . . . . 6 ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
