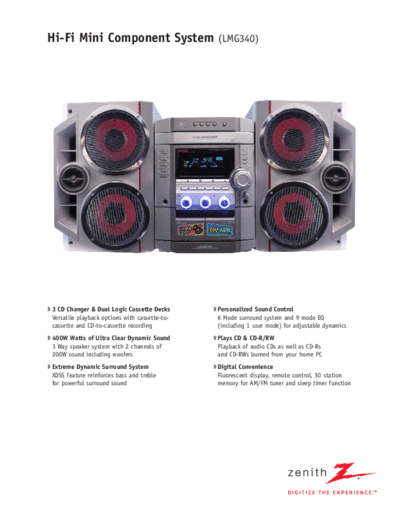

Image preview - the first page of the document

>> Download hfe_zenith_lmg340_service_en documenatation <<

Text preview - extract from the document
Hi-Fi Mini Component System                      (LMG340)

 3 CD Changer & Dual Logic Cassette Decks        Personalized Sound Control
 Versatile playback options with cassette-to-    6 Mode surround system and 9 mode EQ
 cassette and CD-to-cassette recording           (including 1 user mode) for adjustable dynamics
 400W Watts of Ultra Clear Dynamic Sound         Plays CD & CD-R/RW
 3 Way speaker system with 2 channels of         Playback of audio CDs as well as CD-Rs
 200W sound including woofers                    and CD-RWs burned from your home PC
 Extreme Dynamic Surround System                 Digital Convenience
 XDSS feature reinforces bass and treble         Fluorescent display, remote control, 30 station
 for powerful surround sound                     memory for AM/FM tuner and sleep timer function
Hi-Fi Mini Component System                                         (LMG340)

 Rear Connections                                                           AMP
                                                                            Output (W/Ch, Rms, 10% Thd)                               400W Total
                    AM                                                      Volume Type                                                  Encoder
                                    +                                       Function Selector                                                  4
                                                                            Balance                                                           No
                    FM              -
                            L   R
                                                                            EQ Mode                                                      9 Mode
                            R                                               Spectrum Band                                                  8 Bar
                                                                            Xdss (Extreme Dynamic Sound System)                              Yes
                                                                            Dsp Mode                                                          No
Headphone                                                            1      TUNER
Microphone                                                           1      Type                                                               Pll
                                                                            Preset                                                          30 Ch
ADDITIONAL INFORMATION                                                      Clock                                                             Yes
Cabinet Dimensions                                                          Sleep/Timer                                                   Yes/Yes
 Width x Height x Depth                      10.9" x 14.4" x 15.6"
 Weight                                                  26.1 lbs.          TAPE DECK
Speaker Dimensions                                                          Mechanism Type                                        Logic (Double)
 Width x Height x Depth                      11.0" x 16.2" x 12.5"          Auto Reverse                                                (Double)
Dimensions with Packaging                                                   Dolby
