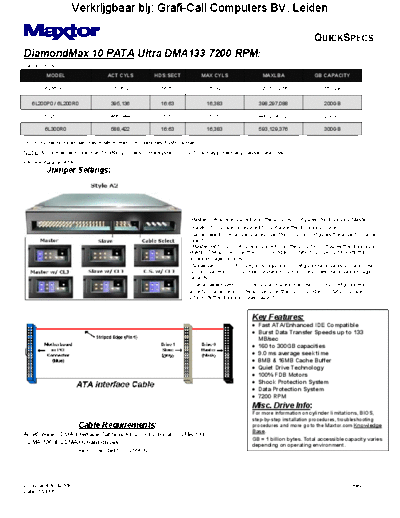

Image preview - the first page of the document



>> Download Maxtor 6L200R0 documenatation <<

Text preview - extract from the document

                    Verkrijgbaar bij: Grafi-Call Computers BV. Leiden
                              R



                                                                                                                     QUICKSPECS
DiamondMax 10 PATA Ultra DMA133 7200 RPM:
CAPACITIES:
        MODEL                     ACT CYLS         HDS:SECT          MAX CYLS                  MAXLBA                GB CAPACITY

        6L160P0                   317,632            16:63             16,383                 320,173,056                 160GB

   6L200P0 / 6L200R0               395,136           16:63             16,383                 398,297,088                 200GB

        6L250R0                   486,344            16:63             16,383                 490,234,752                 250GB

        6L300R0                    588,422           16:63             16,383                 593,129,376                 300GB

"P" in model number denotes 8 MB Buffer / "R" denotes 16MB Buffer.
NOTE: NEVER enter more than 16,383 cylinders in the system BIOS. This may potentially cause data loss.
PATA = Parallel ATA
         Jumper Settings:




                                                                (Master) - A jumper placed over the DS pins configures the drive as a Master.
                                                                (Slave) - No jumper is required to configure the drive as a Slave.
                                                                (Cable Select) - A jumper placed over the CS pins configures the drive for Cable
                                                                Select.
                                                                 (Master with CLJ) - A jumper placed over the DS pins configures the drive as a
                                                                Master. The jumper over the CLJ (Cylinder Limitation Jumper) pins limits the
                                                                drive's storage capacity.
                                                                 (Slave with CLJ) - No jumper is required to configure the drive as a Slave. The
                                                                jumper over the CLJ (Cylinder Limitation Jumper) pins limits the drive's storage
                                                                capacity.
                                                                 (Cable Select with CLJ) - A jumper placed over the CS pins configures the
                                                                drive for Cable Select. The jumper over the CLJ (Cylinder Limitation Jumper)
                                                                pins limits the drive's storage capacity.


                                                                                           Key Features:
