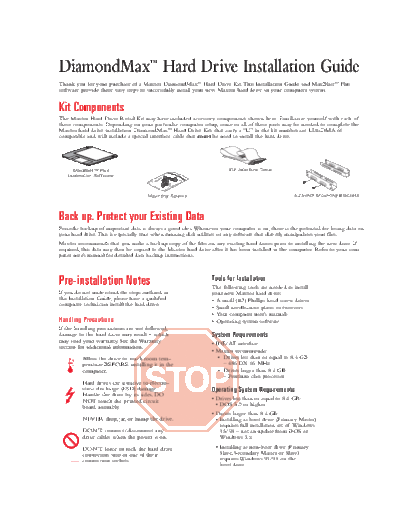

Image preview - the first page of the document



>> Download Maxtor D540X-4K Installation Guide documenatation <<

Text preview - extract from the document

DiamondMaxTM Hard Drive Installation Guide
Thank you for your purchase of a Maxtor DiamondMaxTM Hard Drive Kit.This Installation Guide and MaxBlastTM Plus
software provide three easy steps to successfully install your new Maxtor hard drive in your computer system.


Kit Components
The Maxtor Hard Drive Retail Kit may have included accessory components shown here. Familiarize yourself with each of
these components. Depending on your particular computer setup, some or all of these parts may be needed to complete the
Maxtor hard drive installation. DiamondMaxTM Hard Drive Kits that carry a "U" in the kit number are UltraDMA 66
compatible and will include a special interface cable that must be used to install the hard drive.




     MaxBlastTM Plus                                                   IDE Interface Cable
   Installation Software



                                      Mounting Screws                                              5.25-inch Mounting Brackets




Back up. Protect your Existing Data
Periodic backup of important data is always a good idea.Whenever your computer is on, there is the potential for losing data on
your hard drive.This is especially true when running disk utilities or any software that directly manipulates your files.
Maxtor recommends that you make a backup copy of the files on any existing hard drives prior to installing the new drive. If
required, this data may then be copied to the Maxtor hard drive after it has been installed in the computer. Refer to your com-
puter user's manual for detailed data backup instructions.



Pre-installation Notes                                          Tools for Installation
                                                                The following tools are needed to install
If you do not understand the steps outlined in                  your new Maxtor hard drive:
this Installation Guide, please have a qualified
