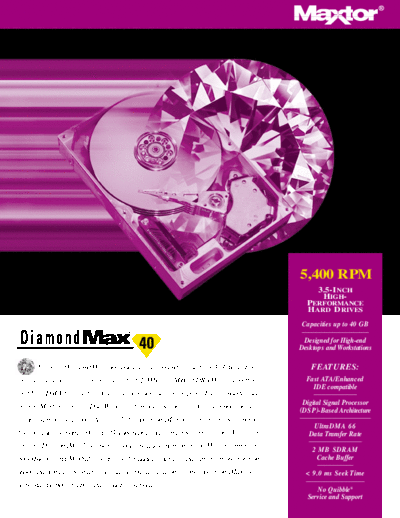

Image preview - the first page of the document
>> Download Maxtor DiamondMax 40 II documenatation <<Text preview - extract from the document 5,400 RPM
3.5-INCH
HIGH-
PERFORMANCE
HARD DRIVES
Capacities up to 40 GB
Designed for High-end
Desktops and Workstations
The new DiamondMaxTM 40 series, with a top-end capacity of 40 GB, features FEATURES:
an average seek time of sub-9.0 ms, a fast 2 MB 100 MHz SDRAM cache buffer Fast ATA/Enhanced
IDE compatible
and UltraDMA 66 interface to ensure maximum data throughput.These capacity leaders
employ Maxtor's unique DualWaveTM multi-processor controller for a 10x boost in host Digital Signal Processor
(DSP)-Based Architecture
command processing speed. As a result, the DiamondMax 40 series is an ideal choice
UltraDMA 66
for consumers working with large files, including audio and video applications. As with the Data Transfer Rate
existing DiamondMax line, the new series include enhancements to Maxtor's innovative
2 MB SDRAM
ShockBlock and MaxSafe feature set for added reliability and superior protection from
TM TM Cache Buffer
shock and damage. No matter how large your application, the new DiamondMaxTM 40 < 9.0 ms Seek Time
series has the performance and capacity you need.
No Quibble
