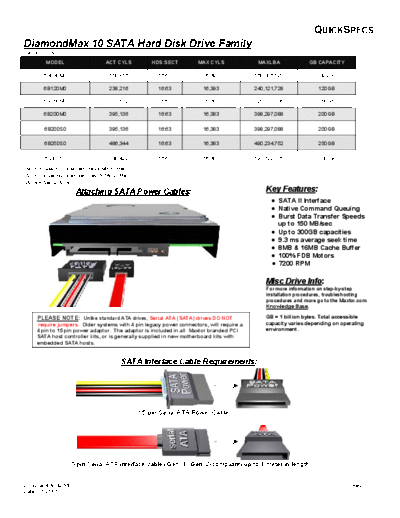

DiamondMax 10 SATA Hard Disk Drive Family
CAPACITIES:
MODEL ACT CYLS HDS:SECT MAX CYLS MAXLBA GB CAPACITY
6B080M0 158,816 16:63 16,393 160,086,528 80GB
6B120M0 238,216 16:63 16,393 240,121,728 120GB
6B160M0 317,632 16:63 16,393 320,173,056 160GB
6B200M0 395,136 16:63 16,383 398,297,088 200GB
6B200S0 395,136 16:63 16,383 398,297,088 200GB
6B250S0 486,344 16:63 16,383 490,234,752 250GB
6B300S0 588,422 16:63 16,383 593,129,376 300GB
"M' in model number denotes 8MB buffer
"S" in model number denotes 16MB buffer
SATA = Serial ATA
Attaching SATA Power Cables: Key Features:
