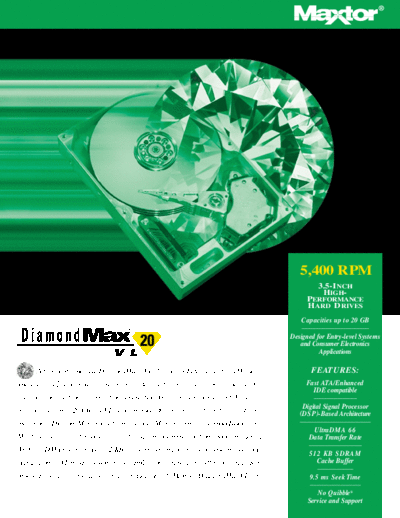

Image preview - the first page of the document
>> Download Maxtor DiamondMax VL20 II documenatation <<Text preview - extract from the document 5,400 RPM
3.5-INCH
HIGH-
PERFORMANCE
HARD DRIVES
Capacities up to 20 GB
Designed for Entry-level Systems
and Consumer Electronics
Applications
Announcing the new DiamondMaxTM VL 20 (Value Line) series from Maxtor. FEATURES:
These 1- and 2-disk products are expressly designed for entry-level commercial systems Fast ATA/Enhanced
IDE compatible
and consumer electronics applications where disk storage value is paramount. Available
Digital Signal Processor
in capacities up to 20 GB, the VL series provides the proven quality and reliability of (DSP)-Based Architecture
the original DiamondMax products and includes Maxtor's innovative ShockBlockTM and
UltraDMA 66
MaxSafeTM feature set for added reliability and superior protection from shock and damage. Data Transfer Rate
An UltraDMA 66 interface, 512 KB cache buffer and 9.5 ms seek performance come 512 KB SDRAM
standard on all VL products.When your application requires a cost effective storage device, Cache Buffer
choose the leader of innovative storage products
