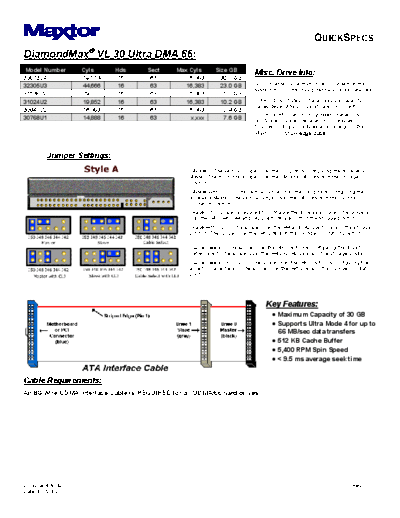

Image preview - the first page of the document
>> Download Maxtor DiamondMax VL30 documenatation <<
Text preview - extract from the document
R
QUICKSPECS
DiamondMax VL 30 Ultra DMA 66:
Model Number Cyls Hds Sect Max Cyls Size GB
Misc. Drive Info:
33073U4 59,554 16 63 16,383 30.7 GB
32305U3 44,666 16 63 16,383 23.0 GB NEVER enter more than 16,383 cylinders in the
system BIOS. This may potentially cause data loss.
31536U2 29,777 16 63 16,383 15.3 GB
31024U2 19,852 16 63 16,383 10.2 GB GB = 1 billion bytes. Total accessible capacity
varies depending on operating environment.
30840U2 16,383 16 63 16,383 8.4 GB
For more information on cylinder limitations,
30768U1 14,888 16 63 x,xxx 7.6 GB BIOS, step-by-step installation procedures,
troubleshooting procedures and more go to the
Maxtor.com Knowledge Base.
Jumper Settings:
(Master) - The vertical jumper over the J50 pins is configuring the drive as a
Master. The horizontal jumper over the J48 and J46 pins is in the Storage
position.
(Master with CLJ) - The vertical jumper over the J50 pins is configuring the
drive as a Master. The vertical jumper over the J46 pins is in the Cylinder
Limitation position (CLJ).
(Slave) - No jumper is required to configure the drive as a Slave. The jumpers
over the J48, J46, J44 and J42 positions are both in the storage position.
(Slave with CLJ) - The jumper over the J44 and J42 positions is in the storage
position. The jumper over the J46 pins is in the Cylinder Limitation position
(CLJ).
(Cable Select) - The jumper over the J48 position is configuring the drive for
Cable Select. The jumper over the J44 and J42 pins is in the storage position.
(Cable Select with CLJ) - The jumper over the J48 position is configuring the
drive for Cable Select. The jumper over the J46 pins is in the Cylinder Limitation
position (CLJ).
Key Features:
