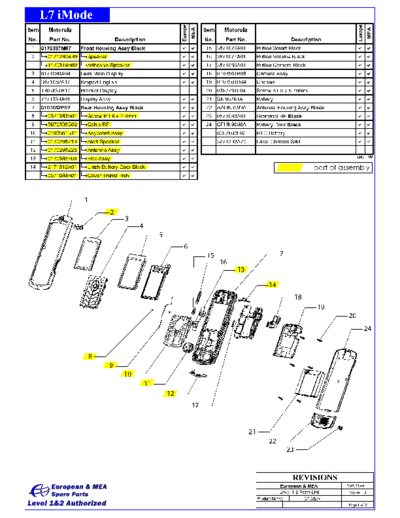

Image preview - the first page of the document
>> Download PL_Europe_L7_iMode_A4_BW_L12_V1.1 documenatation <<
Text preview - extract from the document
L7 iMode
Europe
Europe
Item Motorola Item Motorola
MEA
MEA
No. Part No. Description No. Part No. Description
1 0170387M07 Front Housing Assy Black a a 15 3871079A01 Button Smart Black a a
2 0171289A39 Speaker a a 16 3871077A01 Button Volume Black a a
- 1170314A69 Adhesive Speaker a a 17 3871099A01 Button Camera Black a a
3 6171080A04 Lens Main Display a a 18 0103561B08 Camera Assy a a
4 3871052A12 Keypad English a a 19 0103561B04 Chassis a a
5 1303631B10 Bracket Display 20 0387791L04 Screw K1.5 x 5.75mm a a
6 7271333A01 Display Assy a a 21 SNN5781A Battery a a
7 0103682E02 Rear Housing Assy Black a a 22 AAHN5593A Antenna Housing Assy Black a a
8 0371383A01 Screw M1.6 x 2.8mm a a 23 0571083A01 Grommet RF Black a a
9 3070338B02 Cable RF a a 24 CFHN9066A Battery Door Black a a
10 0103561B11 Keyboard Assy a a - 6087603L02 RTC Battery a a
11 0170298Z13 Alert Speaker a a - 3271233A20 Label Chassis SIM a a
12 0170298Z26 Antenna Assy a a
Table 1.00
13 0170386F06 Flex Assy a a
14 0171310A01 Latch Battery Door Black a a = part of assembly
- 0571084A01 Cover TransFlash a a
1
2
3
4
5
6
15 7
16
13
14
18
19
20
24
8
9
10
11
12
17
21
22
23
REVISIONS
European & MEA 2007.07.09
Level 1-2 Parts List Version 1.1
Product Name: L7 iMode
Page 1 of 2
L7 iMode
Level 1-2 Parts List
Components
MEA
EU
Ref. Des. Part Number Description Comments
J101 0988252L01 CONNECTOR RTC BATTERY a a
J301 0970312S01 CONNECTOR SPEAKER a a
J401 0988486Y01 USB CONNECTOR a a
J402 0986956P03 CONNECTOR BOARD TO BOARD a a
J501 0988866N01 CONNECTOR MAIN DISPLAY a a
J502 0988866N05 CONNECTOR CAMERA a a
J701 0970312R01 CONNECTOR RF CABLE a a
Table 2.00
Revision History
Version Date Description
1.0 12-May-2006 Released
Add Label Chassis SIM, add Adhesive
1.1 4-Jul-2007
Speaker; Update Item 7
REVISIONS
European & MEA 2007.07.09
Level 1-2 Parts List Version 1.1
Product Name: L7 iMode
Page 2 of 2
