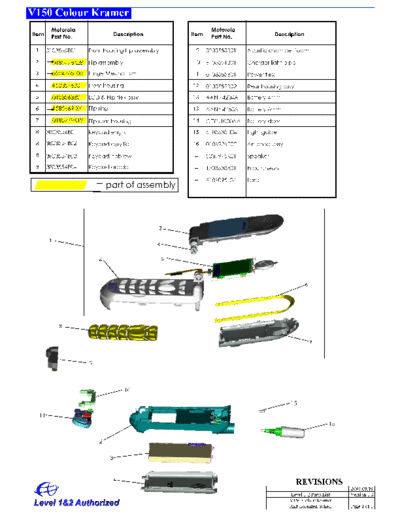

V150 Colour Kramer
           Motorola                                                     Motorola
Item       Part No.                       Description           Item    Part No.              Description

 1        0103566B01        Front housing flip assembly          9     3203558B01   Acustic chamber foam

 2             0185778K28 Flip assembly                          10    6103551B01   Charger light pipe
 3             5504765Z08   Hinge Mechanism                     11     0103555B01   Power flex
 4             1503546B01 Front housing                         12     0103559B02   Rear housing assy
 5             0103563B01 LCD & Flip flex assy                  13     AANN4204A    Battery 4mm

 6             1585669K01 Flip ring                             13     AANN4258A    Battery 6mm
 7             0185779K19 Flip rear housing                     14     CFYN1000AA   Battery door
 8        3803554B01        Keypad english                      15     6185635H04   Light guide

 8        3803554B02        Keypad cyryllic                     16     0186226P02   Antenna assy
 8        3803554B03        Keypad hebrew                        _     5087975K01   Speaker
 8        3803554B04        Keypad arabic                        _     1303638B01   Escutcheon
                                                                 _     6189095L04   Lens
                                = part of assembly



                                                          2

           1
                                                        3

                                 4                          5



                                                                                                            6




                 8

                                                                                                                7


                            9



                                              10

                                                                                                    15

     11
                                                                                                                      16


                                12

                                     13


                                      14
                                                                                                        REVISIONS
                                                                                                                           2003.09.19
                                                                                                    Level 1-2 Parts List   Version 1.3
                                                                                                   V150 Colour Kramer
                                                                                                   Ralf Lorenzen-Scheil    Page 1 of 1
