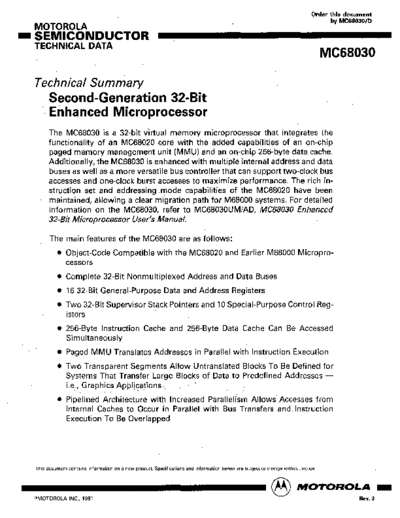

68030_Data_Sheet_1991


>> Download 68030_Data_Sheet_1991 documenatation <<

Text preview - extract from the document
                                                                                                                                   Order this document
                                                                                                                                         by MC68030/D
    MOTOROLA
-   SEMICONDUCTOR
    TECHNICAL DATA
                                                                                                                                        MC68030

    Technical Summary
        Second-Generation 32-Bit
     .. Enhanced Microprocessor
          The MC68030 is a 32-bit virtual memory microprocessor that integrates the
          functionality of an MC68020 core with the added capabilities of an on-chip
          paged memory management unit (MMU) and an on-chip 256-byte data cache.
          Additionally, the MC68030 is enhanced with multiple internal address and data
          buses as well as a more versatile bus controller that can support two-clock bus
          accesses and one-clock burst accesses to maximize performance. The rich in-
          struction set and addressing mode capabilities of the MC68020 have been
          maintained, allowing a clear migration path for M68000 systems. For detailed
          information on the MC68030, refer to MC68030UM/AD, MC68030 Enhanced
          32-Bit Microprocessor User's Manual.

          The main features of the MC68030 are as follows:
