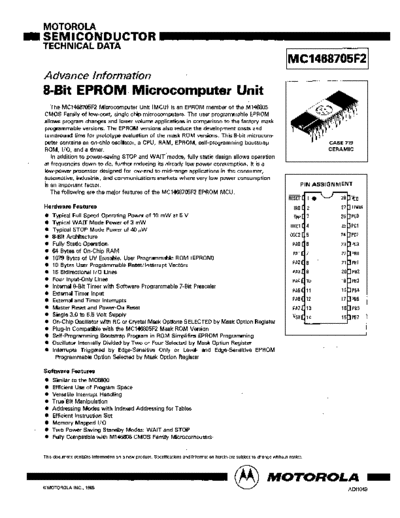

Image preview - the first page of the document

>> Download 1468705F2_May85 documenatation <<

Text preview - extract from the document
    Advance Information
    8-Bit EPROM Microcomputer Unit
       The MCl468705F2 Microcomputer Unit (MCU) is an EPROM member of the Ml46805
    CMOS Family of low-cost, single-chip microcomputers. The user programmable EPROM
    allows program changes and lower volume applications in comparison to the factory mask
    programmable versions. The EPROM versions also reduce the development costs and
    turnaround time for prototype evaluation of the mask ROM versions. This 8-bit microcom-
    puter contains an on-chip oscillator, a CPU, RAM, EPROM, self-programming bootstrap                                                     CASE 719
    ROM, 110, and a timer.                                                                                                                  CERAMIC
       In addition to power-saving STOP and WAIT modes, fully static design allows operation
    at frequencies down to dc, further reducing its already low power consumption. It is a
    low-power processor designed for low-end to mid-range applications in the consumer,
    automotive, industrial, and communications markets where very low power consumption
    is an important factor.                                                                                                          PIN ASSIGNMENT
       The following are the major features of the MCl468705F2 EPROM MCU.
                                                                                                                             RESET                 Voo
    Hardware Features                                                                                                           IRQ                TIMER
