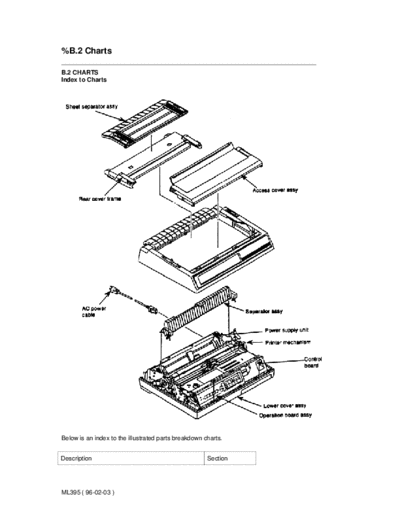

Image preview - the first page of the document
>> Download Okidata Microline395 Service Manual documenatation <<
Text preview - extract from the document
%B.2 Charts
B.2 CHARTS
Index to Charts
Below is an index to the illustrated parts breakdown charts.
Description Section
ML395 ( 96-02-03 )
Upper Cover Assembly B.2.01
Printer Unit General Assembly B.2.02
Operator Panel B.2.03
Carriage Assembly (Black and White) B.2.04
Carriage Assembly (Color) B.2.05
Printer Unit - Black and White (1 of 3) B.2.06
Printer Unit - Black and White (2 of 3) B.2.07
Printer Unit - Black and White (3 of 3) B.2.08
Printer Unit - Color (1 of 3) B.2.09
Printer Unit - Color (2 of 3) B.2.10
Printer Unit - Color (3 of 3) B.2.11
Cables and Connectors B.2.12
Options B.2.13
Tractor Assembly (Option) B.2.14
Bottom Push Tractor [BTF](Option) B.2.15
BTF Pull-Up Roller Assembly (Option) B.2.16
Consumables B.2.17
Packing Materials B.2.18
Documentation B.2.19
ML395 ( 96-02-03 )
%B.2.01 Upper Cover Assembly
B.2.01 Upper Cover Assembly
Part numbers are subject to change. Refer to Okilink II for current part numbers and pricing information.
Item Okidata P/N Description Comments Refer to Disassembly
Oki-J P/N B.1.02 Procedure
1 50212441 Cover: Middle RSPL 3.2.04
2PA4016-4723G41 Assembly (ML395)
1 50212442 Cover: Middle RSPL 3.2.04
2PA4016-4723G42 Assembly (ML395
Color)
2 50215701 Cover: Access RSPL 3.2.04
1PA4049-5837G1 (ML395)
2 50215703 Cover: Access RSPL 3.2.04
1PA4049-5837G3 (ML395 Color)
ML395 ( 96-02-03 )
3 50215801 Cover: Rear RSPL 3.2.04
1PA4094-5841G1 (Assembly)
ML395 ( 96-02-03 )
%B.2.02 Printer Unit General Assembly
B.2.02 Printer Unit General Assembly
Part numbers are subject to change. Refer to Okilink II for current part numbers and pricing information.
Item Okidata P/N Description Comments Refer Disassembly
Oki-J P/N to B.1.02 Procedure
ML395 ( 96-02-03 )
1 N/A Bottom Guide Plate N/A
4PB4043-4331P1
2 56609701 Cord: AC 120V RSPL 3.2.01
3YS4011-1315P1
3 56624101 Cord: AC (220V) ML Option RSPL 3.2.01
3YS4011-1265P1 Series Right Ang
4 70000803 IBM PC Cable Kit 3.2.01
N/A (Interface Cable)
5 52103601 Ribbon Cartridge Consumable 3.2.01
N/A (Black) Nylon
5 52103801 Ribbon Cartridge Consumable 3.2.01
N/A (Black) Film
6 52103701 Ribbon Cartridge Consumable 3.2.01
N/A (Color)
7 50099905 Printhead: Assembly RSPL 3.2.01
4YA4023-1451G5 ML395
8 53478601 Knob: Platen RSPL 3.2.04
3PP4043-2501P1
9 55071811 PCB: TFCB-1 (w/o RSPL 3.2.06
4YA4050-3085G11 ROM) ML395 (Black)
10 55071812 PCB: TFCB-2 (w/o RSPL 3.2.06
4YA4050-3085G12 ROM) ML395C
(Color)
11 56619201 Cord: I/F Main PCB RSPL 3.2.06
3YS4011-7912G1 Connection (50P)
12 56301703 Fuse: 3.15A 125V RSPL 3.2.06
540A2036M1322 Main Brd TFCB
13 55034501 PCB: LQPN - I/F RSPL 3.2.07
4YA4042-1293G11 Conn (Assembly)
14 50215902 Separator: Sheet RSPL 3.2.09
3PA4043-4278G1
15 56411201 Power Supply RSPL 3.2.23
4YB4049-1709P1 Assembly 120V
16 56406302 Power Supply Option RSPL 3.2.23
4YB4049-1278P2 Assembly (220/240V)
17 56614101 Cord: Power RSPL 3.2.23
4YS4011-6295G1 Connection (9 Pin)
18 56614801 Cord: Power RSPL 3.2.23
4YS4011-6253G3 Connection (13 pin)
ML395 ( 96-02-03 )
%B.2.03 Operator Panel
B.2.03 Operator Panel
Part numbers are subject to change. Refer to Okilink II for current part numbers and pricing information.
Item Okidata P/N Description Comments Refer to Disassembly
Oki-J P/N B.1.02 Procedure
1 55071701 PCB: TFOP Op RSPL 3.2.05
4YA4050-3106G1 Panel
2 50100001 Panel: Operator RSPL 3.2.05
3PP4043-2712G5 ML395
3 50910505 Spring: Cover Open RSPL 3.2.05
4LB-192200-5
4 56614301 Cable: Microswitch RSPL 3.2.05
3YX4043-2759G1 (Cover Open)
5 56212601 Switch: Interlock RSPL 3.2.05
3YX4043-4228G1 (Assembly)
6 56628403 Cable: OP (ML395) RSPL 3.2.05
4LP-5466-37
ML395 ( 96-02-03 )
%B.2.04 Carriage Assembly (Black and White)
B.2.04 Carriage Assembly (Black and White)
Part numbers are subject to change. Refer to Okilink II for current part numbers and pricing information.
Item Okidata P/N Description Comments Refer to Disassembly
Oki-J P/N B.1.02 Procedure
1 53055901 Guide: Ribbon RSPL 3.2.02
4PP4043-2643G1 (Black)
2 53527001 Protector: Ribbon RSPL 3.2.03
4PP4043-3954G1
3 N/A Clamp 3.2.11
N/A
4 56614201 Cable: Printhead RSPL 3.2.11
3YX4043-2713G1 (Assembly)
5 50702301 Belt Clamp 3.2.15
N/A
6 51303101 Belt: Mini Pitch RSPL 3.2.15
4PB4044-1492P3 (Space)
7 50057601 Carriage Assembly 3.2.19
2YX4043-2610G3 (Black)
ML395 ( 96-02-03 )
%B.2.05 Carriage Assembly (Color)
B.2.05 Carriage Assembly (Color)
Part numbers are subject to change. Refer to Okilink II for current part numbers and pricing information.
Item Okidata P/N Description Comments Refer to Disassembly
Oki-J P/N B.1.02 Procedure
1 53056002 Guide: Ribbon RSPL 3.2.26
3PP4043-2477P2 (Color)
2 53527001 Protector: Ribbon RSPL 3.2.03
4PP4043-3954G1
3 N/A Clamp 3.2.11
N/A
4 56614201 Cable: Printhead RSPL 3.2.11
3YX4043-2713G1 (Assembly)
5 50702301 Belt Clamp 3.2.15
N/A
6 51303101 Belt: Mini Pitch RSPL 3.2.15
4PB4044-1492P3 (Space)
ML395 ( 96-02-03 )
7 50069401 Carriage Assembly 3.2.19
N/A (Color)
8 N/A Spacer: Round 3.2.19
N/A
9 N/A Spacer 3.2.19
N/A
10 50315401 Screw (Color) RSPL 3.2.24
4PP4043-2745P1
11 50924001 Spring: Shift Arm RSPL 3.2.24
4PP4043-3803P1 (Color)
12 53478901 Arm: Ribbon Shift RSPL 3.2.24
4PP4043-2776G1 (Color)
13 53479001 Lever: Roller (Color) RSPL 3.2.25
4PP4043-2741G1
14 50605701 Ribbon Guide Post 3.2.26
N/A (Color)
ML395 ( 96-02-03 )
%B.2.06 Printer Unit - Black and White (1 of 3)
B.2.06 Printer Unit - Black and White (1 of 3)
Part numbers are subject to change. Refer to Okilink II for current part numbers and pricing information.
Item Okidata P/N Description Comments Refer to Disassembly
Oki-J P/N B.1.02 Procedure
1 N/A Bottom Rear Guide N/A
3PB4043-4227P1
2 N/A Bottom Guide N/A
3PB4043-4357P1
3 50054101 Platen: Assembly RSPL 3.2.09
4PA4043-2556P1
4 51214501 Gear: Platen "A" RSPL 3.2.09
3PP4043-2466P1
5 51215001 Pulley: Platen RSPL 3.2.09
4PP4043-2465G1
6 51302790 Belt: Mini Pitch (Line RSPL 3.2.09
4LP-1313-239 Feed)
7 56510601 Motor: Line Feed RSPL 3.2.10
3PB4043-4373P1 (ML395)
8 55050501 PCB: Sensor (LQEW RSPL 3.2.12
4YA4042-1462G1 or LPRW)
ML395 ( 96-02-03 )
8 55050502 PCB: Sensor RSPL 3.2.12
4YA4042-146262 [LQEW-Z]
9 56619104 Cord: Sensor PCB RSPL 3.2.12
4YS4011-4321P1 Connection
10 50054301 Assembly: Ribbon RSPL 3.2.13
4PA4043-2584G1 Feed
11 56506205 Motor: Space RSPL 3.2.14
3YX4043-2550G5 (ML395)
12 56506301 Motor: Step (Bail RSPL 3.2.17
3PB4043-2601P1 Arm) Assembly
13 50054401 Assembly: Indicator RSPL 3.2.18
4PA4043-2711G1 Shaft
14 50910701 Spring: Bail Arm RSPL 3.2.18
4PP4043-2628P1 (Left)
15 50910801 Spring: Bail Arm RSPL 3.2.18
4LB-193100-2 (Right)
16 51210201 Gear: Idle (Bail Arm) RSPL 3.2.18
5LR-193134-1
17 53478501 Bail Arm (Left) RSPL 3.2.18
3PP4043-2509P1
18 53478502 Bail Arm (Right) RSPL 3.2.18
3PP4043-2510P1
19 56509501 Fan: Cooling RSPL 3.2.16
4YX4043-4219G1
ML395 ( 96-02-03 )
%B.2.07 Printer Unit - Black and White (2 of 3)
B.2.07 Printer Unit - Black and White (2 of 3)
Part numbers are subject to change. Refer to Okilink II for current part numbers and pricing information.
Item Okidata P/N Description Comments Refer to Disassembly
Oki-J P/N B.1.02 Procedure
1 50057601 Carriage Assembly 3.2.19
2YX4043-2610G3 (Black)
2 50703701 Collar: Eccentric RSPL 3.2.19
4PP4043-2507P1 Carriage Rail
3 51110301 Shaft: Carriage RSPL 3.2.19
4PB4043-2565P1
4 53478401 Lever: Adjust RSPL 3.2.19
3PP4043-2504P1 (Printhead Gap)
5 N/A Cut Sheet Guide 3.2.20
4PB4043-2579P1
6 53478801 Block: Release Lever RSPL 3.2.20
4PP4043-2460P1 Guide
7 50907502 Spring: (Paper RSPL 3.2.20
4LB-193400-1 Chute)
8 50910201 Spring: Detent RSPL 3.2.20
4PB4043-2754P1 (Release Lever)
9 50910305 Spring: Idle Gear RSPL 3.2.20
4LB-190600-6
ML395 ( 96-02-03 )
10 51214401 Gear: Idle (Release RSPL 3.2.20
4PP4043-2458P1 Lever)
11 53478706 Lever: Release RSPL 3.2.20
3PP4043-2459P6
12 55034801 Sensor: Cut-Sheet RSPL 3.2.20
4YX4043-2576G1 Paper-End
13 53068602 Indicator: PH Gap RSPL 3.2.21
3PP4043-2505P2 (Adj Bracket)
14 56209901 Switch: Micro (Adj & RSPL 3.2.21
4YX4043-2784G1 Release Lever)
ML395 ( 96-02-03 )
%B.2.08 Printer Unit - Black and White (3 of 3)
B.2.08 Printer Unit - Black and White (3 of 3)
Part numbers are subject to change. Refer to Okilink II for current part numbers and pricing information.
Item Okidata P/N Description Comments Refer to Disassembly
Oki-J P/N B.1.02 Procedure
1 50054501 Tractor: Push (Left) RSPL 3.2.22
3YX4043-2561G1 Assembly
2 50054601 Tractor: Push (Right) RSPL 3.2.22
3PA4043-2562G1 Assembly
3 51002301 Friction: Piece RSPL 3.2.22
4PP4043-2451P1
4 51002401 Guide: Center - RSPL 3.2.22
3PP4043-2451P1 Upper
5 51002501 Guide: Center Lower RSPL 3.2.22
3PP4043-2453P1 A
6 51002601 Guide: Center Lower RSPL 3.2.22
3PP4043-2454P1 B
7 51214201 Gear: Drive A RSPL 3.2.22
4PP4043-2456P1
8 51214301 Gear: Drive B RSPL 3.2.22
4PP4043-2457P1
9 51214701 Cam: Bail Open RSPL 3.2.27
3PP4043-2764P1 (Black)
ML395 ( 96-02-03 )
%B.2.09 Printer Unit - Color (1 of 3)
B.2.09 Printer Unit - Color (1 of 3)
Part numbers are subject to change. Refer to Okilink II for current part numbers and pricing information.
Item Okidata P/N Description Comments Refer to Disassembly
Oki-J P/N B.1.02 Procedure
1 N/A Bottom Rear Guide N/A
3PB4043-4227P1
2 N/A Bottom Guide N/A
3PB4043-4357P1
3 50312103 Screw: Shoulder RSPL N/A
4LB-130100-3A (Left) Color
4 50312106 Screw: Shoulder RSPL N/A
4LB-130100-6A (Right) Color
5 50910601 Spring: Cartridge RSPL N/A
4PP4043-2642P1 Balance (Color)
6 50054101 Platen: Assembly RSPL 3.2.09
4PA4043-2556P1
7 51214501 Gear: Platen "A" RSPL 3.2.09
3PP4043-2466P1
8 51215001 Pulley: Platen RSPL 3.2.09
4PP4043-2465G1
ML395 ( 96-02-03 )
9 51302790 Belt: Mini Pitch (Line RSPL 3.2.09
4LP-1313-239 Feed)
10 56510601 Motor: Line Feed RSPL 3.2.10
3PB4043-4373P1 (ML395)
11 55050501 PCB: Sensor (LQEW RSPL 3.2.12
4YA4042-1462G1 or LPRW)
11 55050502 PCB: Sensor RSPL 3.2.12
4YA4042-146262 [LQEW-Z]
12 56619104 Cord: Sensor PCB RSPL 3.2.12
4YS4011-4321P1 Connection
13 50054301 Assembly: Ribbon RSPL 3.2.13
4PA4043-2584G1 Feed
14 56506205 Motor: Space RSPL 3.2.14
3YX4043-2550G5 (ML395)
15 56506301 Motor: Step (Bail RSPL 3.2.17
3PB4043-2601P1 Arm) Assembly
16 56509501 Fan: Cooling RSPL 3.2.16
4YX4043-4219G1
ML395 ( 96-02-03 )
%B.2.10 Printer Unit - Color (2 of 3)
B.2.10 Printer Unit - Color (2 of 3)
Part numbers are subject to change. Refer to Okilink II for current part numbers and pricing information.
Item Okidata P/N Description Comments Refer to Disassembly
Oki-J P/N B.1.02 Procedure
1 50054401 Assembly: Indicator RSPL 3.2.18
4PA4043-2711G1 Shaft
2 50910701 Spring: Bail Arm RSPL 3.2.18
4PP4043-2628P1 (Left)
3 50910801 Spring: Bail Arm RSPL 3.2.18
4LB-193100-2 (Right)
4 51210201 Gear: Idle (Bail Arm) RSPL 3.2.18
5LR-193134-1
5 53478501 Bail Arm (Left) RSPL 3.2.18
3PP4043-2509P1
6 53478502 Bail Arm (Right) RSPL 3.2.18
3PP4043-2510P1
7 50069401 Carriage Assembly 3.2.19
N/A (Color)
8 50703701 Collar: Eccentric RSPL 3.2.19
4PP4043-2507P1 Carriage Rail
ML395 ( 96-02-03 )
9 51110301 Shaft: Carriage RSPL 3.2.19
4PB4043-2565P1
10 53478401 Lever: Adjust RSPL 3.2.19
3PP4043-2504P1 (Printhead Gap)
11 N/A Cut Sheet Guide MM 3.2.20
4PB4043-2579P1
12 53478801 Block: Release Lever RSPL 3.2.20
4PP4043-2460P1 Guide
13 50907502 Spring: (Paper RSPL 3.2.20
4LB-193400-1 Chute)
14 50910201 Spring: Detent RSPL 3.2.20
4PB4043-2754P1 (Release Lever)
15 50910305 Spring: Idle Gear RSPL 3.2.20
4LB-190600-6
16 51214401 Gear: Idle (Release RSPL 3.2.20
4PP4043-2458P1 Lever)
17 53478706 Lever: Release RSPL 3.2.20
3PP4043-2459P6
18 55034801 Sensor: Cut-Sheet RSPL 3.2.20
4YX4043-2576G1 Paper-End
ML395 ( 96-02-03 )
%B.2.11 Printer Unit - Color (3 of 3)
B.2.11 Printer Unit - Color (3 of 3)
Part numbers are subject to change. Refer to Okilink II for current part numbers and pricing information.
Item Okidata P/N Description Comments Refer to Disassembly
Oki-J P/N B.1.02 Procedure
1 53068602 Indicator: PH Gap RSPL 3.2.21
3PP4043-2505P2 (Adj Bracket)
2 56209901 Switch: Micro (Adj & RSPL 3.2.21
4YX4043-2784G1 Release Lever)
3 50054501 Tractor: Push (Left) RSPL 3.2.22
3YX4043-2561G1 Assembly
4 50054601 Tractor: Push (Right) RSPL 3.2.22
3PA4043-2562G1 Assembly
5 51002301 Friction: Piece RSPL 3.2.22
4PP4043-2451P1
6 51002401 Guide: Center - RSPL 3.2.22
3PP4043-2451P1 Upper
7 51002501 Guide: Center Lower RSPL 3.2.22
3PP4043-2453P1 A
8 51002601 Guide: Center Lower RSPL 3.2.22
3PP4043-2454P1 B
ML395 ( 96-02-03 )
9 51214201 Gear: Drive A RSPL 3.2.22
4PP4043-2456P1
10 51214301 Gear: Drive B RSPL 3.2.22
4PP4043-2457P1
11 51222601 Cam: Bail Open RSPL 3.2.27
3PP4043-3321P1 (Color)
12 51214601 Gear: Bail Open RSPL 3.2.27
4PP4043-2499P1 (Color)
13 50911001 Brake Spring - B 3.2.27
N/A (Color)
14 50910901 Brake Spring - A 3.2.28
N/A
15 51215101 Gear: Ribbon Shift RSPL 3.2.28
4PP4043-2729P1 (Color)
16 51222501 Cam: Ribbon Shift RSPL 3.2.28
2PP4043-3325P1 (Color)
17 50054701 Lever: Shift Cam RSPL 3.2.29
4PA4043-2710G1 (Color)
18 50512923 Rubber Grommet (in N/A
N/A base)
ML395 ( 96-02-03 )
%B.2.12 Cables and Connectors
B.2.12 Cables and Connectors
Part numbers are subject to change. Refer to Okilink II for current part numbers and pricing information.
Item Okidata P/N Description Comments Refer to Disassembly
Oki-J P/N B.1.02 Procedure
1 56609701 Cord: AC 120V RSPL 3.2.01
3YS4011-1315P1
2 56624101 Cord: AC (220V) ML Option RSPL 3.2.01
3YS4011-1265P1 Series Right Ang
3 70000803 IBM PC Cable Kit 3.2.01
N/A (Interface Cable)
4 56614608 Operator Panel Cable 3.2.05
N/A
4 56628403 Cable: OP (ML395) RSPL 3.2.05
4LP-5466-37
5 56614301 Cable: Microswitch RSPL 3.2.05
3YX4043-2759G1 (Cover Open)
6 56212601 Switch: Interlock RSPL 3.2.05
3YX4043-4228G1 (Assembly)
ML395 ( 96-02-03 )
7 56619201 Cord: I/F Main PCB RSPL 3.2.06
3YS4011-7912G1 Connection (50P)
8 56614201 Cable: Printhead RSPL 3.2.11
3YX4043-2713G1 (Assembly)
9 56619104 Cord: Sensor PCB RSPL 3.2.12
4YS4011-4321P1 Connection
10 56614101 Cord: Power RSPL 3.2.23
4YS4011-6295G1 Connection (9 Pin)
11 56614801 Cord: Power RSPL 3.2.23
4YS4011-6253G3 Connection (13 pin)
ML395 ( 96-02-03 )
%B.2.14 Pull Tractor Assembly (Option)
B.2.14 Pull Tractor Assembly (Option)
Part numbers are subject to change. Refer to Okilink II for current part numbers and pricing information.
Item Okidata P/N Description Comments Refer to Disassembly
Oki-J P/N B.1.02 Procedure
1 56406302 Power Supply Option RSPL 3.2.23
4YB4049-1278P2 Assembly (220/240V)
ML395 ( 96-02-03 )
2 56624101 Cord: AC (220V) ML Option RSPL 3.2.01
3YS4011-1265P1 Series Right Ang
3 70021601 Bottom Tractor Feed Option 3.2.30
N/A Unit (Push)
4 70011701 Pull Tractor Assembly Option N/A
N/A (Top Mount)
5 70010601 Cut-Sheet Feeder Option N/A
N/A Single Bin CSF 30001
6 70010701 Cut-Sheet Feeder Option N/A
N/A Dual Bin CSF 30002
ML395 ( 96-02-03 )
%B.2.15 Bottom Tractor Feed Unit (Push) [BTF] (Option)
B.2.15 Bottom Tractor Feed Unit (Push) [BTF] (Option)
Part numbers are subject to change. Refer to Okilink II for current part numbers and pricing information.
ML395 ( 96-02-03 )
Item Okidata P/N Description Comments Refer to Disassembly
Oki-J P/N B.1.02 Procedure
1 70021601 Bottom Tractor Feed Option 3.2.30
N/A Unit (Push)
2 50215901 Pull-Up Roller Option RSPL N/A
4YA4043-4280G1 Assembly
3 50212604 Cover: Acoustic (Pull Option RSPL N/A
2PA4016-4722G4 Tractor) BTF
4 55066102 PCB: BTFD-2 (BTF) Option RSPL 3.2.31
4YA4042-1513G2
5 50922001 Spring: (BTF) Option RSPL 3.2.32
4PP4043-4300P1
6 51002201 Guide: Sheet (BTF) Option RSPL 3.2.33
4PP4025-2653P1
7 53063701 Door: Front Option RSPL 3.2.34
3PA4094-6159G1 (Assembly) (BTF)
8 51228801 Pulley: Drive (BTF) Option RSPL 3.2.35
3PP4053-2693P1 (ML395)
9 54111291 Belt: Mini Pitch (125 Option RSPL 3.2.35
4LP-1313-191 teeth)
10 56509401 Motor: Line Feed Option RSPL 3.2.36
3PB4043-4249P1 (BTF)
11 50057402 Tractor: Pin (Left) Option RSPL 3.2.37
4PA4043-2684G2 BTF
12 50057502 Tractor: Pin (Right) Option RSPL 3.2.37
4PA4043-2685G2 BTF
NOTE:
The Pull-Up Roller Assembly is part of the Bottom Push Tractor Unit.
ML395 ( 96-02-03 )
%B.2.16 BTF Pull-Up Roller Assembly (Option)
B.2.16 BTF Pull-Up Roller Assembly (Option)
Part numbers are subject to change. Refer to Okilink II for current part numbers and pricing information.
ML395 ( 96-02-03 )
Item Okidata P/N Description Comments Refer to Disassembly
Oki-J P/N B.1.02 Procedure
1 50215901 Pull-Up Roller Option RSPL N/A
4YA4043-4280G1 Assembly
2 50212604 Cover: Acoustic (Pull Option RSPL N/A
2PA4016-4722G4 Tractor) BTF
NOTE:
The Pull-Up Roller Assembly is part of the Bottom Push Tractor Unit.
ML395 ( 96-02-03 )
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
