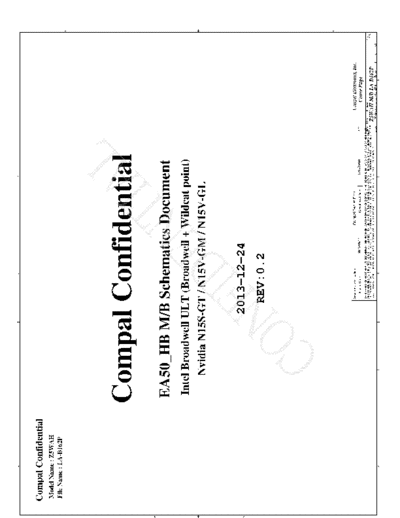

Image preview - the first page of the document
>> Download compal_la-b162p_r0.3_schematics documenatation <<
Text preview - extract from the document
A B C D E
Compal Confidential
Model Name : Z5WAH
File Name : LA-B162P
1 1
Compal Confidential
2 2
EA50_HB M/B Schematics Document
Intel Broadwell ULT (Broadwell + Wildcat point)
Nvidia N15S-GT / N15V-GM / N15V-GL
3 2013-12-24 3
REV:0.2
4 4
Security Classification Compal Secret Data Compal Electronics, Inc.
2013/09/11 2013/09/24 Title
Issued Date Deciphered Date Cover Page
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
Size Document Number Rev
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS Custom 0.3
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC. Z5WAH M/B LA-B162P
Date: Wednesday, January 08, 2014 Sheet 1 of 54
A B C D E
A B C D E
VGA eDP
LVDS LVDS-Translator
Fan Control
RTD2132R24
page
page 36
page 28 page 25
Memory BUS 204pin DDR3L-SO-DIMM X1
BANK 0, 1, 2, 3 page 15
1 HDMI Conn. Dual Channel 1
DP to VGA
ITE IT6513FN eDP
Intel Broadwell ULT 1.35V DDR3L 1333/1600
page 27 204pin DDR3L-SO-DIMM X1
BANK 4, 5, 6, 7 page 16
DDI
DP x 2 lanes
page 26 Broadwell ULT
HDMI x 4 lanes
Processor USB 3.0 USB 2.0
conn x1 conn x2 CMOS
OPI USB port 0 USB/B (port 1,2) Camera
Nvidia N15x USB port 7
with DDR3 x4 or 8
page 31 page 17~23
MINI Card Finger
WLAN PCIe 2.0 PCIe 2.0 x4
USB port 4 5GT/s 5GT/s Print
2
port 4 port 5
Wildcat point USB (port 5)
2
Flexible IO
page 33 page 33 page 25 page 33
PCH
PCIe 2.0 48MHz
5GT/s USBx8
SATA3.0 SATA3.0
port 3 6.0 Gb/s 6.0 Gb/s
port 0 port 1 HD Audio 3.3V 24MHz
Touch
LAN(GbE)/ Card Reader SATA HDD SATA CDROM Screen
Conn. Conn. HDA Codec I2C (PORT1)
Realtek 8411B 1168pin BGA USB (port 6)
page 29 ALC283
page 04~14 page 36 page 25
SPI
Card Reader RJ45 conn.
3 2 in 1 (SD) LPC BUS 3
page 32 page 32 SPI ROM x2 Int. Speaker Int. MIC Combo Jack
CLK=24MHz
page 7
page 30 ENE page 36 page 36 page 36
page 30 KB9012/9022
page 34
RTC CKT. Sub Board
page 6
LS-B161P Touch Pad Int.KBD
PS2 / I2C
PWR/B
Power On/Off CKT. page 33
page 35
page 35 page 35
LS-B162P
USB/B (port 1,2)
4
DC/DC Interface CKT. 4
page 33
page 38
LS-B163P Security Classification Compal Secret Data Compal Electronics, Inc.
2013/09/11 2013/09/24 Title
Power Circuit DC/DC BATT/B (UMA)
Issued Date Deciphered Date Block Diagrams
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
page 39~50 AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
Size Document Number Rev
Custom 0.3
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC. Z5WAH M/B LA-B162P
Date: Wednesday, January 08, 2014 Sheet 2 of 54
A B C D E
A B C D E
SIGNAL
Voltage Rails STATE SLP_S1# SLP_S3# SLP_S4# SLP_S5# +VALW +V +VS Clock
Power Plane Description S1 S3 S5 Full ON HIGH HIGH HIGH HIGH ON ON ON ON
VIN Adapter power supply (19V) N/A N/A N/A
S1(Power On Suspend) LOW HIGH HIGH HIGH ON ON ON LOW
BATT+ Battery power supply (12.6V) N/A N/A N/A
B+ AC or battery power rail for power circuit. N/A N/A N/A S3 (Suspend to RAM) LOW LOW HIGH HIGH ON ON OFF OFF
+CPU_CORE Core voltage for CPU ON OFF OFF
S4 (Suspend to Disk) LOW LOW LOW HIGH ON OFF OFF OFF
1
+VGA_CORE Core voltage for GPU ON OFF OFF 1
+0.675VS +0.675VS power rail for DDR3L terminator ON OFF OFF S5 (Soft OFF) LOW LOW LOW LOW ON OFF OFF OFF
+1.05VS_VTT +1.05V power rail for CPU ON OFF OFF
Board ID / SKU ID Table for AD channel
+1.05VSDGPU +1.05VSDGPU switched power rail for GPU ON OFF OFF
+1.35V +1.35V power rail for DDR3L ON ON OFF
Vcc 3.3V +/- 5%
+1.5VSDGPU +1.5VSDGPU power rail for GPU ON OFF OFF
Ra/Rc/Re 100K +/- 5%
Board ID Rb / Rd / Rf V AD_BID min V AD_BID typ V AD_BID max
+1.5VS +1.5V power rail for CPU ON OFF OFF
+3VALW +3VALW always on power rail ON ON ON*
0 0 0 V 0 V 0 V
+3VLP B+ to +3VLP power rail for suspend power ON ON ON
1 12K +/- 5% 0.347 V 0.354 V 0.360 V
+3VS +3VALW to +3VS power rail ON OFF OFF
2 15K +/- 5% 0.423 V 0.430 V 0.438 V
+3VSDGPU +3VS to +3VSDGPU power rail for GPU ON OFF OFF
3 20K +/- 5% 0.541 V 0.550 V 0.559 V
+5VALW +5VALWP to +5VALW power rail ON ON ON*
4 27K +/- 5% 0.691 V 0.702 V 0.713 V
+5VS +5VALW to +5VS power rail ON OFF OFF
5 33K +/- 5% 0.807 V 0.819 V 0.831 V
+RTCVCC RTC power ON ON ON
6 43K +/- 5% 0.978 V 0.992 V 1.006 V
7 56K +/- 5% 1.169 V 1.185 V 1.200 V
8 75K +/- 5% 1.398 V 1.414 V 1.430 V
9 100K +/- 5% 1.634 V 1.650 V 1.667 V
2 2
10 130K +/- 5% 1.849 V 1.865 V 1.881 V
11 160K +/- 5% 2.015 V 2.031 V 2.046 V
12 200K +/- 5% 2.185 V 2.200 V 2.215 V
Note : ON* means that this power plane is ON only with AC power available, otherwise it is OFF.
13 240K +/- 5% 2.316 V 2.329 V 2.343 V
EC SM Bus1 address EC SM Bus2 address USB Port Table BTO Option Table
Device Address Device Address
3 External BTO Item BOM Structure
USB 2.0 Port
USB Port Unpop @
Smart Battery 0001 011X On Board Thermal Senser 0100 110x
VGA Internal Thermal Senser 0100 000x
0 USB Port(Left 3.0) Connector CONN@
G Senser 0011 000x
1 USB Port(Right 2.0) EC 9022 9022@
2 USB Port(Right 2.0) EC 9012 9012@
PCH SM Bus address 3 UMA Component UMA@
EHCI1
4 Mini Card (WLAN+BT) GPU VGA@
Device Address
ChannelA DIMM0 1010 0000 JDIMM1
5 Touch Screen VRAM x 8pcs 128@
ChannelB DIMM1 1010 0010 JDIMM2
6 Camera EDP panel EDP@
3 7 Finger Print eDP to LVDS LVDS@ 3
USB 3.0 Port EMC Component EMC@
0 USB Port(Left 3.0) EMC Reserve XEMC@
1 On Board HDD HDD@
XHCI
2 G-Sensor BA@
3 TPM Module BA@
Redriver HDD BA@
BOARD ID Table Touch Screen TS@
DGPU_IDEN VGL@, VGM@, SGT@
Board ID PCB Revision CPU_IDEN HW@, BW@
0 0.1 GC6 2.0 GC6@
1 0.2 non GC6 NGC6@
2 0.3 One DMIC EA50@
3 0.4 Two DMIC EA54@
4 0.5 VRAM Selection X76@
5 1.0
4 6 4
7
Security Classification Compal Secret Data Compal Electronics, Inc.
2013/09/11 2013/09/24 Title
Issued Date Deciphered Date Notes List
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
Size Document Number Rev
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS Custom 0.3
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC. Z5WAH M/B LA-B162P
Date: Wednesday, January 08, 2014 Sheet 3 of 54
A B C D E
5 4 3 2 1
U1 U1 AAA1
CPU Haswell InteI I5-4200U 1.6G CPU Haswell Intel I3-4010U 1.7G PCB 154 LA-B162P REV0 M/B
4200@ 4010@ @
SA00006SMB0 SA00006SX70 DA60014P000
U1 U1
HASWELL_MCP_E
U1A
D D
CPU Haswell Intel I7-4500U 1.8G CPU_Haswell intel I3-4158U 2G C54 C45
<27> CPU_DP1_N0 DDI1_TXN0 EDP_TXN0 EDP_TXN0 <25>
4500@ 4158@ C55 B46
SA00006SLB0 SA00006VW40
<27>
<27>
CPU_DP1_P0
CPU_DP1_N1
B58 DDI1_TXP0
DDI1_TXN1
EDP_TXP0
EDP_TXN1
A47
EDP_TXP0
EDP_TXN1
<25>
<25>
eDP Panel
C58 B47
U1 DP to CRT <27> CPU_DP1_P1
B55 DDI1_TXP1
DDI1_TXN2
EDP_TXP1 EDP_TXP1 <25>
A55 C47
A57 DDI1_TXP2 EDP_TXN2 C46
B57 DDI1_TXN3 EDP_TXP2 A49
DDI1_TXP3 DDI EDP EDP_TXN3 B49
C51 EDP_TXP3
<26> CPU_DP2_N0 DDI2_TXN0
CPU_Haswell intel I7-4550U 1.5G C50 A45 EDP_AUXN <25>
<26> CPU_DP2_P0 DDI2_TXP0 EDP_AUXN
4550@ C53 B45 EDP_AUXP <25>
<26> CPU_DP2_N1 DDI2_TXN1 EDP_AUXP
SA00006SJ40 B54
HDMI <26>
<26>
CPU_DP2_P1
CPU_DP2_N2
C49 DDI2_TXP1
DDI2_TXN2 EDP_RCOMP
D20 EDP_COMP R1 1 2 24.9_0402_1% +VCCIOA_OUT
B50 A43 Trace width=20 mils,Spacing=25mil,Max length=100mils
<26> CPU_DP2_P2 DDI2_TXP2 EDP_DISP_UTIL
A53
<26> CPU_DP2_N3 DDI2_TXN3
B53
<26> CPU_DP2_P3 DDI2_TXP3 EDP_DISP_UTIL <25>
1 OF 19 Rev1p2
HASWELL-MCP-E-ULT_BGA1168
@
C C
HASWELL_MCP_E
U1B
C94 1 2 6.8P_0402_50V8C
XEMC@ T20 @ D61
T2 @ K61 PROC_DETECT MISC
N62 CATERR J62 XDP_PRDY#_R @ T157
+1.35V <34> H_PECI PECI PRDY K62 XDP_PREQ#_R @ T158
2 1 R68 R8 JTAG
PREQ E60 XDP_TCK_R @ T159
+1.05VS_VTT PROC_TCK
62_0402_5% 56_0402_5% E61 XDP_TMS_R @ T160
1 2 H_PROCHOT#_R K63 PROC_TMS E59 XDP_TRST#_R @ T161
<34,39> H_PROCHOT# PROCHOT PROC_TRST
THERMAL F63 XDP_TDI_R @ T162
PROC_TDI
1
C95 1 2 6.8P_0402_50V8C F62 XDP_TDO_R @ T163
R184 XEMC@ PROC_TDO
470_0603_5% R6 1 2 10K_0402_5% H_CPUPWRGD C61
PROCPWRGD PWR
C60 1 2 6.8P_0402_50V8C J60 XDP_BPM#0_R @ T164
2
XEMC@ BPM#0 H60 XDP_BPM#1_R @ T165
DIMM_DRAMRST# <15,16> BPM#1 H61 @ T148
BPM#2 H62 @ T149
2 BPM#3
DDR3 Compensation Signals R11 1 2 200_0402_1% SM_RCOMP0 AU60 K59 @ T150
C96 R13 1 2 120_0402_1% SM_RCOMP1 AV60 SM_RCOMP0 DDR3 BPM#4 H63 @ T151
Trace width=12~15 mil, Spcing=20 mils R41 1 2 100_0402_1% SM_RCOMP2 AU61 SM_RCOMP1 BPM#5 K60 @ T152
6.8P_0402_50V8C SM_RCOMP2 BPM#6
1
XEMC@
Max trace length= 500 mil DIMM_DRAMRST# AV15 J61 @ T153
DDR_PG_CTRL AV61 SM_DRAMRST BPM#7
<15> DDR_PG_CTRL SM_PG_CNTL1
B Close to AV15 B
2 OF 19 Rev1p2
HASWELL-MCP-E-ULT_BGA1168
@
A A
Security Classification Compal Secret Data Compal Electronics, Inc.
2013/09/11 2013/09/24 Title
Issued Date Deciphered Date BDW MCP(1/11) DDI,MSIC,XDP
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
Size Document Number Rev
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS Custom 0.3
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Z5WAH M/B LA-B162P
Date: Wednesday, January 08, 2014 Sheet 4 of 54
