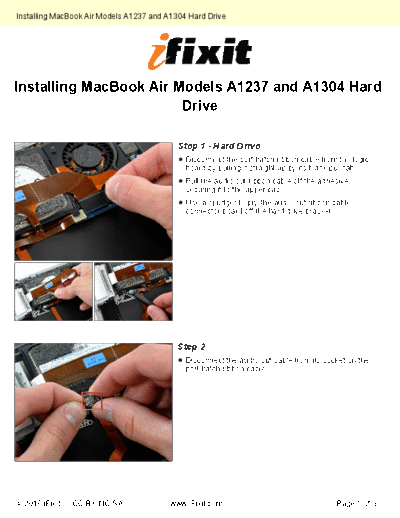

Installing MacBook Air Models A1237 and A1304 Hard Drive




Installing MacBook Air Models A1237 and A1304 Hard
                        Drive

                                           Step 1 - Hard Drive
                                             Disconnect the port hatch ribbon cable from the logic
                                             board by pulling it straight up by its black pull tab.
                                             Pull the audio out ribbon cable off the adhesive
                                             securing it to the upper case.
                                             Use a spudger to pry the audio out ribbon cable
                                             connector board off the hard drive bracket.




                                           Step 2
                                             Disconnect the audio out cable from its socket on the
                                             port hatch ribbon cable.
