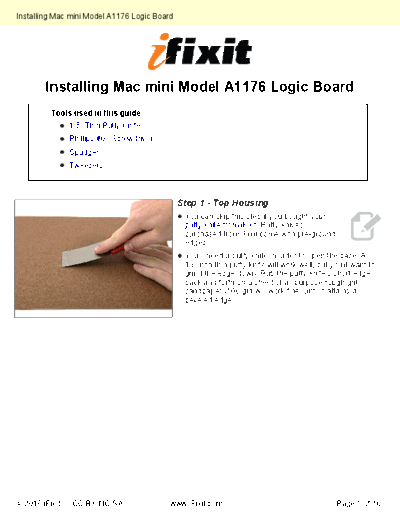

Image preview - the first page of the document
>> Download Installing-Logic-Board-1115 documenatation <<
Text preview - extract from the document
Installing Mac mini Model A1176 Logic Board
Installing Mac mini Model A1176 Logic Board
Tools used in this guide
1.5" Thin Putty Knife
Phillips #00 Screwdriver
Spudger
Tweezers
Step 1 - Top Housing
You can skip this step if you bought your
putty knife from iFixit. Putty knives
purchased from iFixit come with pre-ground
edges.
You'll need a putty knife in order to open the case. A
1.5 inch thin putty knife will work well, but you'll want to
grind the edge down. Rub the putty knife's short edge
back and forth on a sheet of all purpose rough grit
sandpaper (100 grit will work fine) until it attains a
beveled edge.
